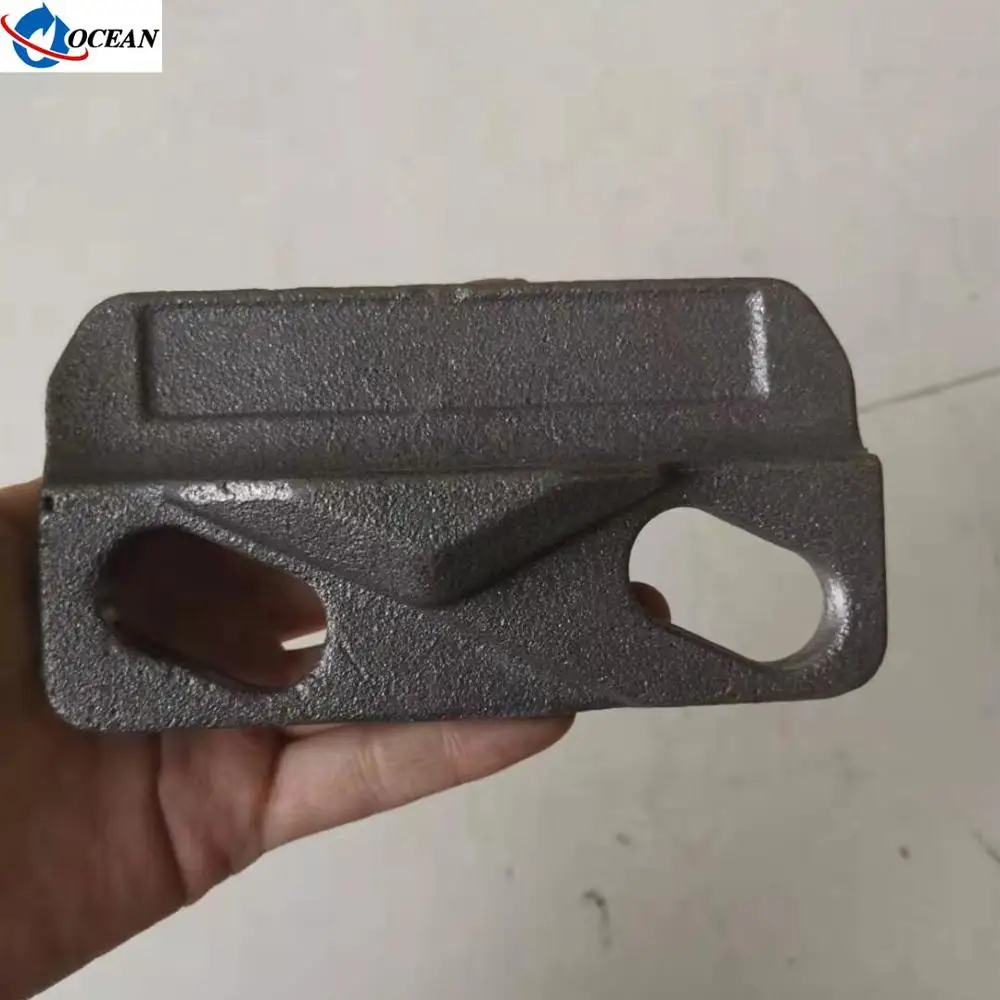

GSR W216/08/40 Welded Base Fixing Rail Clip For Fixing Heavy Rail
- Category: Railway Parts & Accessories >>>
- Supplier: Tianjin Ocean Mechanical & Electrical Equipment Co. Ltd.
Share on (62357535190):
Product Overview
Description

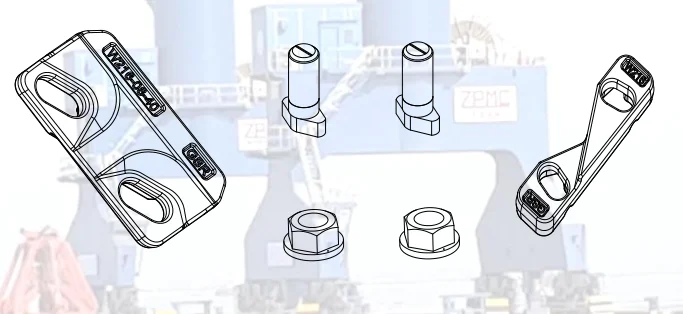

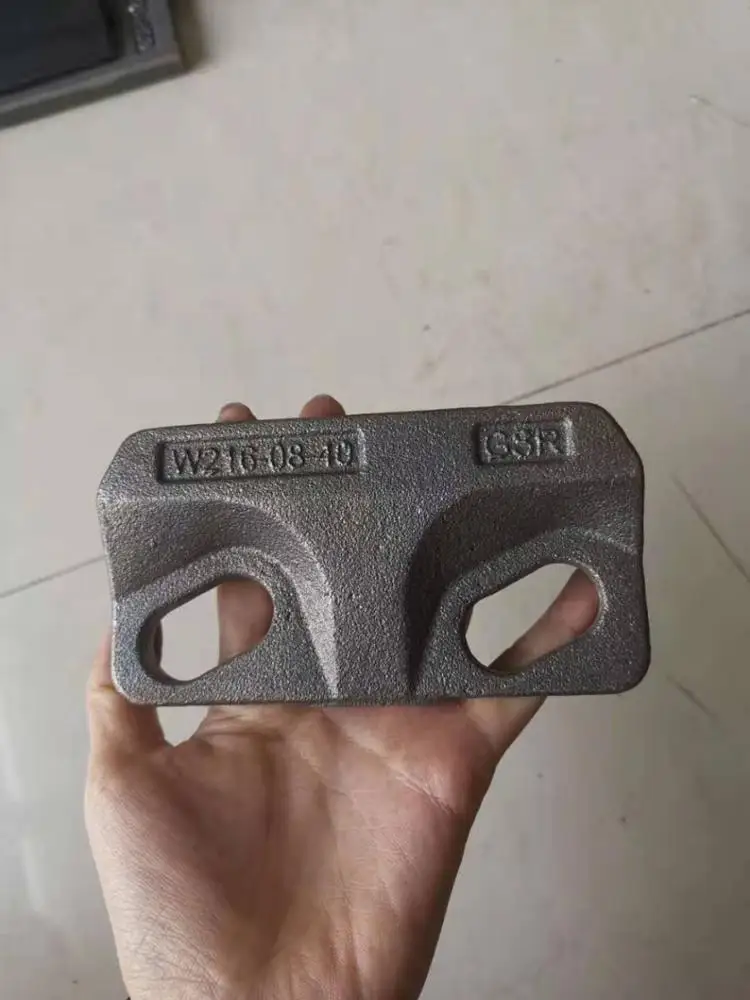

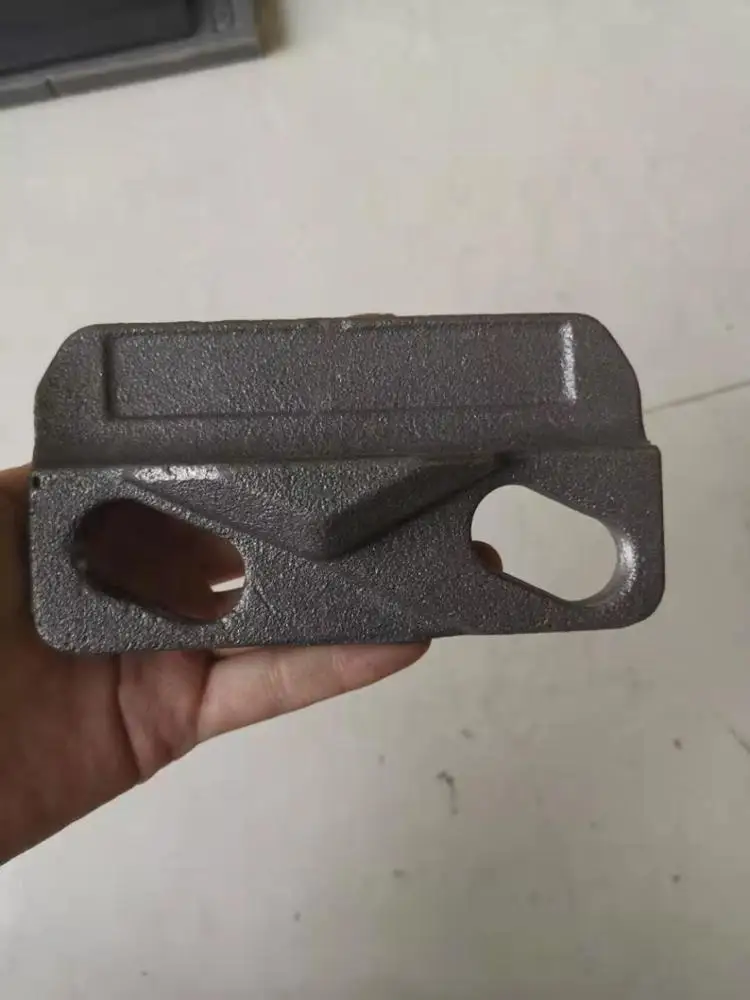

W216/08
GSR Welded Base Fixing
The GSR W216-08 adjustable crane rail clip is designed to fix heavy rails in the most arduous applications. It can withstand a horizontal force from the rail of 165kN.
Its low profile allows it to be used with cranes that are fitted with guide rollers.
SPECIFICATIONS:
Max side load : 165KN

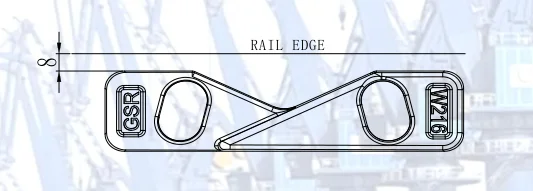

Horizontal rail adjustment : 8mm

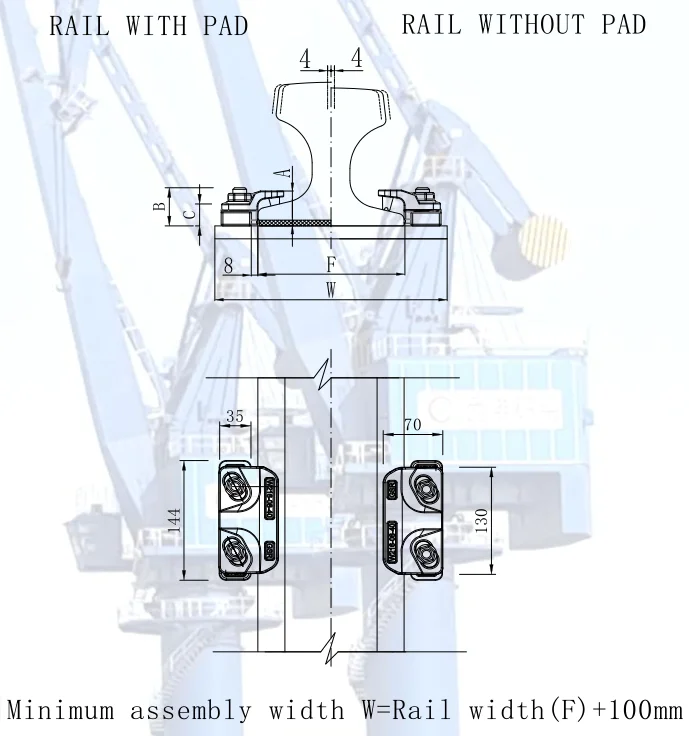

DIMENSIONS (mm):
| NO. | A | B | C | WEIGHT |
| W216/08/40 | 40 | 47 | 28 | 1.5KG |
| W216/08/44 | 44 | 47 | 28 | 1.52KG |
Weld along back and sidesof clip basewith a 5mm throat thickness fillet weld. Weld in‘V’witha 4mm throat thickness fillet weld. Use low hydrogen electrodes.
TIGHTENING TORQUE : 130Nm
Major Projects:
Company Details:
Tianjin Ocean Mechanical and Electrical Equipment Co., Ltd.( Ocean Engineering Technology Limited)
As a coucil member of China Port Association and Chinese Machinery Association of port machinery branch, is the exclusive agent of British GSR crane rail system products in China as well as the exclusive authorized dealers and manufacturers of American FiveStar building materials. It is a professional technological company specializing in designing, manufacturing, sales and installation of rail fixing systems for cranes and other transport machinery and rail related products.
Busiess scopes:
1. Supply GSR clips and pads
2. Supply all series of Five star cements and epoxy grout and repair materials.
3. Supply various domestic and international rails and service for rail cutting, drilling and bending.
4. Supply rail aluminum heat welding materials and aluminum heat welding service for rails.
5. Process and make all kinds of rail fittings, soleplates, anchor bolts and rubber pads.
6. Supply anchorage connection device for small steel structure and steel structure crane beam.
7. SupplyAnchor box,compressible joint filler,force transmission plate,jacking points,storm pin.
8. Supply bollard, cable trench, rubber fenders, buffer stops and a variety of embedded parts for wharves.
9. Supply all kinds of stainless steel products.
10.Technical service for rail systems design and installation.
