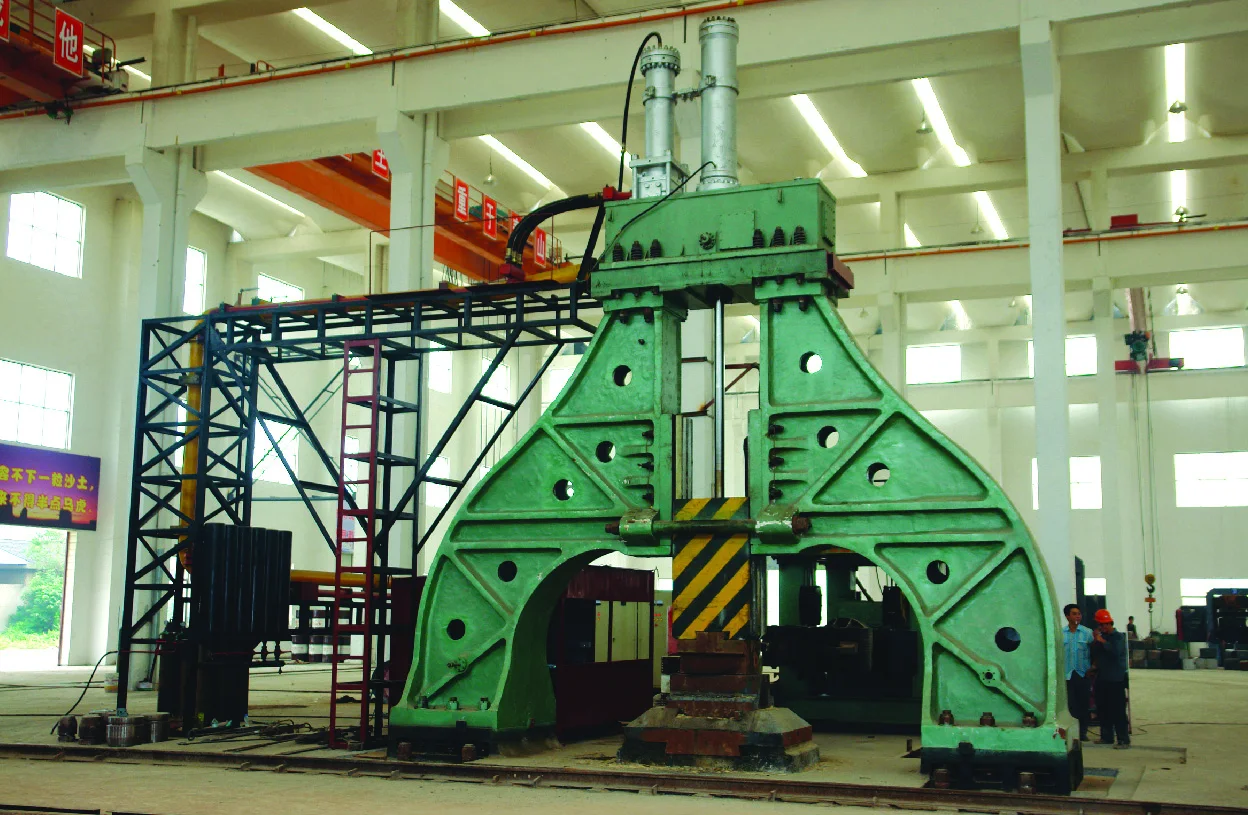

Double arm electro hydraulic hammer

Product Overview

Description





Item  /  Model	2T	3T	4T	5T	6T	7T	8T	10T	12T
Blow energy (KJ)	70	120	150	175	200	225	250	300	350
stroke (mm)	1250	1250	1600	1600	1800	1800	2000	2100	2600
Falling weight(T)	2	3	4	5	6	7	8	10	12
Forging frequency   (Long stroke)	7	60	60	60	55	55	52	50	50
Forging frequency   (Short stroke)	100	100	100	100	70-100	70-100	80	40-80	40-80
Main motor(KW)	75*2	75*4	75*4	75*5	75*5	75*6	75*7	75*8	75*9
Pressure of main   cylinder(Mpa)	9-13	9-13	9-13	9-13	9-13	9-13	9-13	9-13	9-13
Max flowrate (L/Min)	520	1040	1040	1040	1300	1560	1820	2080	2340
Overall weight   (T)	26	45	60	75	90	110	120	150	180
