4K LCD controller board RTD 9514 support DP Audio with Resolution 3840X2160 edp 40 pin 4K 10.1 inch LCD panel TV101QUM N00
- Category: LCD Boards & Accessories >>>
- Supplier: Shenzhen Caison Technology Co. Ltd.
Share on (62357729508):
Product Overview
Description
Product Description

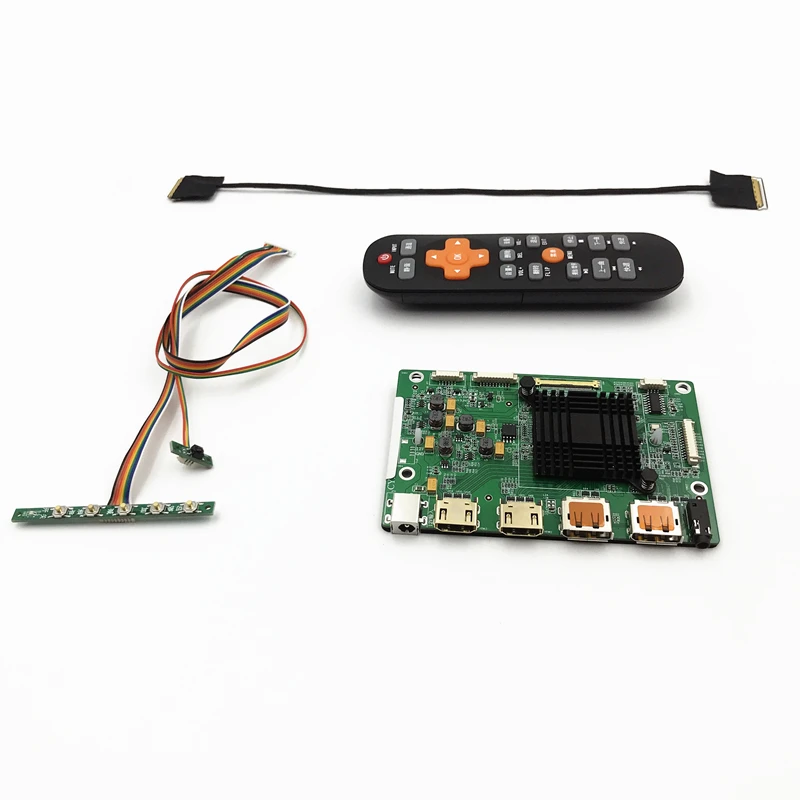

4K LCD controller board RTD 9514 support +DP+Audio with Resolution 3840X2160 edp 40 pin 4K 10.1 inch LCD panel TV101QUM-N00
1. GENERAL DESCRIPTION
RTD2795UT V1.1is a multi-purpose LCD controller board which support 4K UHD resolution LCD panel with eDP signal interface . The input signal support 2HDMI+2DP. The output signal support 4 Lanes eDP.
RTD2795UT V1.1 support Audio feature, It can support Audio signal direct input from HDMI or DP signal . The output can be from a 2X3W(8Ω) speaker or earphone .
RTD2795UT V1.1 Support HDR10 (High-Dynamic Range)technology, compared with the ordinary images, can provide more Dynamic Range and image details, according to the different exposure time of LDR(Low Dynamic Range) image, using each exposure time corresponding to the best details of the LDR images to HDR image synthesis, in the end, can better reflect the visual effect in the real environment.
RTD2795UT V1.1 Support the FreeSync 2 technology of AMD graphics card, improve the Tearing and stuck issue ,finally improved the picture quality .
2. FEATURES
CHIPSET | RTD2795UT(Realtek) | |
LCD PANEL | Panel Type | LED/LCD |
Interface | 4 Lane edp (1/2 CH) | |
Max Resolution | 3840X2160@60Hz | |
OSD LANGUAGE | Simple Chinese,English is default. Other language support customized. | |
VIDEO INPUT | HDMI | Support HDMI 2.0, 4K@60HZ video signal decoding |
DP | ||
AUDIO OUTPUT | Frequency Response | 100Hz~15KHz @±3dB (1KHz, 0dB reference signal) |
Max Output power | 2×3W(8Ω) THD+N<10%@1KHz (Power Supply: 12V, Audio Input: 0.5VRMS) | |
POWER | Requirement | 12V |
To Panel | 3.3V/5V/12V | |
Management | Standby Power Consumption < 1W(Board Only) | |
KEY FUNCTION | 5 Keys | POWER,MENU,VOL+/Source ,VOL-,ADJUST/EXIT |
Extend Function | IR control , Backlight brightness control, Display rotate 180 degree OSD Menu direction Adjustable(0,90,180,270 degree Start-up Logo and OSD Menu Language customized Input signal can automatic detection or Manual selection Multiple options for Aspect Ratio(Full Screen,1:1,16:9,4:3,5:4,User)
| |

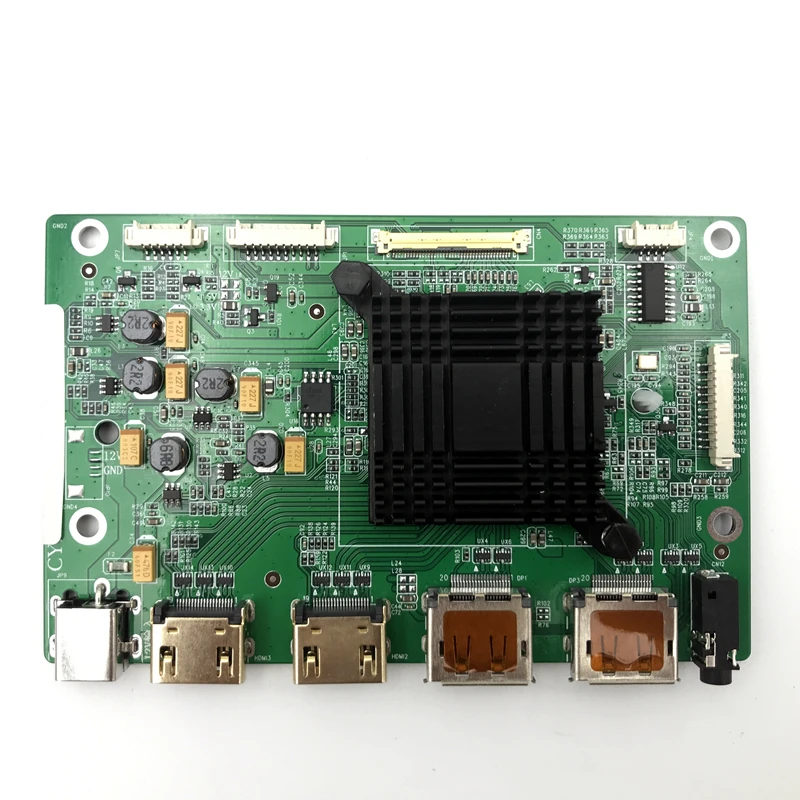

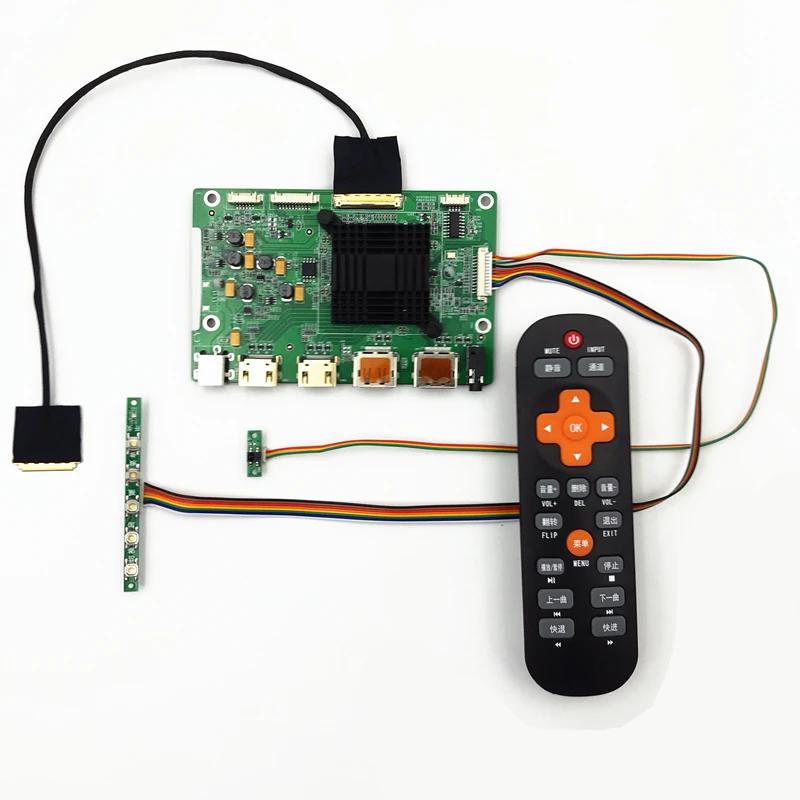

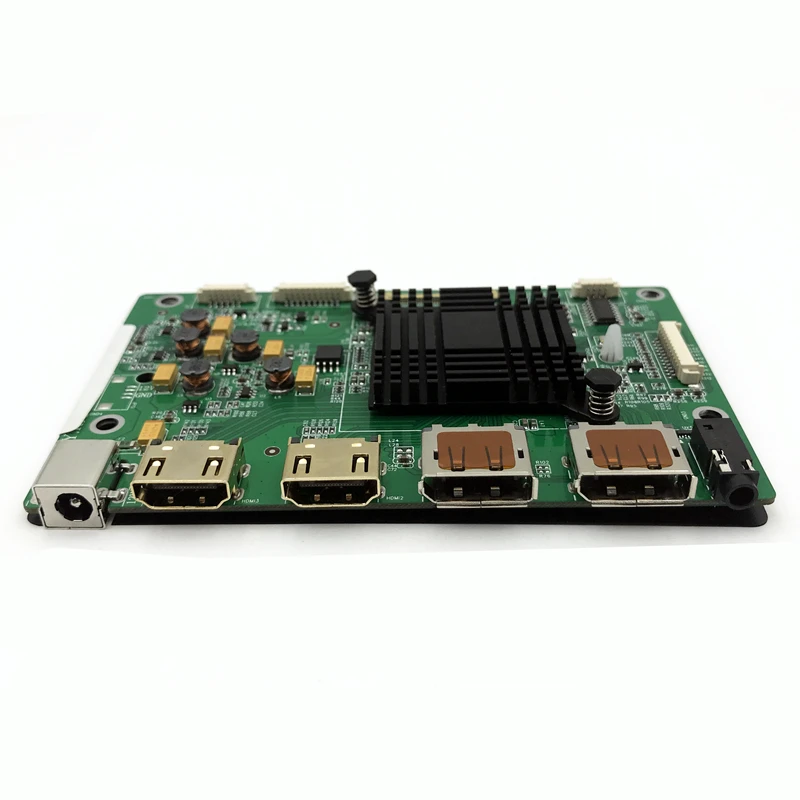

3. FUNCTION LAYOUT
The picture is for a reference only, the actual item is the standard.

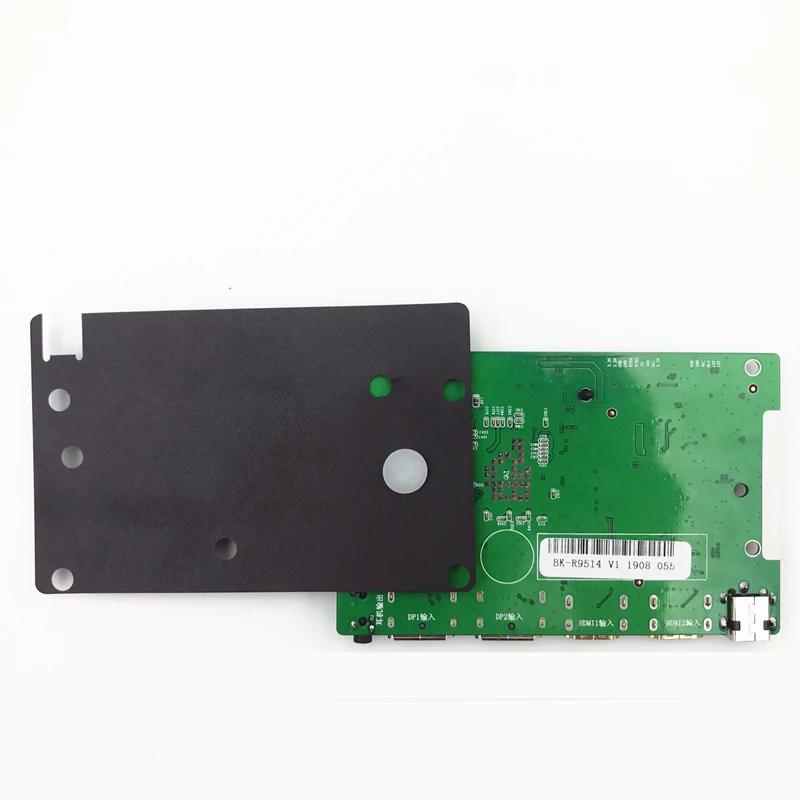

4. PCB MECHANICAL DIMENSION
6.Application Field
We also can offer other size LCD controller kit for various 4K LCD panel :
If you want to buy there products , Please click below link with related product name :
