Горячая Распродажа, высококачественные электрические клеммные разъемы, высоковольтные разъемы для шин высокого напряжения
- Category: EV Connectors >>>
- Supplier: Suzhou Chilye Green Technology Co. Ltd.
Share on (62358569376):
Product Overview
Description
Model Number | CL-HVC280-21X | Application | Electric Vehicle |
HV cable | 16-50mm² | Interlock cable | 0.5 mm² |
Material | Plastic sealed connector | Rated voltage | 800V |
Rated current | 40A max, 85 ℃ | Insulation resistance | Over 200MΩ |
Temperature range | -40℃ to +125℃ | Shielding range | 360 degree shield |
Electric protection level | IP2XB | Connecting protection level | IP67,IP6K9K |

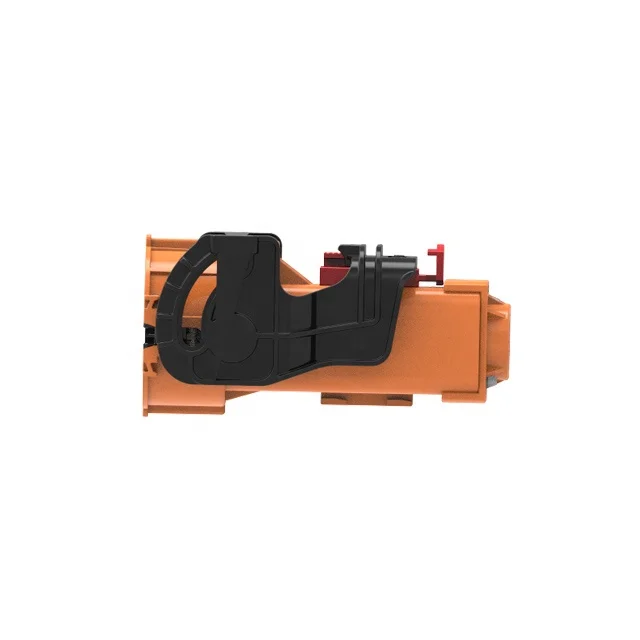

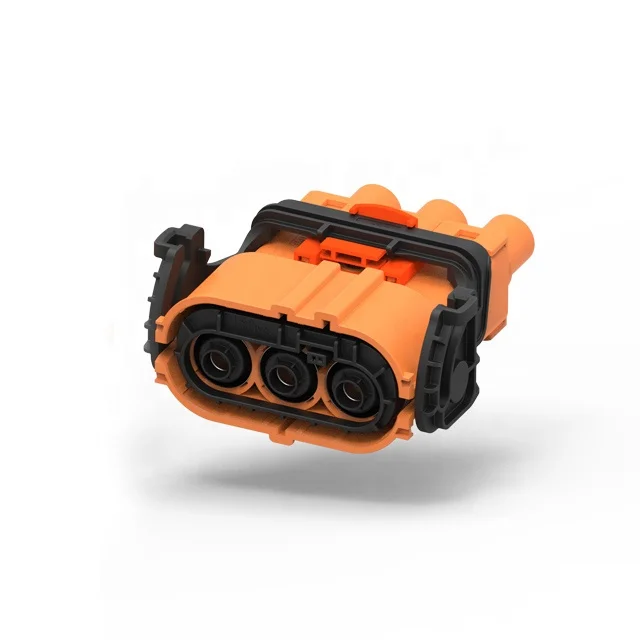

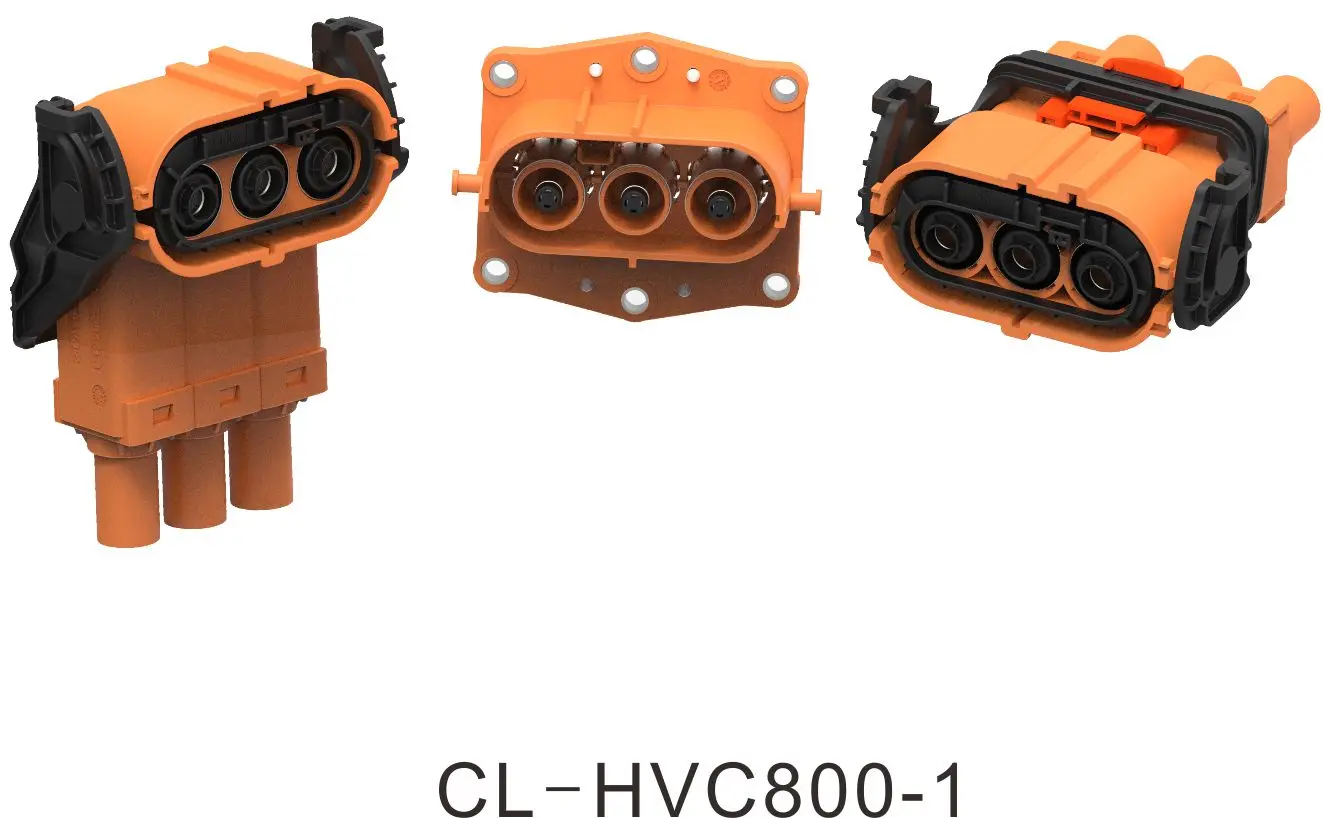

High Voltage Connectors
HVC series connectors integrate touch-proof design, good EMC shielding performance,
high IP rating, high voltage interlock loop (HVIL),
providing safe and reliable high voltage connection solutions to electric vehicles and hybrid electric vehicles.
