Suncenter gas air compressor with max 50 Mpa pressure
US $2000-$15000
ZW 0.6/6 10 oil free compressor head/nitrogen compressor/compresor de aire
- Category: General Industrial Equipment >>>
- Supplier: Bengbu AOT Compressor Co. Ltd.
Share on (62359183380):
Product Overview
Description
Product Description

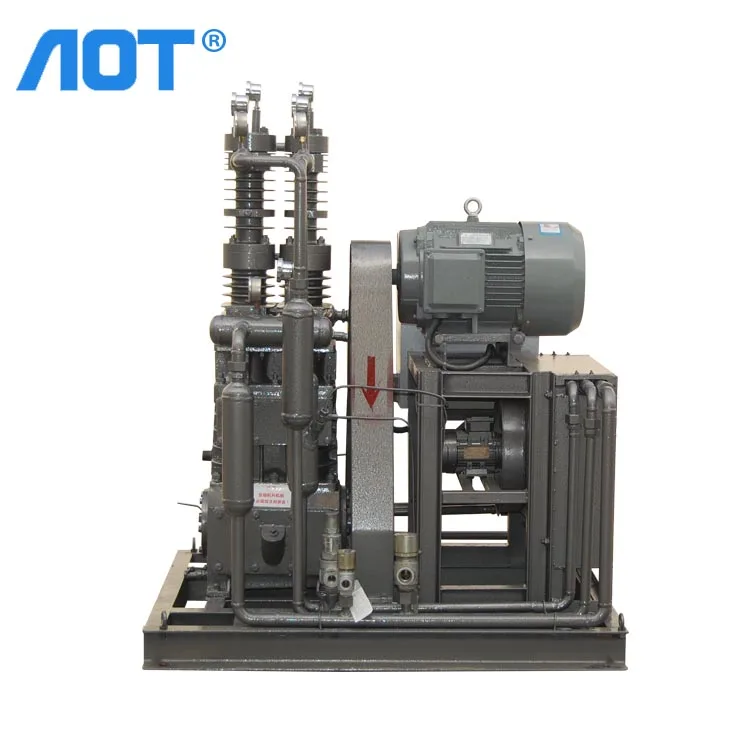

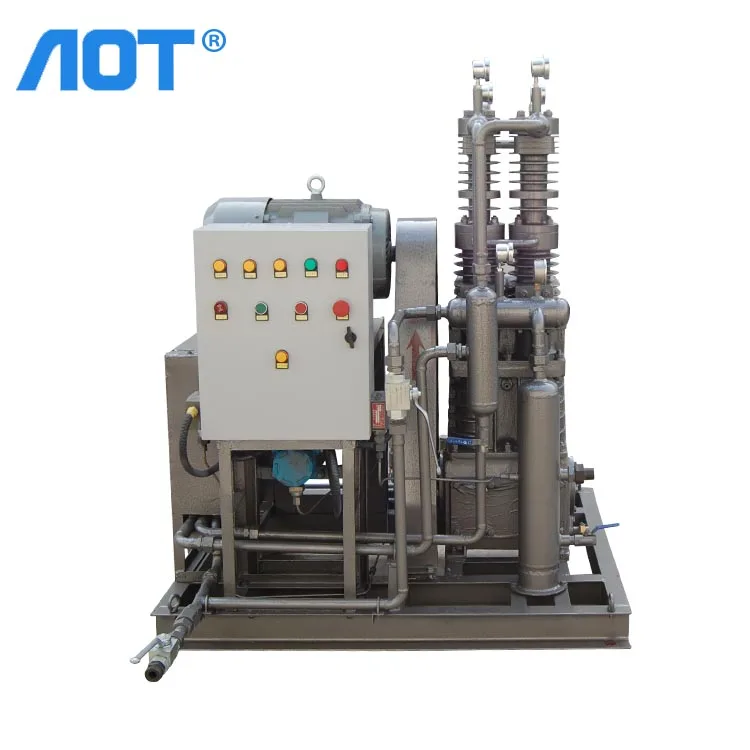

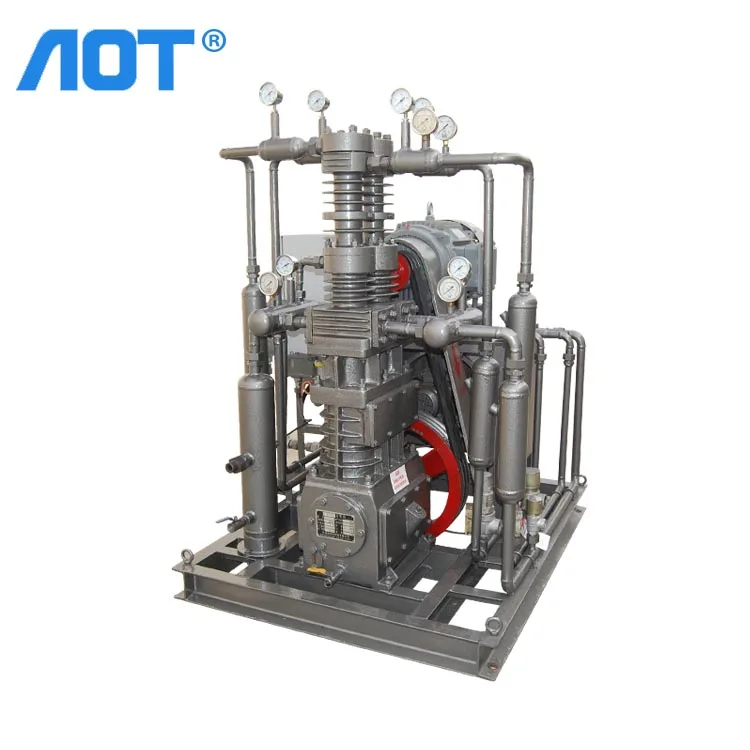

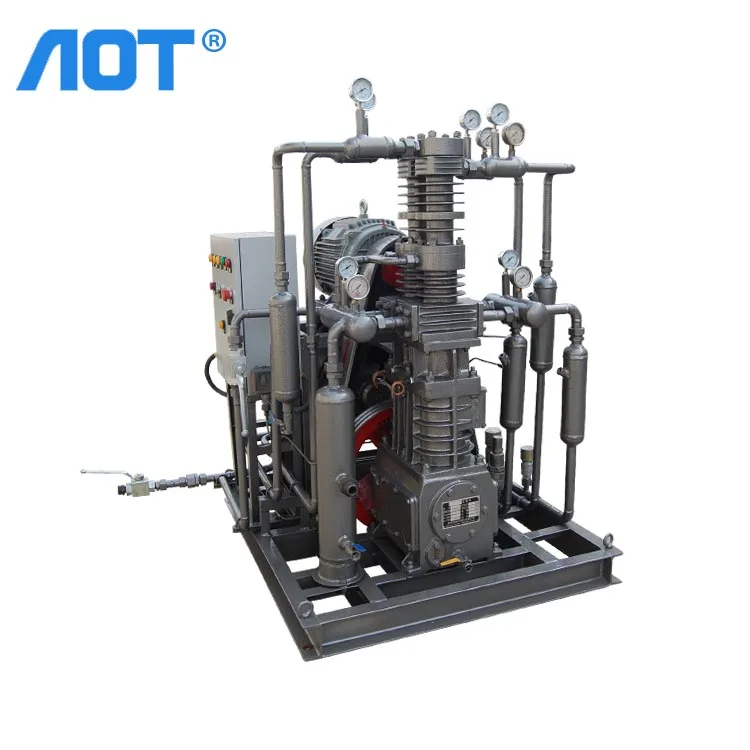

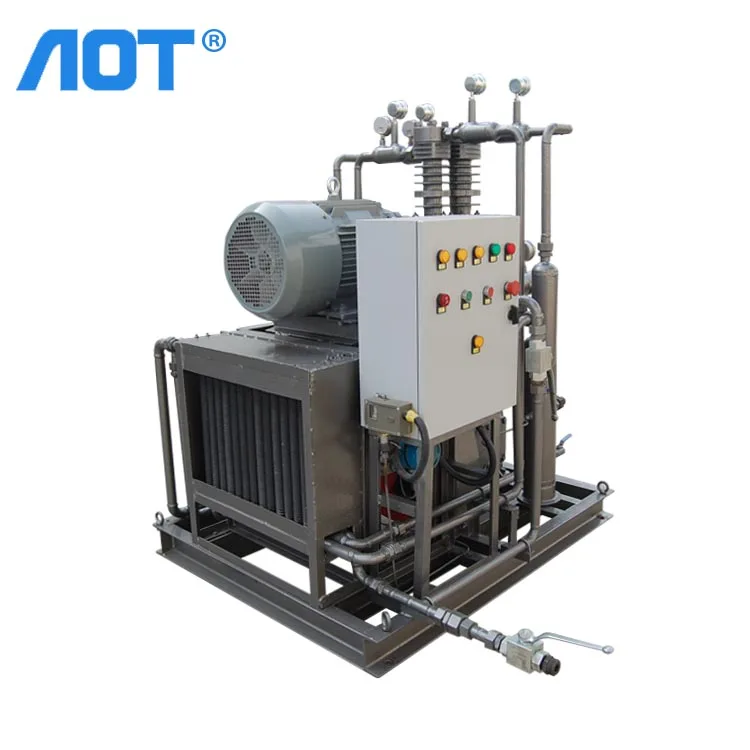

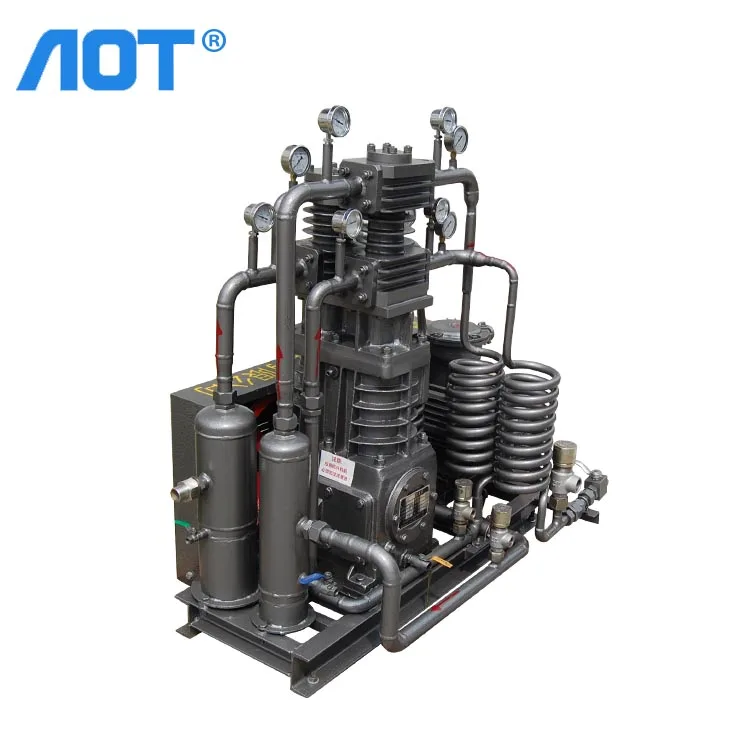

ZW-0.6/6-10 oil free compressor head/nitrogen compressor
The compressor adopts oil-free lubrication structure and can run continuously for a long time. Meet the process
requirements,suitable for all kinds of gases. All oil-free lubrication compressors with various parameters and requirements can be customized according to customer requirements.
Main industry: compression equipment
Various types of gas compressor: ammonia compressor/oxygen compressor/hydrogen compressor/hydrogen chloride gas compressor/compressor/freon compressor/nitrogen compressor/co2 compressor/methane compressor/liquefied petroleum gas compressor/propylene compressor/gas compressor/mixture compressor/BOG compressor/raw material gas compressor
Various types of gas compressor: ammonia compressor/oxygen compressor/hydrogen compressor/hydrogen chloride gas compressor/compressor/freon compressor/nitrogen compressor/co2 compressor/methane compressor/liquefied petroleum gas compressor/propylene compressor/gas compressor/mixture compressor/BOG compressor/raw material gas compressor
Detailed Images
Features:
The whole machine has the characteristics of safety and reliability, high stability, complete configuration and convenient maintenance
Technical Parameters
Compressor | Product Model | ZW-0.6/6-10 | |||
Type | Z Type | ||||
Compressed medium | Nitrogen(99.99%) | ||||
Nominal volume flow(Nm3/h) | 250 | ||||
Compression stage | 1 | ||||
Cylinder number | 2 | ||||
Driving mode | Belt | ||||
Noise (sound pressure level) dB(A) | ≤75 | ||||
Cooling mode | Water cooling | ||||
Rotational speed (r/min) | 550★ | ||||
Suction pressure(MPa) | 0.6 | ||||
Discharge Pressure(MPa) | 1.0 | ||||
Suction temperature (℃) | ≤40 | ||||
Discharge temperature (℃) | ≤140 after cooling ≤40 | ||||
Lubrication type | Crankshaft, connecting rod, cross head | Oil lubrication | |||
Cylinder, Packing | Oil-free lubrication | ||||
Motor | Model | Y3-160M-4 | |||
Explosion-proof grade | |||||
Rotational speed (r/min) | 1460★ | ||||
Rated voltage (V) | 380 | ||||
Rated frequency(Hz) | 50 | ||||
Rated current (A) | 21.6 | ||||
Rated power (KW) | 11 | ||||
Compressor size (L×W×H) mm | ≈1600×800×1000★ | ||||
Weight(kg) | ≈950★ | ||||
Scope of supply
No. | Name | Number |
1 | Compressor host | 1 Gas over-flow part stainless steel |
2 | Motor | 1 |
3 | Gas-liquid separator | 1 |
4 | Shared chassis | 1 |
5 | The relief valve | 1 Stainless steel |
6 | Belt | 1 set |
7 | Piping components | 1 set |
8 | Random spare parts | 1 set |
9 | The technical documentation | 1 set |
10 | Water cooling system | 1 set Stainless steel |
Related Products
FIVE REASONS TO CHOOSE AOT COMPRESSOR:
1.Overall skid-mounted humanized design:
Adopt integral skid-mounted design, compact structure, more convenient operation and maintenance.
2."Tailored" for customers:
According to the usage parameters and requirements provided by customers, provide the best solution to fully meet the needs of customers.
3.A machine a file:
Record the relevant data and information of the whole process of the equipment and the delivery place in detail, so as to
facilitate the timely tracking service.
4.24Monthly free warranty
All factory compressors are Free warranty for 24 months, lifetime warranty, so that users can be more assured.
5.Perennial spare parts support
Our company stock spare parts for every factory compressor, to ensure the long-term use of users, remove users' worries.
1.Overall skid-mounted humanized design:
Adopt integral skid-mounted design, compact structure, more convenient operation and maintenance.
2."Tailored" for customers:
According to the usage parameters and requirements provided by customers, provide the best solution to fully meet the needs of customers.
3.A machine a file:
Record the relevant data and information of the whole process of the equipment and the delivery place in detail, so as to
facilitate the timely tracking service.
4.24Monthly free warranty
All factory compressors are Free warranty for 24 months, lifetime warranty, so that users can be more assured.
5.Perennial spare parts support
Our company stock spare parts for every factory compressor, to ensure the long-term use of users, remove users' worries.
Our Company
Bengbu AOT Compressor Co., is located in Bengbu Anhui.China. This is the world's important compressor production base. The company specializes in the development, manufacturing and sales of compressor products. The company is mainly engaged in the new type of high efficiency and environment-friendly special gas compressor for oxygen, hydrogen, menthane , liquefied gas, natural gas and gas station and chemical industry. The company has always adhered to the scientific and technology and design concept of compressor industry at home and abroad, combined with the actual situation in China, and applied scientific enterprise management and advanced manufacturing techiology in the design, development, assembly process and testing means. Product quality, to create first-class products.
Our Services
Two-years warranty period for whole machine except of tubes and human factors etc, and 24-month of after-sale service from the date when you receive machine or 24 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
Packing & Delivery
FAQ
Please tell me inlet pressure,outlet pressure,voltage frequency,capacity,the usage of compressor, I will recommend a nitrogen compressor .
If you want to send me the inquiry,please fill the below technical information:
1. The flow rate: _____Nm3/hr
2. Inlet pressure: _____ Bar
3. Discharge pressure: _____ Bar
4. Voltages and Frequency : ______V/PH/HZ
5.nitrogen compressor .application:
If you are interested in it,please contact me freely
