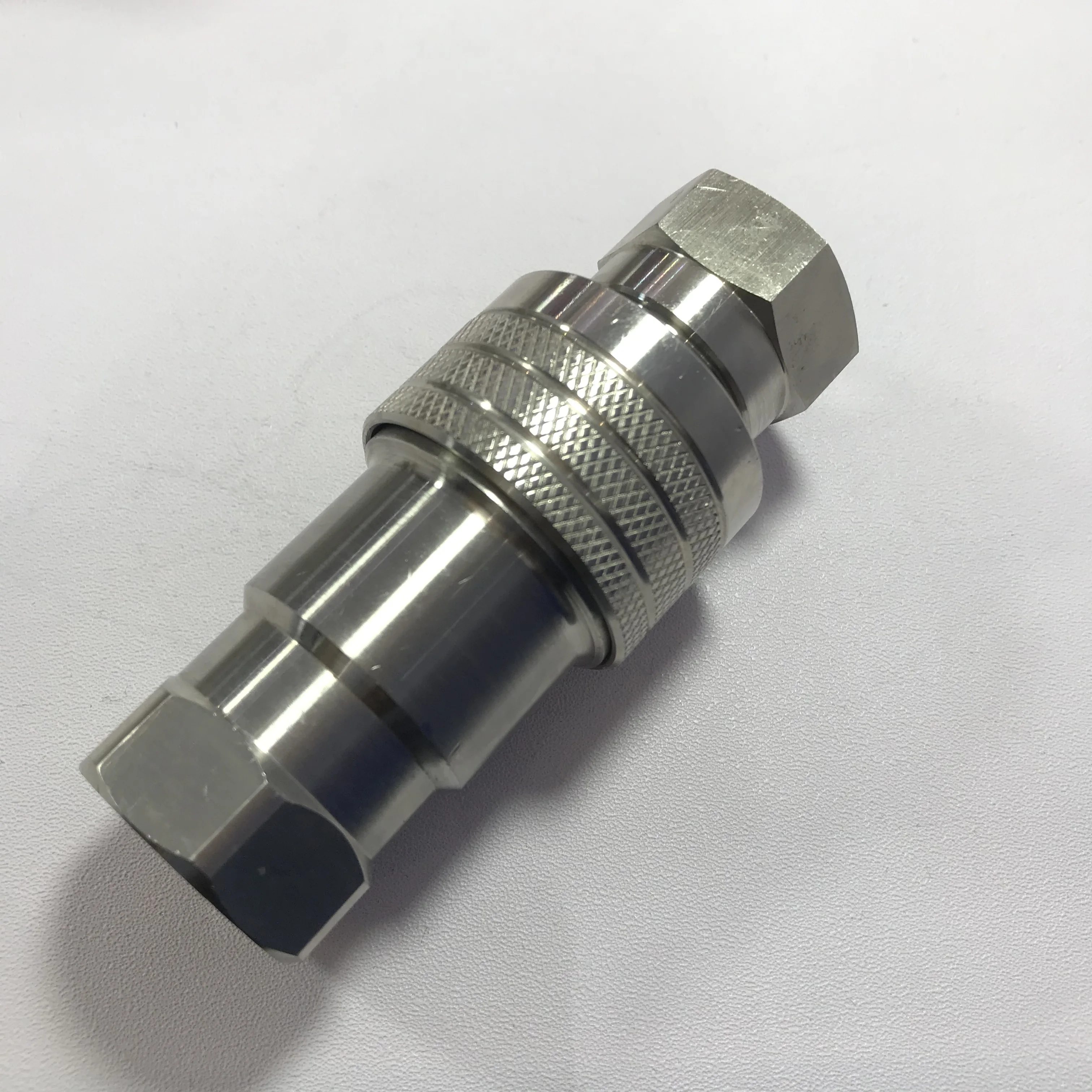

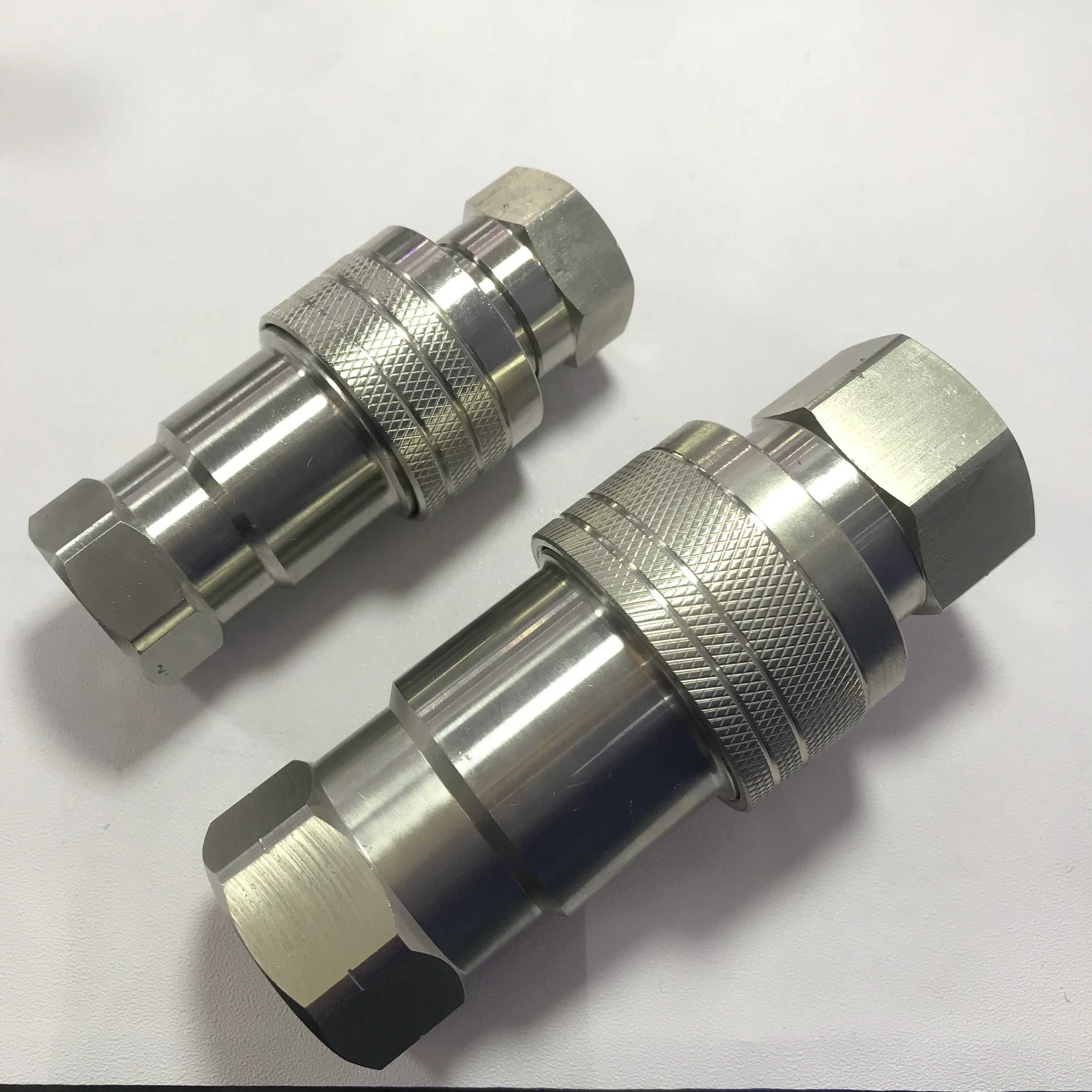

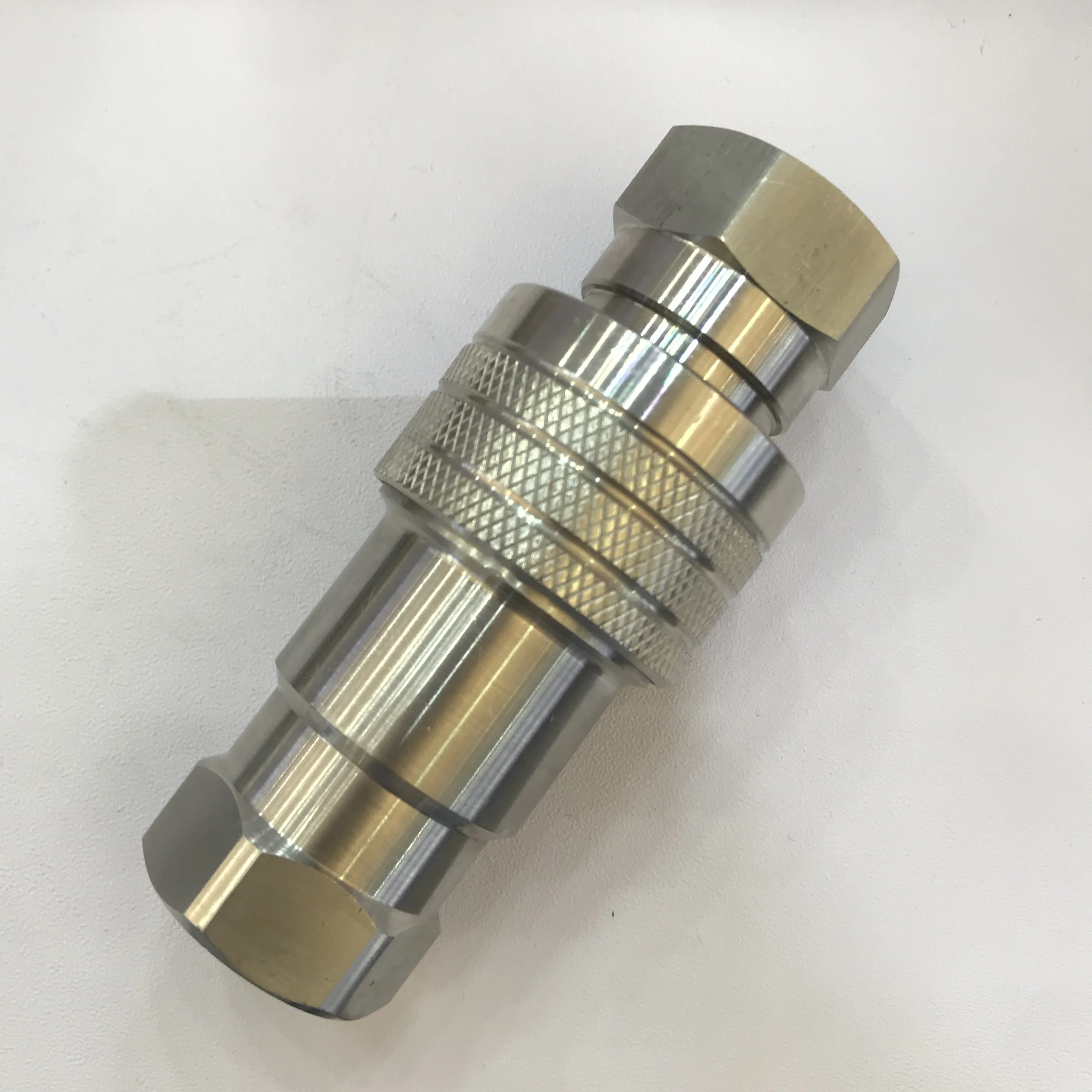

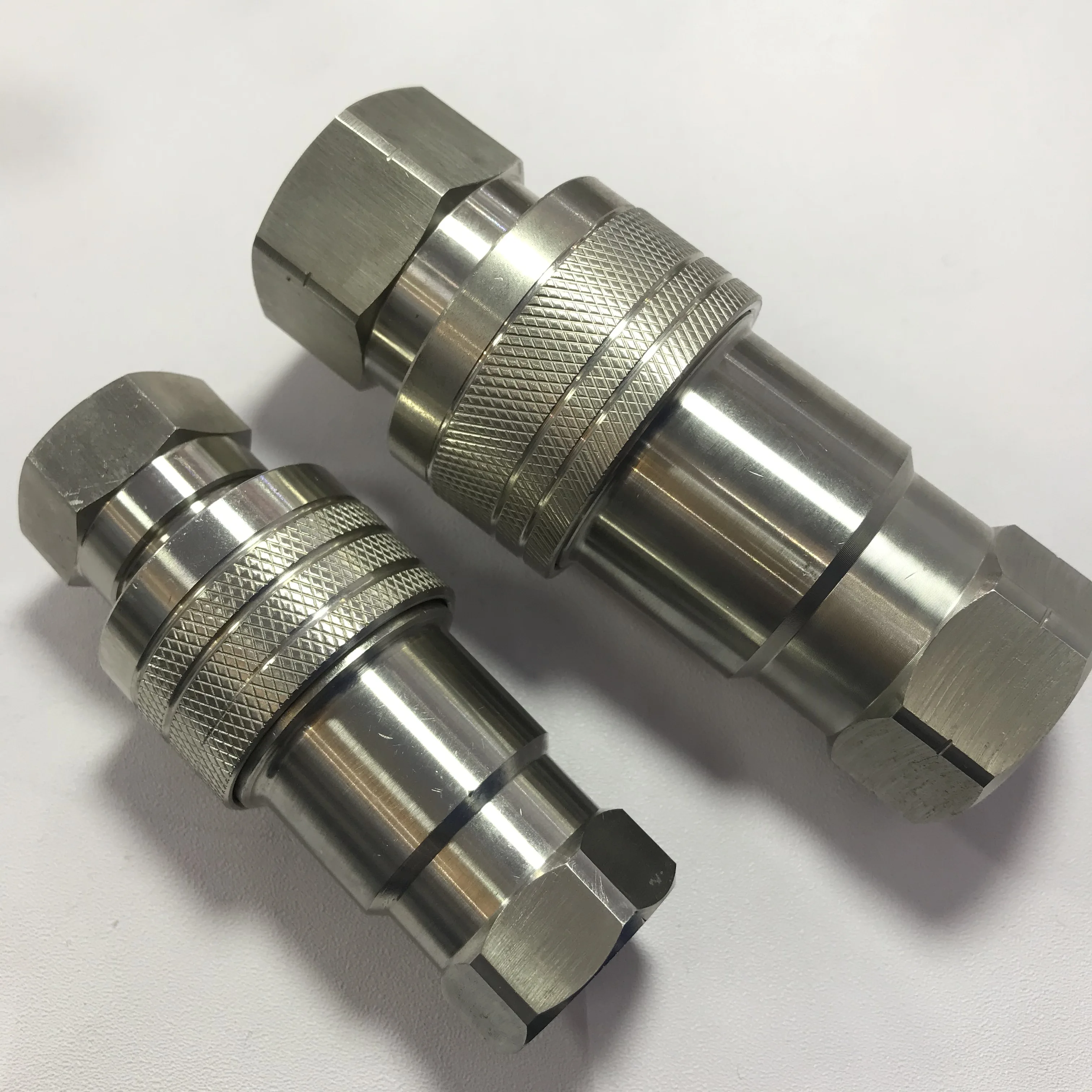

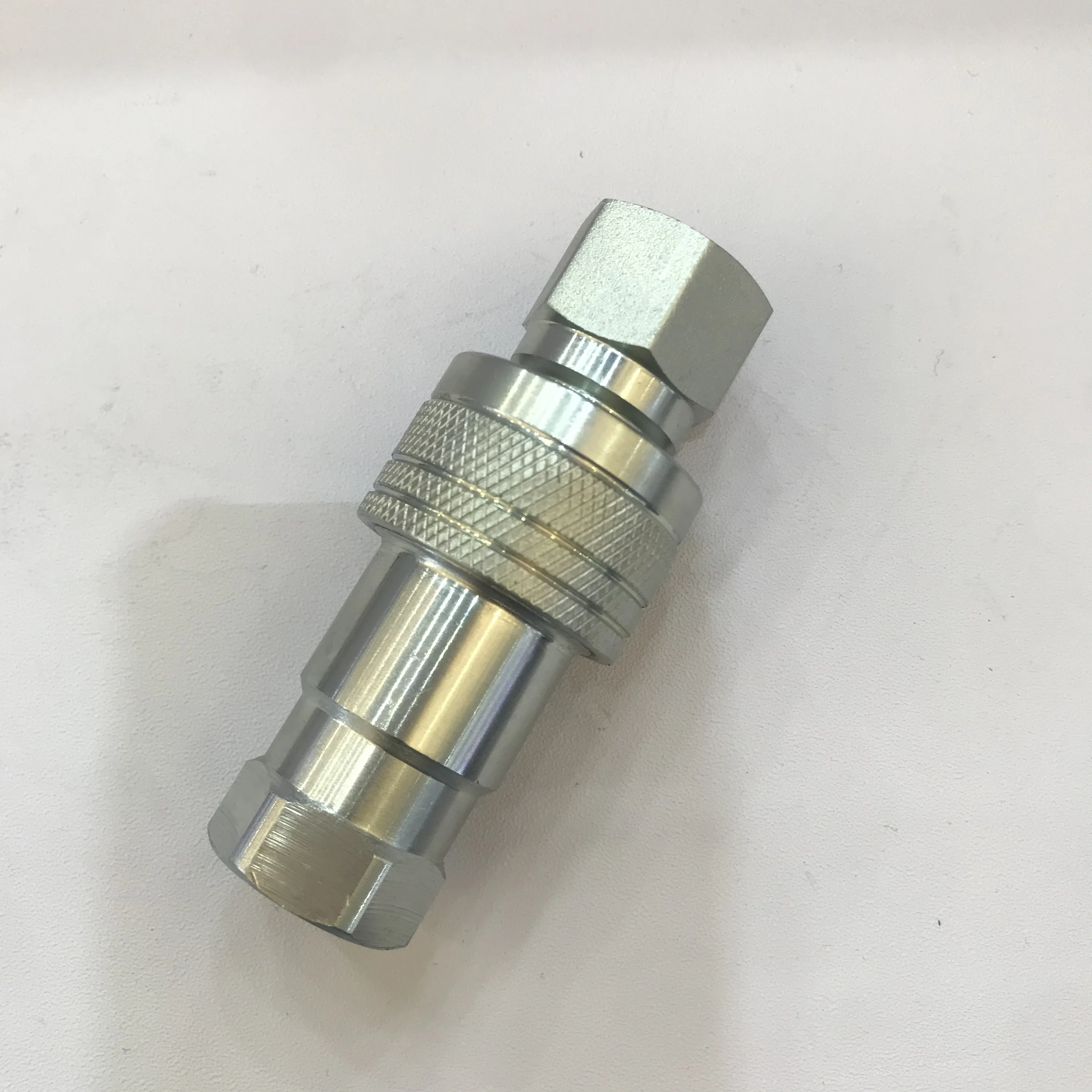

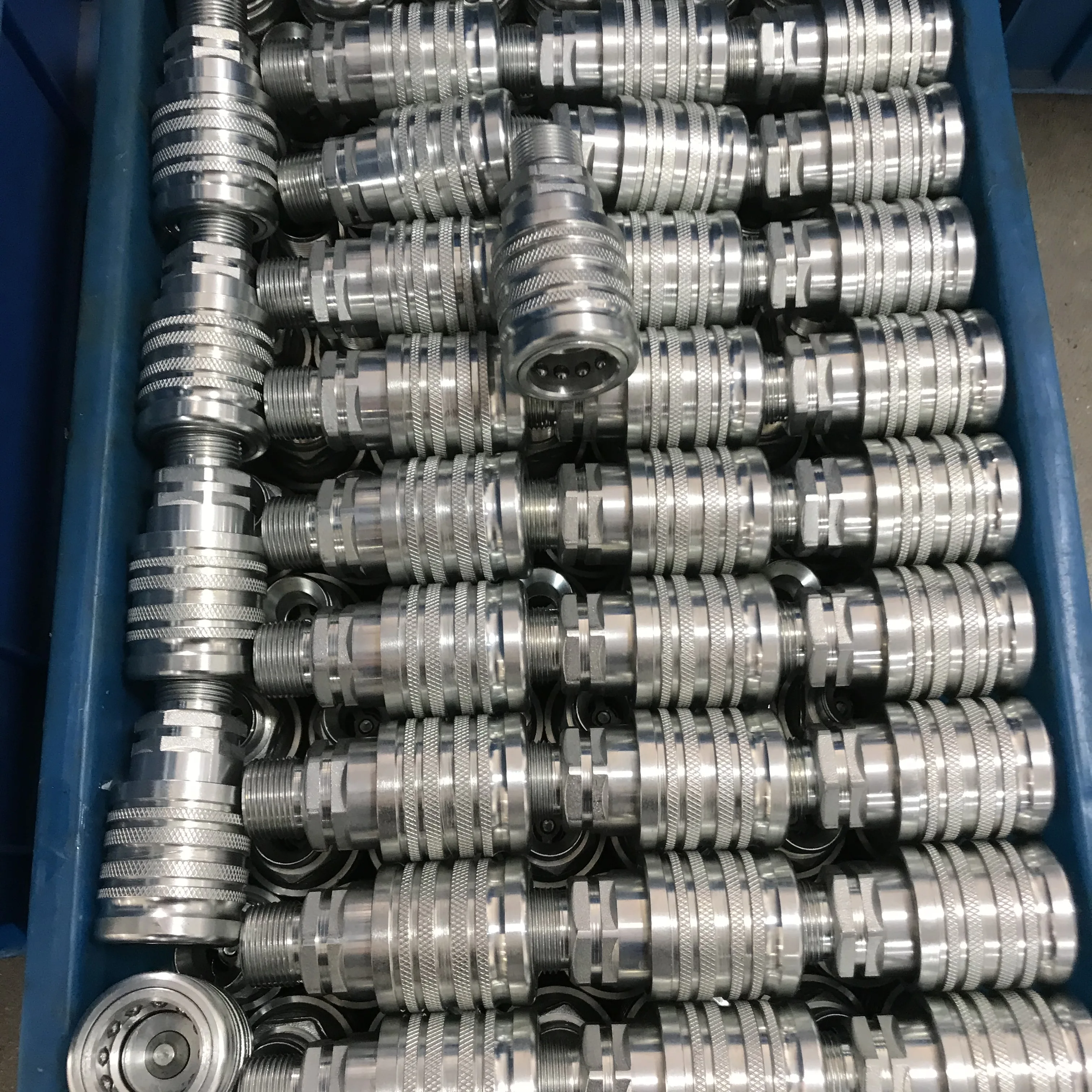

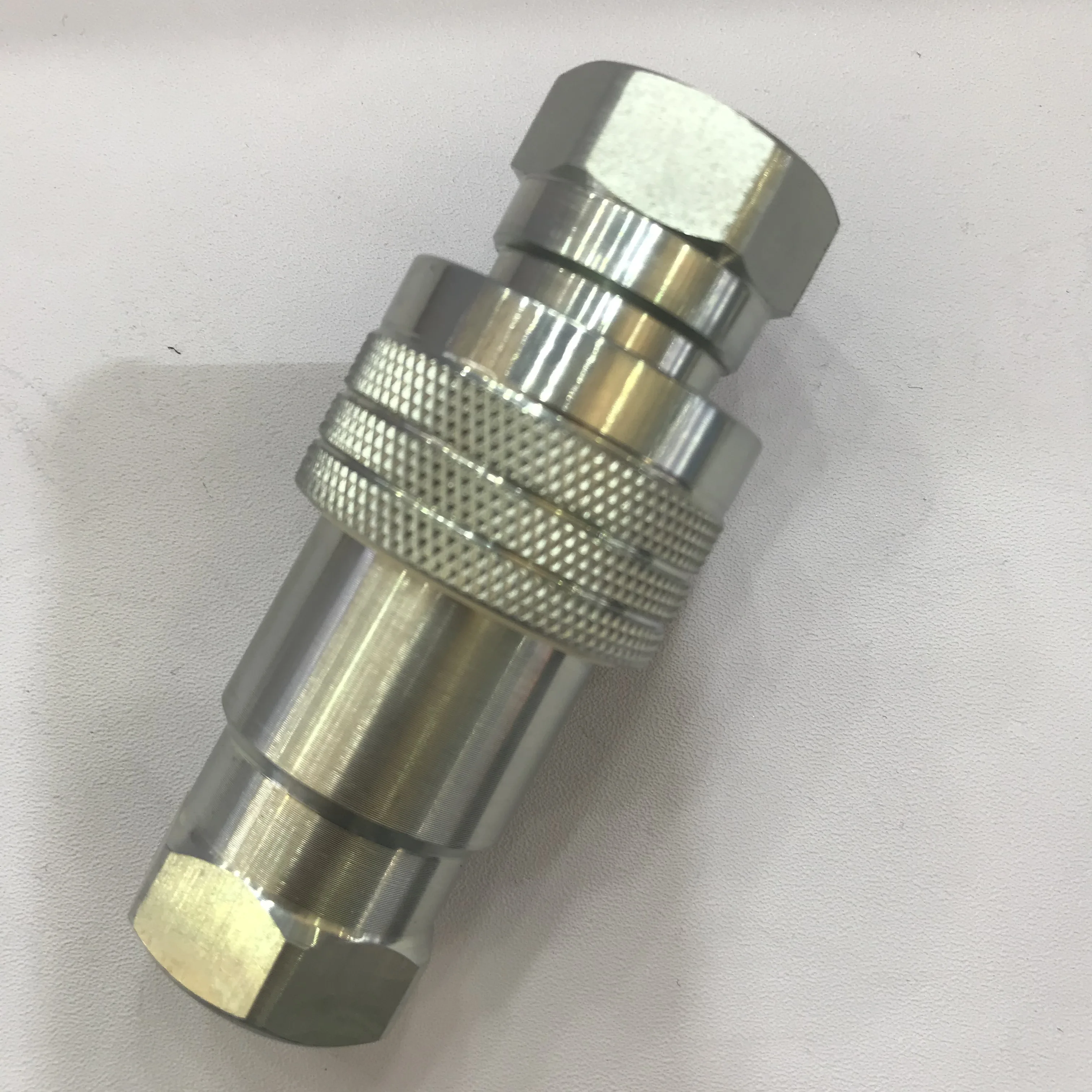

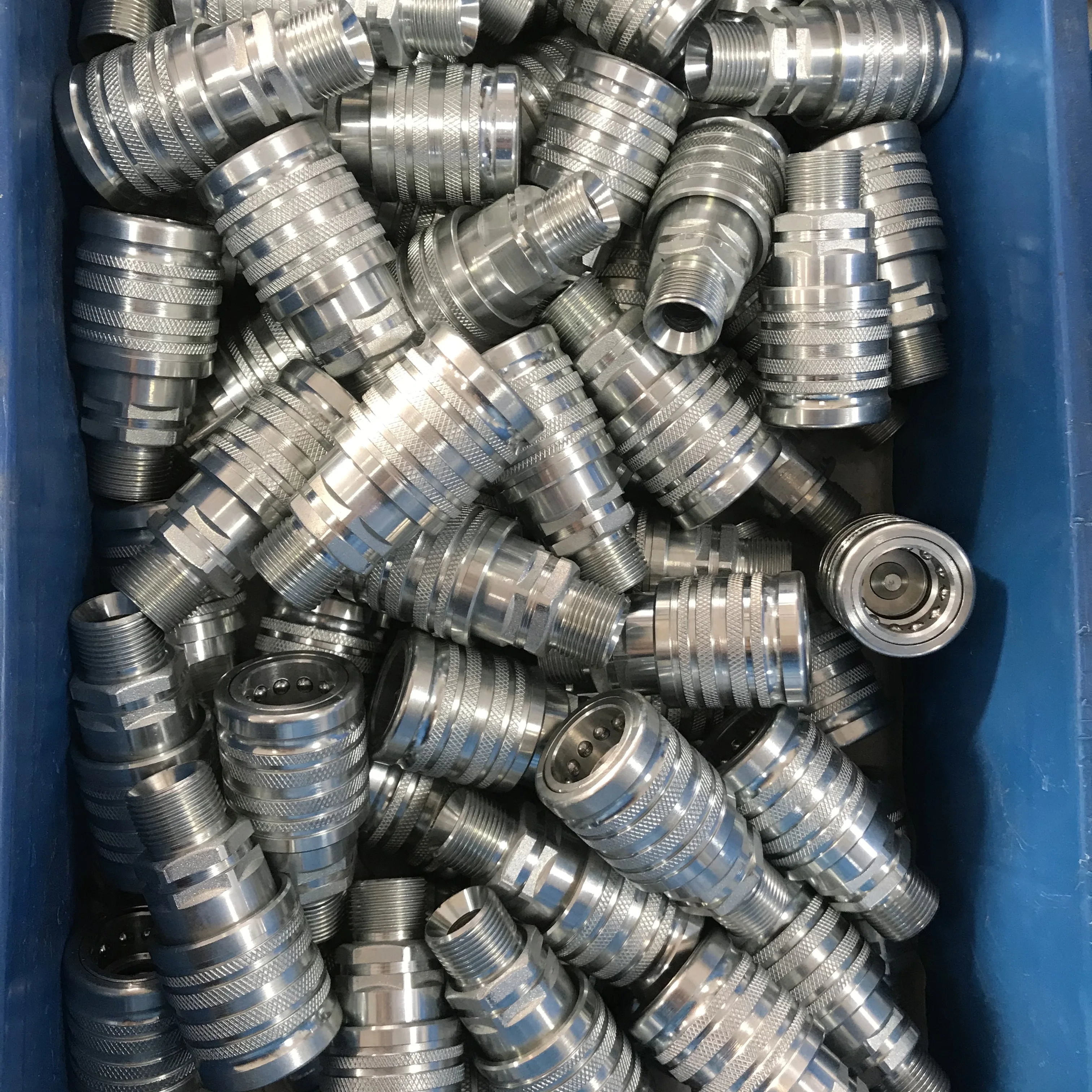

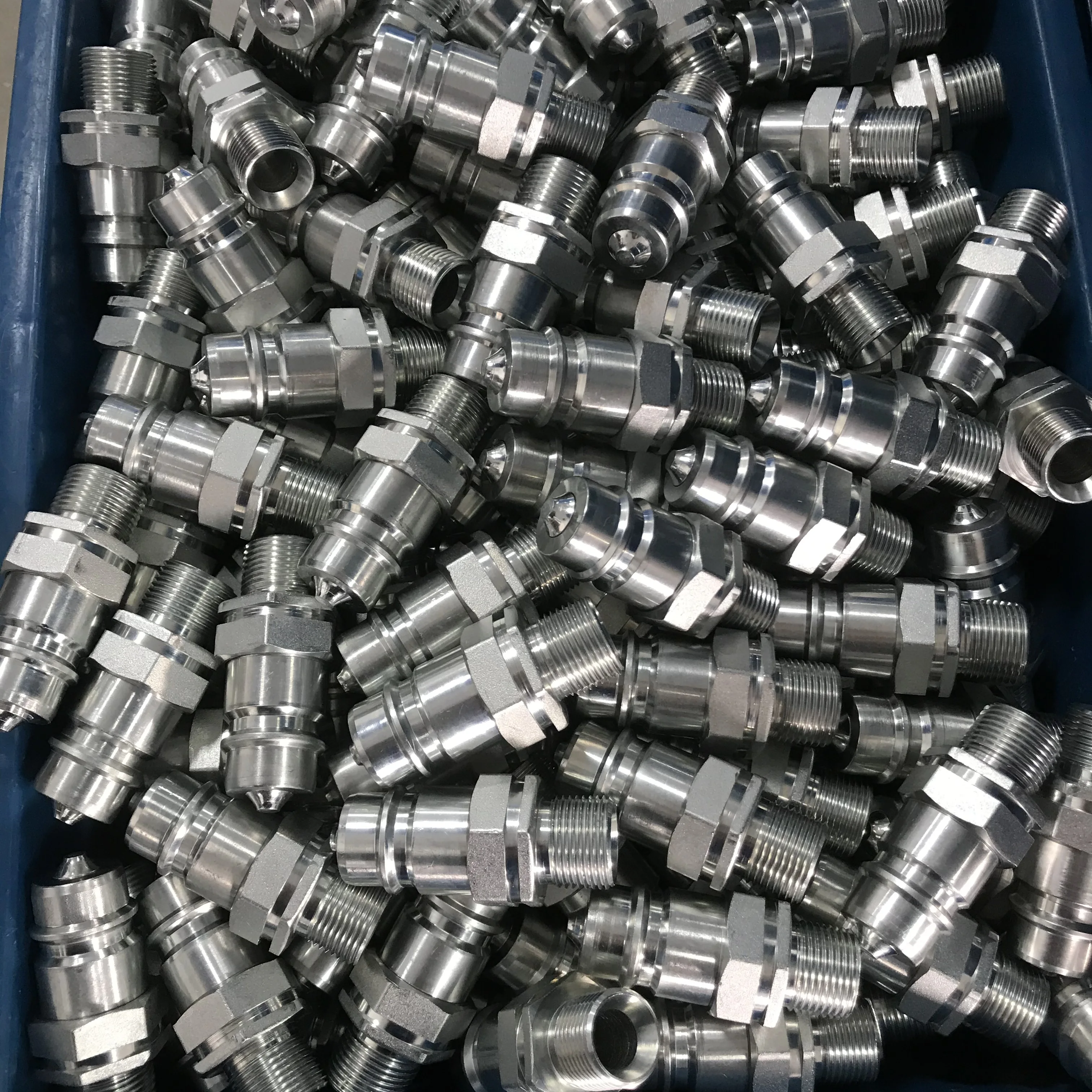

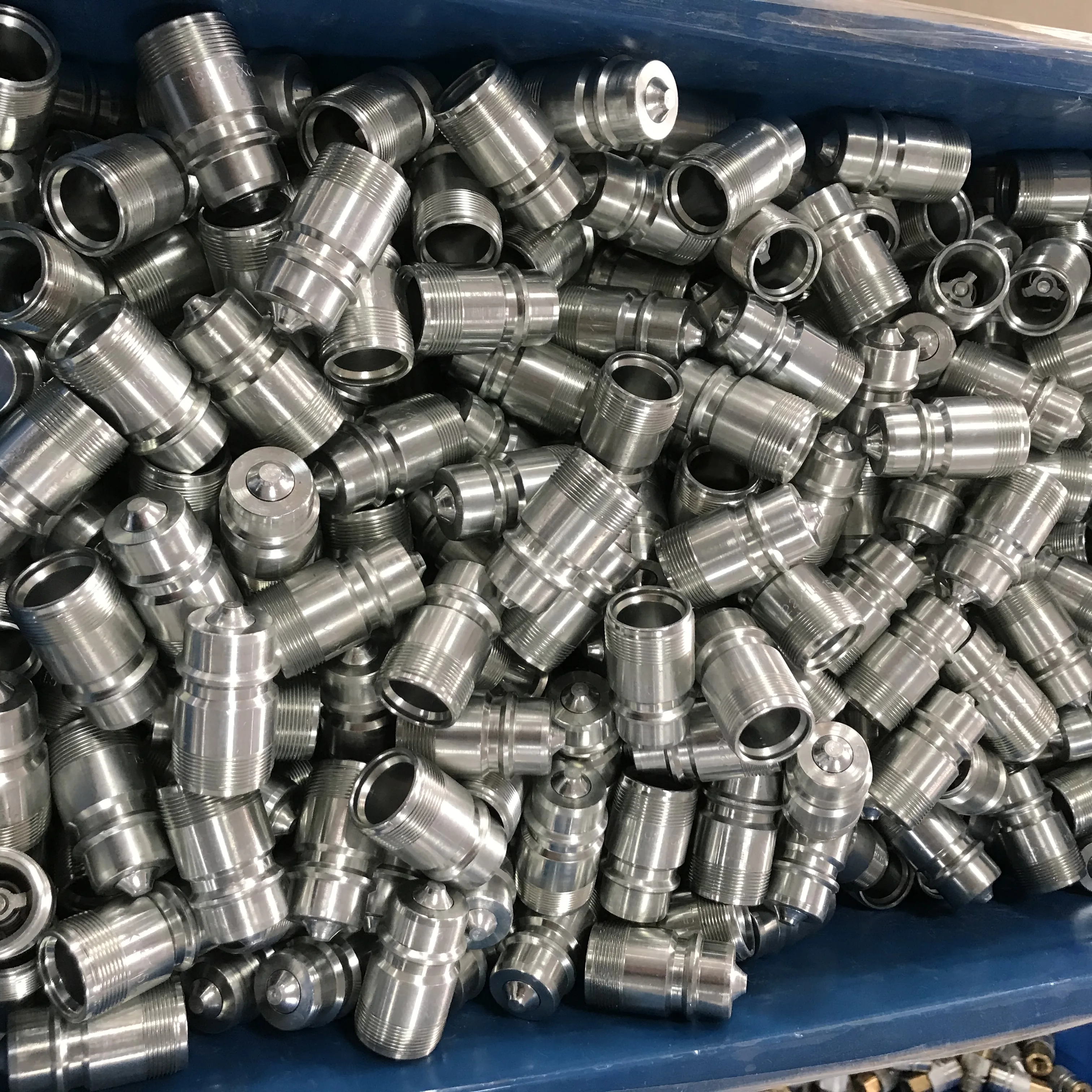

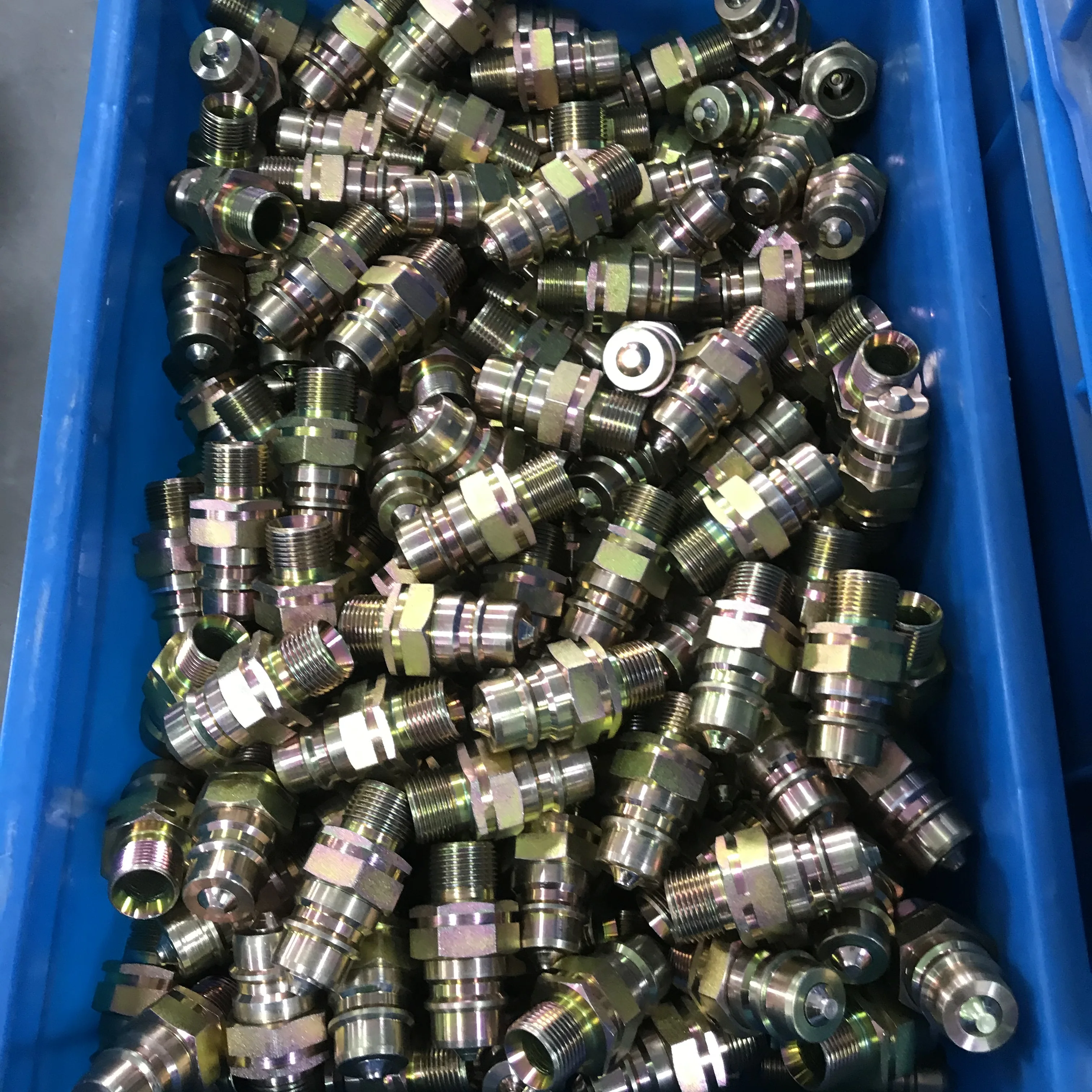

ISO 7421A Series carbon steel hydraulic quick coupling

Product Overview

Description

ISO  7421A Series hydraulic quick coupling stainless steel quick coupling

1. Poppet valves available to prevent uncoupled leakage

2. Ball valves   available for rugged dependability in heavy-duty hydraulic applications,within   rated working pressure

3. Critical parts are induction hardened for   durability

4. Dependable ball-locking mechanism holds the mating halves   together

5. Socket and plug are precision machined from solid bar stock

6. KZE Series couplings interchange with couplings meeting ISO 7241-1,Series   A.

This Series brings to the industry a proven   sesing for use on construction equipment,forestry equipment,agricultural   machinery,oil tools,steel mail machinery,and other demanding hydraulic   applications.



1/4 3/8 1/2 3/4 1 Rated Pressure (Bar) 150 100 100 100 75 Material: Stainless Steel Standard seal material: NBR (other material is available on request) Temperature Range (Std seals): -20°C to +80°C



D           Largest Diameter (in.)
KZESS-01PF	G1/8	32.0	15.0	14.0	17.0	KZESS-N01PF	NPT1/8	1.27	0.58	0.56	0.65
KZESS-02PF	G1/4	32.0	15.0	19.0	22.0	KZESS-N02PF	NPT1/4	1.27	0.58	0.75	0.87
KZESS-03PF	G3/8	37.0	18.0	22.0	26.0	KZESS-N03PF	NPT3/8	1.47	0.72	0.88	1.01
KZESS-04PF	G1/2	46.0	20.0	27.0	31.0	KZESS-N04PF	NPT1/2	1.82	0.78	1.06	1.23
KZESS-06PF	G3/4	58.0	30.0	35.0	40.0	KZESS-N06PF	NPT3/4	2.29	1.18	1.38	1.59
KZESS-08PF	G1	66.0	34.0	41.0	48.0	KZESS-N08PF	NPT1	2.58	1.34	1.62	1.88
KZESS-10PF	G1 1/4	75.0	36.0	54.0	59.0	KZESS-N10PF	NPT1 1/4	2.95	1.41	2.12	2.32
KZESS-12PF	G1 1/2	86.0	38.0	60.0	68.0	KZESS-N12PF	NPT1 1/2	3.38	1.49	2.36	2.67
KZESS-16PF	G2	100.0	77.0	77.0	84.0	KZESS-N16PF	NPT2	3.93	3.03	3.03	3.30



No.	Thread size BSPP	E            Overall Length (mm.)	F           Hex           Size            (mm.)	G            Largest Diameter (mm.)	Part No.	Thread size NPT	E           Overall Length (in.)	F            Hex            Size            (in.)	G            Largest Diameter (in.)
KZESS-01SF	G1/8	47.0	22.0	27.0	KZESS-N01SF	NPT1/8	1.85	0.88	1.08
KZESS-02SF	G1/4	47.0	22.0	27.0	KZESS-N02SF	NPT1/4	1.85	0.88	1.08
KZESS-03SF	G3/8	55.0	27.0	32.0	KZESS-N03SF	NPT3/8	2.18	1.06	1.27
KZESS-04SF	G1/2	70.0	32.0	39.0	KZESS-N04SF	NPT1/2	2.75	1.25	1.52
KZESS-06SF	G3/4	85.0	41.0	48.0	KZESS-N06SF	NPT3/4	3.36	1.62	1.90
KZESS-08SF	G1	104.0	48.0	54.0	KZESS-N08SF	NPT1	4.11	1.88	2.14
KZESS-10SF	G1 1/4	110.0	54.0	69.0	KZESS-N10SF	NPT1 1/4	4.33	2.12	2.71
KZESS-12SF	G1 1/2	128.0	60.0	82.0	KZESS-N12SF	NPT1 1/2	5.03	2.36	3.22
KZESS-16SF	G2	153.0	77.0	100.0	KZESS-N16SF	NPT2	6.02	3.03	3.93
