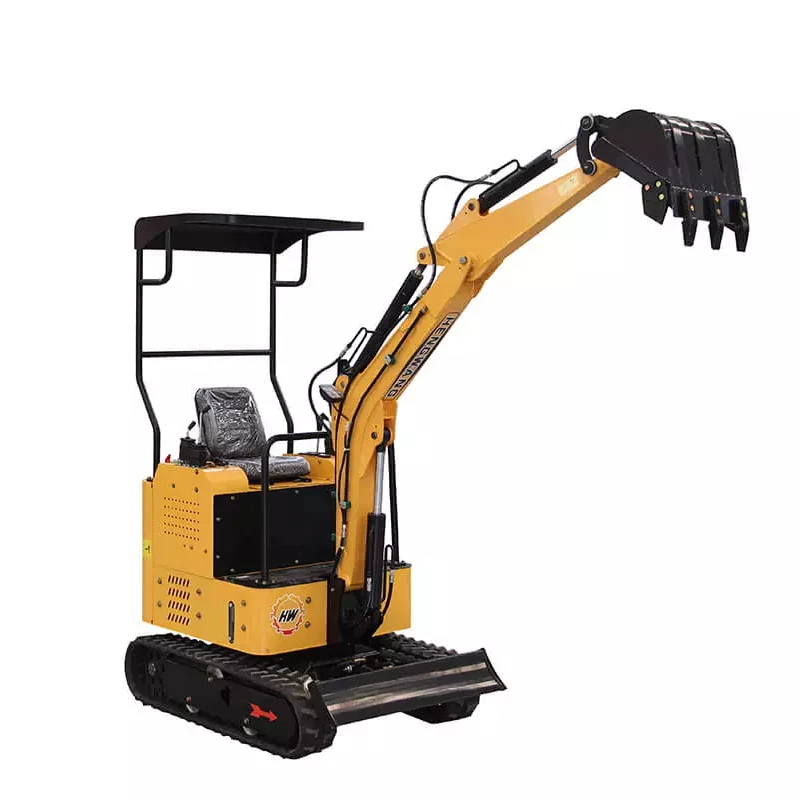

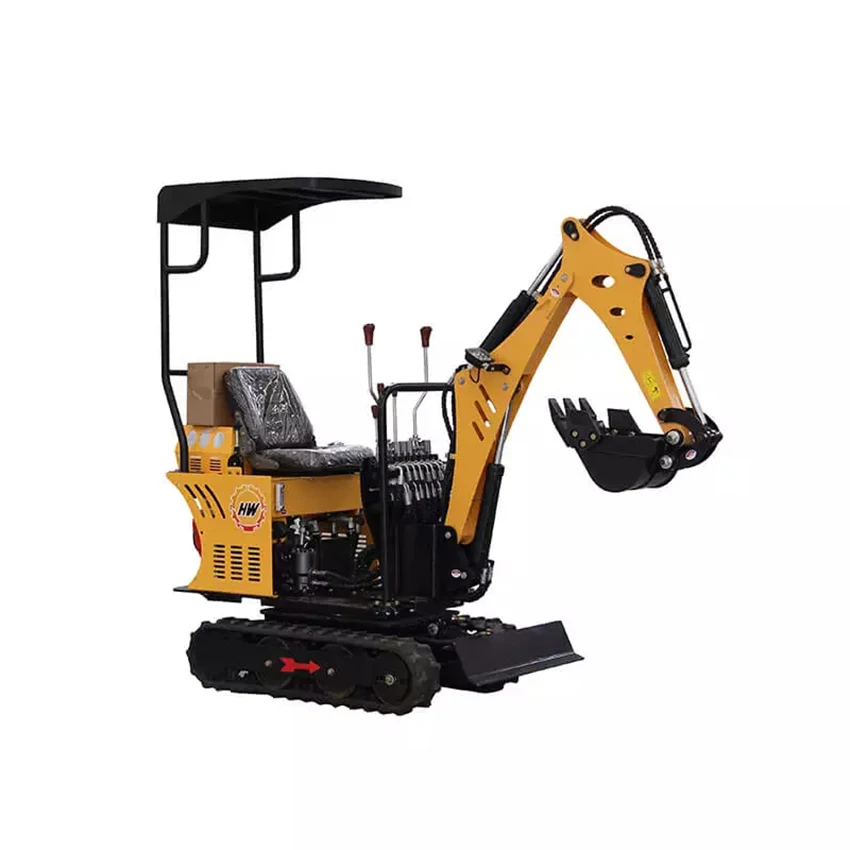

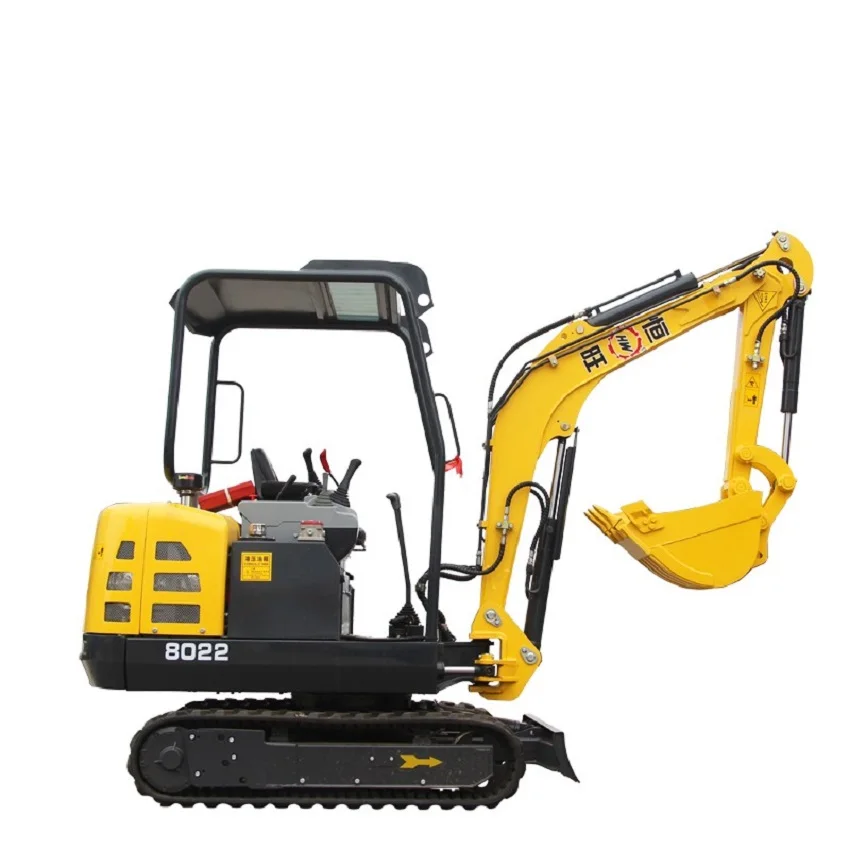

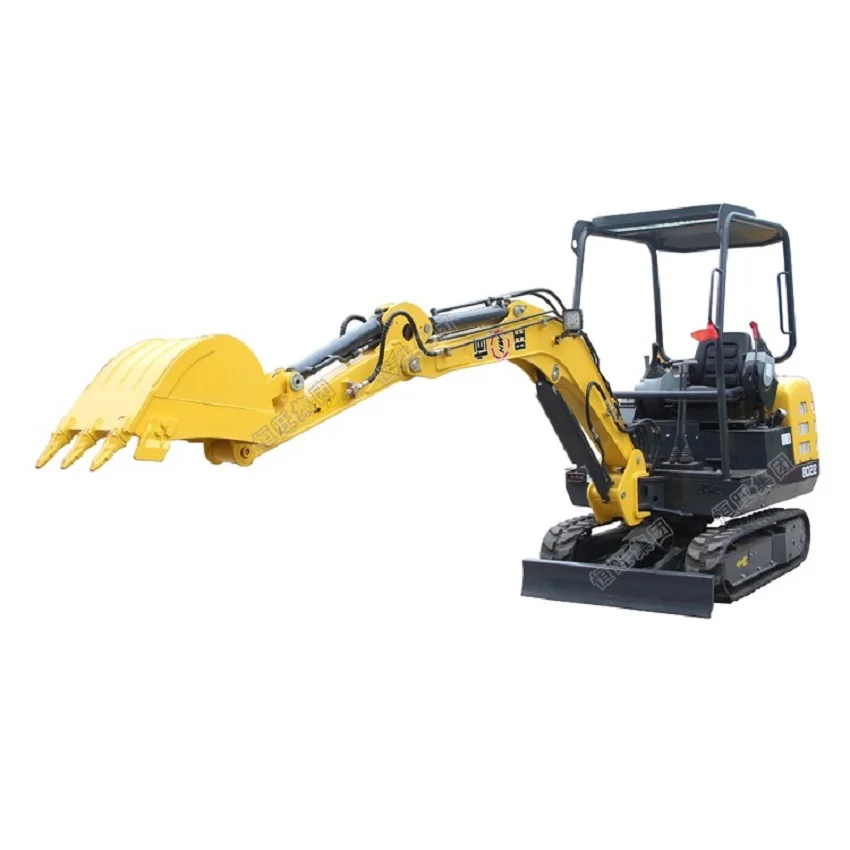

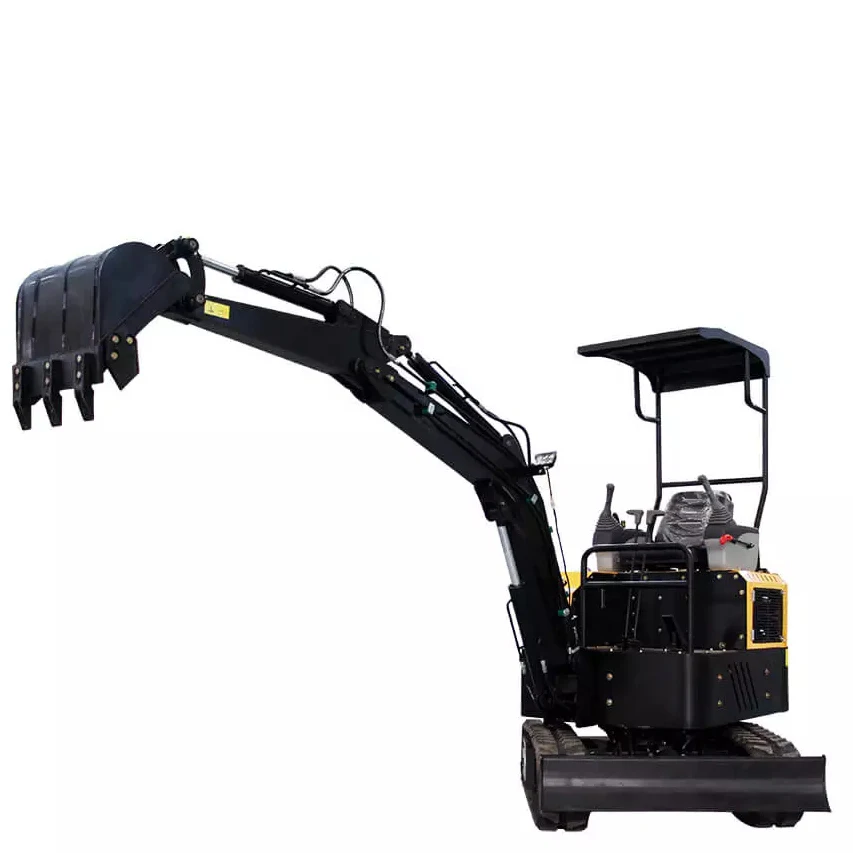

* HW mini excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench. Mini household excavator is with small engine, simple design, easy to maintain.
Specification
Total Length
3850 mm
Total Width
1300 mm
Total Height
2128 mm
Ground Clearance
458 mm
Total Weight
2000 kg
Ground Pressure
38 kpa
PERFORMANCE
Max. Digging Height
3556 mm
Max. Digging Radius
4045 mm
Max. Digging Depth
2247 mm
Max. Dumping Height
2452 mm
Slewing Angle
360°
Grade ability
25°
Travel speed
2. 5 km/h
Bucket Capacity
0. 06 m3
Bucket Width
450 mm
Swing angle of boom(° )L R
45/55(° )L R

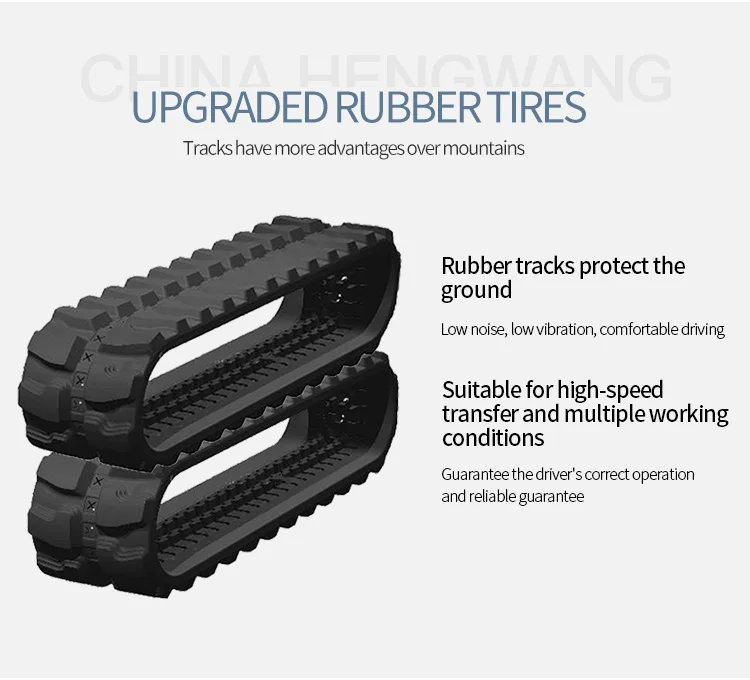

TRACK
Track Gauge
950 mm
Chassis Recovery
950 mm
Chassis Extension
1300 mm
Track Width
230 mm
Track Length (on ground)
1900 mm

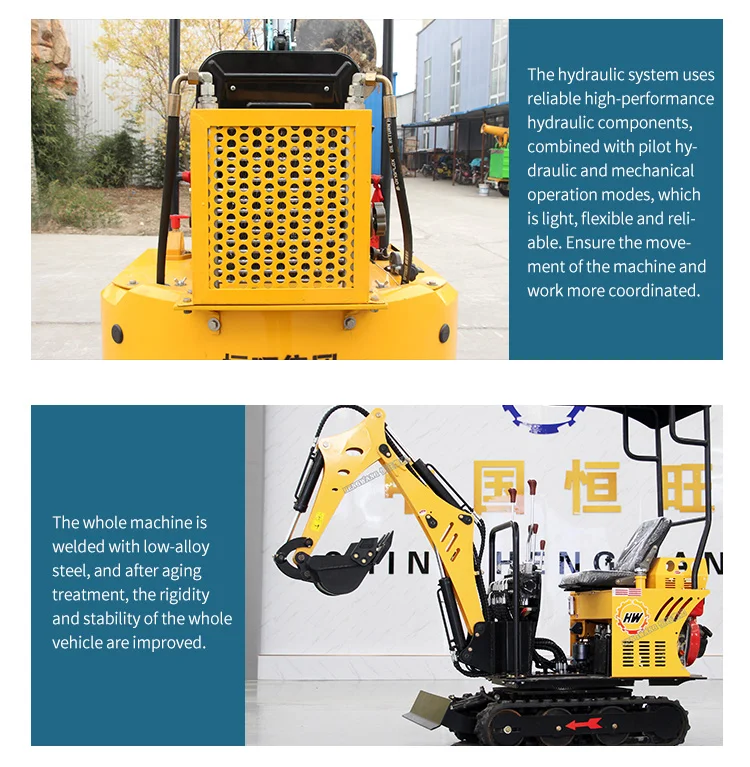

HYDRAULIC SYSTEM
Main Pump
Triple Pump
Main Pressure
18 Mpa
Max. Rpm of the pump
2500 r/min
Pump Displacement
18 ml / r

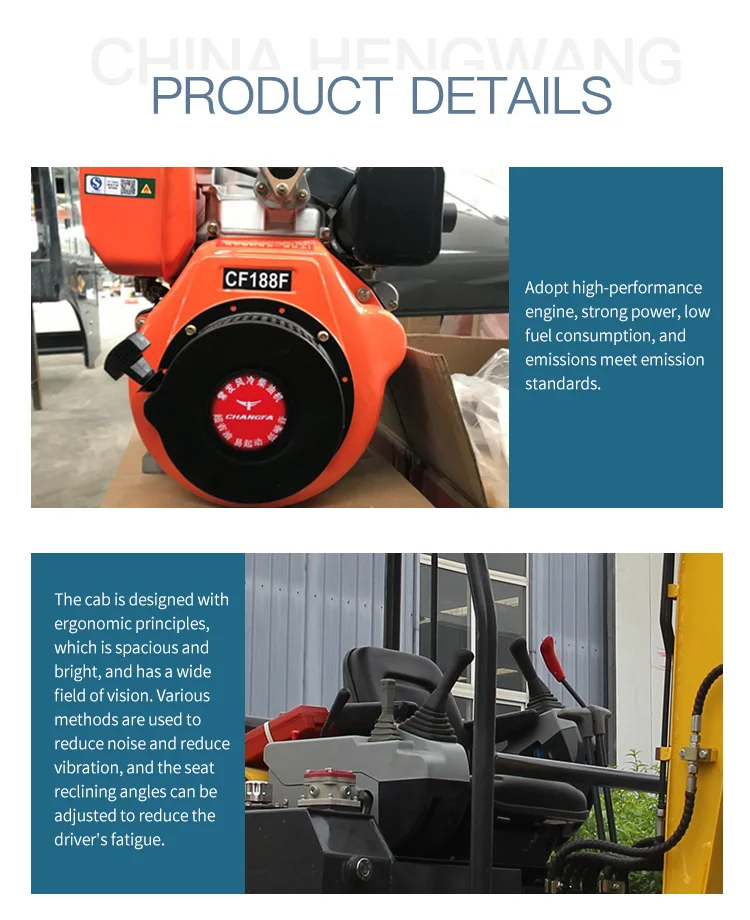

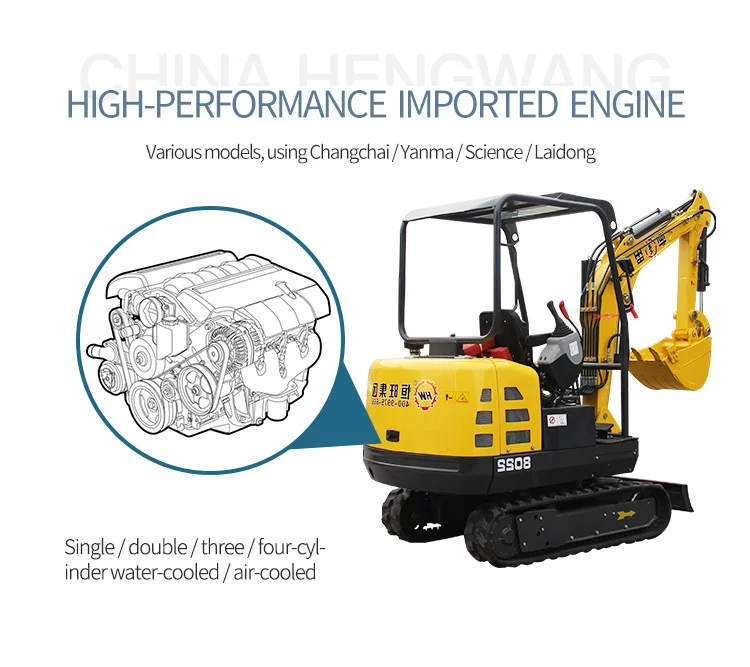

ENGINE
Model
3TE25 Yanmar3TNV70
Output
18.1/2200 10/2200 KW / rpm
Spare parts
Advantages

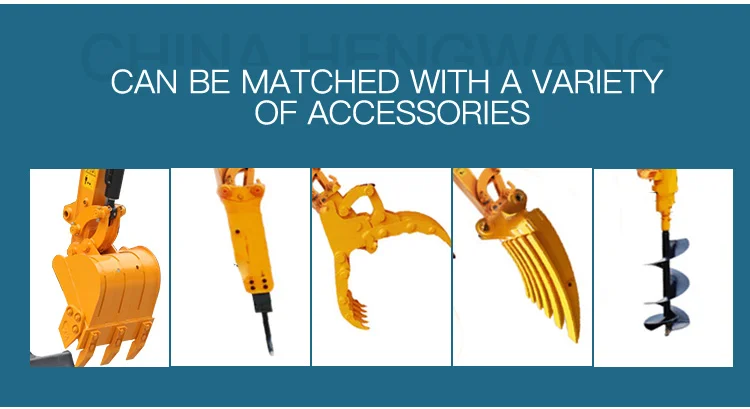

* 1. with excellent work efficiency and excellent cost-effective; * 2. the standard configuration bulldozer can be flat site, earth backfill, increase machine stability; * 3. simple, small and flexible, easy to transport, can work in small venues, especially for orchards such as kiwifruit, vineyards, oranges, navel orange value, trenching, fertilization, weeding; * 4. with mining, broken, clear hooks, drilling, earth multi-function, can quickly replace the accessories, machine utilization greatly improved;
