A centrifuge is a machine that uses centrifugal force to separate components in a liquid and solid particles or a mixture of liquid and liquid. The centrifuge is mainly used to separate the solid particles in the suspension from the liquid, or to separate two liquids with different densities in the emulsion that are incompatible with each other.
SZ series vertical centrifuges have large oil output and high oil output per unit time. We can produce according to customer needs and provide a variety of models for customers to choose.
The working principle of the centrifugal separator
The working principle of the centrifugal separator includes centrifugal filtration and centrifugal sedimentation. Centrifugal filtration is the centrifugal pressure generated by the suspension under the centrifugal force field, acting on the filter medium, so that the liquid passes through the filter medium to become a filtrate, and the solid particles are trapped on the surface of the filter medium, thereby achieving liquid-solid separation; centrifugal sedimentation is to use Centrifugal force of the components with different density of suspension (or emulsion).
The principle of rapid settlement and layering in the field realizes liquid-solid (or liquid-liquid) separation.

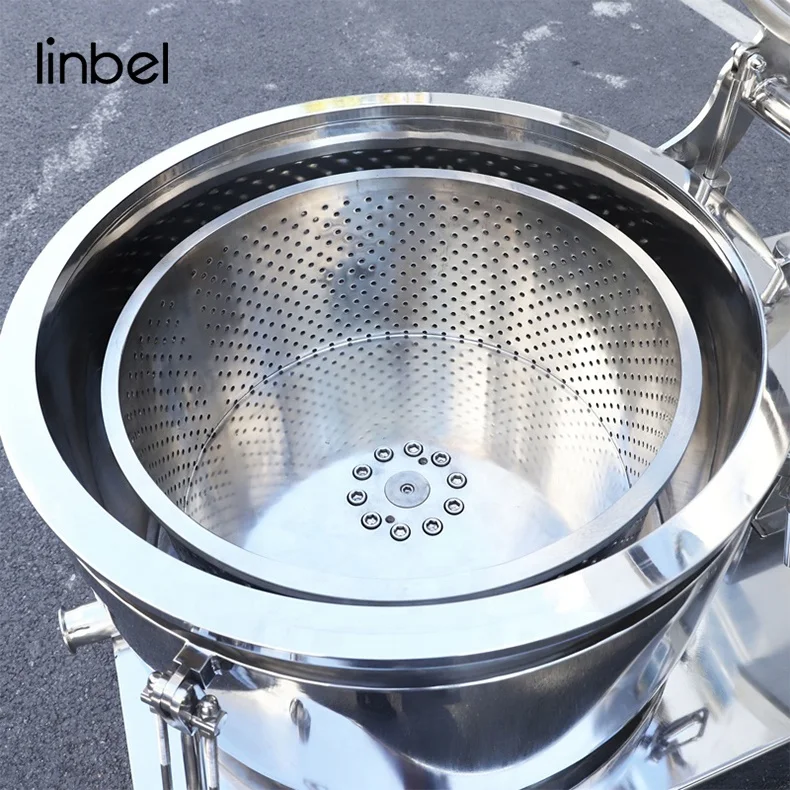

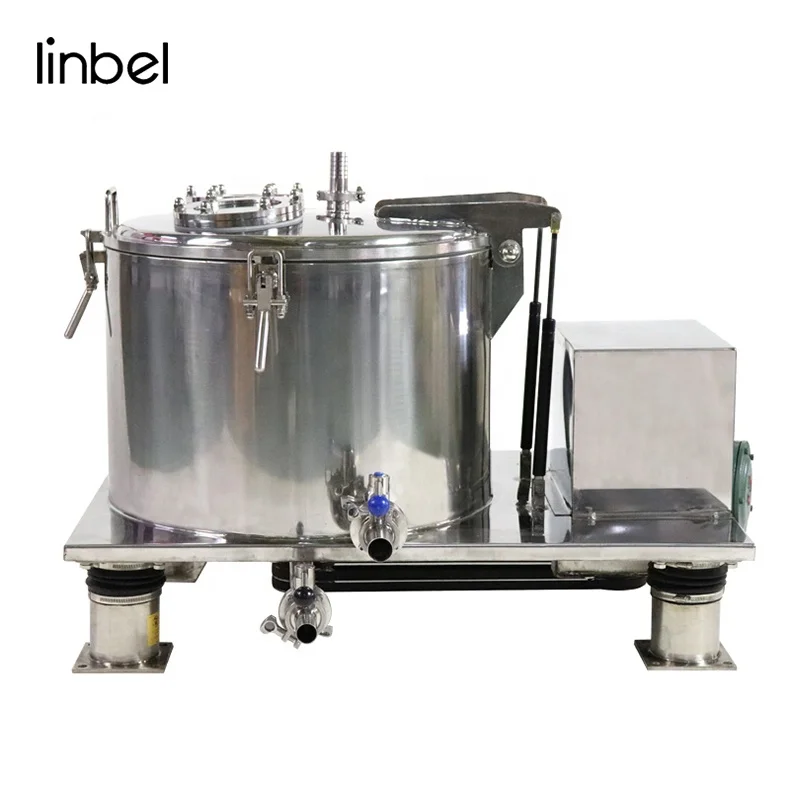

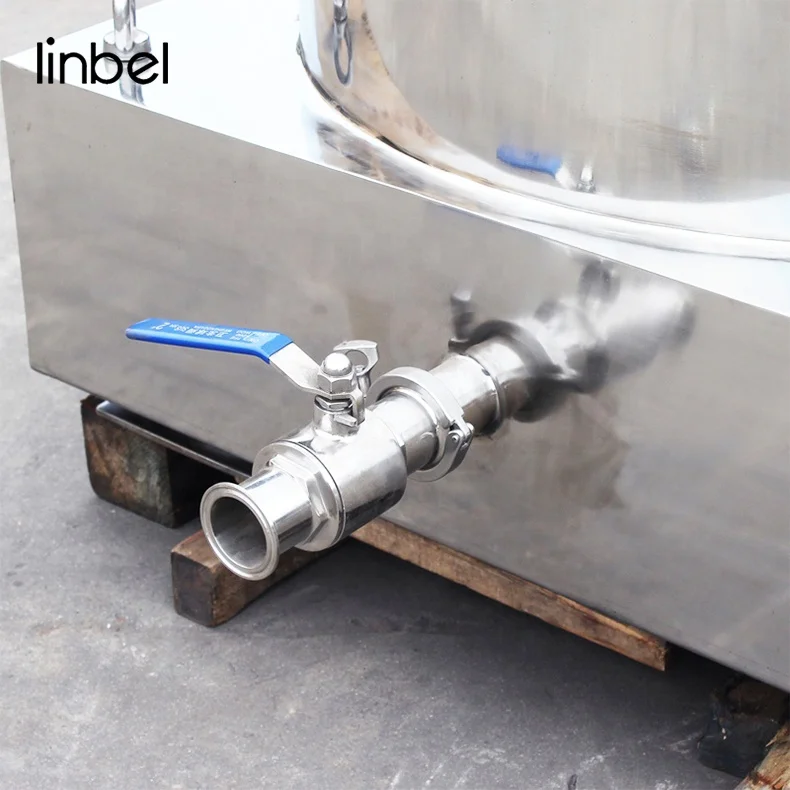

Detailed Images
Model
SZ-300
SZ-350
SZ-450
SZ-600
SZ-800
SZ-1000
Power Supply
220V/50HZ
220V/50HZ
220V/50HZ
220V/50HZ
220V/50HZ
220V/50HZ
Rotating speed
1200r/min
1200r/min
1200r/min
900r/min
780r/min
700r/min
Separation factor
240w² r/g
280w² r/g
250w² r/g
270w² r/g
270w² r/g
270w² r/g
Motor Power
1.5KW
1.5KW
2.2KW
3KW
4KW
5.5KW
Drum thickness
5MM
5MM
5MM
6MM
6MM
6MM
Shell thickness
3MM
3MM
3MM
4MM
4MM
4MM
Capacity(L)
19
30
60
110
200
310

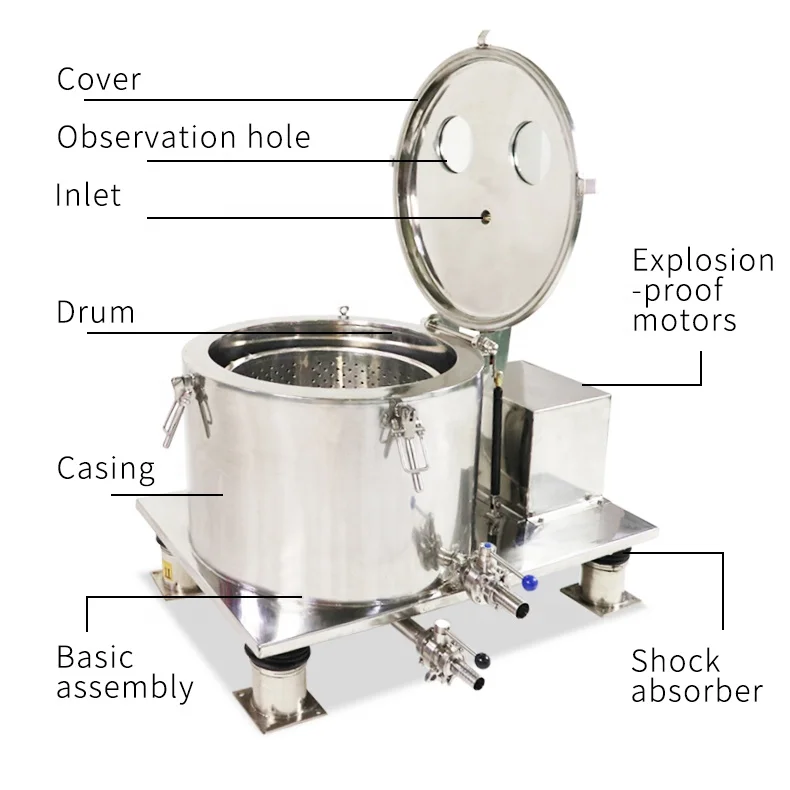

High-quality precision interface, made of stainless steel, durable, three-legged vertical support, more stable operation.
Related Products
Packing&Shipping
We always expand our production line, we produce recirculating chiller, rotary evaporator, reactor, dynamic temperature control system, molecular distillation system, short path turnkey, oil circulating heater and centrifuge machine etc. We will design and customize suitable machines to our customers according to their requirments and also provide OEM and ODM service for them.
We pack all products carefully with strong standard export wooden cases and provide DDU and DDP one-stop service for customers with more reliable services and lower shipping cost.
Company Introduction
Shanghai Linbel Instrument Co., Ltd. was founded in Shanghai, which is a professional supplier of chemical and pharmaceutical equipments with many years’ experience. We have a professional team including experienced consultants, engineers, quality inspection team and shipping company to provide reliable quality and professional service for our customers.
We always expand our production line, we produce recirculating chiller, rotary evaporator, reactor, dynamic temperature control system, molecular distillation system, short path turnkey, oil circulating heater and centrifuge machine etc. We will design and customize suitable machines to our customers according to their requirments and also provide OEM and ODM service for them.
Our Services & Strength
Prism Instruments has decades of experience in manufacturing professional temperature control equipment, a comprehensive after-sales service system, and the technology of a very professional 24-hour professional technical engineer.
Customer feedback
FAQ
Q: Why you choose LINBEL?
A: (1) Linbel is a professional manufacturer with more than 10 years experience
(2) Linbel exports to 99% countries.
(3) Linbel provides Turnkey Solution for you!
Q: Could you provide OEM/ODM service?
A: Yes
Q: Could you support visiting factory?
A: Linbel factory, sales team and after-sales service team are located in Shanghai.Welcomeyou all visit our factory.
Q: Do you have Overseas Warehouse?
A:Yes. Linbel warehouse is located in 6221 Knott Avenue, Buena Park, CA 90620, USA.Welcome to visit our warehouse!
Q: How can you ensure your products quality?
A: Linbel has professional QC and test equipment to ensure the quality. We are the gold verified supplier issued by SGS, and the related certificate of gold verified supplier issues by SGS is available.
