DC pump controller features:
Solar or Battery Input.
Compatible Battery Mode 24/36/48V, 96V/110V
Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel.
Support Sensor less DC Motor 24/36/48V, 96V/110V
Protections:
Solar DC Input Over-Voltage Solar
DC Input Anti-reverse
Battery Protection
DC Output Phase lost
DC Output Short Circuit
Over Temperature
Water Over Flow of Tank (By Sensor) Well Water Empty (By Sensor)
Variable Speed Drive
| 36V 200W Screw Pump | max head 73m, max water flow 1.3m3/h | HBP3S-36-200-1.3-7.3 |
| 48V 500W Screw Pump | max head 85m, max water flow 2.8m3/h | HBP3S-48-500-2.8-85 |
| 48V 600W Screw Pump | max head 132m, max water flow 2.3m3/h | HBP4S-48-600-2.3-132 |
| 110V 750W Screw Pump | max head 170m, max water flow 2.7m3/h | HBP4S-110-750-2.7-170 |
| 48V 400W Impeller Pump | max head 25m, max water flow 7.2m3/h | HBP4C-48-400-7.2-25 |
| 48V 600W Impeller Pump | max head 69m, max water flow 3.2m3/h | HBP4C-48-600-3.2-69 |

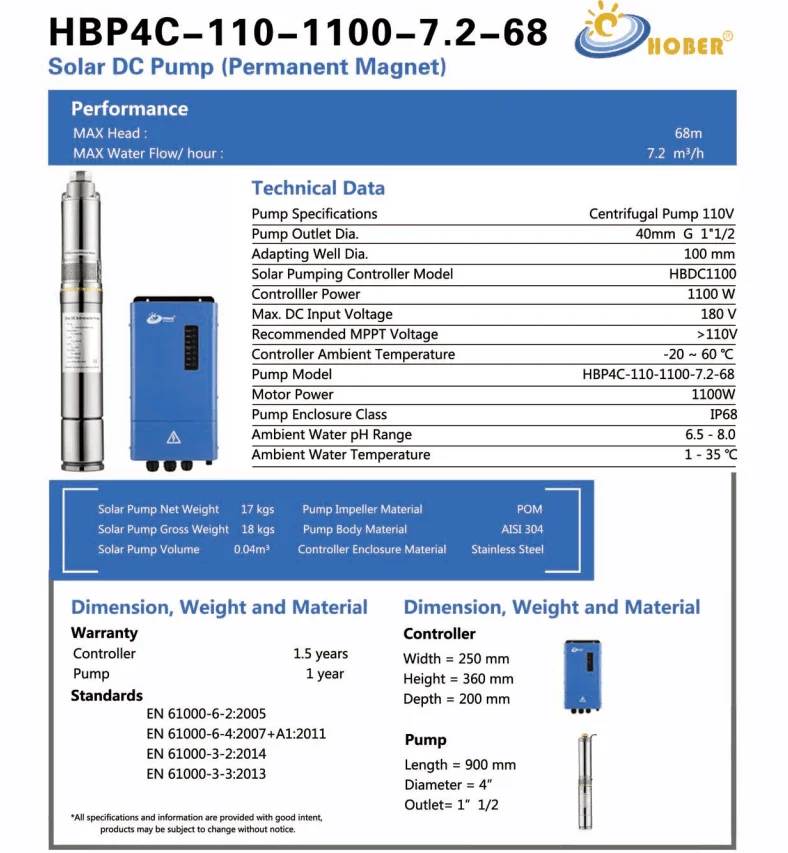

| 110V 1100W Impeller Pump | max head 68m, max water flow 7.2m3/h | HBP4C-110-1100-7.2-68 |
| 110V 1500W Impeller Pump | max head 70m, max water flow 8.4m3/h | HBP4C-110-1500-8.4-70 |
| 110V 1100W Impeller Pump | max head 150m, max water flow 3.3m3/h | HBP4C-110-1100-3.3-150 |
| 110V 1500W Impeller Pump | max head 191m, max water flow 3.3m3/h | HBP4C-110-1500-3.3-191 |
