TPMS for truck and bus with internal and external sensor 26 tires display tire pressure monitoring

 Display:
• Operating frequency: 433.92MHz ±68KHz
• Operating voltage: DC9V—DC30V
• Operating current: ≤60mA
• Static current: ≤10mA
• Operating temperature: -30°C ~ +85°C Not Not Built battery, with the rs232,support 1 to 26 tires

TPMS picture:

 TPMS Features:

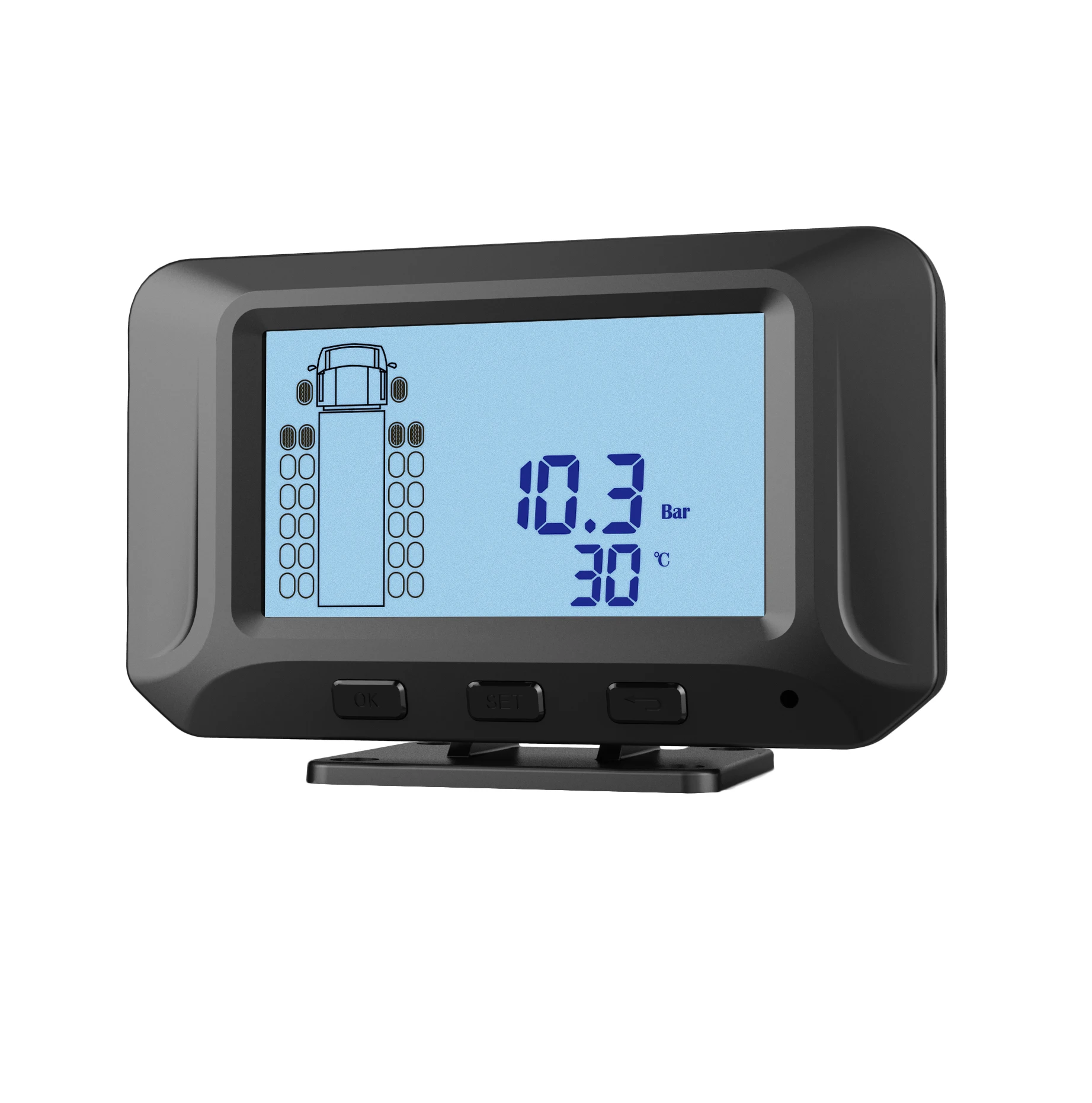

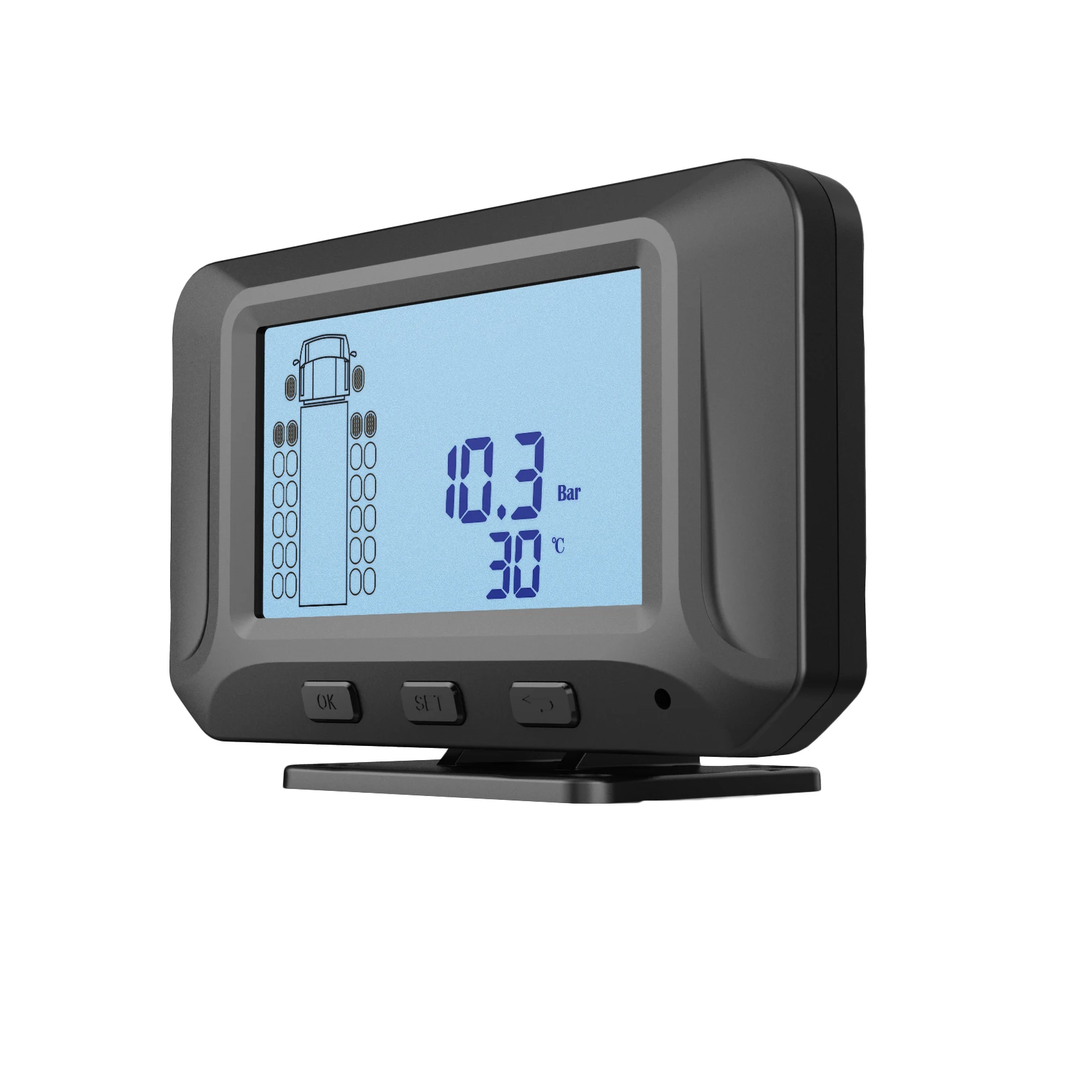

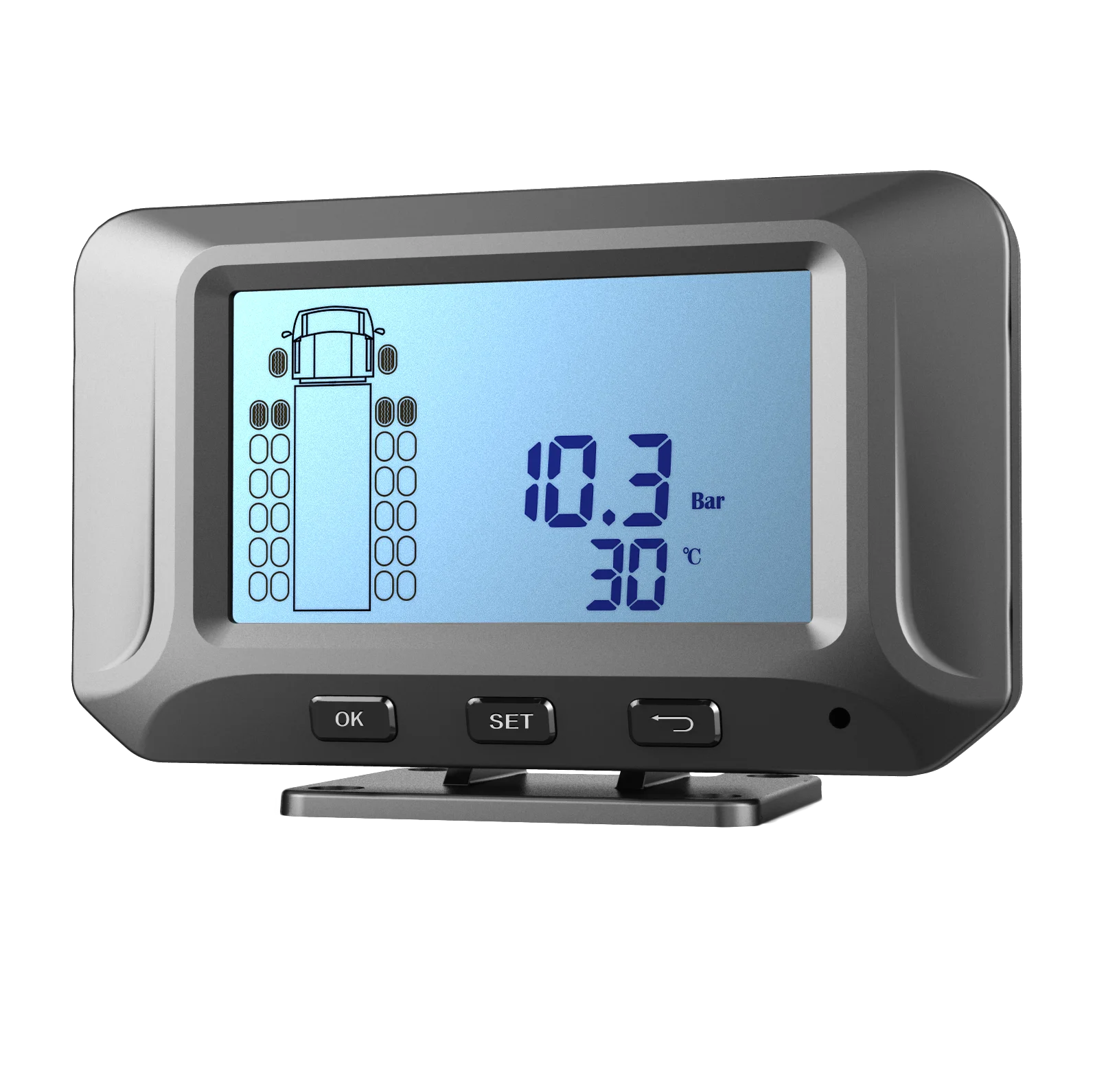

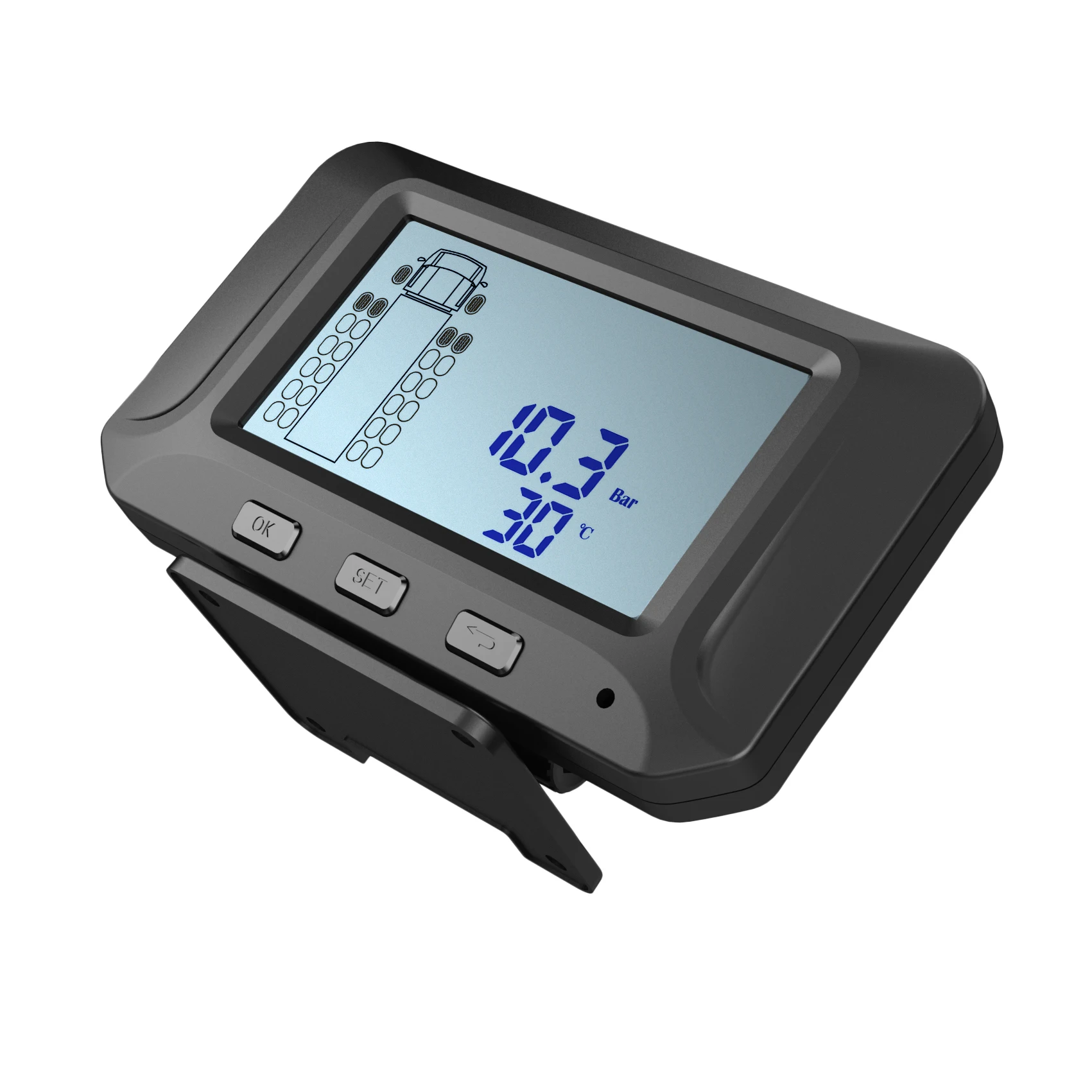

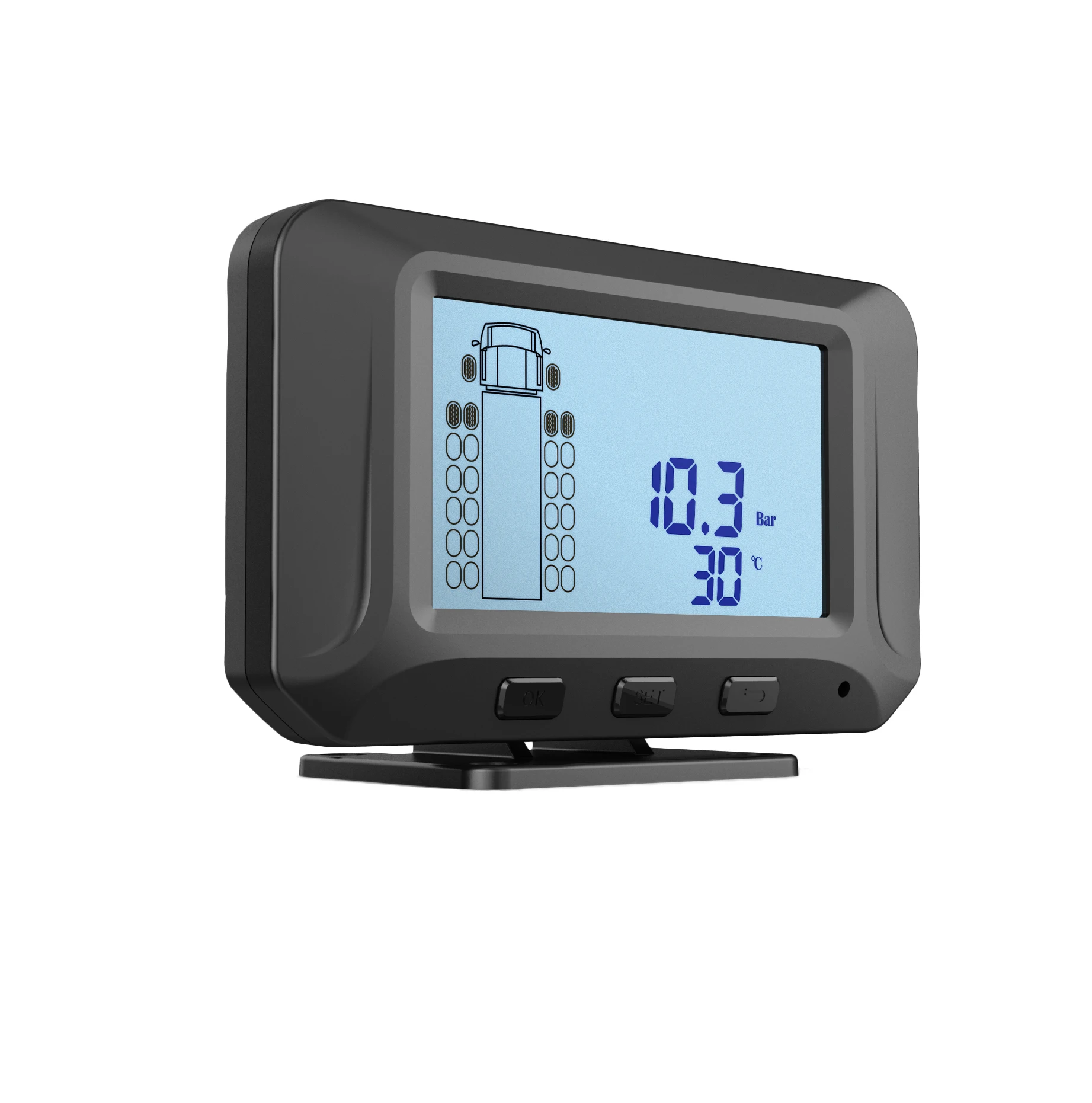

Monitor:  3.5-inch LCD,

Black-white LED,

support 1-26 tires,

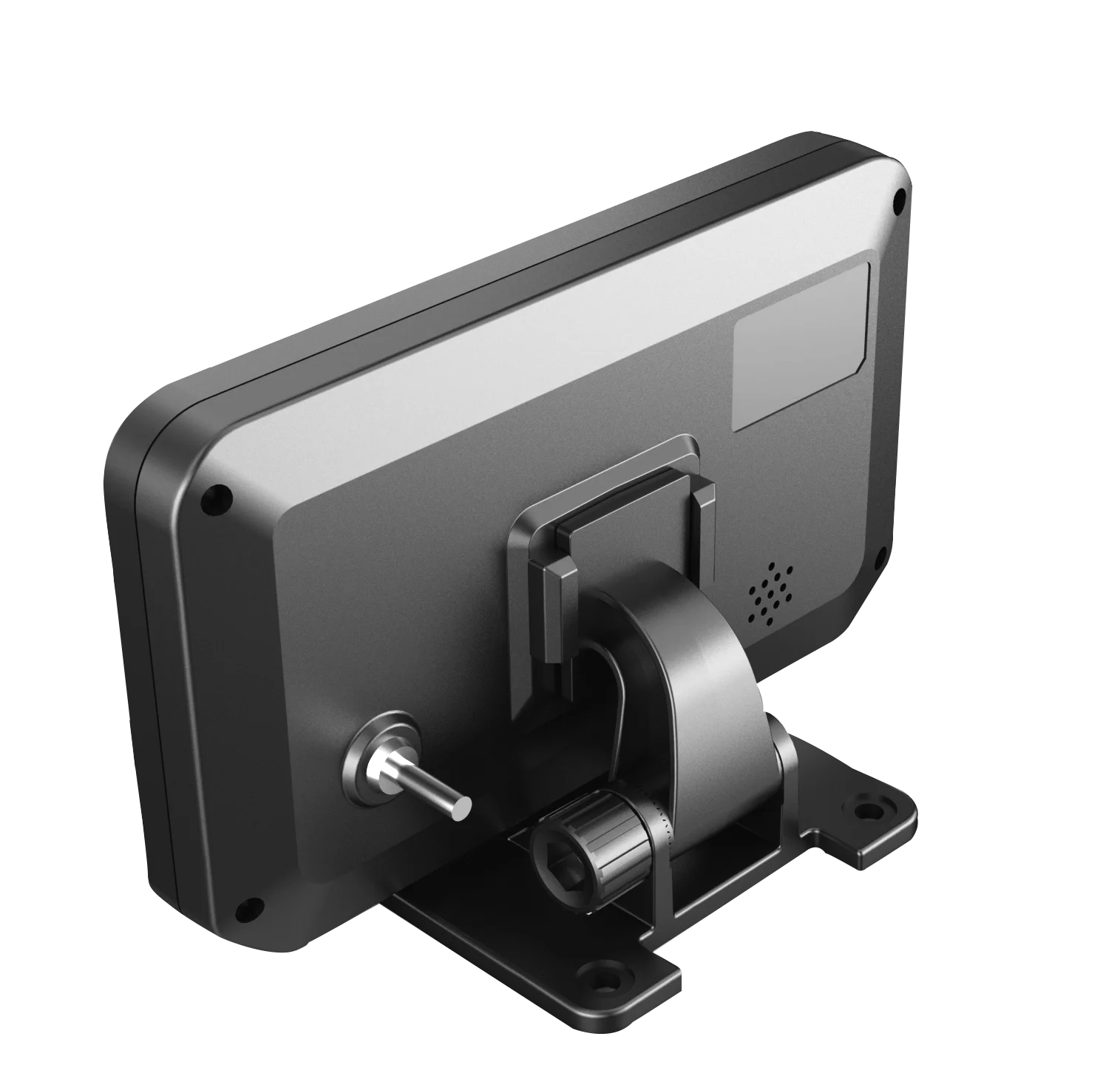

Use TRUCK's power DC9V-DC30v, and not built-in battery in monitor, can set the tire positon and tire number by yourself and the monitor can be installed  on the dashboard via screw

TPMS Sensors for option:

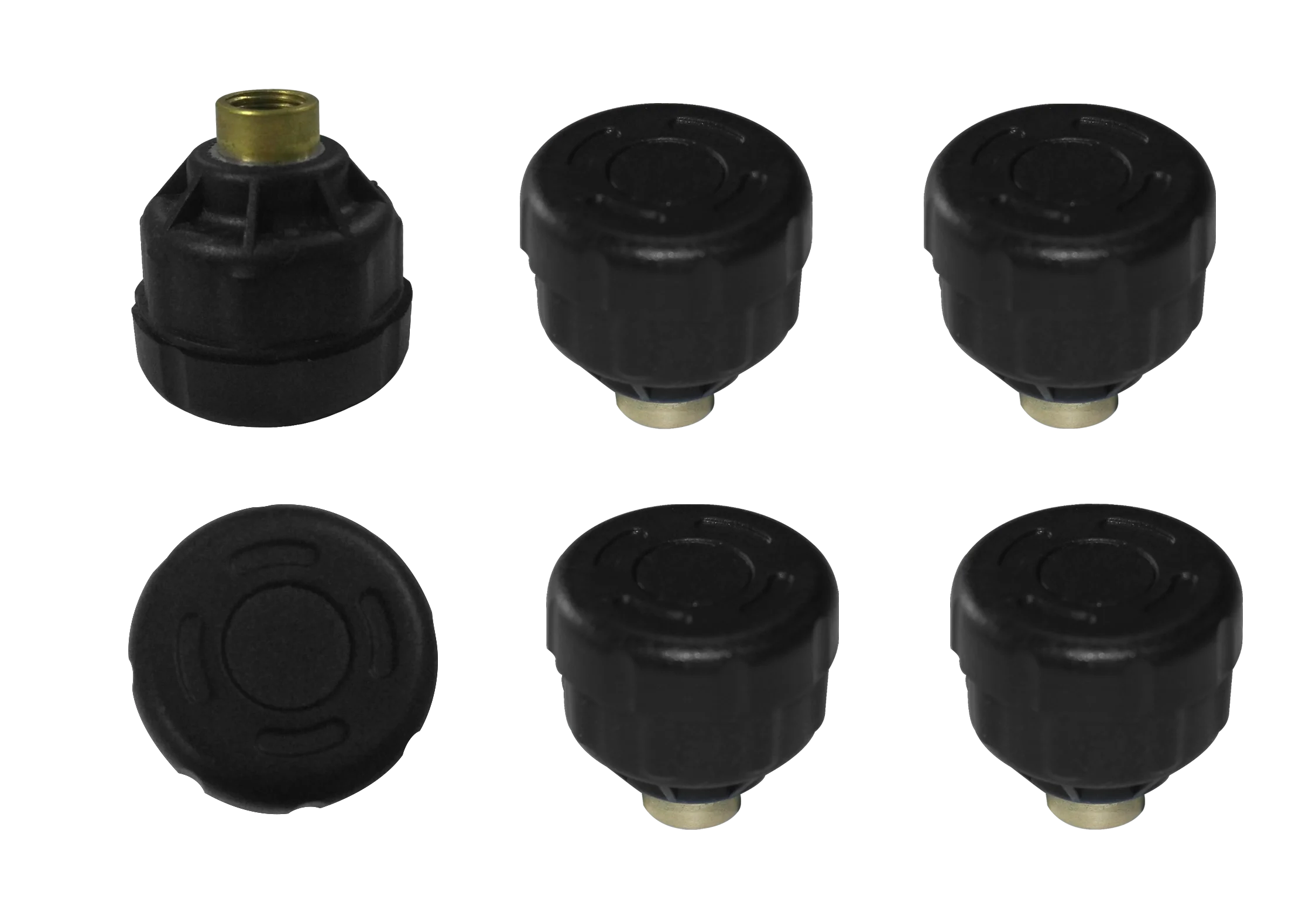

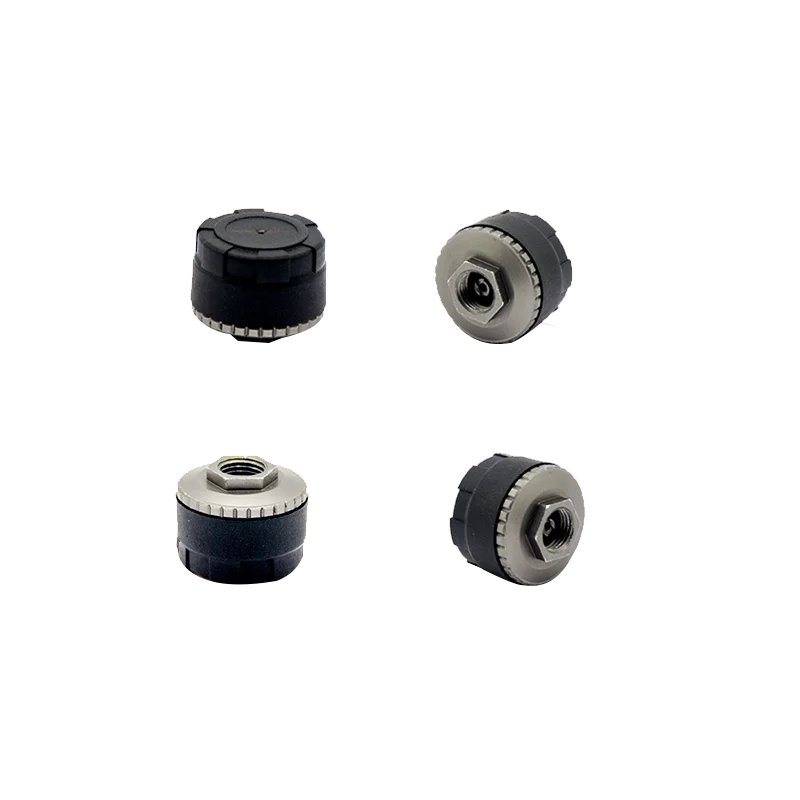

1.Long life external sensor

 External sensor, be fixed to valve of truck byscew  , the material of sensor will be changed to copper from May,Battery life is more than 5 years, Battery can not be replaced

5years lifespan external Sensor:
• Operating frequency: 433.92MHz ± 28KHz
• Operating voltage: 2.0~3.3V
• RF Operating current: ≤8mA
• Static current: ≤1uA
• Operating temperature: -30~+85°C
• Storage temperature: -30°C~+85°C
• Battery model: CR2050
• Battery lifespan: ≥5years(can not be replaced
• Weight:12g ± 0.5g
• Pressure range: 0-203Psi

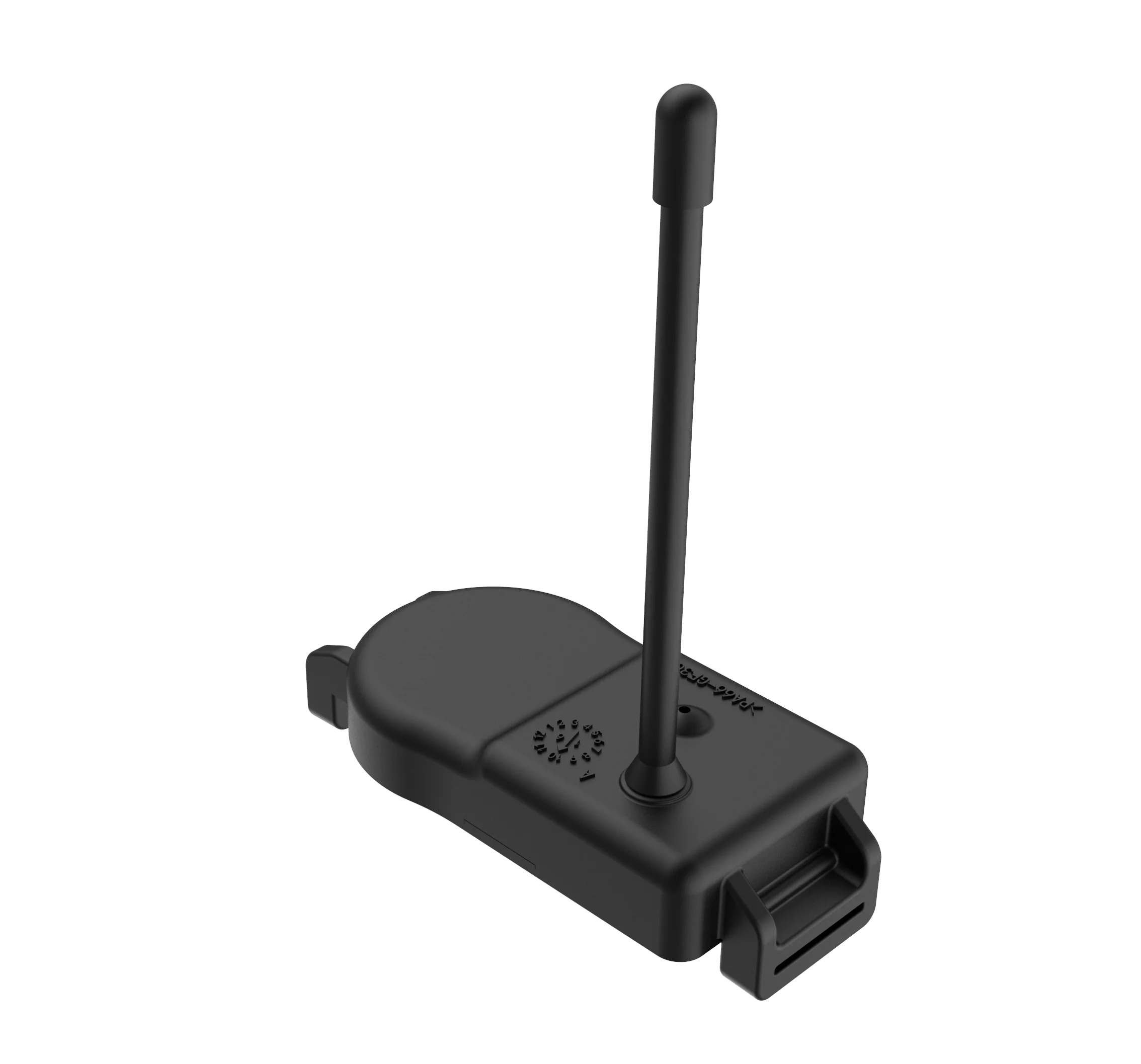

2.Bandage internal sensor for Truck

 internal sensor, be fixed to wheel by Bandage, 10.5cm antenna,  battery life is more than 5years, and the battery can not be changed  ,

Measure pressure and temperature of tire

Send the signal to display or repeater or other receiver

Sensor built-in installation

It requires professional installation tire removal tool

• Operating frequency: 433.92MHz ± 28KHz
• Operating voltage: 2.0~3.3V
• Operating current: ≤10mA
• Static current: ≤1uA
• Operating temperature: -40~+125°C
• Storage temperature: -40°C~+125°C
• Battery model: CR2450
• Battery lifespan: ≥5years
• Weight:34g ± 0.5g (without bandage)
• Pressure range: 0-14Bar/0-203Psi

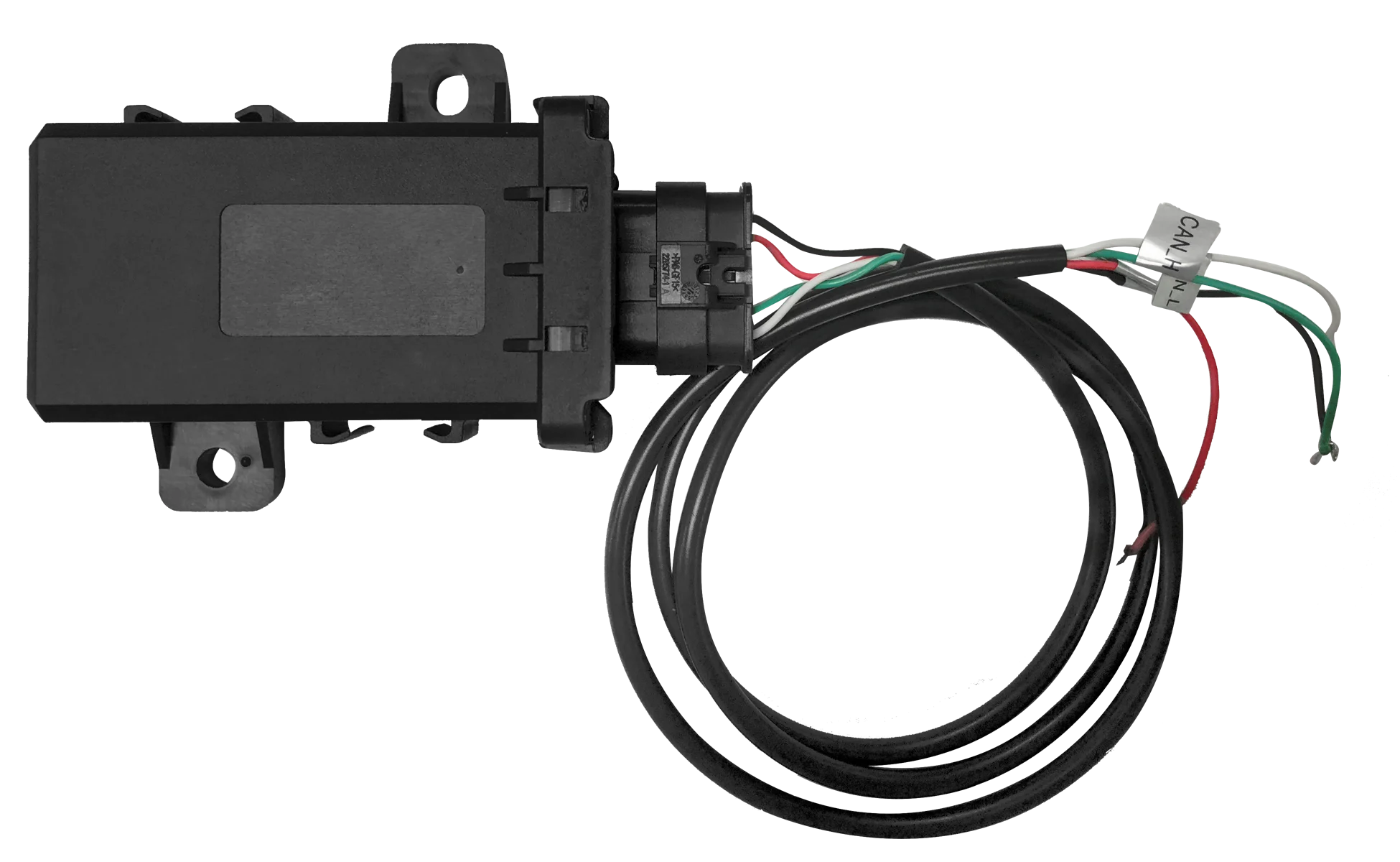

Repeater (for beformaket and aftermarket)

for truck factory and after market, with waterprof connecter  , waterproof class is IPx7

Receive the data of sensor and send rf signal to receiver or display

Repeater:
• Operating frequency: 433.92MHz ± 68KHz
• Operating voltage: DC9V-DC30V
• Operating current: ≤50mA
• Static current: ≤10mA
• Operating temperature: -40~+125°C
• Storage temperature: -40°C~+125°C
• Power supply: Trunk power
• RF Transmitter power: <10dbm
• RF receiver sensitivity: >-105dbm

 we can provide OEM service,like add the logo on product,custom the package,translate user manuel.

For shipment,we can provide international express,air freight and sea freight.
