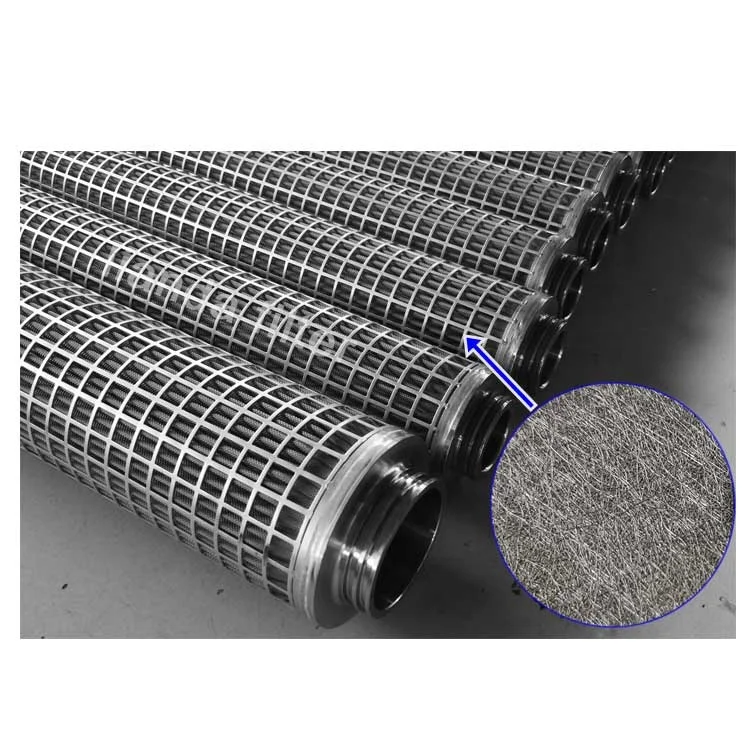

10 micron stainless steel mesh pleated filter cartridge ss filter pleated filter cartridge
- Category: Filtration Equipment >>>
- Supplier: Hebei Lianda Filter Equipment Co. Ltd.
Share on (62361874146):
Product Overview
Description

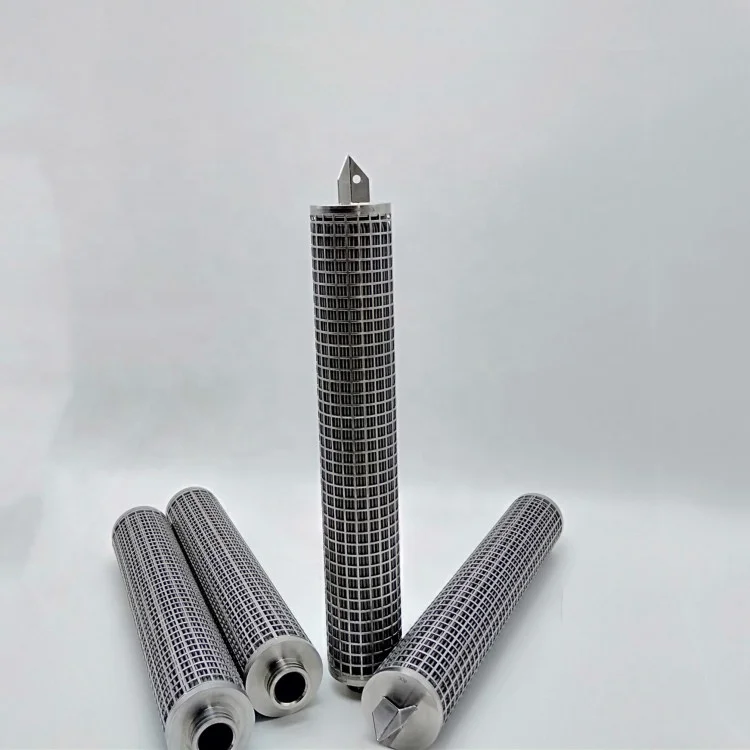

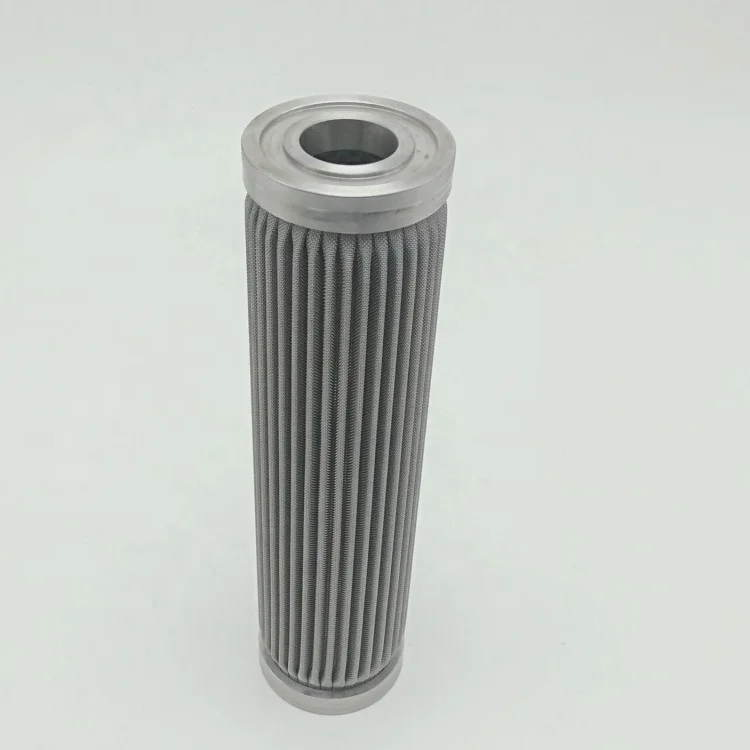

10 micron 10inch stainless steel material mesh pleated filter cartridge for air and liquid filtration in petrochemical industry
Products Description
Main filter media of pleated filter elements are stainless steel sintered fiber web and stainless steel weaving wire mesh.
Stainless steel sintered fiber web is a kind of multipore deep filter media, sintered with stainless steel fiber at the high temperature.The filter elements enjoy the advantage of high porosity, large filter area and good dirt holding capacity, and can also be used repeatly after chemical cleaning.
Stainless steel weaving wire cloth is weaved with stainless steel wire. These filter elements have such characteristics of good strength fastness, easy cleaning, high temperature resistance, low cost.
Application:Products are widely used in petrolum, chemical, chemical fiber, aviation, aerospace, nuclear industry, pharmaceutical, metallurgy, electric power, water treatment, food and beverage, coal chemical and other industries.
Effective Filtration Area(per 10" length)
Pleated cartridge:1.40ft2(0.13m2)
Cylindrical cartridge:0.55ft2(0.05m2)
Gaskets and o-rings:
EPDM as standard, Nitrile, PTFE, silicone, Viton and PTFE coated viton avaliable on request or by process selection.

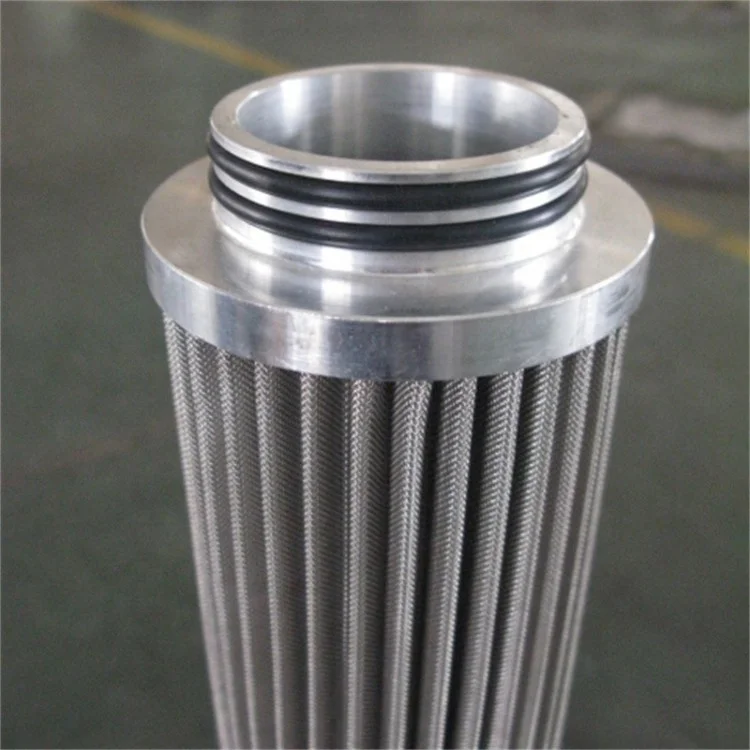

Cartridge End Fittings:
226 Fitting, 222Fitting, DOE , SOE, Thread 1",1/2"NPT and so on.
Technical Index of Stainless Steel Sintered Fiber Web
Absolute Filter Rating (μ) | Bubble Piont Pressure (Pa) | Average Air Permeability (l/dm2/min) | Thichness (mm) | Weight (g/m2) | Porosity (%) | Dirt Holding Capacity (mg/cm2) |
| 3 | 12300 | 9 | 0.35 | 975 | 65 | 6.40 |
| 5 | 7600 | 34 | 0.34 | 600 | 78 | 5.47 |
| 7 | 5045 | 57 | 0.27 | 600 | 72 | 6.47 |
| 10 | 3700 | 100 | 0.32 | 600 | 77 | 7.56 |
| 15 | 2470 | 175 | 0.37 | 600 | 80 | 7.92 |
| 20 | 1850 | 255 | 0.49 | 750 | 81 | 12.44 |
| 25 | 1480 | 320 | 0.61 | 1050 | 79 | 19.38 |
| 30 | 1235 | 455 | 0.63 | 1050 | 79 | 23.07 |
| 40 | 925 | 580 | 0.66 | 1200 | 77 | 25.96 |
| 60 | 630 | 1000 | 0.70 | 750 | 87 | 33.97 |
Product Structure

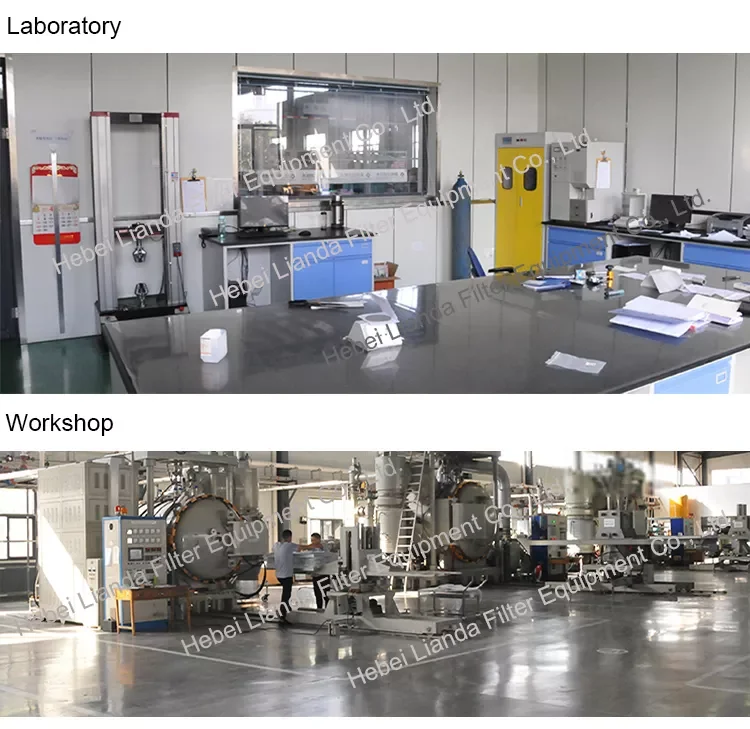

Research & Developme
Provide complete technical support to customers.According to the different needs of customers, provide different solutions.
Inspection
We strictly control the production process, to provide customers with all the required material list, and products enjoy 100% testing to ensure product quality.

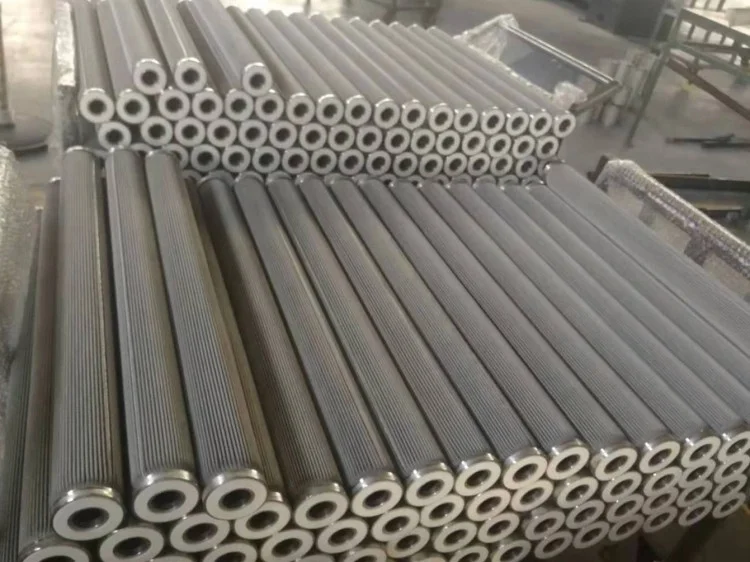

Packaging2
Company Information
Our Services
1. 24-hour Response
We will reply your inquiry within 24 hours for saving your time and labor.
2. OEM service
OEM service is available, like product, package, etc.
3. Supporting System
The system consists of claims systems, technical support system, inquiry system and ordering following system. The system will provide after-sales service in full range.
4. Free Training
We provide free training to all of our clients and distributors. The training will give you ample knowledge of our product, and make it easy for your work.
5. Free Storage Area
We are providing free storage area for clients to achieve mixmum loading purposes.
FAQ
Q:
What industry are metal filters mainly used in ?
A:
The metal filtersare widely used in petroleum, chemical industry, chemical fiber, metallurgy, pharmaceutics, electric powder, water treatment, food and beverage etc.
Q:How many types of metal filters are there?
A:
There are sintered mesh, wire mesh, sintered fiber, sintered powder, wedge wire, knitted net, demister and so on.
