3 axis 4 axis cnc router 1325 3d stone carving machine for marble granite

Product Overview

Description

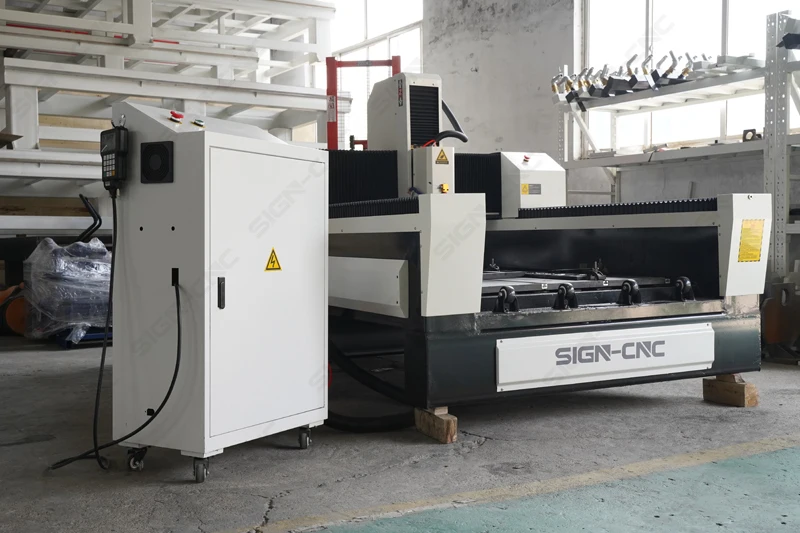

 3 axis 4 axis cnc router 1325 3d stone carving machine for marble granite



Product Description :



1. Heavy duty type and profiled steel welded lathe bed, stabilizing treated under high temperature for strong bearing capacity

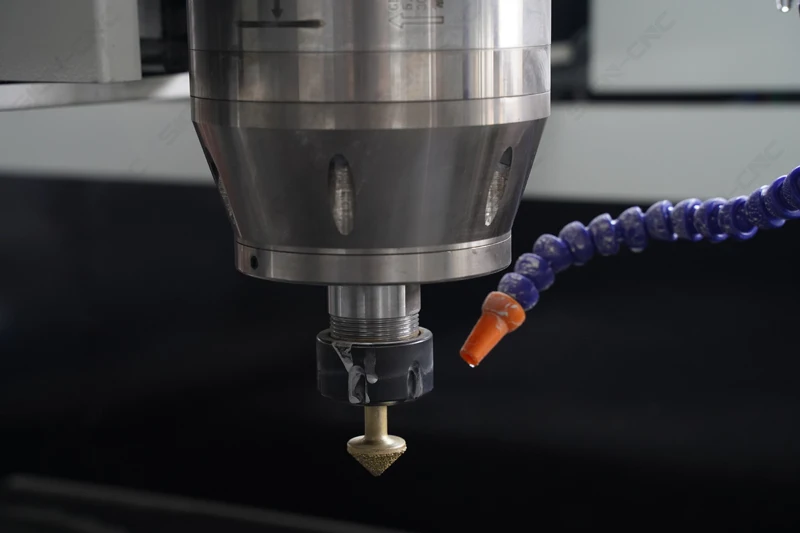

2. Big power 3.2 / 4.5 / 5.5kw water cooling, Low noise high rotated speed (24000rpm)

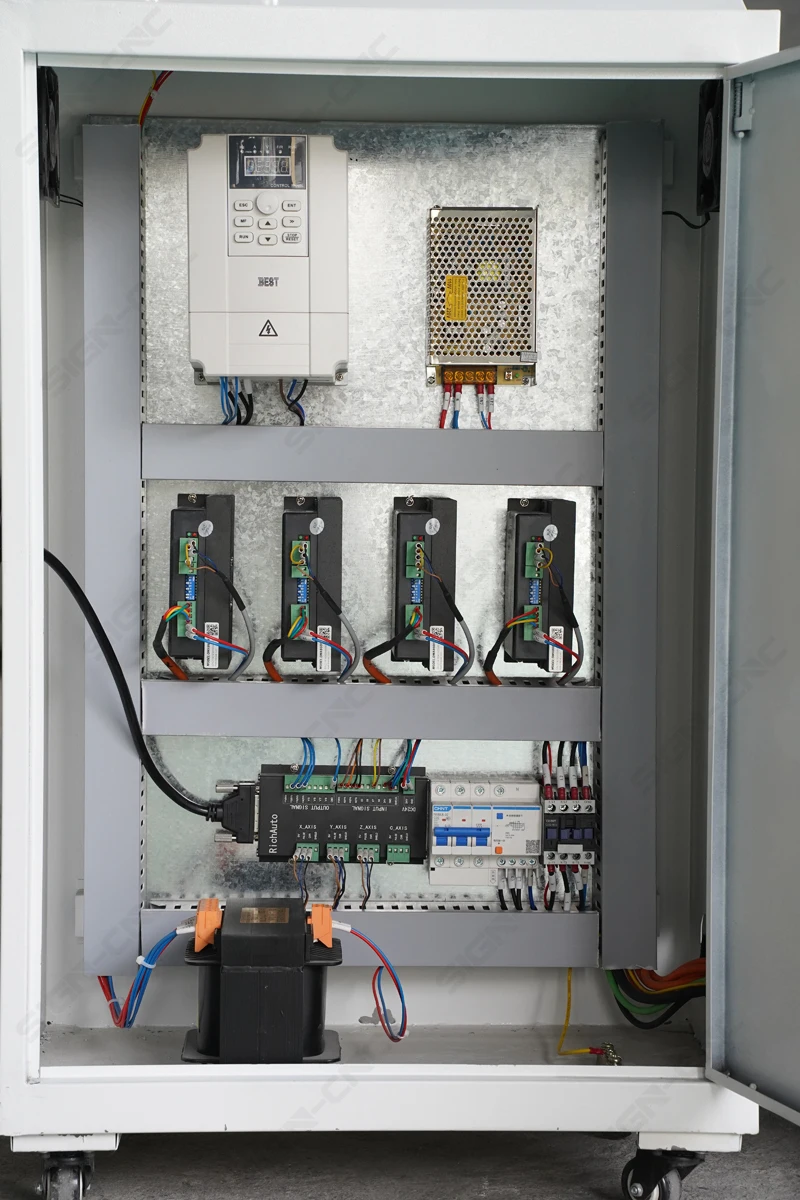

3. Famous brand Fuling / Delta inverter make spindle working stable
4. Hiwin/TBI brand 25 square guide rails and pinion and rack
5. Continue working after the break point / power failure, lower the rejection rate.
6. Y adopt durable driving by synchronizing wheel consist of belt and gear shaft.
7. Best mechanical and electrical design with well selected brand parts minimize breakdown rate.
8. Overall dust-proof and water-proof design protects all moving parts of machine.



Application industry :



Application:
Tombstone carving, Building Decoration, Wood furniture Industry, Furniture decoration, large scale board engraving, composite door, free-paint door, cabinet doors, advertising industry, Die industry, Relief sculpture, toy production, bedside cupboard, screen sculpture etc.

Application materials :


Stone, granite, marble, jade, metal, glass, Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.

Technical parameter:



Model	SIGN-1325
X, Y Working size	1300*2500mm
Z feed Height	360mm
Table Surface	T-slot
X, Y Structure	Rack and Pinion, Taiwan Linear Square Guide Rail

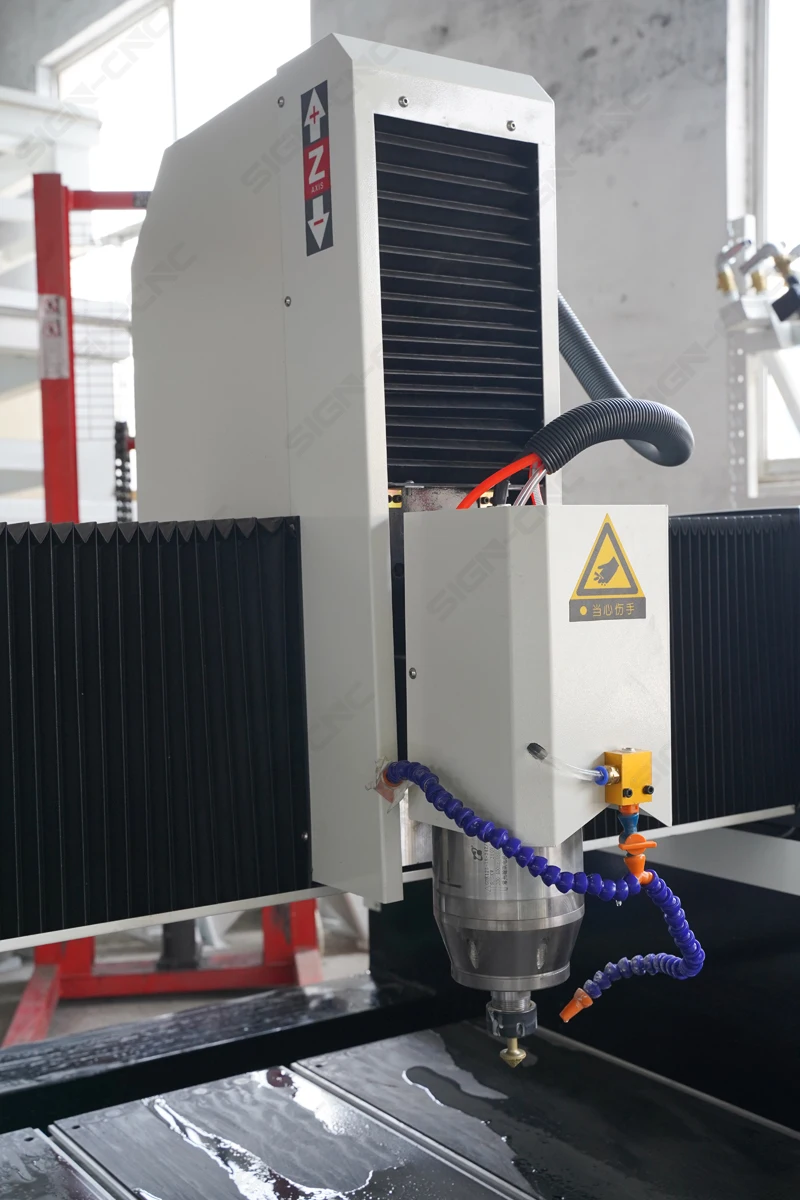

Z Structure	Taiwan Linear Square Guide Rail and Ball Screw
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	35000mm/min
Max. Working Speed	25000mm/min
Spindle Power	3 or 4.5 KW water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Stepper motor and driver
Working Voltage:	AC 380V /50/60Hz
Command Language	G code

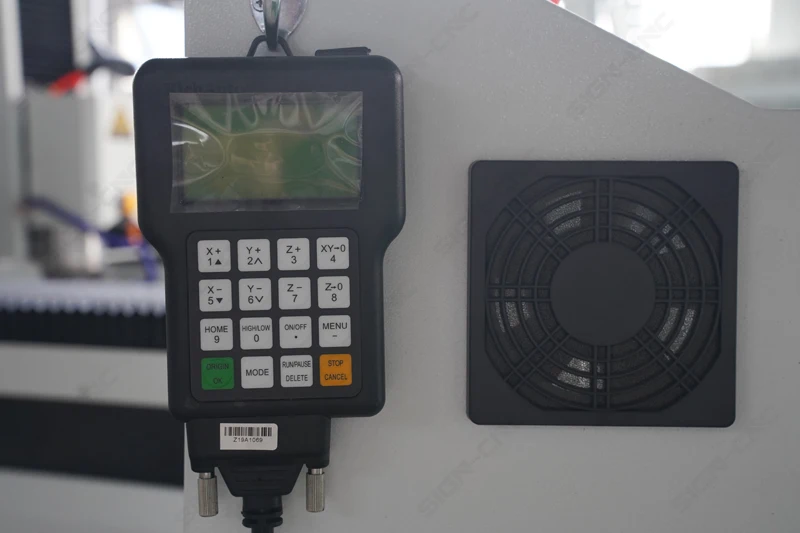

Control System	NCstudio / Mach3 / DSP
Dustproof	X Y Z axis
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software	Artcam
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%
Option	Servo motor Rotary
Warranty	One year



Option parts :



Option parts:

1. Rotary: Working for cylinder stone materials engraving, diameter different like small 100mm up to big 300 or 400mm dependent on your demand.
2. Servo motor and driver: Famous Japanese Yaskawa or Panasonic servo motor and driver

Samples:





Payment Methods:



Payment methods:


MOQ	1 set
Port of loading	Qingdao, China. Other cities are ok
Time of delivery	15 working days after receiving payment
Payment methods	T/T in advance, 50% deposit, the balance should be paid before shipping



All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. Let it more strong to avoid damage during the transport and for long distance transportation.



1. Two year warranty for machine, and if machine parts not work because of quality, we can repair and replace parts for free in one year.
2. Control system CD for software in English and with manual.
3. 24 hours technical support by call, email, skype, whatsapp, wechat and so on.
4. Free training course in our factory
5. Engineer available to service machinery overseas
6. Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts discounted / agent price for you

1. We are located in Jinan, Shandong, China
2. We have a strong professional technical team to provide the best products
3. We have experienced managers with the most perfect price system integration schemes for our customers.
4. Established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
5. We have been experienced in exporting the CNC machine for over 7 years, familiar with the different requirements from all kinds lines
6. Meanwhile, we insist the principle of "the best products, the most reasonable price, the maximum benefits for customers", there are prestigious fame in the industry business field.
7. All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours.
8. Welcome to visit our factory
