Diesel Generator Control Unit DSE 6020 Controller DSE6020 MKII Genuine UK
Product Description

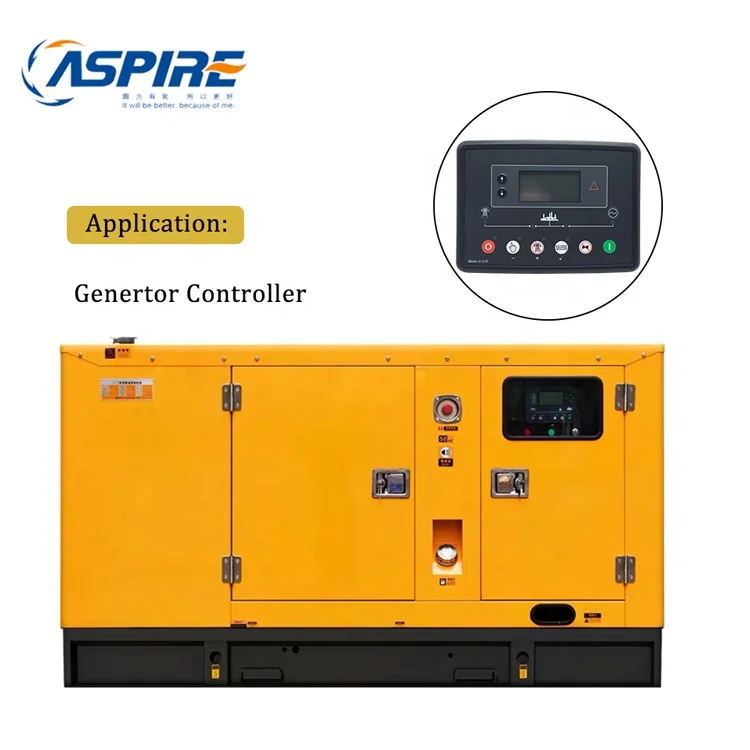

Controller DSE6020 MKII can completely replace with it. It has the function of auto mains (utility) failure control modules monitor incoming mains (utility) supplies and instruct gen-sets to start when mains (utility) power is not available. Due to the copyright, we can not show the image with original logo, if you want, just feel free let us know.
Technical Data
SPECIFICATION
DC SUPPLY
Continuous Votlage Rating
8 V to 35 V continuous
Maximum Operating Current
100 mA at 12 V, 105 mA at 24 V
Maxinmum Standby Current
60 mA at 12 V, 55 mA at 24 V
Maxinmum Sleep Current
40 mA at 12 V, 35 mA at 24 V
Cranking Droputs
Able to survive 0 V for 50 mS
providing supply was at least 10 V before dropout and supply recovers to 5 V.
This is achieved without the need for internal
batterie, LEDs and backlight will not be maintained during cranking.
INPUTS
Digttal Inputs A to F
Negative switching
Analogue Inputs D
Configurable as:
Negative switching digital input
0 V to 10 V,4 mA to 20 mA,0 to 480 Ω
Analogue Inputs A TO C
Configurable as:
Negative switching digital input:0 to 480
OUTPUTS
10 A short term, 5 A continuous,
Output B (Start)
10 A short term, 5 A continuous,
Auxiliary Outputs C, D, E &F
2 A DC at supply voltage
GENERATOR & MAINS (UTILITY)
Voltage Range
15 V to 415 V AC (Ph to N),26 V to 719 V AC (Ph to
Ph)
Frequency Range
3.5 Hz to 75 Hz

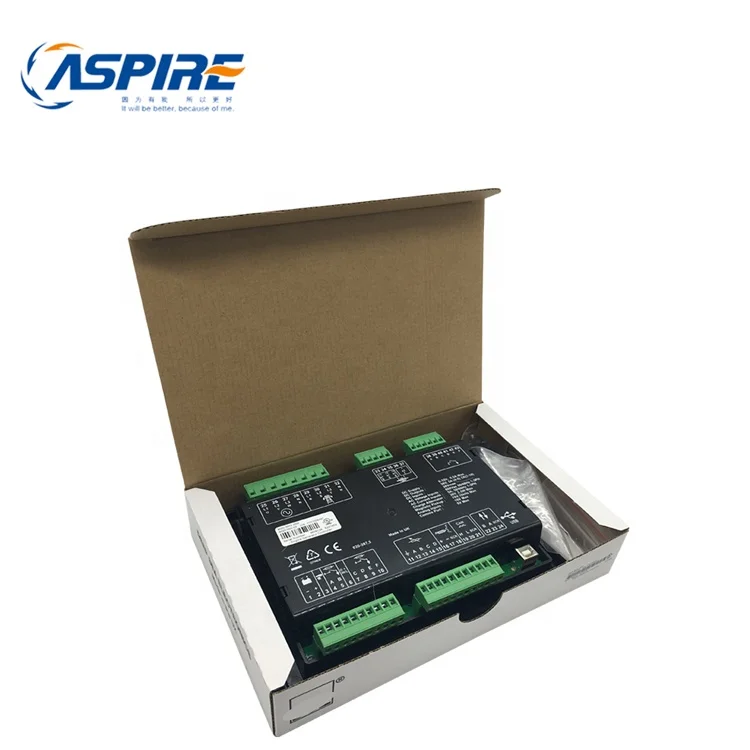

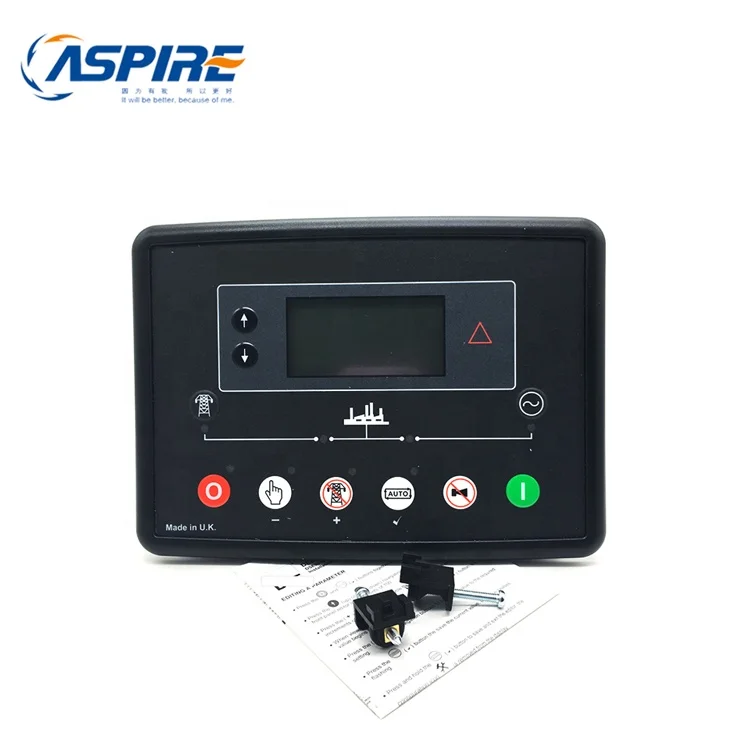

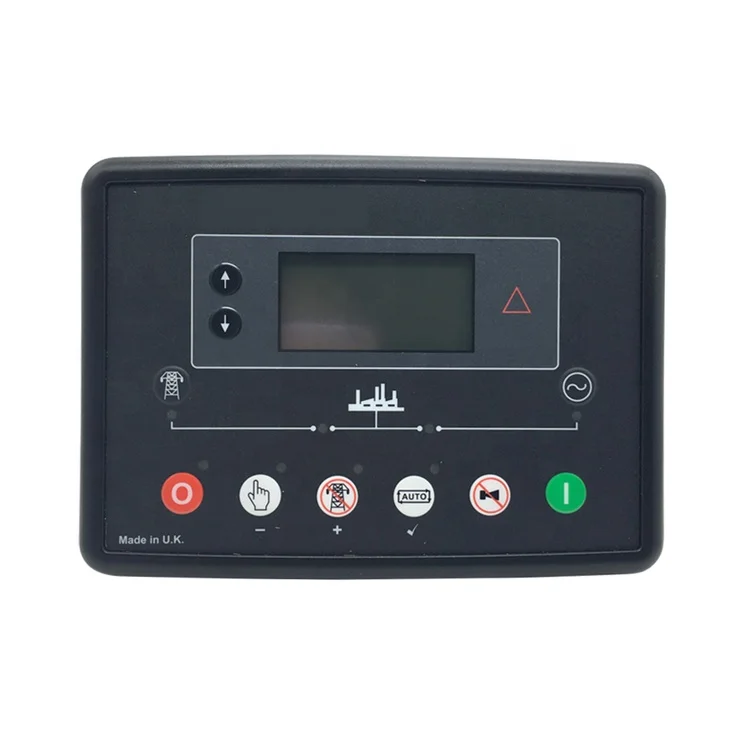

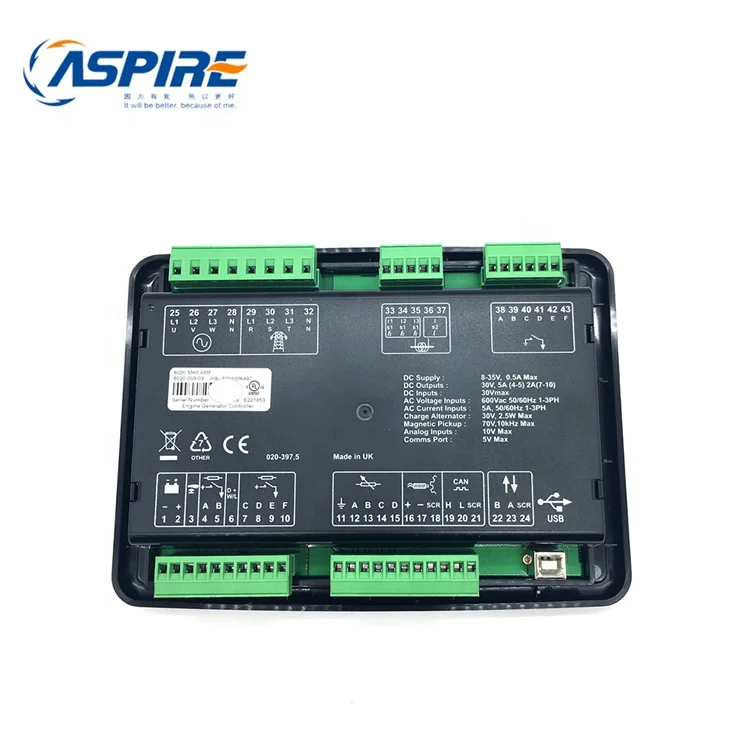

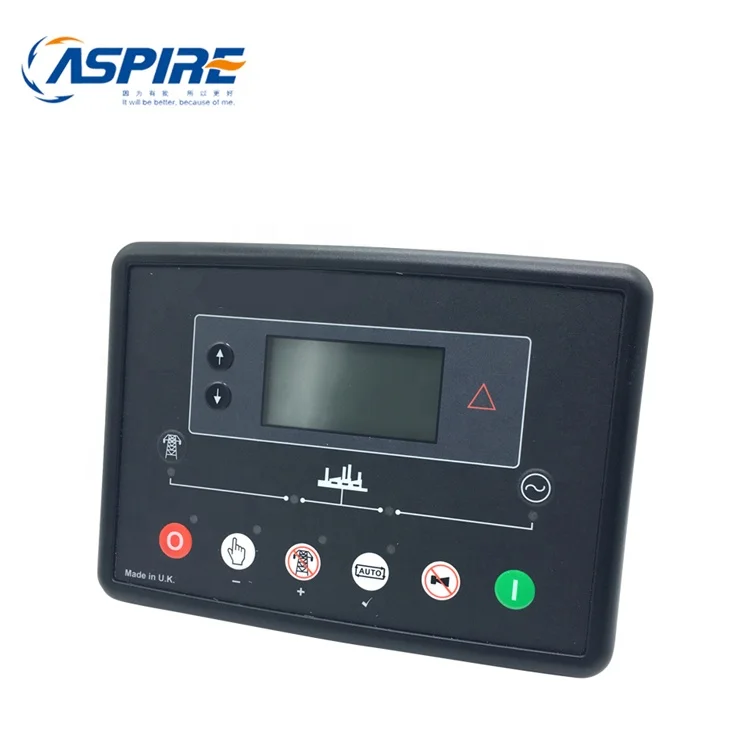

Detailed Images
