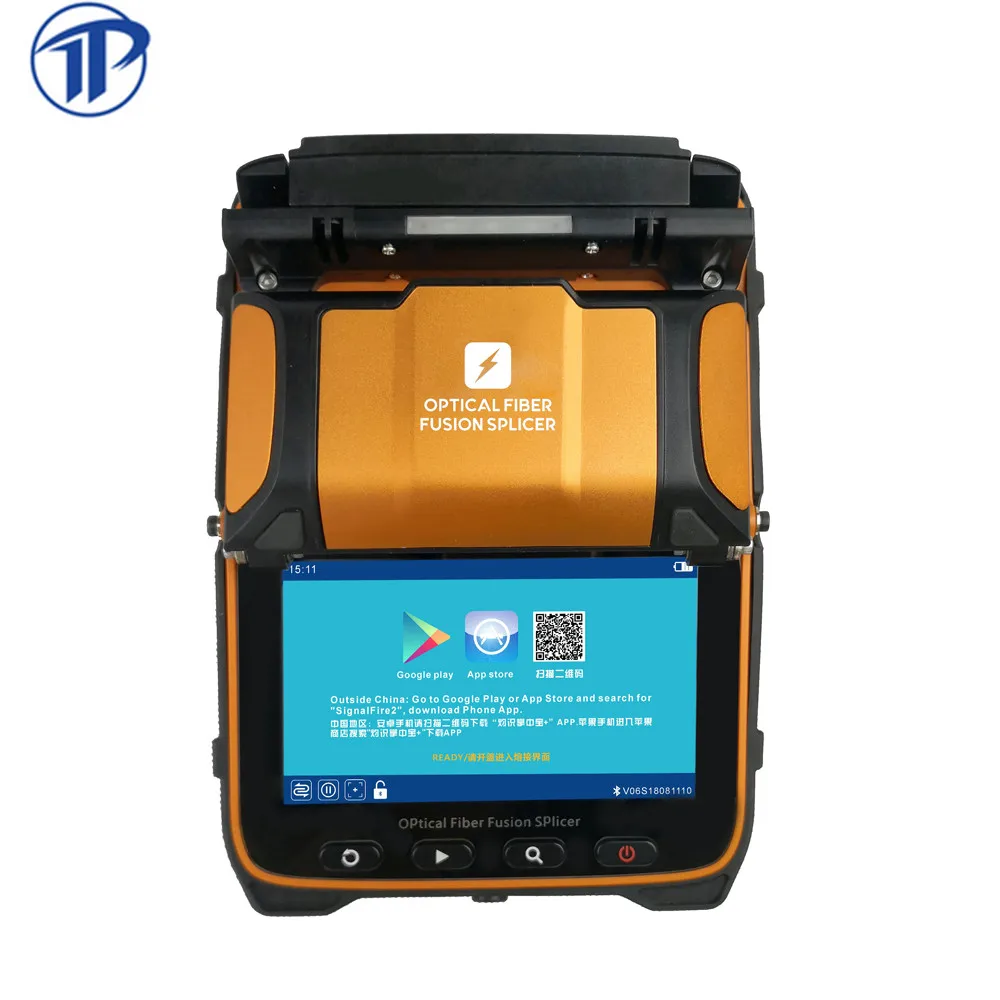

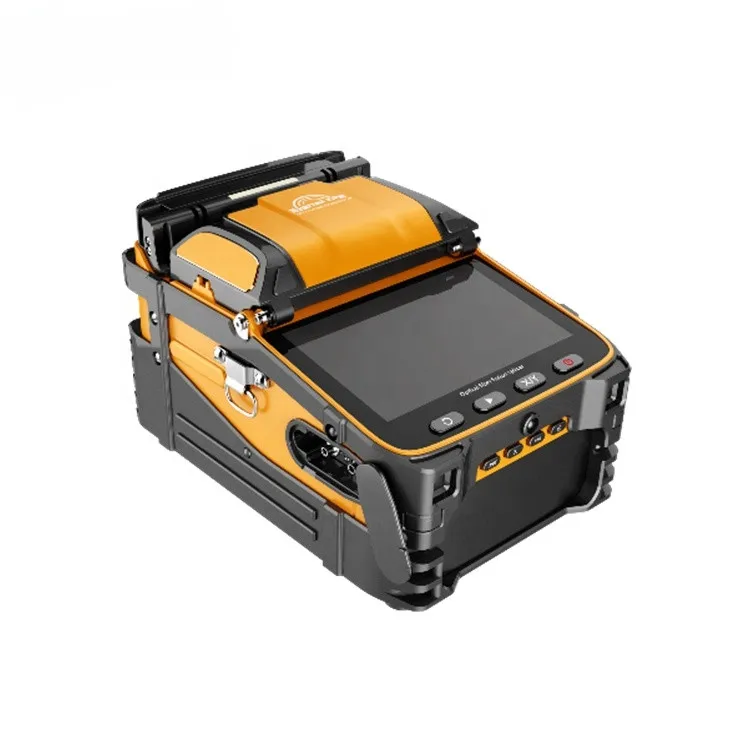

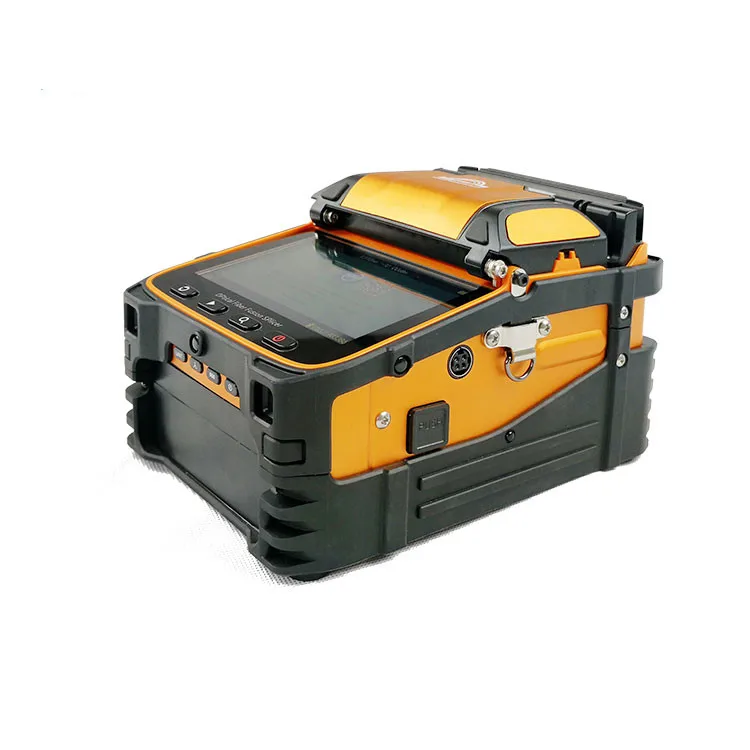

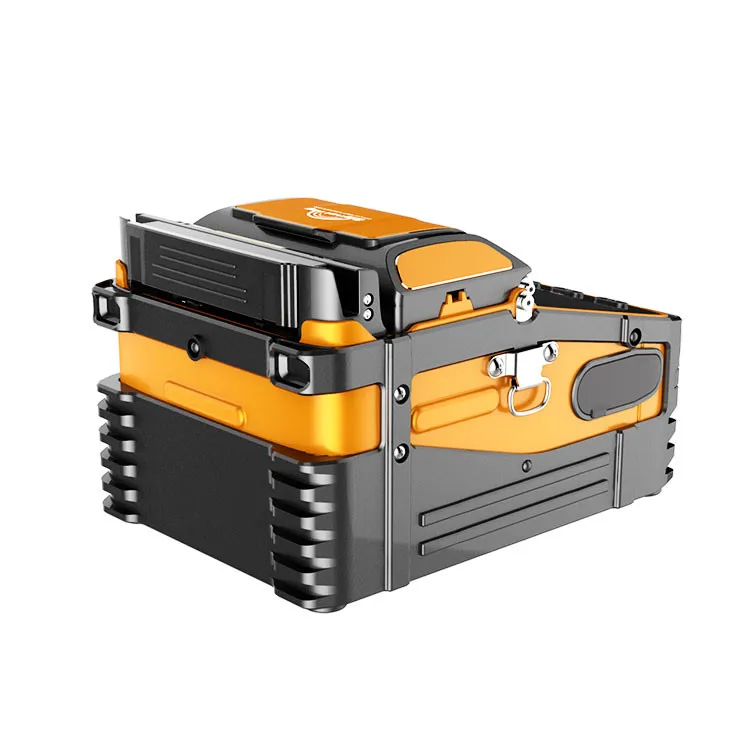

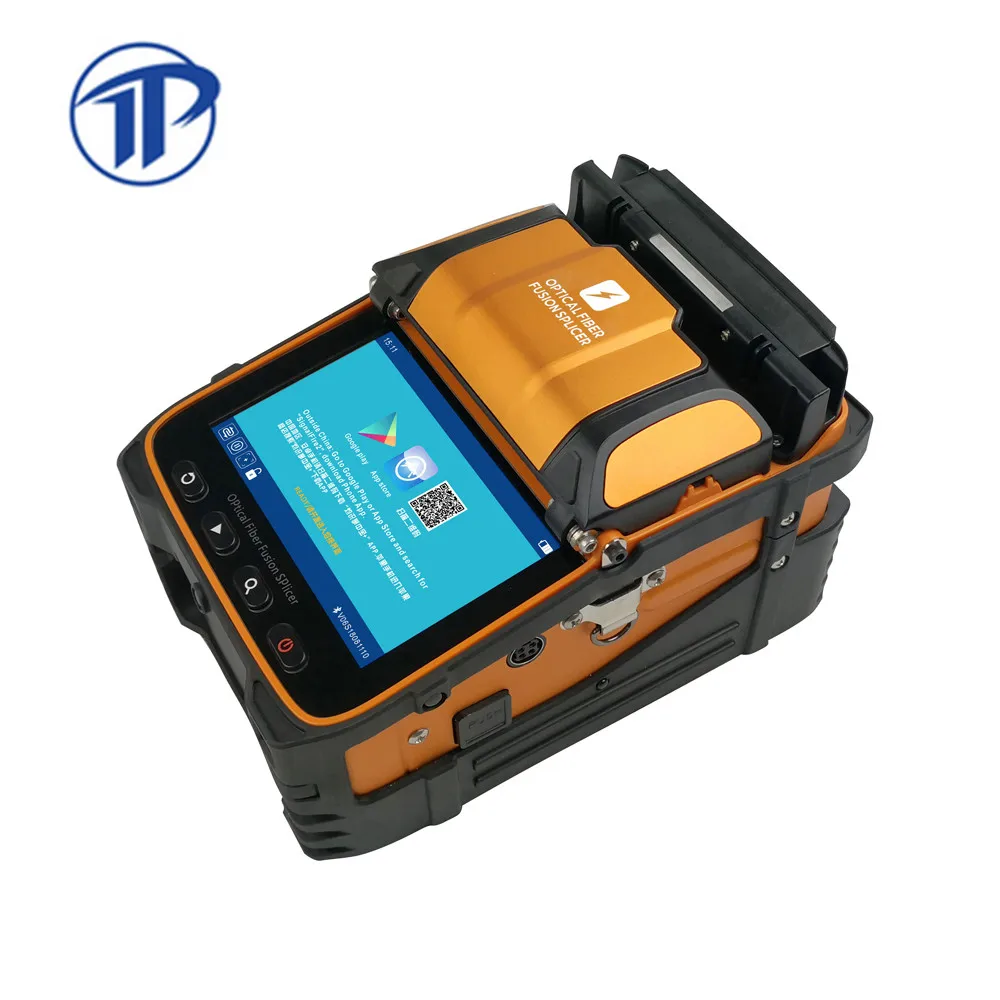

Optical Fiber Fusion Splicer ai9 Fiber Optic Splicing Machine ai 9
Product Description
Automatic Intelligent Optical Fiber Fusion Splicer AI-9 Fiber Optic 5S Splicing Machine AI9
| Fiber alignment | Core/cladding alignment / Manual alignment |
| Splicing time | 5s |
| Heating time | 15s |
| Heating mode | Automatic heating (Preheating) |
| Focus mode | Six motors Auto focus |
| Applicable Fibers | SM(G.652&G.657),MM(G.651),DS(G.657),NZDS(G.655) |
| Splice Loss | 0.025dB(SM) 0.01dB(MM) 0.04dB(DS/NZDS) |
| Control technology | Real-time control and calibration of fusion ARC |
| Return Loss | Better than 60dB |
| Fiber diameter | Cladding Diameter: 80-150um Coating Diameter:100-1000um |
| Fiber Cleave Length | Coating less than 250um: 8-16mm Coating less than 250-1000um:16mm |
| Built-in lighting | Easy for night operation |
| Tension Test | Standard 2N |
| Fiber holders | 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
| Magnification | 300 for X or Y view, 150 for X or Y view |
| Screen | 5 inch TFT color display |
| Splicing Mode | Normal / high precision splicing |
| Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |
| Built-in battery | 7800 mA high-capacity lithium battery, charging time ≤3.5 hours, continuous splicing and heating about 240 times |
| Power supply | Input AC 100-240V 50/60HZ, output DC 13.5V/4A, the current power mode can be identified,real-time detection of battery power |
| Operating Conditions | Temperature: -15~+50°C, humidity: <95% RH(no condensation) Working altitude: 0~5000m, resist max, wind speed: ≤ 15m/s |
| Shrinkable tube | 60mm,40mm |
Signal Fire AI-9 adopts the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.
Contact us
Detailed Images
Packaging & Shipping
Packaging:
1. All products will be packed in carton , so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement
Shipping:
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
Company Information
Hunan Pon Information Technology focusing on network products industry ten years, has rich experience, strong technical force, complete varieties, good quality and reasonable price, our network products, communication products, Gpon ONU, Epon ONU, G/epon ONU,OLT, switch, fiber cables,fiber tool equipments have got unanimous approval and trust of customers, sincerely welcome friends from whole world to come to discuss, looking forward to your comments and cooperation!
