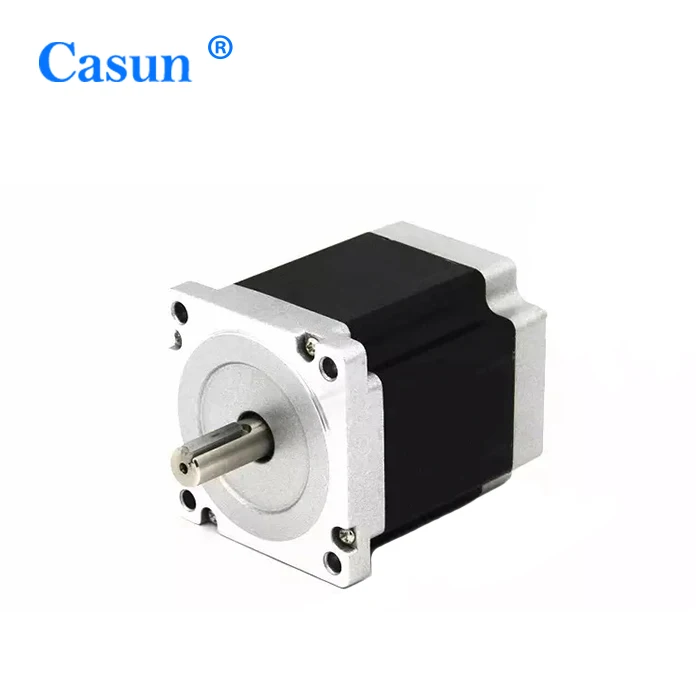

Best Selling Nema 34 Bipolar 1.8deg 4.5 Nm(637.38oz.in) 5.5 A 86x86x74mm 4 Wires 34HS31 5504S

Share on (62364948491):


Price:RUB 2,913.67

Quantity:


Product Overview

Description

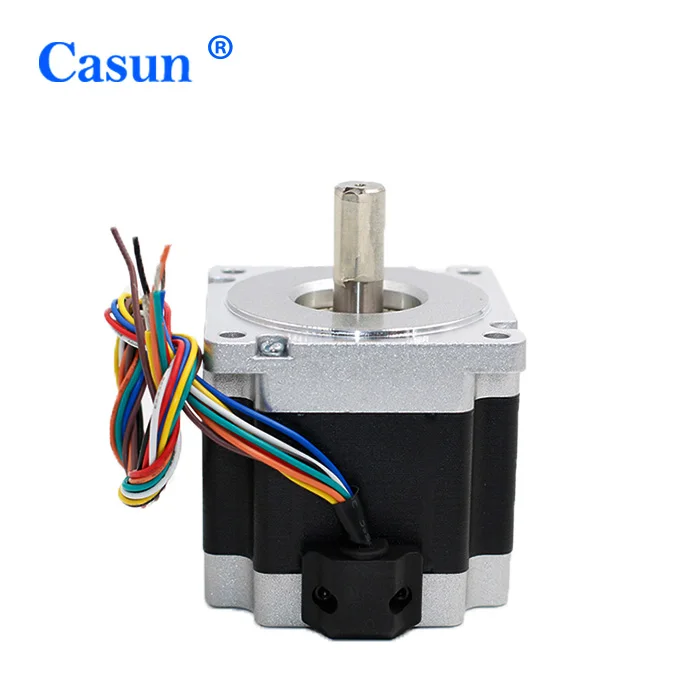

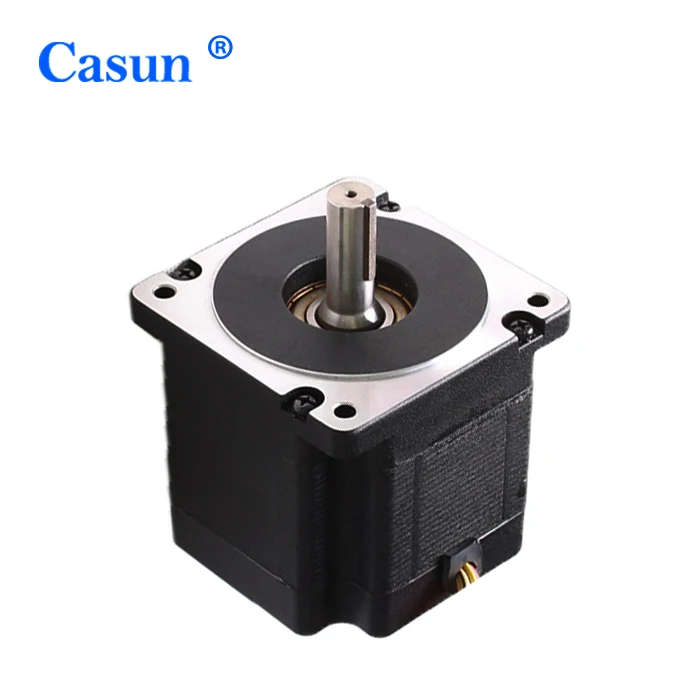

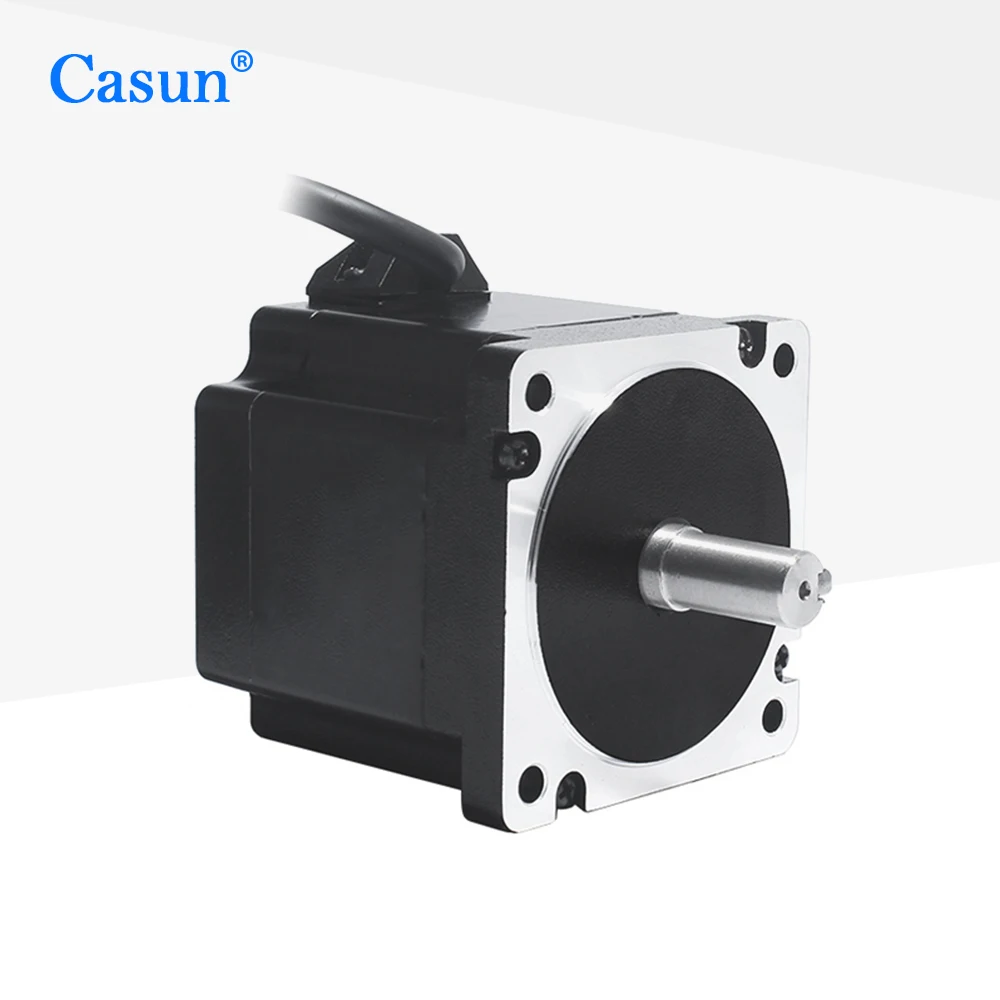

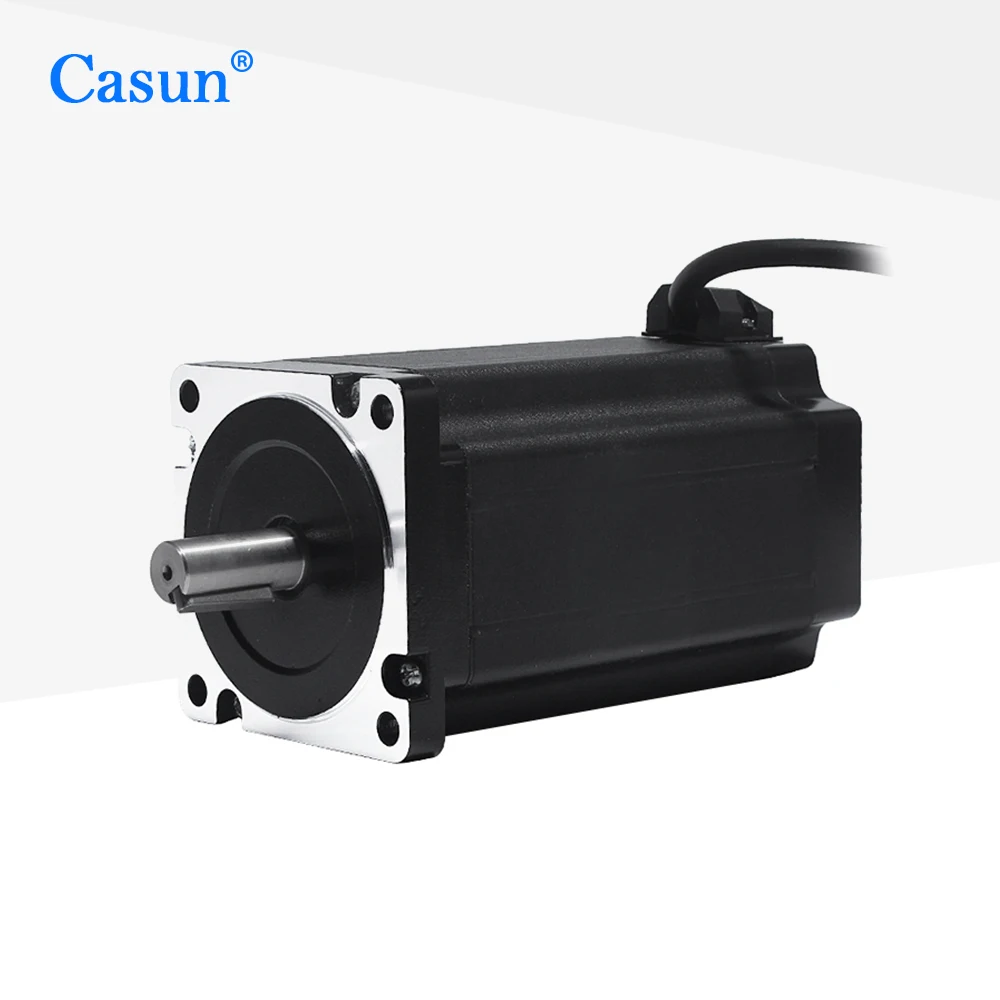

NEMA 34 Stepping Motor 34HS31-5504S

This Nema 34 cnc stepper motor with size 86x86x76mm.
It has 4 wires, each phase draws 5.5A, with holding torque 4.5Nm (637oz.in).

Electrical Specification:
* Manufacturer Part Number: 34HS31-5504S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg
* Holding Torque: 4.5Nm(637oz.in)
* Rated Current/phase: 5.5A
* Voltage: 2.2V
* Phase Resistance: 0.4ohms
* Inductance: 3.5mH ± 20%(1KHz)
Physical Specification:
* Frame Size: 86 x 86mm
* Body Length: 80mm
* Shaft Diameter: Φ14mm
* Shaft Length: 35mm
* Key Way Length: 25mm
* Number of Leads: 4
* Lead Length: 500mm
* Weight: 2.3kg

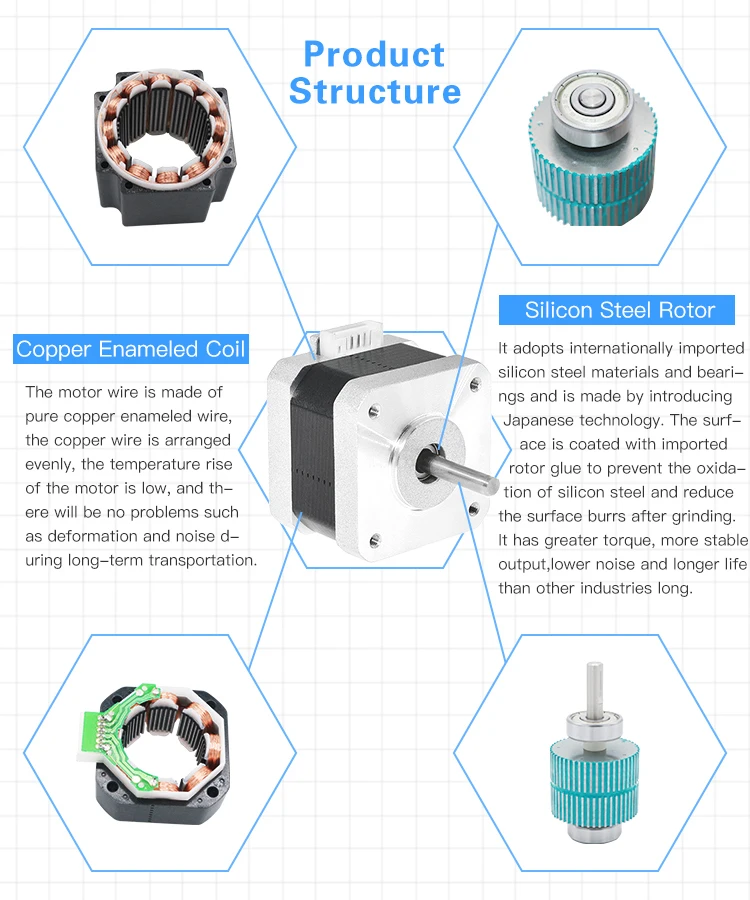

Manufacturing Technique
Model
Holding Torque
Rated Current
Resistance per phase
Inductance per phase
Detent torque
Rotor inertia
Lead wire
Motor length
mN.m
A
Ω
mH
mN.m
g.cm²
No.
mm
3.8
5
0.45
2.6
0.14
1400
4
76
86SHD8106
Bipolar 3.5
-
1.1
2.8
0.14
1400
8
Unipolar 2.5
6.4
5
0.55
3.2
0.23
2700
4
112
86SHD8306
Bipolar 6.0
-
1.2
5
0.23
2700
8
Unipolar 4.5
12
5
1.1
7.5
0.32
3600
4
148
86SHD8506
Bipolar 11
-
1.3
8
0.32
3600
8
Unipolar 8.5

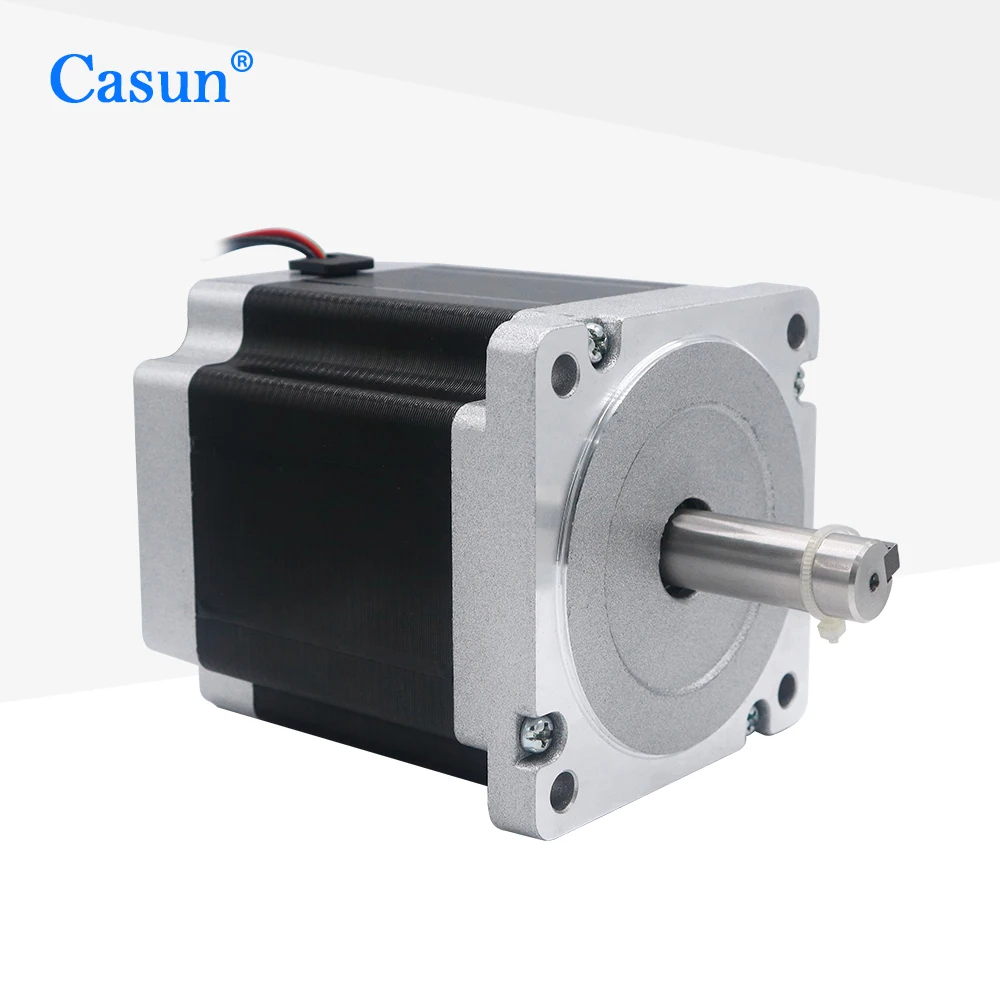

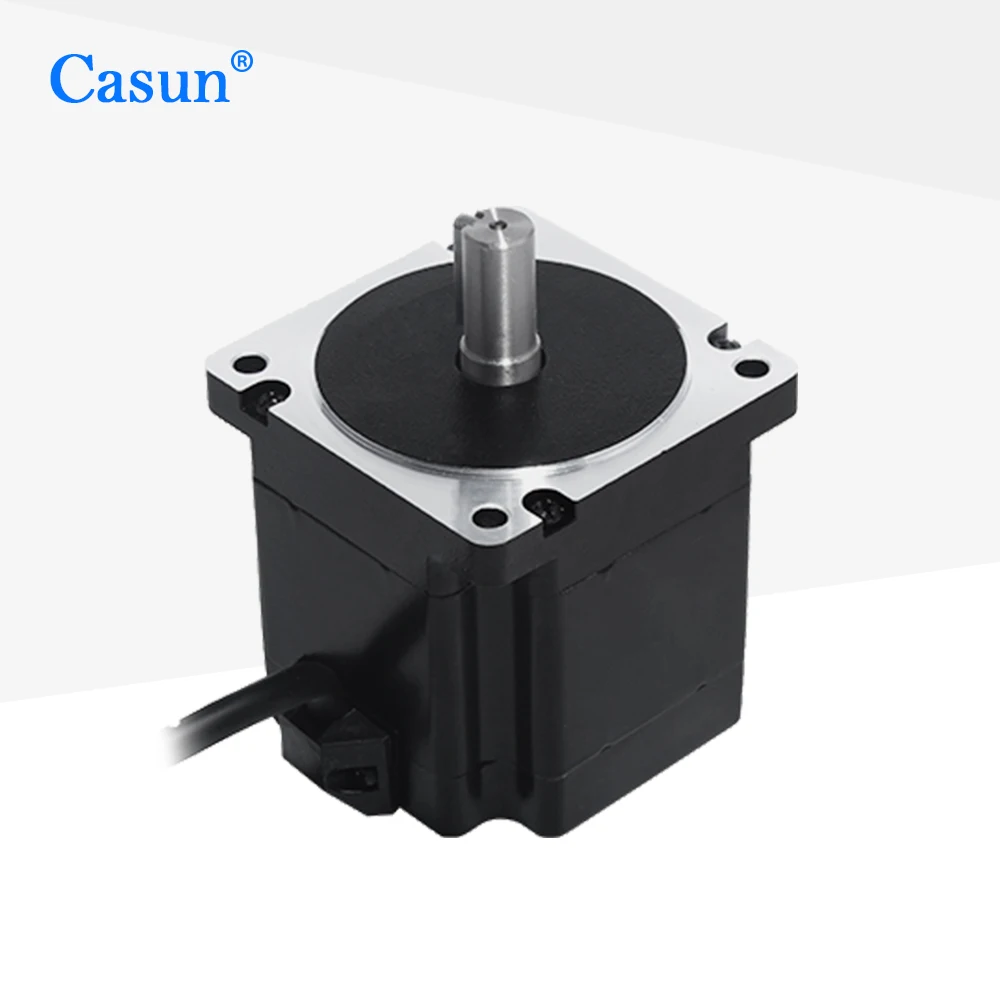

Details Images
Packing&Shipping
The motor is fixed with pearl cotton or foam, and packed in carton

carton box with foam inside or can be customized. Packing details: 1) 36*29*14cm, 3pcs /CTN, 2) 36*29*18cm, 6pcs /CTN,

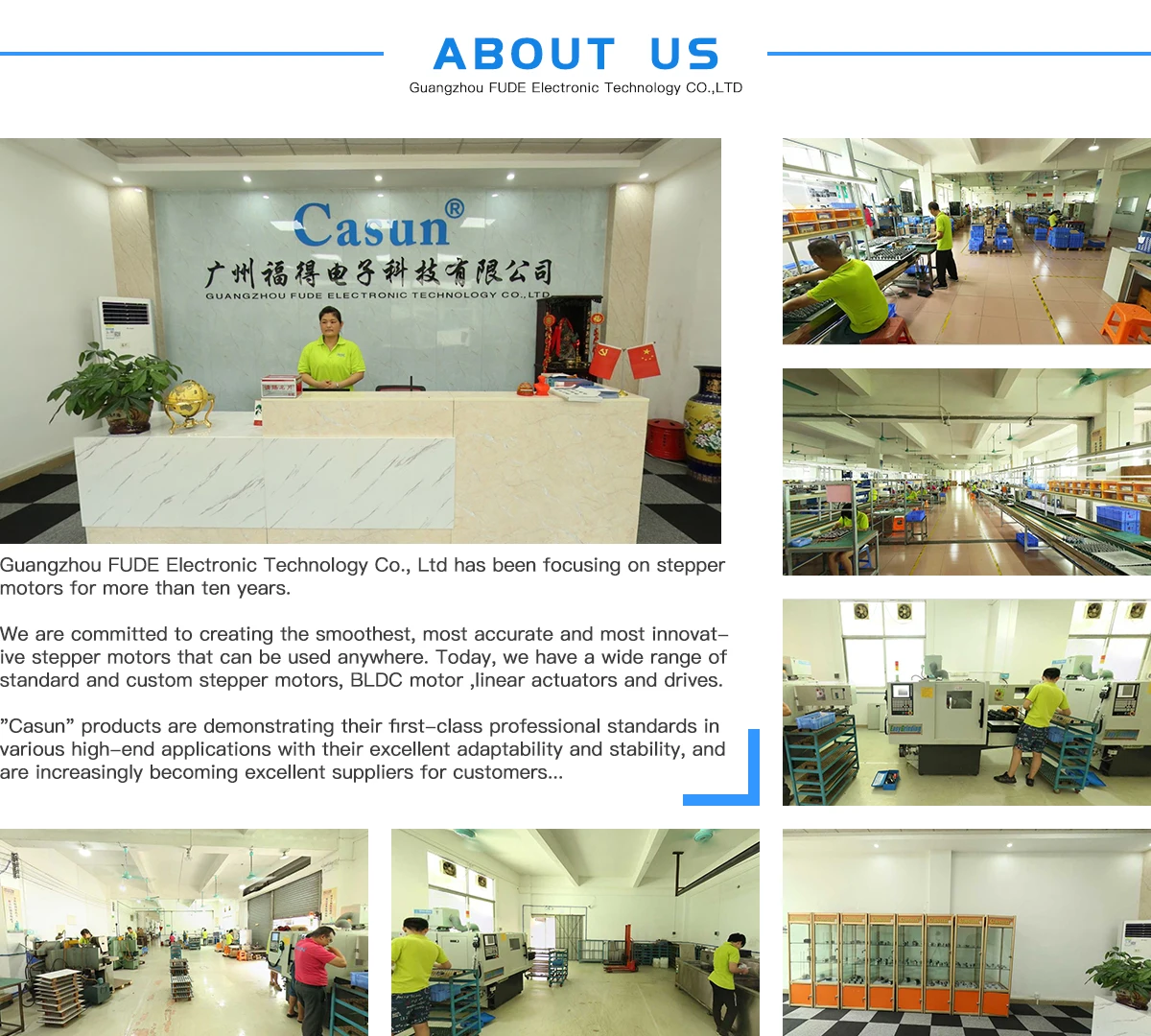

Company Introduction
GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO., LTD has been focusing on stepper motors for more than ten years.Our company is located in Guangzhou, Guangdong, China. We have an excellent team with extensive experience in manufacturing and research. In this field, we have extensive experience in solving practical usage problems for customers. We are committed to creating the smoothest, most accurate and most innovative stepper motors that can be used anywhere.
Today, we have a wide range of standard and custom stepper motors, linear actuators and drives.
Our Services & Strength
"Casun" products are demonstrating their first-class professional standards in various high-end applications with their excellent adaptability and stability, and are increasingly becoming excellent suppliers for customers.

Our company believes in reputation, insists in innovation, and purses excellent.
We welcome your coming for business, and we will wholeheartedly serve you.
FAQ
1. Motors production All the proucts we sold here are manufactured by Guangzhou FUDE Technology Co., Ltd., China. 2.Motors selection Please contact us to confirm the model and other details of the motor before purchase. 3.Payment We can serve samples and accept fully prepayment only. 50% advance is needed for bulk purchase and balance before shipment .Paypal, Western Union, T / T are all accepted. 4.Delivery Samples in stock can be delivered within 7 days and customized samples within 30 days. Delivery date for bulk order depends on quantity. 5.Feedback and after-sale service Any problems in using are welcome to be informed! Our technician will give you professional advise. We will give you free maintenance within 24 months if the flaws are the result of production.
