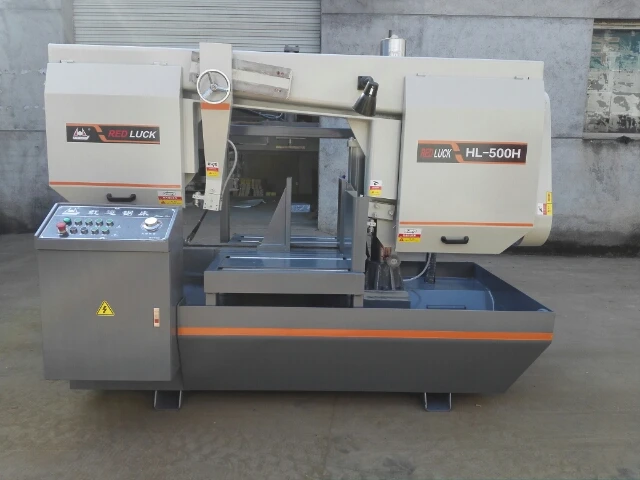

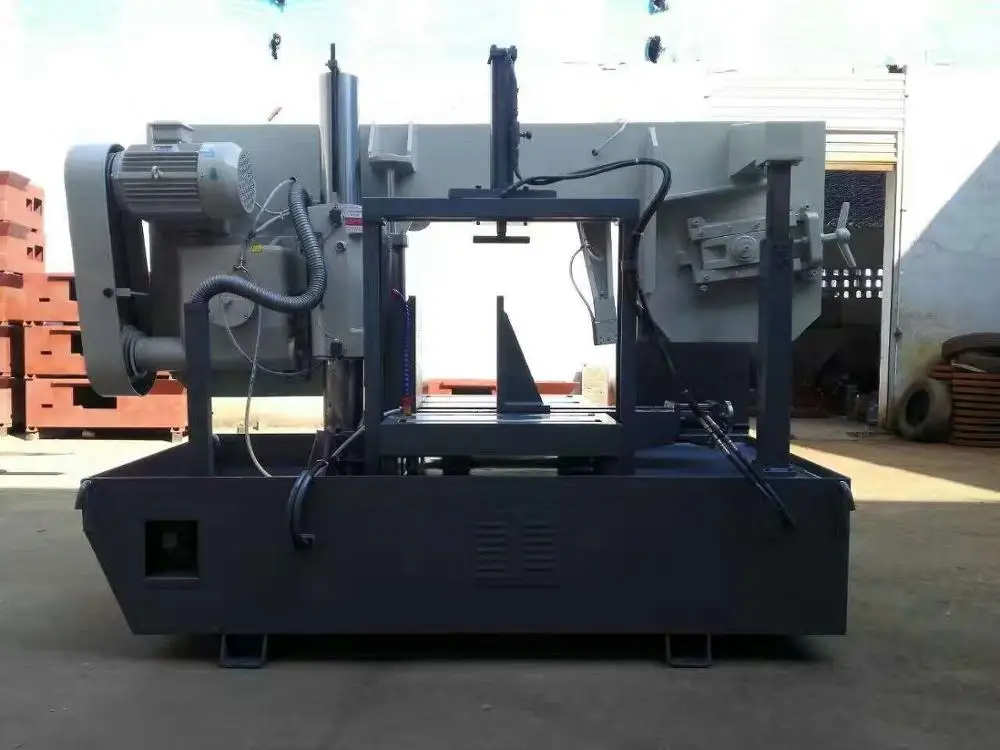

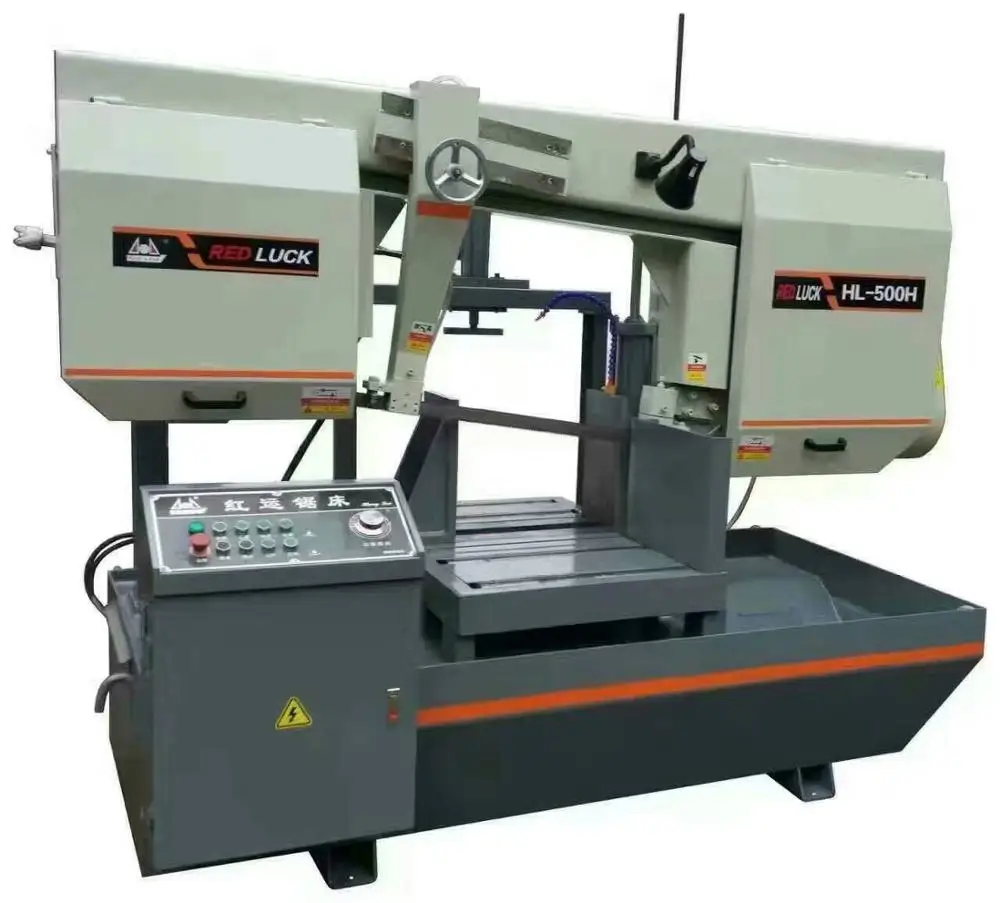

H beam Horizontal Metal cutting Band saw machine

Model

HL-500H

Max. Cutting Diameter

Round: 500

mm

Plate: 500*600

mm

Blade Speed

22.45.62

m/min

Blade Size

1.3*41*5400

mm

Motor Output

4

kw

Hydraulic Pressure

1.5

kw

Coolant Pump

0.09

kw

Table height

580

mm

Machine Size(L*W*H)

2700*1150*1900

mm

Net Weight

2000

kg

Vice clamping

Hydraulic

Blade tensioning form

Maunal

Feeding cut adjust way

Hydraulic stepless

Feeding way

Automatic/Manual

Hydraulic cooling way

Wind cooling

Chip conveyor way

Manual/Automatic

Voltage

380V 50HZ 3Phase
