128kg/m3 Excellent High Temperature Stability Alumina Fiber Blanket
Product Description
Alumina fiber blanket, firstly appeared in 1950s, and be industrialised produced at the begining of 1970s. According to different fiber length, it is classified to catagories---continuous long fiber and short fiber. Alumina fiber blanket belongs to short fiber product, and alumina fiber cloth belongs to long fiber product.
Alumina fiber is manufactured by"Sol-Gel"colloidal method, to be microcrystalline mullite phase high temperature refractory fiber through high-temperature calcination.
Alumina fiber blanket is manufactured from Alumina fiber by doubled needled, doesn’t contain any additives or other ingredients.
Feature
l Excellent high temperature stability
l Tiny shrinkage on heating
l Low shot content, Prominent refractory and insulation performance
l High blackness, good heat reflection performance
l Low heat storage, low thermal conductivity
l Uniform fiber diameter distribution, high tensile strength
l Strong wind resistance
l Good high temperature flexible performance, excellent thermal shock and mechanica vibration resistance
l Stable chemical performance, high corrosion resistance
Application
l Raw material of alumina fiber composite module
l Furnace in steel and iron industry with temperature between 1250℃ -1500℃
l High temperature furnace in petrochemical industry
l High temperature gap filler material
l Fast firing kiln lining in ceramic industry
l Electromagnetic shuttle kiln lining
l Sealing gasket of three way catalytic converter in auto industry
l Sealing gasket in high temperature section
l High temperature filter medium
Technical Data
Product Name | Alumina Fiber Blanket | |
Code | LYLX-1600T | |
Classification Temperature(℃) | 1600 | |
Chemical Composition | Al2O3(%) | 72 |
Chemical Composition | SiO2(%) | 28 |
Chemical Composition | Trace(%) | 0.2 |
Phase Composition(X-ray scattering techniques) | Mullite Crystal Phase | |
Desntiy(kg/m3) | 96/128 | |
Fiber Diameter (um) | 5 | |
Shot Content(≥0.212mm)% | ≤2 | |
Fiber Length(um) | 5-10 | |
Specific Heat(J/Kg. k) | 1.17×103~1.21×103 | |
Fiber Tensile Strength(span length 5mm)(Mpa) | 1000 | |
Blanket Tensile Strength(Mpa) | 0.08-0.1 | |
Thermal Conductivity(W/m.k) | 600℃ | 0.16 |
Thermal Conductivity(W/m.k) | 800℃ | 0.22 |
Thermal Conductivity(W/m.k) | 1000℃ | 0.32 |
Thermal Conductivity(W/m.k) | 1200℃ | 0.45 |
Thermal Conductivity(W/m.k) | 1400℃ | 0.65 |
Shrinkage on heating(%)(1400℃×24h) | ≤-1 | |
Specification
Specification and packing | |||||
Thickness(mm) | Length(m) | Width(mm) | Desntiy(kg/m3) | Standard Packing | |
96 | 128 | Roll/ctn | |||
3 | 50 | 610 | . | - | 1 |
6 | 3.6 | 610 | . | . | 12 |
36 | 610 | . | . | 1 | |
12.5 | 3.6 | 610 | . | . | 6 |
21.6 | 610 | . | . | 1 | |
25 | 3.6 | 610 | . | . | 3 |
7.2 | 610 | . | . | 1 | |
*Specific products could be made according to customers’requirements.

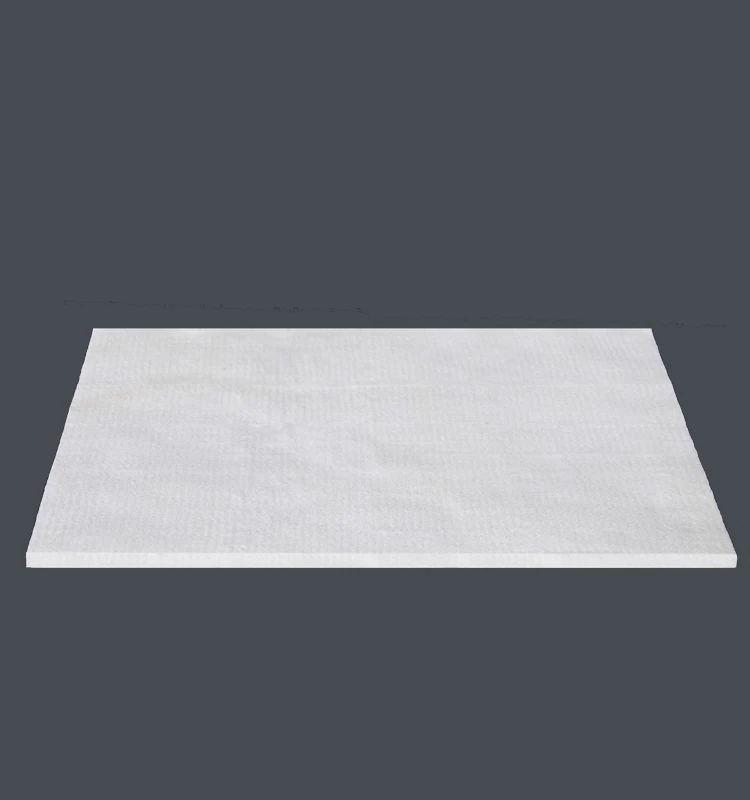

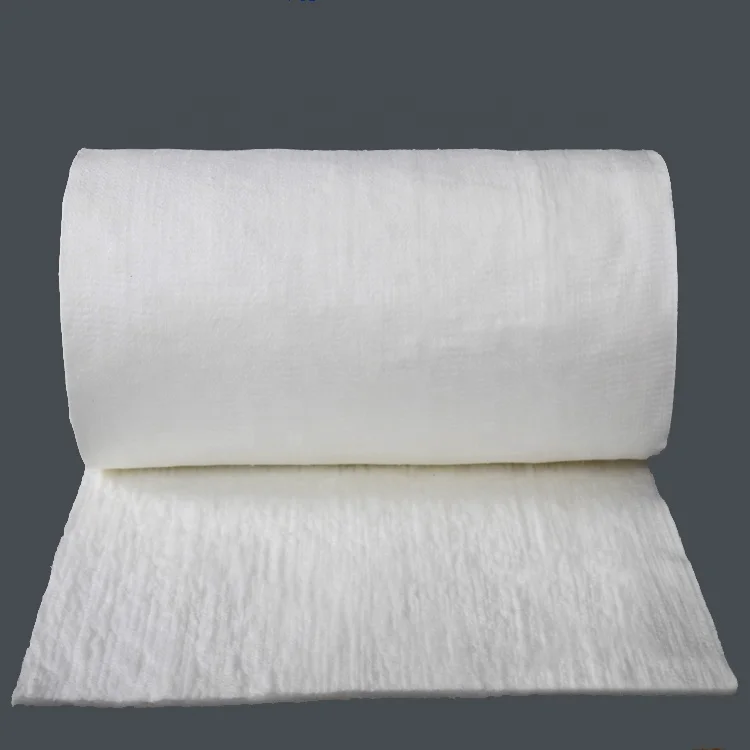

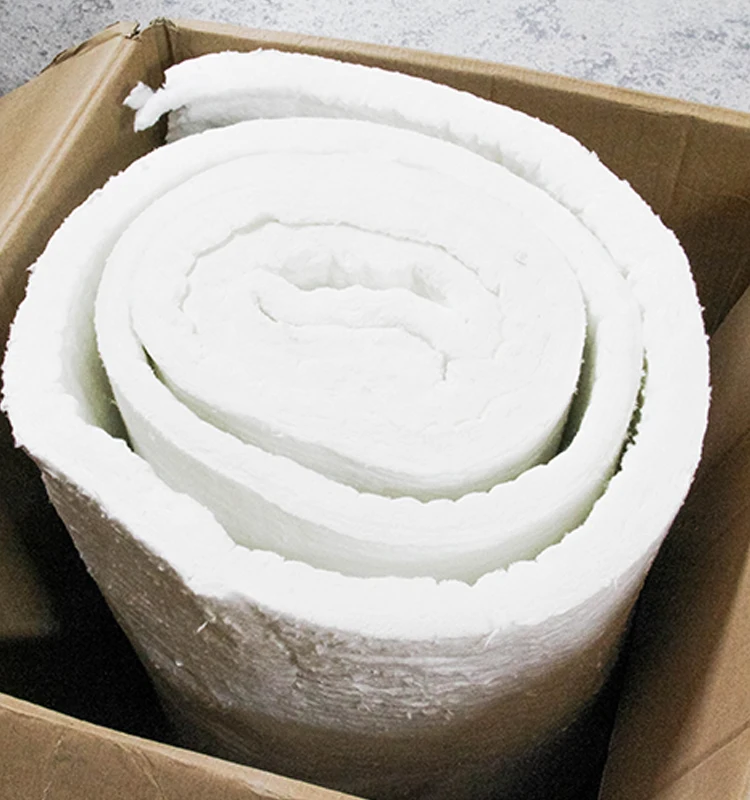

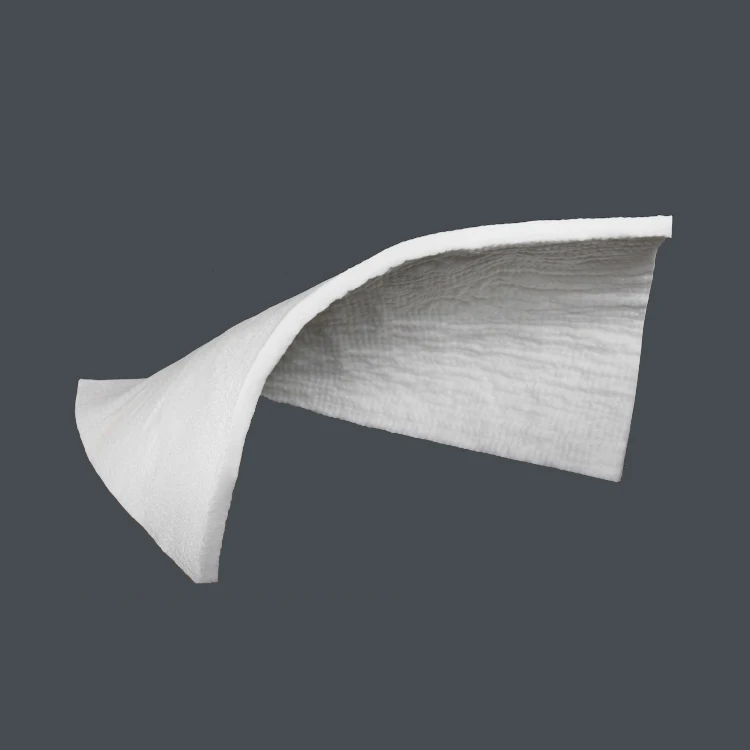

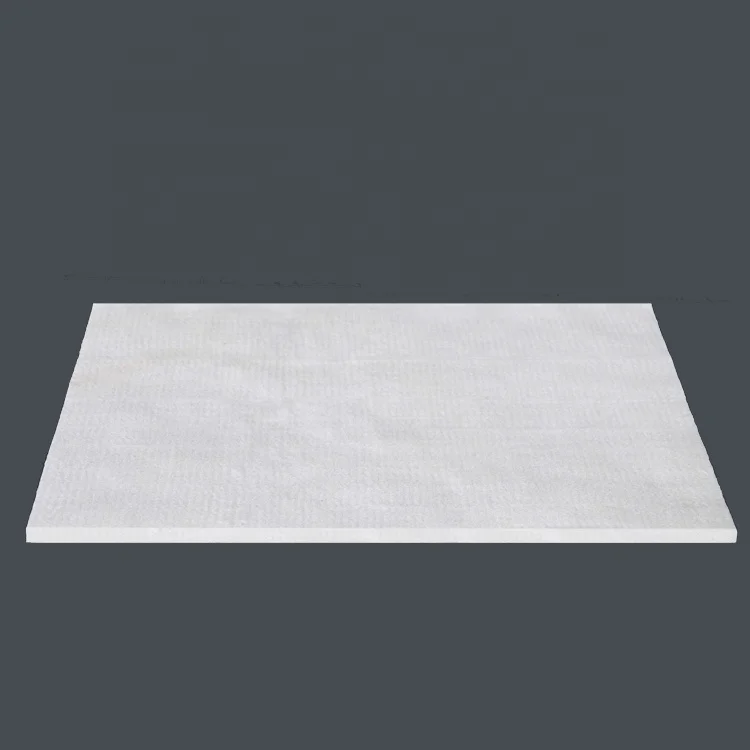

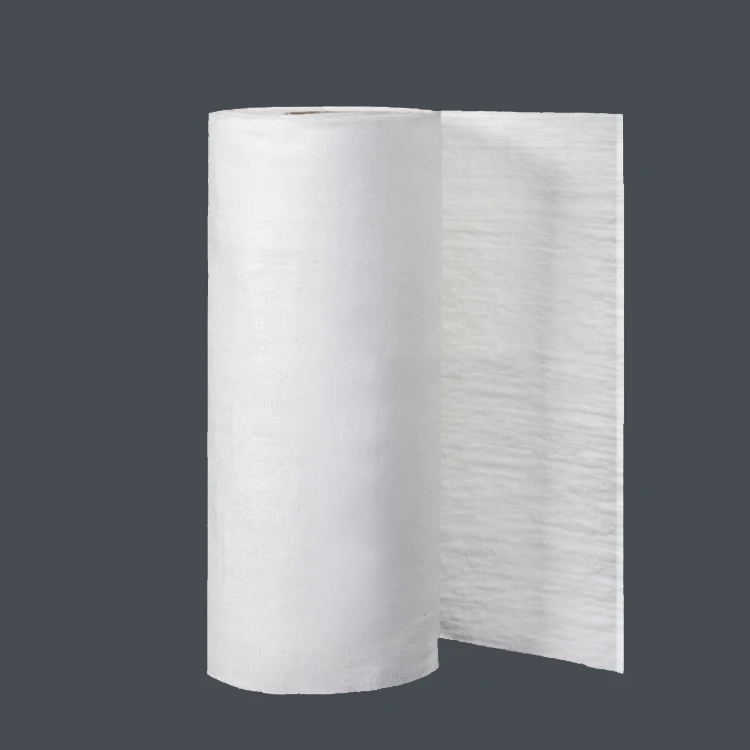

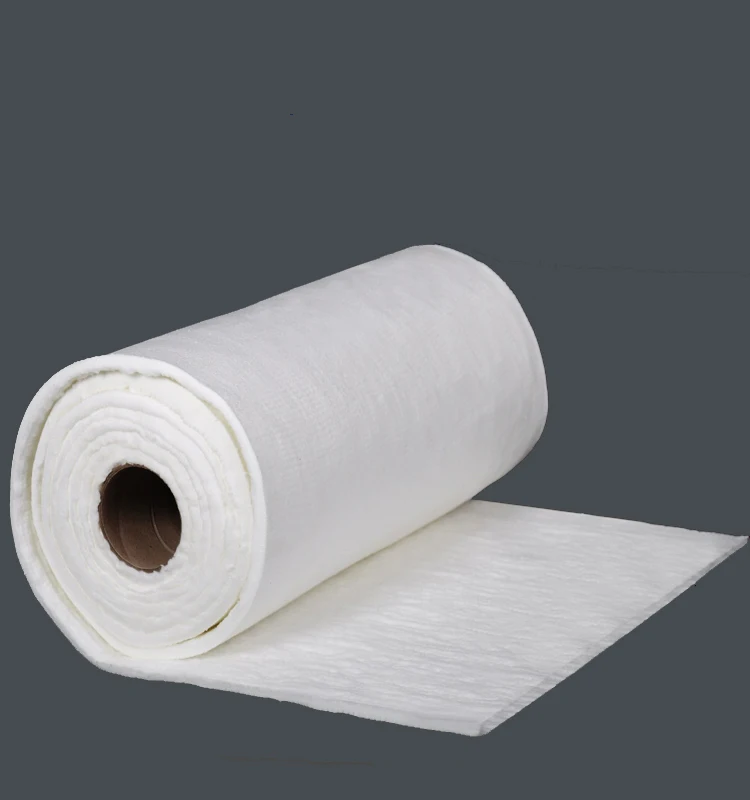

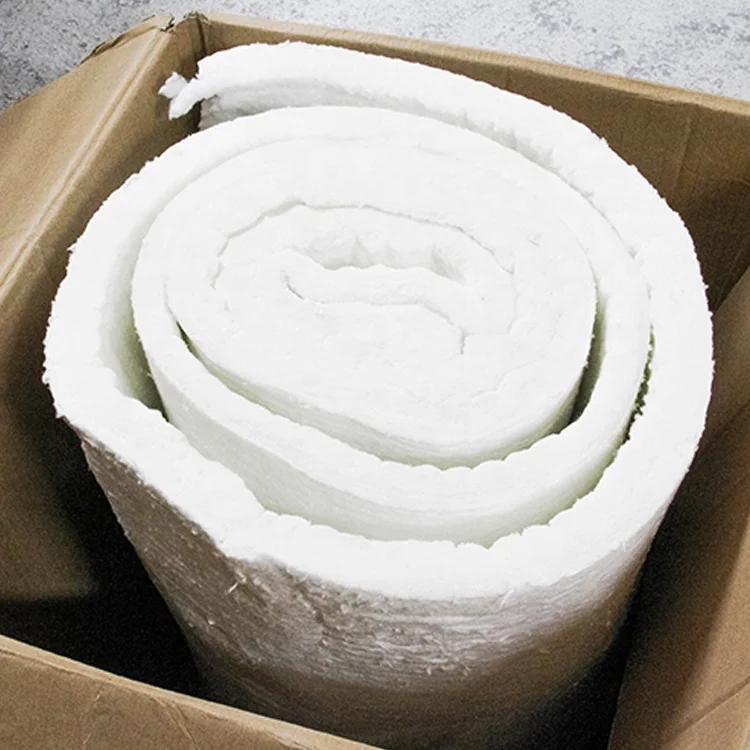

Detailed Images
