Product Overview
Description
Softgel Encapsulation Making Machine
This equipment is designed based on the market requirements special for small production and soft capsule research. The capsule machine adopts advanced technology and high quality materials according to GMP requirements. It's the best choice for smaller user to produce soft capsule. The whole line is easy to remove and has a little requirements for the working area.
Advantage
Simple structure, east to operate, small floor area
PLC touch screen control, stable performance, easy to maintain.
| Technical Parameter | ||
| Die roller speed | 0-5 RPM | |
| Die roller size | φ103x200mm | |
| Die roller pressure | 0.1-0.5Mpa | |
| Capsule capacity | 62,400 caps/h, 8# olive(500mg) | |
| 30 Kg/H | ||
| Power | 380V50Hz | |
| Motor power | 0.75kw | |
| Total power | 9kw | |
| Volume precision | ≥±2% | |
| Dimension | 2050x890x2000(h)mm | |
| Weight | 800kg | |

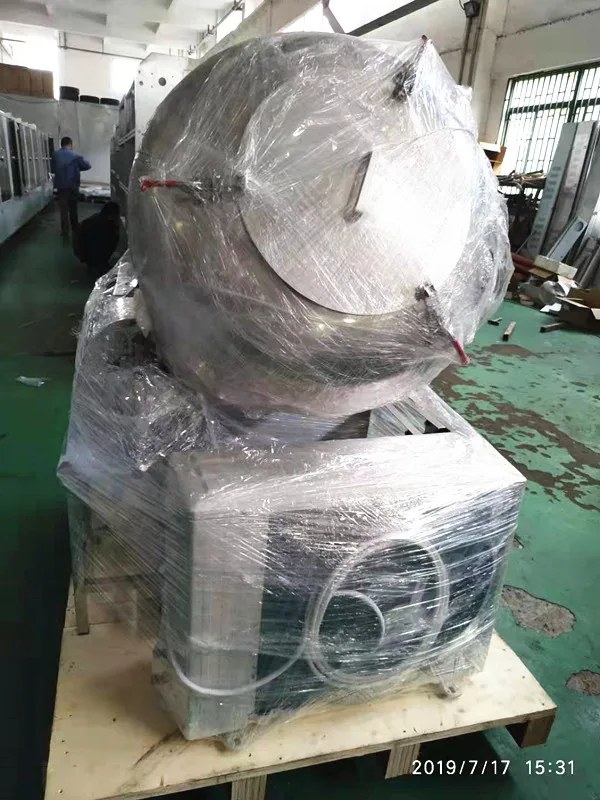

SS Shaping and Drying Tumbler
ZL250 stainless steel shaping and drying tumbler is used for the shaping and pre-drying of soft capsule. Each tumbler has a fan, and can rotate in a positive or negative direction independently; Frequency conversion speed regulation, and the speed can be controlled by PLC when connected with the capsule machine; Also can prevent the cross pollution caused by the broken capsules, easy to clean; The upper drive structure makes the tumbler completely separated, and no oil leakage; Each tumbler is made of stainless steel wire mesh, which with a diameter of 1.2mm; HDPE material for guide plate and outlet.
| Technical Parameter | |
| Model | ZL250 |
| The number of tumbler | 6 sections |
| Rotate speed | 0-26rpm |
| Motor power | 400Wx2 |
| Fan air flow | 894x2m³/h(each basket) |
| Fan speed | 1600 rpm |
| Tumbler size | φ650x945mm |
| Dimension | 1050x850x1260mm |
| Weight | 100kg |
