Лабораторная сушильная машина с распылителем, мини сушилка с распылителем для жидкого раствора

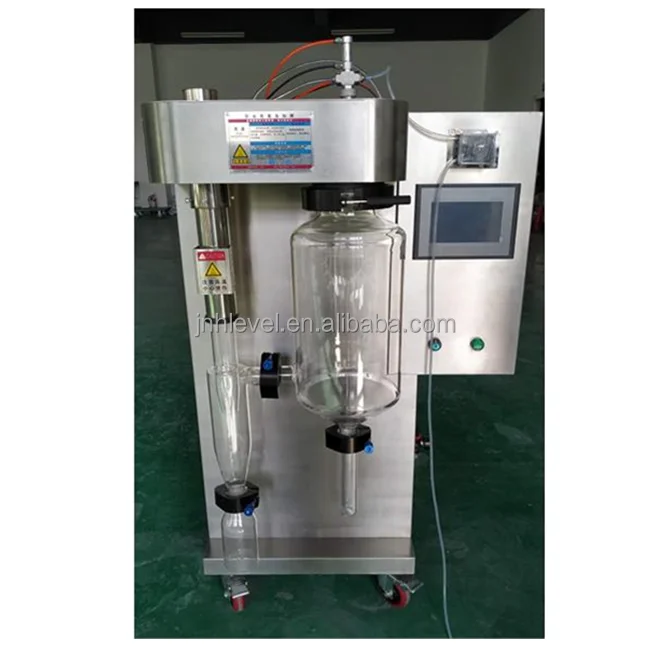

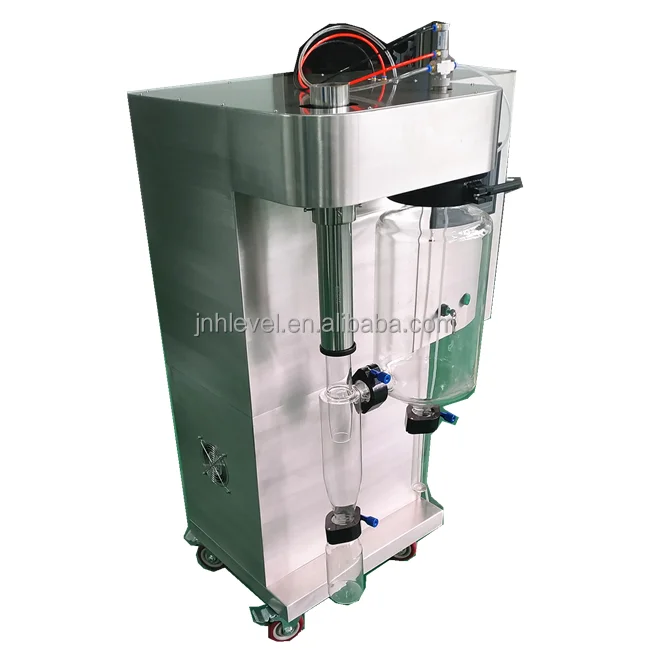

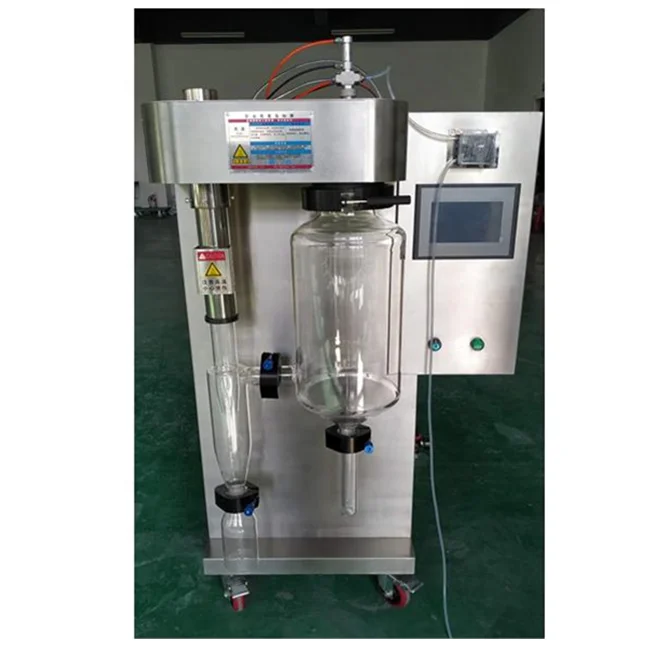

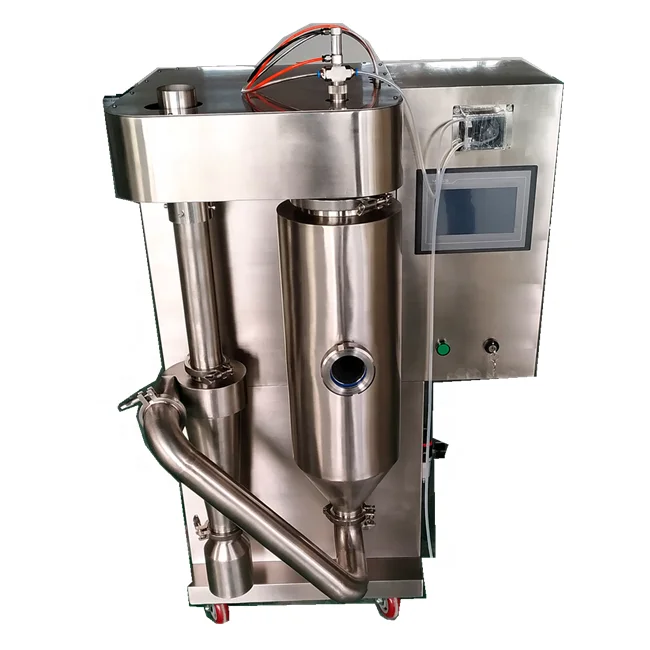

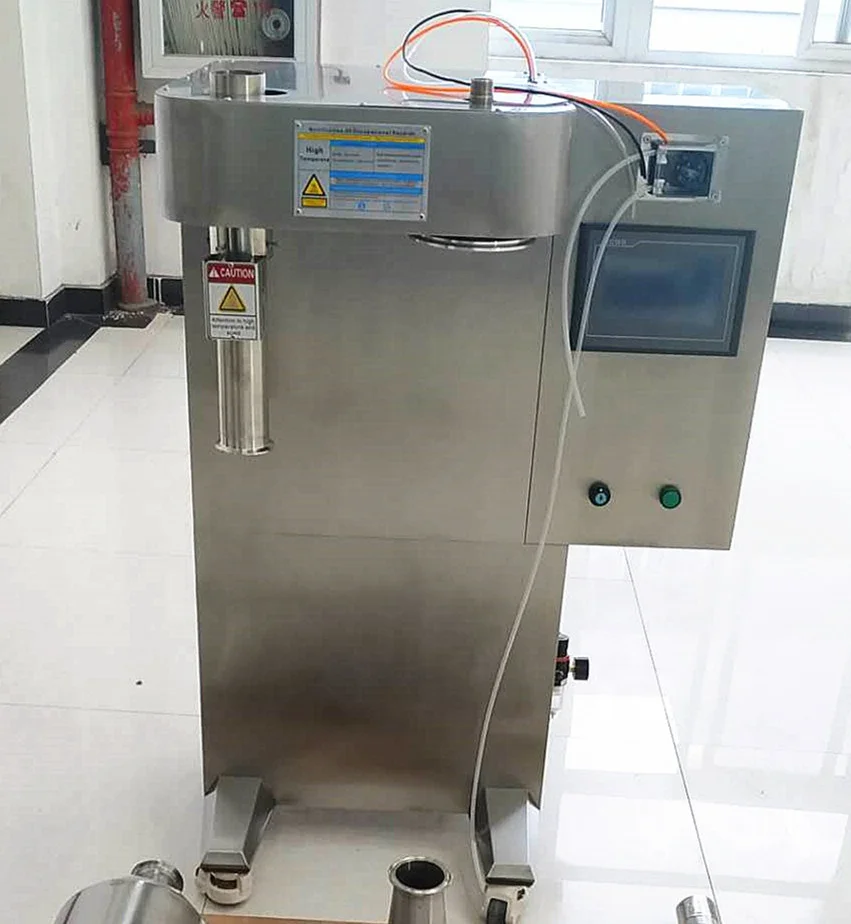

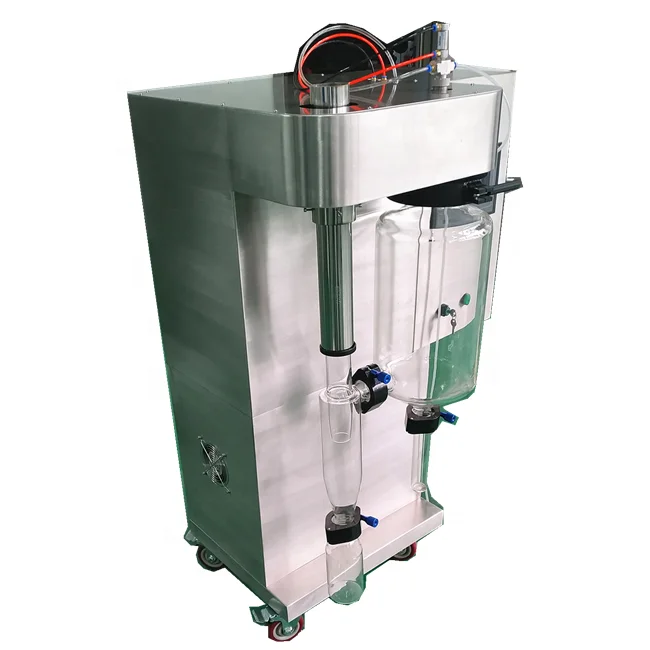

The lab mini spray dryer is mainly used for powder prodcution in lab.It is widely used in college,research institute and food or medicine field.The dryer suits all kind of solutions like emulsion and suspension.It also suits to thermal sensitive materials such as biologicals,biopesticide and enzymes.Activity of the material won't get affected when drying.

Ceramic powder is dried in the spray dryer within a very short time with satisfying final moisture.

mini spray dryer Specifications:
Specifications:
Interface: 7” LCD English touch screen, all parameters can be set on the sreen.
Temperature:PID control,±1℃
Real-time temperature accuracy：0.1℃
Inlet air temperature: 30 ℃ ～300℃
Outlet air temperature: 30 ℃ ～140℃
Evaporation: 0~2000ml/h
Particle size: 5-110 μm
Feeding mode: peristaltic pump adjusting
Feed rate: 50～2200ml/h（adjustable）
Dry air volume: 0-330m3/h
Max. air pressure: 686Pa
Temperature precision:
Average drying time: 0.8～1S
Power:8.8KW/220V,single phase,50HZ
Blower:0.75kw
Air volume:105m3/h
Compressor: oil-free,8L, 0.55kw
Size: (L*H*W): 1380mm*770mm*590mm
Air compressor: inbuilt
Dryer body: SUS304
Nozzle size 0.5,0.75, 1.0mm
Features:
1.\tHigh-tech nozzle, high efficiency

3.\tNozzle cleaner (needle) is set in the machine,and nozzle can be cleaned automaticaly by the needle when

blocked.Needle frequency can be adjusted.
4.\tShutdown protection function: the system will stop when pressing the stop botton,all parts except the fan will stop

working.Heating system won’t be damaged in this way.
5.\tMaterial won’t get polluted due to the special material of the atomizing drying and collection system.
6.\tTwo-fluid nozzle, stainless steel, compact structure, no accessory device.
7.\tPID constant temperature control,precise temperature control,precision is±1℃.
8.\tFeed rate can be adjusted by the peristaltic pump, Min. samples can reach 30ml.
9.\tUniform product powder, above 95% powder keep within same size range
Material to be dried:
1. Chemical industry: hydrated silica, concrete additives, barium sulfate, basic chromic sulfate, alumina, titania, kaolin, ferrite, steatite, carbide, fertilizers, dyes, scouring agents, ACR assistants, latex, water purifiers, resins, plastics, cryolite.
2. Food Industry: dextrin, maltose, albumen powder, vitelline powder, compound sugar, granular grease, instant coffee, amylum, flavors, garden stuff. It is applied in drying of some kinds of liquid material, such as solutions, emulsions, suspensions, liquid pastes, etc.
3. Dairy: skim milk powder, whole milk powder, soy milk powder, ice cream powder, milk extract powder, etc.
4. Pharmaceutical industry: Chinese drugs and western medicine powder, antibiotics, biochemical products, vitamins,

   pesticides, hydrolyzed proteins, enzymes, single cell proteins, etc.
5. Building material industry: ceramic body, frit, superfine powder.
6. Environmental protection: flue gas desulfurization, disposal of black liquor and wastewater of pharmaceutical

    factories.
7. Others: fishmeal waste, feed, etc.
