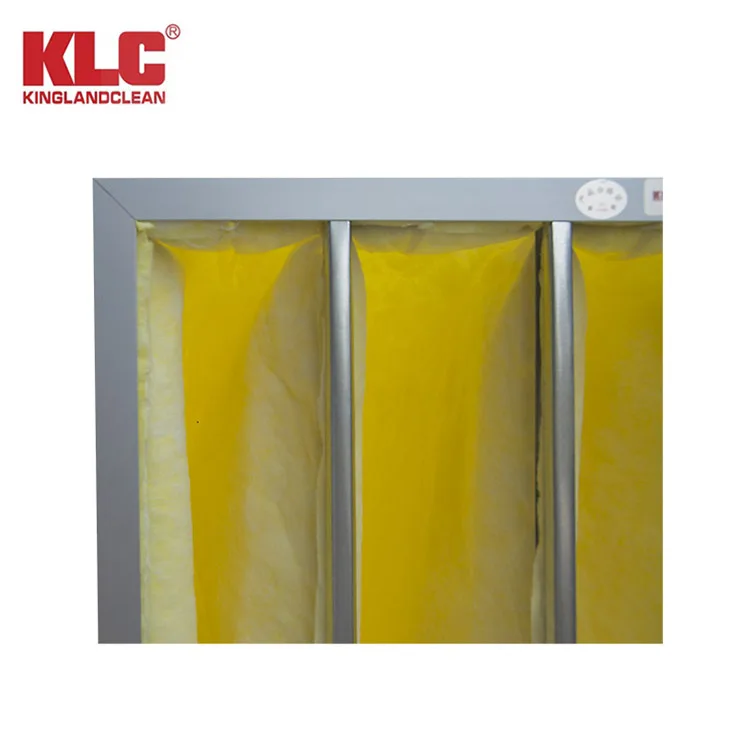

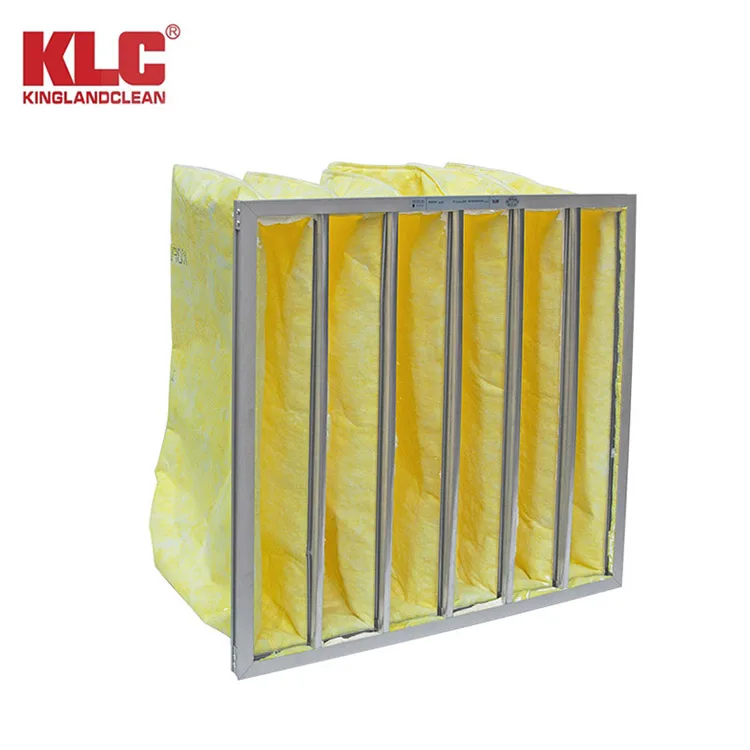

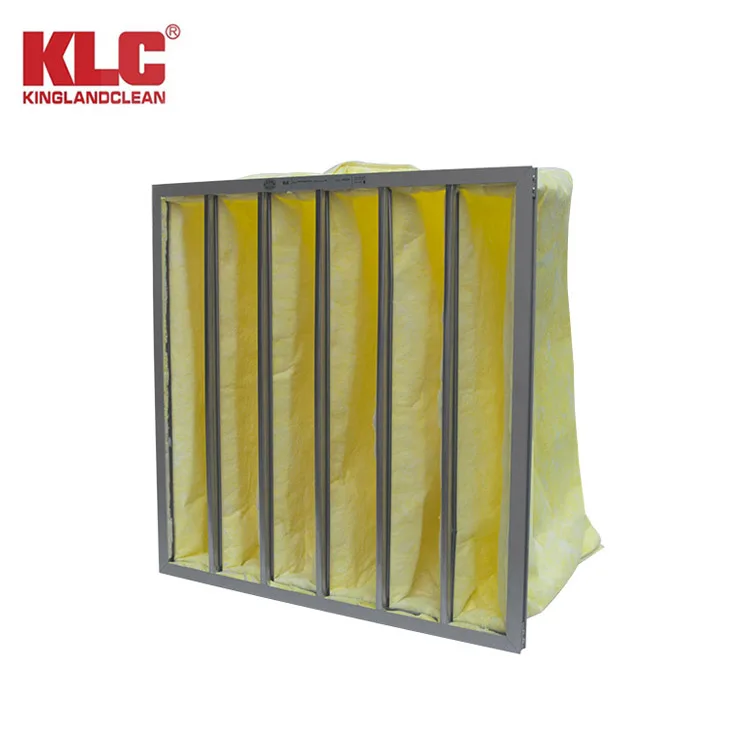

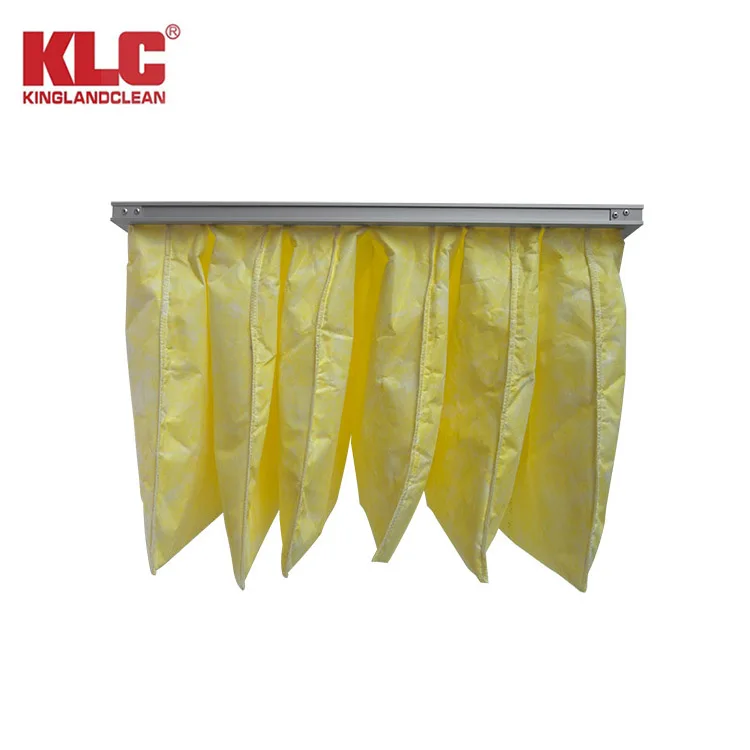

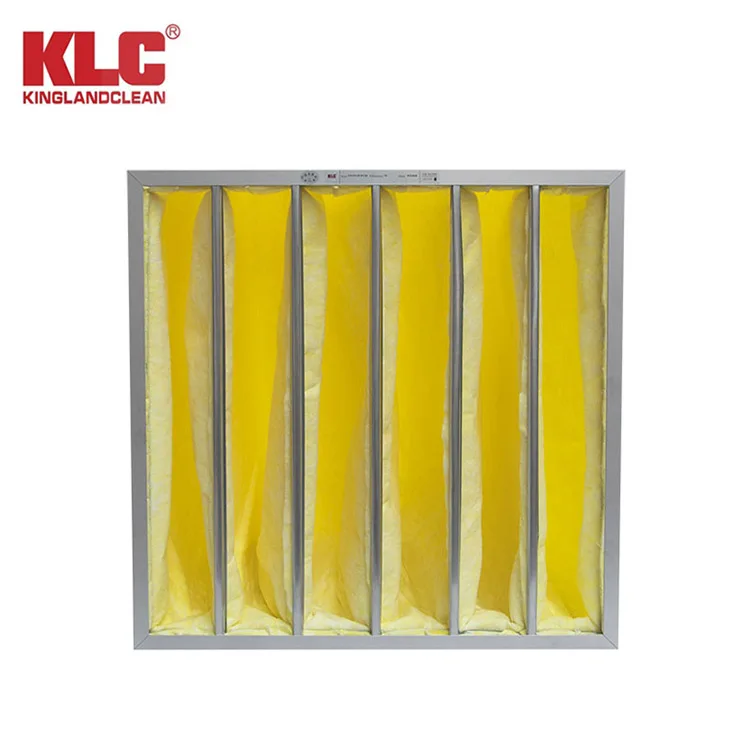

Hot Sale F9 Pocket Air Filter, Glass Fiber Medium Pocket Filter

Product Overview

Description

Hot Sale F9 Pocket Air Filter, Glass Fiber Medium Pocket Filter



1)Material and operation condition

media	chemical fiber non woven
filter pocket types	clothing car sewing bag/ultrasonic bag
frame	aluminum/galvanized steel/stainless steel/cardboard
efficiency	85%~90% 2.0μm
max.temperature	80°C
max.humidity	100%
optional aluminum	17~50mm
optional plastic	21mm



2)Product features

1.The new type composite nonwove cloth and imported synthetic fiber and coating to fill strong forming filter material.

2.The pocket modelling,match with all kinds of the casing outside the metal,the main black large particles of dust particles.

3.Already through the third party authority VTT test.

4.Has the filter has big filter area,let the large amount of dust,low resistande,etc.



3)Application

Apply to air requirements relatively low environment,is the ideal configuration of common air conditioning system.



4)Technology parameter

Model NO.	Actual Size  HxWxD (mm)	Air Flow (m³/h)	Media Area  Flow (m²)	Velocity (m/s)	Efficiency	Pocket. Numbers
KP9-001	287*592*381	750	1.6	1.23	F5-F8	3
KP9-003	287*592*600	1200	2.5	1.96	F5-F8	3
KP9-005	490*592*500	1900	4.1	1.82	F5-F8	6
KP9-007	592*592*381	1500	3.2	1.19	F5-F8	6
KP9-008	592*592*381	1900	4.1	1.51	F5-F8	8
KP9-009	592*592*381	2400	5.0	1.90	F5-F8	10
KP9-011	592*592*500	250	5.4	1.98	F5-F8	8
KP9-013	592*592*600	2300	5.0	1.82	F5-F8	6
KP9-014	592*592*600	2950	6.4	2.34	F5-F8	8
KP9-015	592*592*600	3600	7.9	2.85	F5-F8	10
