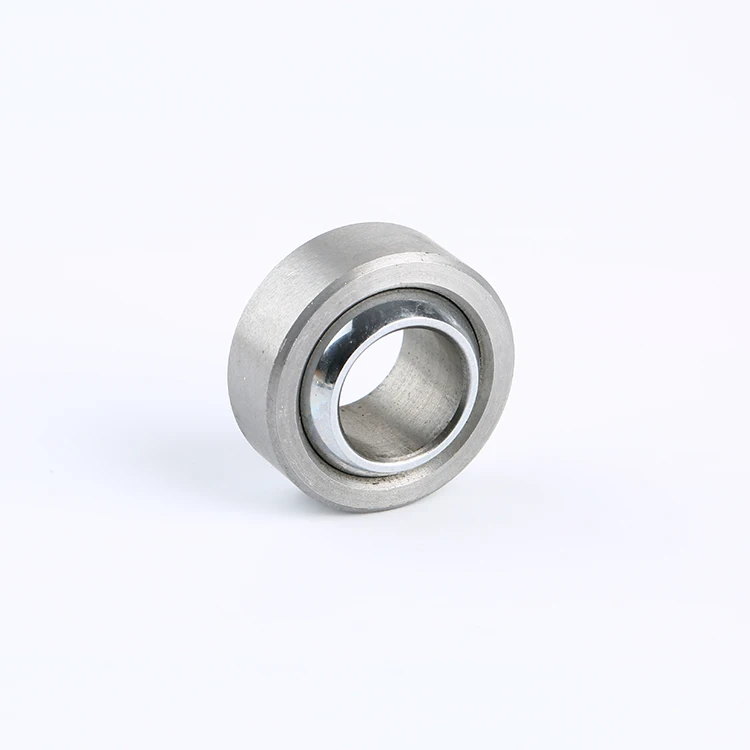

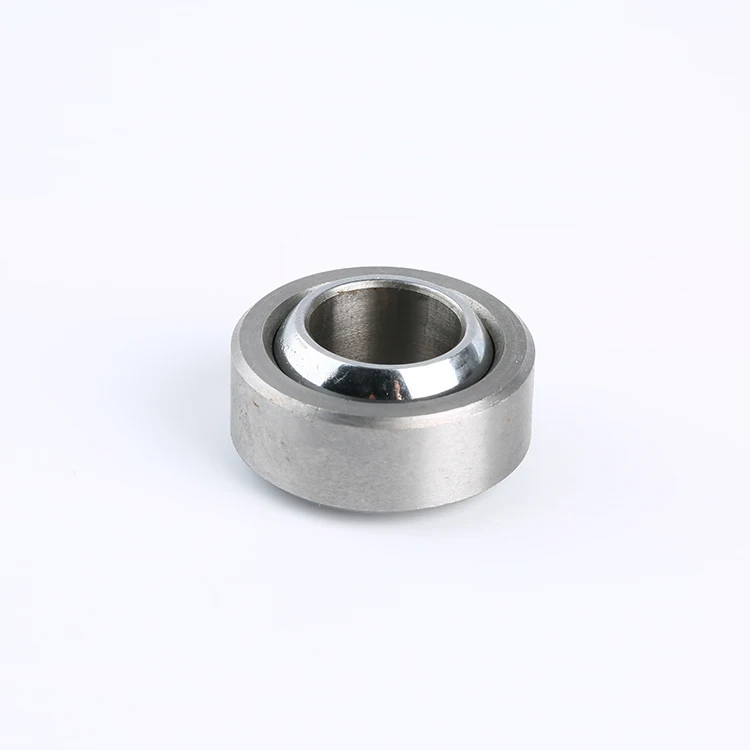

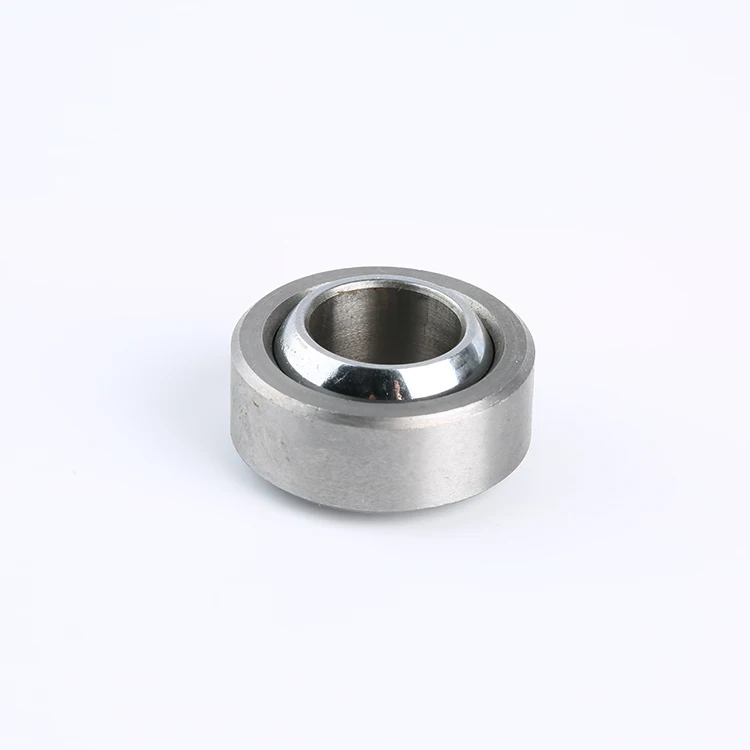

COM.T series China Radial Spherical Plain Bearing with Good Quality
- Category: Rod End Bearings >>>
- Supplier: Ningbo Lehonb Machinery Co. Ltd.
Share on (62366714925):
Product Overview
Description
Product Description
-Outer ring pressed around inner ring.
-Race lined with PTFE composite material.
-In inch dimension series.
| Bearing No. | Dimensions mm | Load ratings kN | Weight | ||||||||
| d | d1 | B | C | D | dk | m | a | dyn | kg | ||
| ≈ | C | ||||||||||
| COM3T | 4.826 | 7.44 | 7.14 | 5.54 | 14.29 | 10.31 | 0.381 | 11 | 21.68 | 0.006 | |
| COM4T | 6.350 | 9.25 | 8.71 | 6.35 | 16.67 | 12.70 | 0.560 | 13.5 | 33.02 | 0.010 | |
| COM5T | 7.938 | 10.64 | 9.53 | 7.14 | 19.05 | 12.47 | 0.810 | 12 | 43.20 | 0.014 | |
| COM6T | 9.525 | 13.11 | 10.31 | 7.92 | 20.64 | 16.66 | 0.810 | 10 | 56.04 | 0.017 | |
| COM7T | 11.113 | 13.46 | 11.10 | 8.71 | 23.02 | 17.45 | 0.810 | 8.0 | 63.07 | 0.021 | |
| COM8T | 12.700 | 16.26 | 12.70 | 9.91 | 25.40 | 20.65 | 0.810 | 9.5 | 88.39 | 0.029 | |
| COM9T | 14.288 | 18.03 | 14.27 | 11.10 | 27.78 | 23.01 | 0.810 | 9.5 | 110.94 | 0.039 | |
| COM10T | 15.875 | 19.81 | 15.88 | 12.70 | 30.16 | 25.40 | 0.810 | 8.5 | 141.96 | 0.050 | |
| COM12T | 19.050 | 23.37 | 19.05 | 15.06 | 36.51 | 30.15 | 1.120 | 9.0 | 212.94 | 0.093 | |
| COM14T | 22.225 | 24.89 | 22.23 | 17.86 | 39.69 | 33.32 | 1.120 | 9.5 | 279.93 | 0.119 | |
| COM16T | 25.400 | 28.40 | 25.40 | 20.24 | 44.45 | 38.10 | 1.120 | 10 | 368.25 | 0.175 | |
| HCOM16T | 25.400 | 34.54 | 25.40 | 19.84 | 50.80 | 42.85 | 0.810 | 9.0 | 472.46 | 0.251 | |
| HCOM19T | 30.163 | 40.89 | 30.15 | 23.80 | 60.33 | 50.80 | 0.810 | 8.5 | 672.00 | 0.406 | |
| HCOM20T | 31.750 | 40.89 | 30.15 | 23.80 | 60.33 | 50.80 | 0.810 | 8.5 | 672.00 | 0.406 | |
| HCOM24T | 38.100 | 47.24 | 34.93 | 27.79 | 69.85 | 68.72 | 0.810 | 8.5 | 906.96 | 0.616 | |
| HCOM28T | 44.450 | 53.59 | 39.67 | 31.75 | 79.38 | 66.68 | 1.120 | 8.0 | 1176.61 | 0.884 | |
| HCOM32T | 50.800 | 59.94 | 44.45 | 34.93 | 88.90 | 74.60 | 1.120 | 8.5 | 1448.06 | 1.198 | |
