bobbin cone to cone or hank to cone winding machine

Product Overview

Description

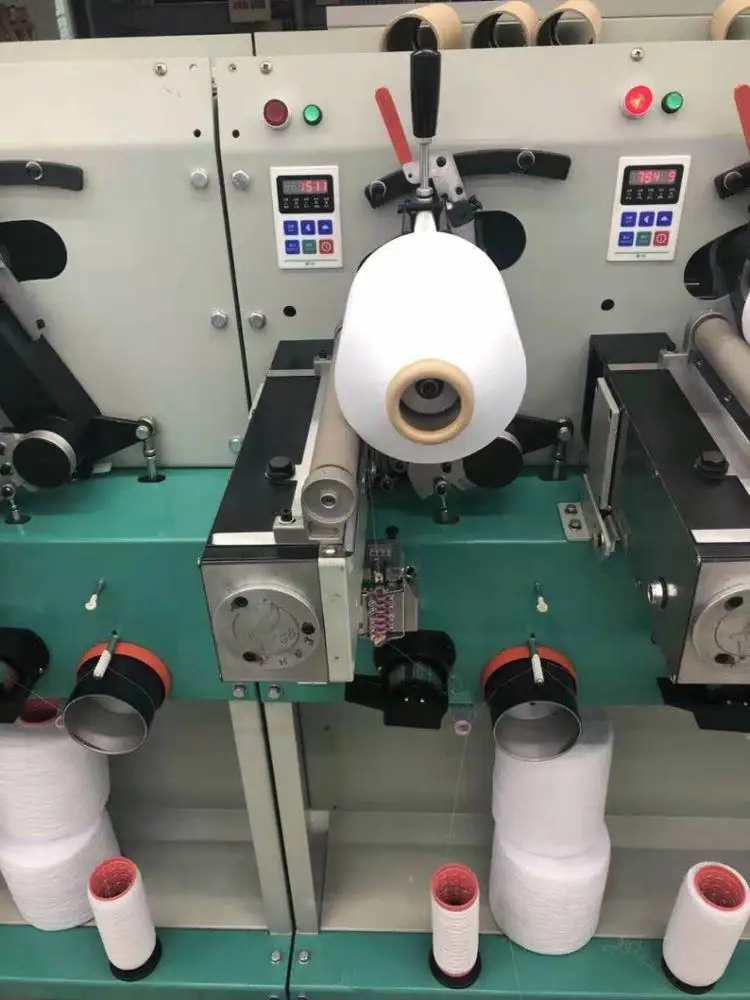

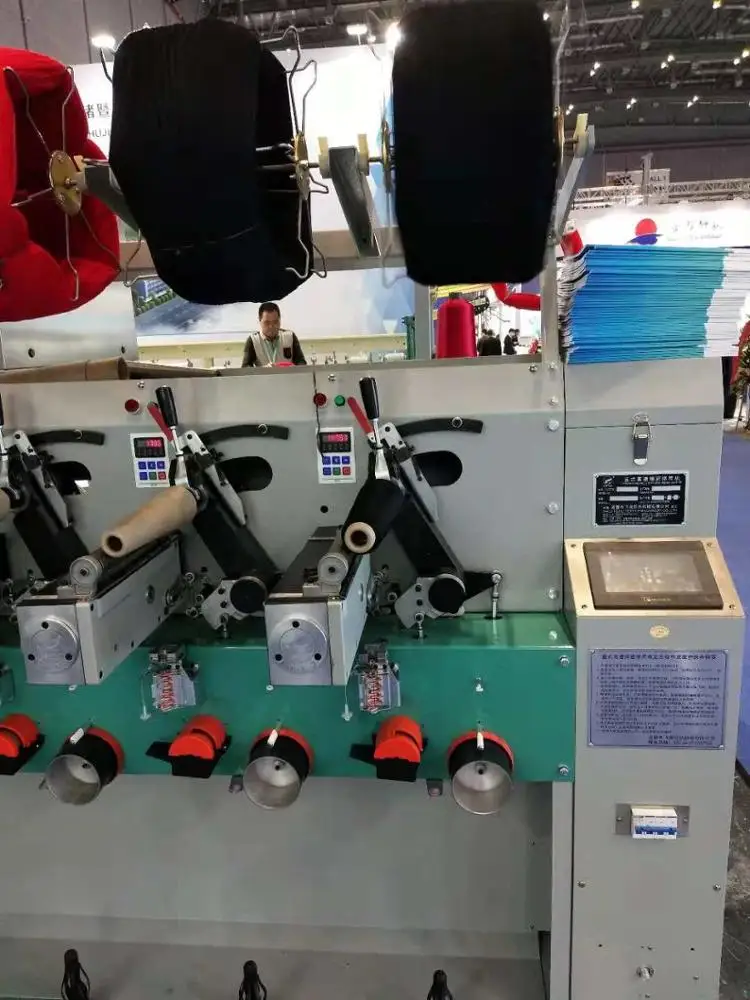

FHJM-A straight precision cone to cone and hank to cone winding machine is a series of winder series produced by Feihu textile machinery company. It is suitable for all kinds of raw materials such as silk, hemp, yarn, etc. cylinder. this machine has high characteristics productivity, low loss, low noise, long life, stable performance.



Features:

Using centralized control, Individual management

Using DC brush motor, more power saving

Using computer control, Broken yarn stopped , Metering function

Using Soft start,Less loss,easy to use.

Using mechanical anti-stack,Soft edge,Make bobbin more uniform

Using Lubricating oil, The noise is lower, Accessories long service life

Adjustable forming length, Shoulder angle and tension control



Model:	Single-side, single spindle, centralized control
Spindle:	4 spindles/group, the standard 24 spindles / set, min 4 spindles/set.
Spindle distance:	370mm
Oil way:	Automatic oiling, speed adjustable
Winding method:	Single spindle active precision winding
Winding shape:	Straight edge, bevel edge adjustable
Winding tube:	Parallel bobbin, pagoda bobbin
Winding travel:	120-230mm
Winding speed:	≤500m/min
Winding diameter:	≤280mm
Skein diameter:	≤550mm
Cartridge diameter:	≤320mm
Actual power:	120 W/spindle
Dimensions:	L1620 X W710 X H1560 mm/4 spindles Master control box L440 X W260 X H1320mm
Applicable yarns:	Textured or flat filaments, elastic yarns, silk, staple yarns, fine technical yarns etc.

We could make special type according to the customer’s request.
