3000LPH Steel Stainless Complete UHT Sterilizering Soya Milk Processing Plant For Turn Key Projects
- Category: Food Sterilizer >>>
- Supplier: Shanghai Qingji Beverage Machinery Co. Ltd.
Share on (62367074710):
Product Overview
Description
Product Description

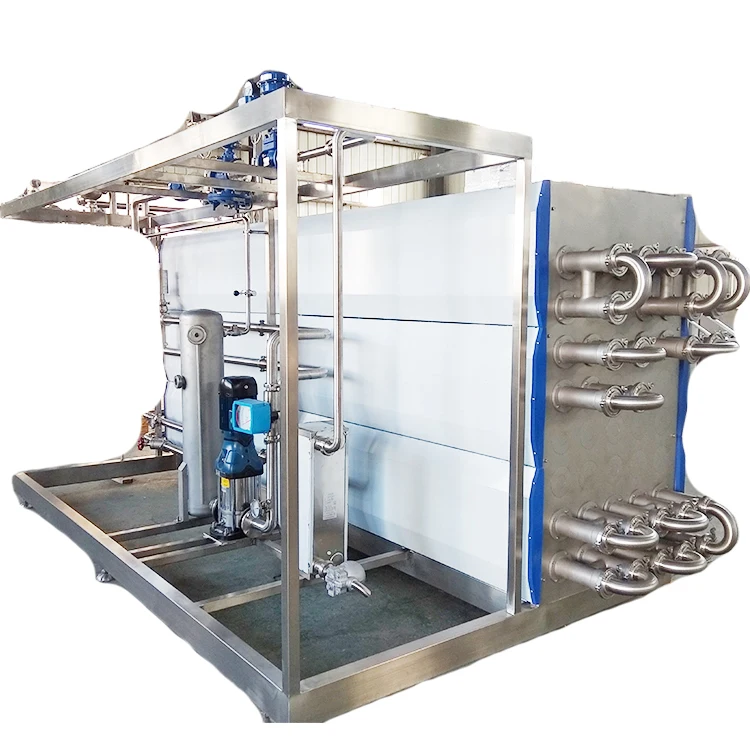

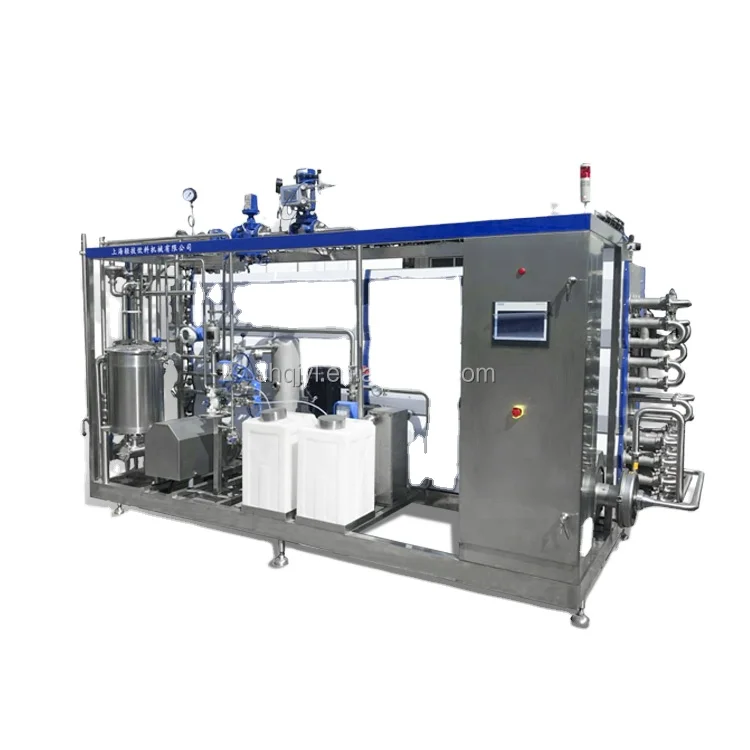

Complete UHT Sterilizering Soya Milk Processing Plant For Turn Key Projects
| Tubular sterilization machine | |||||||||
| type and specification | capacity (t/h) | steam consumption (kg/h) | steam pressure (kg) | power (kw) | dimension l*h*d(m)) | weight (kg) | diameter(mm) | ||
| material | steam | medium | |||||||
| BTG-B-SN-1MJ | 1 | 76 | 2.5 | 1.9 | 3.3×1.6×1.8 | 1490 | 25 | 1" | 25 |
| BTG-B-SN-2MJ | 2 | 152 | 2.5 | 2.1 | 3.3×1.6×1.8 | 1590 | 25 | 1" | 25 |
| BTG-B-SN-3MJ | 3 | 228 | 2.5 | 3.0 | 3.5×1.8×2.0 | 1630 | 38 | DN32 | 38 |
| BTG-B-SN-4MJ | 4 | 304 | 2.5 | 3.0 | 3.5×1.8×2.0 | 1870 | 38 | DN32 | 38 |
| BTG-B-SN-5MJ | 5 | 380 | 2.5 | 3.0 | 3.5×1.8×2.0 | 2060 | 38 | DN40 | 38 |
| BTG-B-SN-6MJ | 6 | 456 | 2.5 | 3.0 | 3.5×1.8×2.0 | 2250 | 51 | DN40 | 51 |
| BTG-B-SN-8MJ | 8 | 608 | 2.5 | 3.7 | 4.5×1.8×2.0 | 2450 | 51 | DN50 | 51 |
| Process:5℃→65℃(Homogeneous)→95℃(300s)→43℃ | |||||||||
