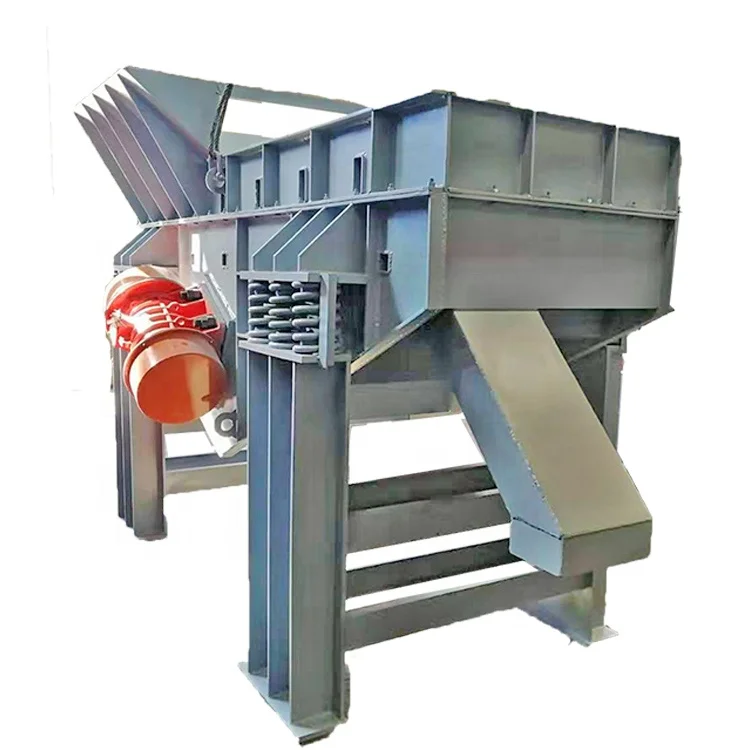

Shakeout машина для восстановления песка, литейная техника от производителя
- Category: Metal Casting Machinery >>>
- Supplier: Qingdao Huaxin Shengye Casting Machinery Co. Ltd.
Share on (62367108266):
Product Overview
Description
Product Description
China Machine Manufacturers

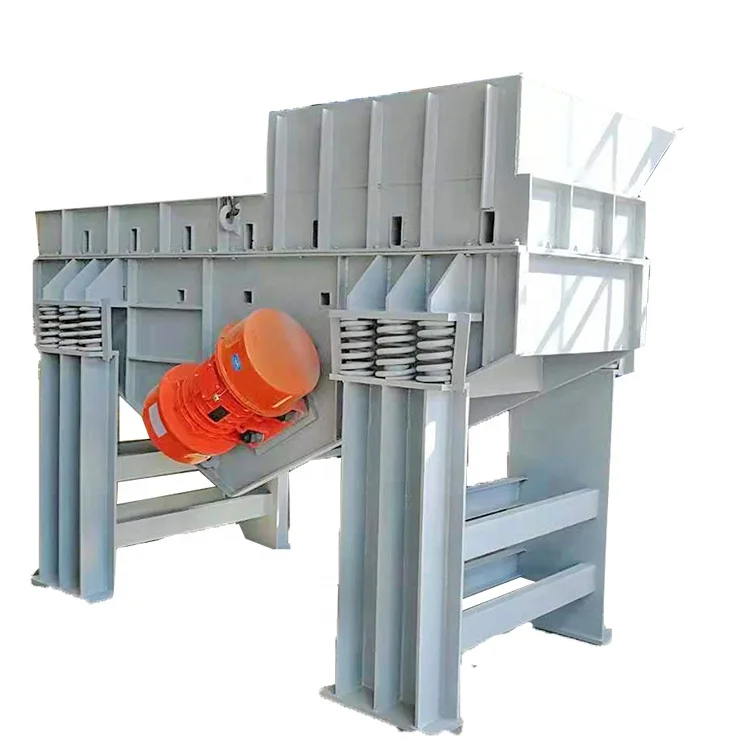

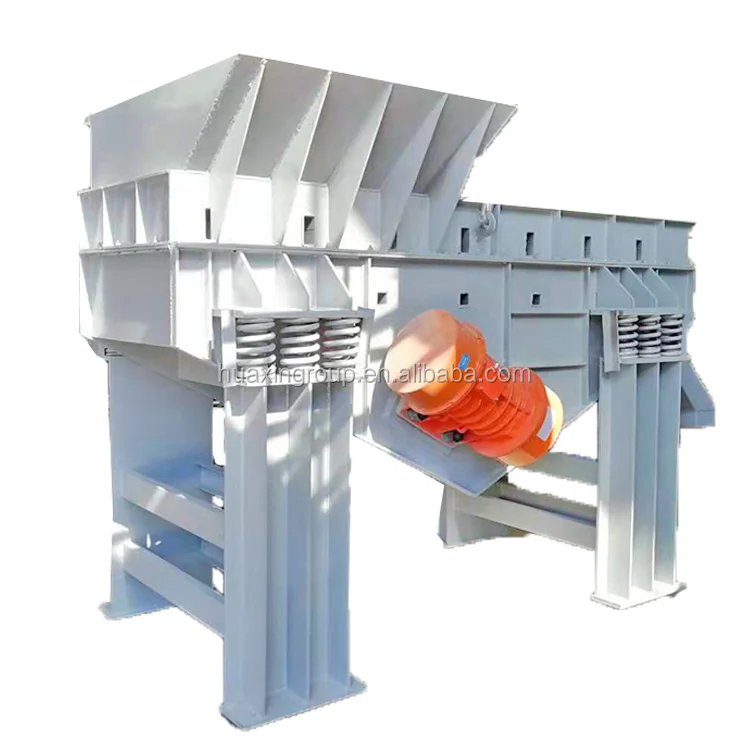

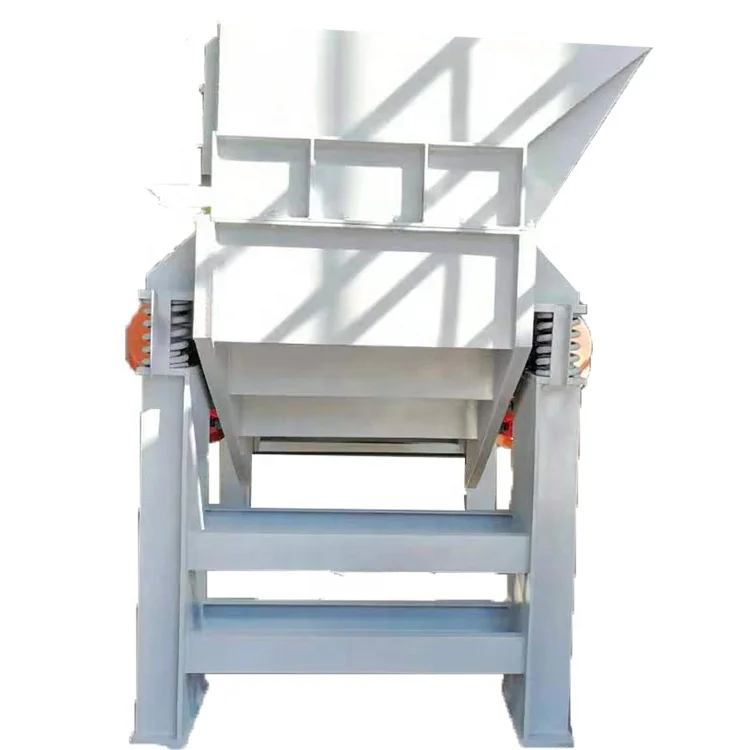

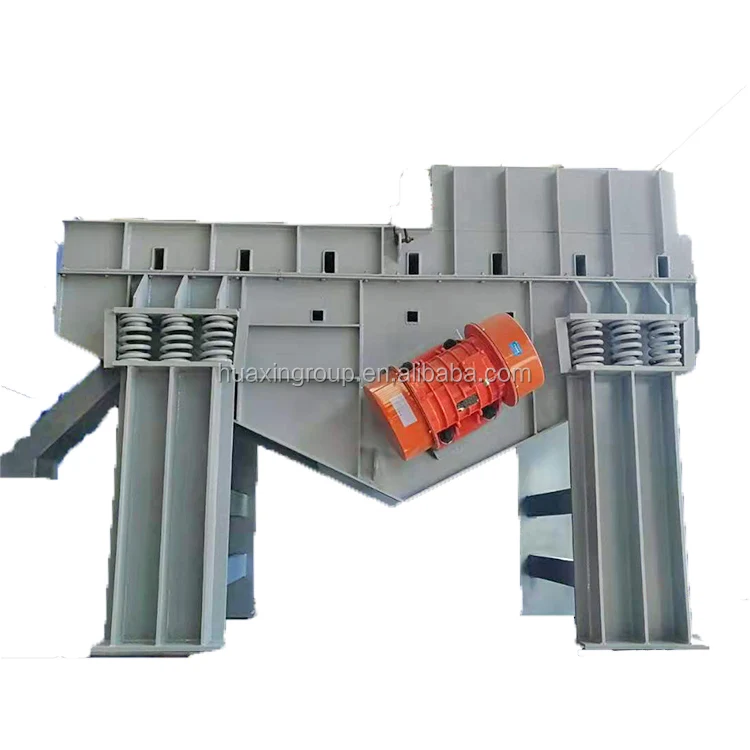

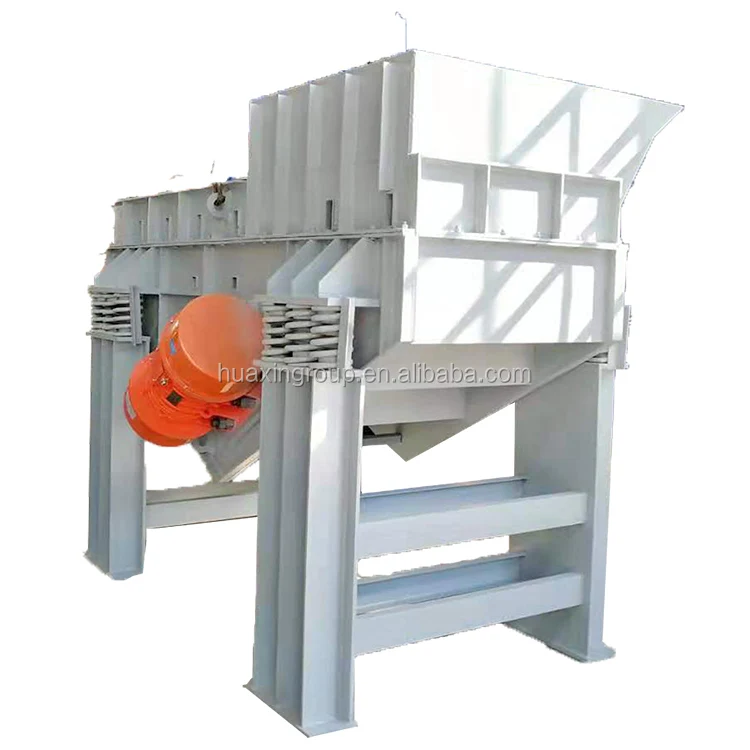

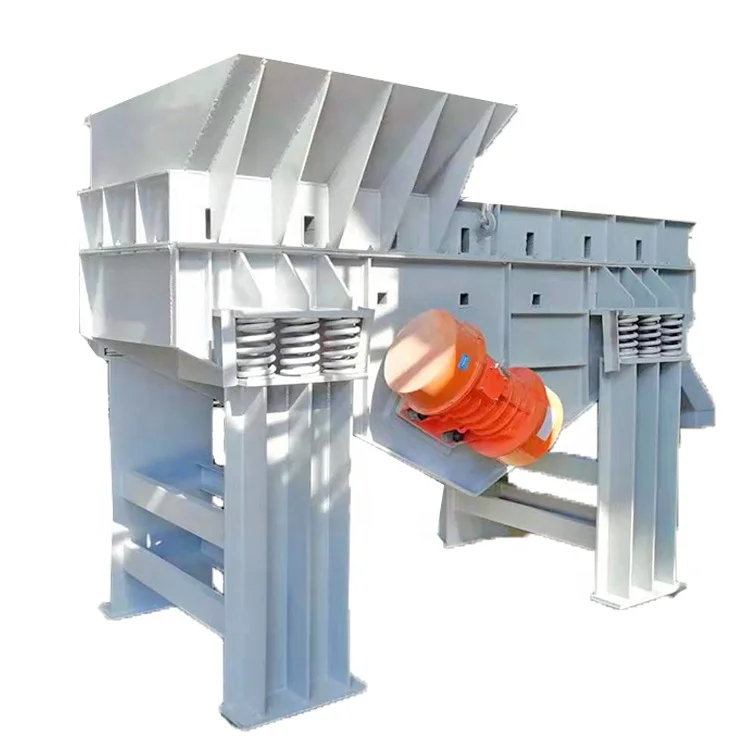

Vibrating shakeout machine is mainly used for shakeout of poured castings.
The temperature of resin sand is also very high due to the high temperature of the castings just discharged from the furnace.
If the castings need shakeout at this time, vibrating shakeout machine is required.
Because the resin sand after pouring has good collapsibility, only a certain frequency of vibration is needed to shake off the resin sand adhered to the casting, so it is called a vibration shakeout machine.
In order to avoid dust pollution, the shot blasting machine is surrounded by steel plates and connected to the dust collector air duct for dust collection to ensure the cleanliness of the working environment.
The temperature of the fallen sand is very high, and it will automatically enter the elevator through the outlet of the sand dropping machine and be transported to the sand storage for crushing, or it will be manually added into the magnetic separation belt conveyor for crushing after cooling.
The temperature of the fallen sand is very high, and it will automatically enter the elevator through the outlet of the sand dropping machine and be transported to the sand storage for crushing, or it will be manually added into the magnetic separation belt conveyor for crushing after cooling.
1.shakeout machine for casting is a casting equipment that makes use of vibration and impact (see mechanical vibration) to separate molding sand from casting.
damaged. For this reason, a fixed bracket should be additionally installed on this type of sanding machine to form an inertial impact type sanding machine. During sand falling, the casting mold is placed on the support, the bottom surface of the casting
mold and the sand falling grid bed have a gap, and the bottom surface of the casting mold is impacted by the vibration of the grid bed, so that the casting and the molding sand are separated. Since the casting mold is not directly placed on the shakeout grid, the influence of the change of the casting mold weight on the amplitude of the shakeout machine is relatively reduced. For small
and medium-sized castings without box casting mold, drum-type sand falling machine can also be used, which is generally installed
on the production line of small and medium-sized castings without box casting mold. Besides sand falling, it also has the functions of hot sand cooling, old sand screening, sound insulation, heat insulation, dust removal, etc.
2. The vibration sources of the sand-dropping machine are divided into three categories:
mechanical, electromagnetic and pneumatic.

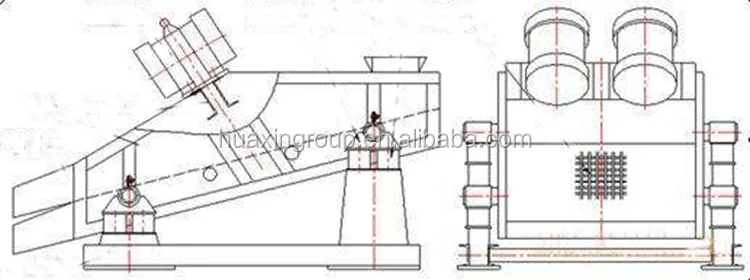

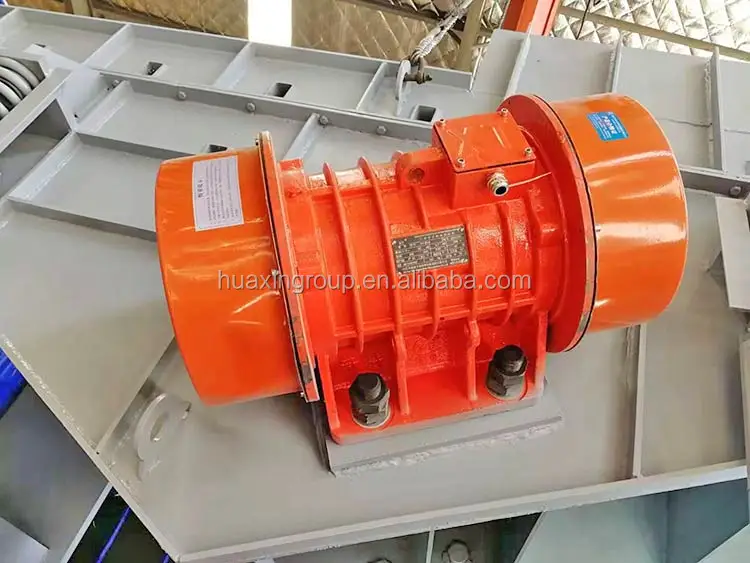

3. The mechanical inertial sand-dropping machine is widely used (see Figure Inertia

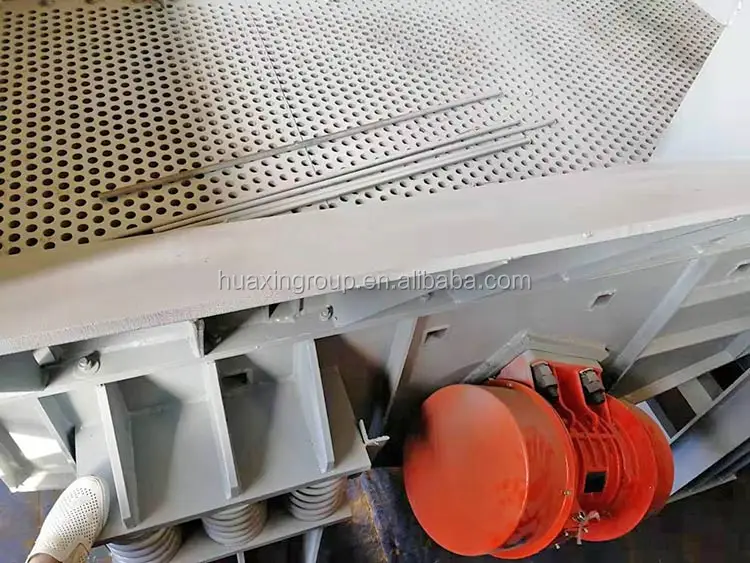

Sand-dropping Machine). The structural characteristics of the inertial shakeout machine are: the shakeout grid bed is equipped with a rotating shaft with a bias. When the important official rotates, the bias generates centrifugal force (exciting force) to make the shakeout grid bed installed on the support spring vibrate. 4. This vibration is a motion combined with free vibration and forced vibration, and the magnitude of the load can change the amplitude. The load is too large, the amplitude decreases sharply,
and the sand falling efficiency decreases; the load is too small, the vibration is too large, and the flask and equipment aredamaged. For this reason, a fixed bracket should be additionally installed on this type of sanding machine to form an inertial impact type sanding machine. During sand falling, the casting mold is placed on the support, the bottom surface of the casting
mold and the sand falling grid bed have a gap, and the bottom surface of the casting mold is impacted by the vibration of the grid bed, so that the casting and the molding sand are separated. Since the casting mold is not directly placed on the shakeout grid, the influence of the change of the casting mold weight on the amplitude of the shakeout machine is relatively reduced. For small
and medium-sized castings without box casting mold, drum-type sand falling machine can also be used, which is generally installed
on the production line of small and medium-sized castings without box casting mold. Besides sand falling, it also has the functions of hot sand cooling, old sand screening, sound insulation, heat insulation, dust removal, etc.
There are so many kinds of foundry machinery in qingdao huaxin company :
China Machine Manufacturers
1. Automatic Static Pressure Moulding Line with KW technology
2. Automatic Shell Molding casting Line
3. Furan Resin Sand proudction casting Line
4. Pouring system
5.Sand Preparation
6. Founry Sand Mixer
7.Pneumatic sand moulding machine
8.Core making machine
9.Shell core machine
10.Shot blasting machine
11.V process casting line
12.Foam foam casting line
Description of proudction process
the shakeout grid bed is equipped with a rotating shaft with a bias. When the important official rotates, the bias generates centrifugal force (exciting force) to make the shakeout grid bed installed on the support spring vibrate.

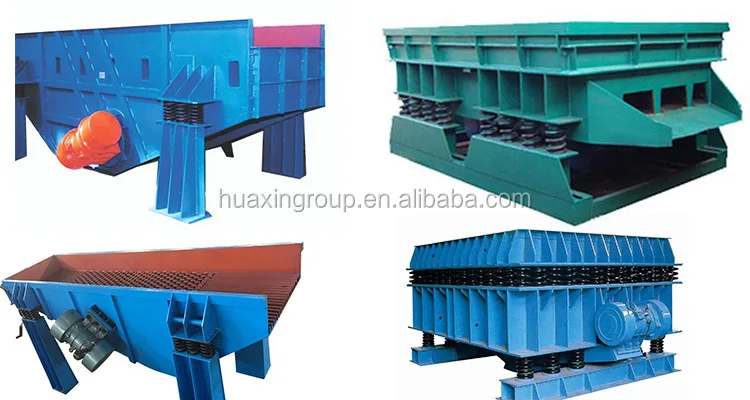

Detailed Images

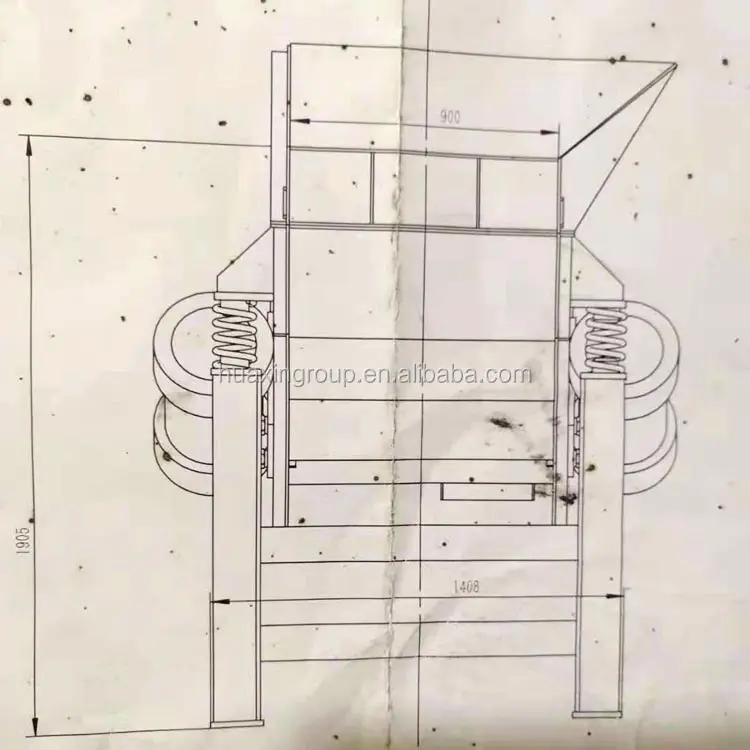

Reference Design

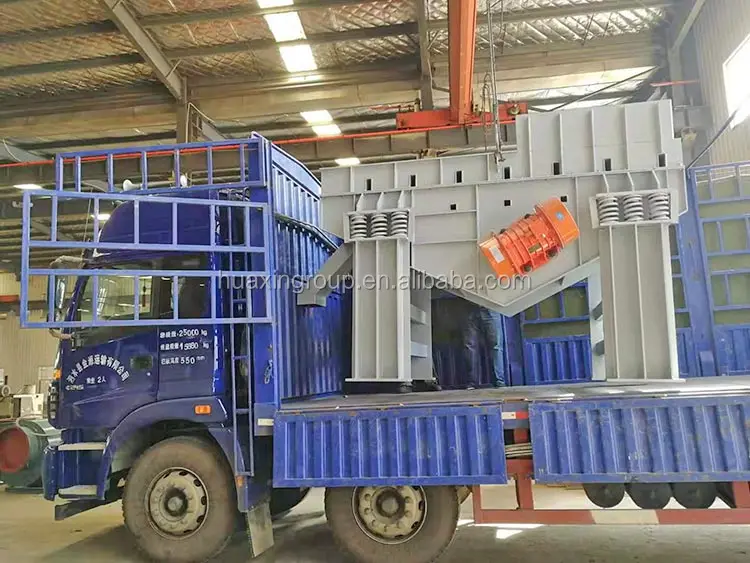

Packing&Shipping
Foundry sand casting Jolt squeeze molding machines are packed export standard packing.

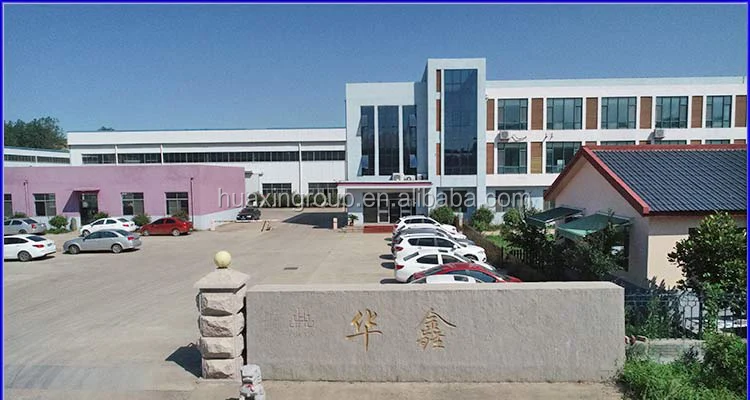

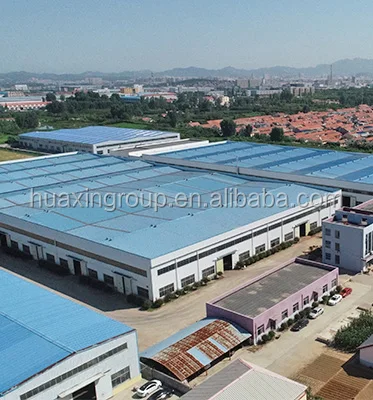

Company Introduction
Since its founding in 1998 as Qingdao Huaxin Group, the mission of qingdao huaxin group has been to develop the most innovative solutions possible for the automation of green sand moulding, sand core making machine, sand preparation and shot blasting processes throughout the foundry industry. Continuous technological improvement and innovation have earned nearly 20 intellectual property rights in China. Today, with nearly 5,000 sand moulding machines and shot blasting systems installed around the world, and its sales and service operations are spread all over the world.
Our single focus is, has always been, and will always be the foundry industry.
Qingdao Huaxin Group has over 20 years history In China. It is located in Binhai Industrial Park, Huangdao Area, Qingdao city,China. It is covered an area of sixty-six thousand six hundred and sixty-seven Square meters. We have produced foundry machines more than 1000 types, so we have rich experience in sand casting production machines.
The casting production line is Automatic horizontal static pressure molding line, Auto shell molding line, Furan resin sand automatic molding line, Green sandl processing production line(Sand Preparation); the newest patent machine-continuous sand mixer,pouring machine, popular standard machine are Jolt squeeze molding machine, pneumatic multi-piston molding machine, all kinds of cold core / hot core box core shooting machine, various shot blasting machines. We provide excellent supporting equipment and services for China's foundry, shipbuilding, automobile, military, locomotive, machine tool and other industries. We design and manufacture various non-standard special casting machines according to user needs.
Our single focus is, has always been, and will always be the foundry industry.
Qingdao Huaxin Group has over 20 years history In China. It is located in Binhai Industrial Park, Huangdao Area, Qingdao city,China. It is covered an area of sixty-six thousand six hundred and sixty-seven Square meters. We have produced foundry machines more than 1000 types, so we have rich experience in sand casting production machines.
The casting production line is Automatic horizontal static pressure molding line, Auto shell molding line, Furan resin sand automatic molding line, Green sandl processing production line(Sand Preparation); the newest patent machine-continuous sand mixer,pouring machine, popular standard machine are Jolt squeeze molding machine, pneumatic multi-piston molding machine, all kinds of cold core / hot core box core shooting machine, various shot blasting machines. We provide excellent supporting equipment and services for China's foundry, shipbuilding, automobile, military, locomotive, machine tool and other industries. We design and manufacture various non-standard special casting machines according to user needs.

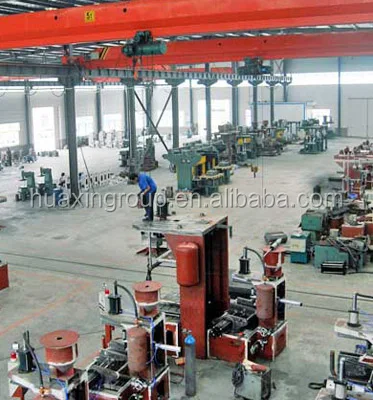

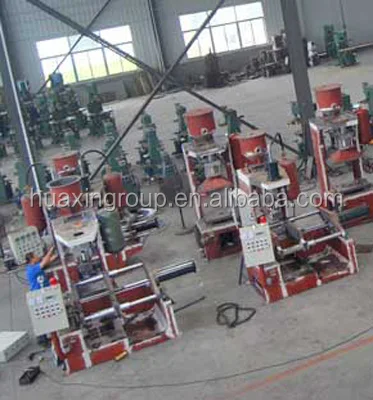

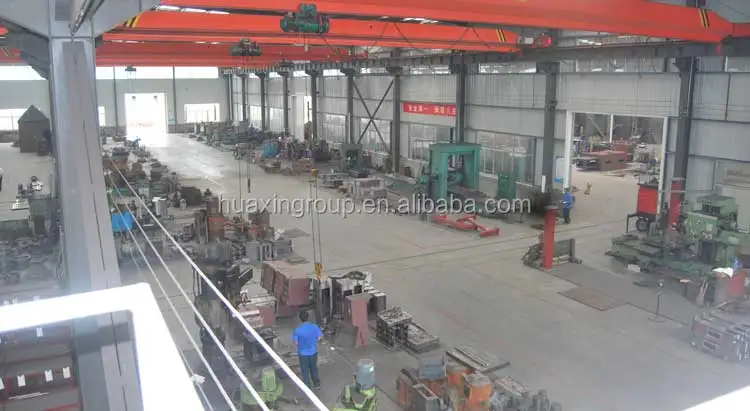

Production Strength
OUR SERVICES & STRENGTH
1. Qingdao Huaxin Company has more than 20 years of production experience in casting equipment.
2. Semi-automatic pneumatic molding machine, multi-contact molding machine full-automatic static pressure molding production line.
3. There are also core shooting machines, shot blasting machines, sand processing equipment and other casting production lines designed by the company itself.
4. The company has excellent research and development equipment team, mature sales and after-sales service team, and professional service for each user.
2. Semi-automatic pneumatic molding machine, multi-contact molding machine full-automatic static pressure molding production line.
3. There are also core shooting machines, shot blasting machines, sand processing equipment and other casting production lines designed by the company itself.
4. The company has excellent research and development equipment team, mature sales and after-sales service team, and professional service for each user.
