Silicone sealant mixer making machine production line
US $600.00-$650.00
Dual shaft planetary butterfly dispersing mixer 500L
- Category: Mixing Equipment >>>
- Supplier: Qingdao Jiahe Wantong Trading Co. Ltd.
Share on (62367147021):
Product Overview
Description
Multi shaft high viscosity Solder Paste glue stirring mixer
Product Description
Descriptions:
· Planetary Disperser ls a powerful dispersing and mixing machine, its regular model is Dual High-speed Dispersing mixer together with anchor type mixer with scraper, has super strong shearing effect and s high mixing efficiency.
· This machine is specially suitable for mid-and-high viscosity material and thixotropic material;
Application:
Widely used in high viscosity product
------Chemicals Industry:
Polymer lithium ion battery liquid and liquid lithium ion battery fluid, electronic electrode paste
Printing Ink, Cosmetics, Dyes, ,
------Building Industry:
Coatings, Silicone Selant, Adhesive
------Pharmaceutical:
Some medicines & Pesticide Industry Solution.
Discharge Way: Manual(5L), pneumatic and hydraulic
Function: With jacket or coil-pipe for heating/cooling, medium can be water, electricity, steam or oil.
Type: 2L-1500L
Speed: can be controlled by frequency converter
Blades&Chamber: spiral type, paddle type, and frame type. clearance between Stirrer and vessel wall: 2--7mm, Stirrer and vessel bottom: 2--6mm.
Seal: Mechanical seal, or trapezoid seal for option material reaction can happen under vacuum condition.
Parameters:
Type | 5L | 15L | 30L | 50L | 100L | 300L | 500L | 1000L | |
Bucket Size (mm) | Ø280× 180 | Ø280× 325 | Ø400× 325 | Ø480× 365 | Ø550× 550 | Ø850× 650 | Ø960× 810 | Ø1160× 1100 | |
Revolution Motor (Kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 18.5 | 22 | 30-37 | |
Revolution Speed (frequency control) r/min | 0-60 | 0-60 | 0-84 | 0-62 | 0-70 | 0-45 | 0-35 | 0-35 | |
Rotation Speed (frequency control) r / min | 0-100 | 0-100 | 0-130 | 0-75 | 0-110 | 0-62 | 0-60 | 0-45 | |
Dispersing Motor(Kw) | 1.1 | 2.2 | 2.2 | 5.5 | 5.5 | 11 | 30 | 37 | |
Vacuum( Mpa) | ≤0.098 | ||||||||
Lifting Stroke (mm) | 360 | 400 | 430 | 650 | 700 | 900 | 1000 | 1100 | |
Weight (kg) | 500 | 800 | 1000 | 2000 | 2500 | 3000 | 3500 | 6000 | |
Dimensions (mm) | L | 700 | 750 | 850 | 1700 | 1700 | 2500 | 2700 | 2700 |
W | 600 | 600 | 600 | 900 | 1100 | 1200 | 1500 | 1800 | |
H | 1700 | 1800 | 1800 | 2300 | 2300 | 2700 | 2900 | 3100 | |

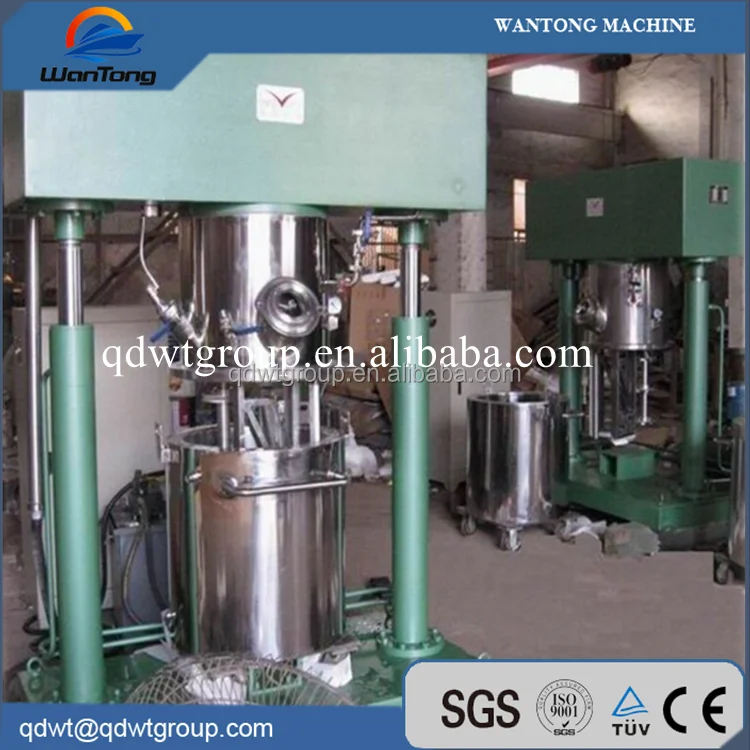

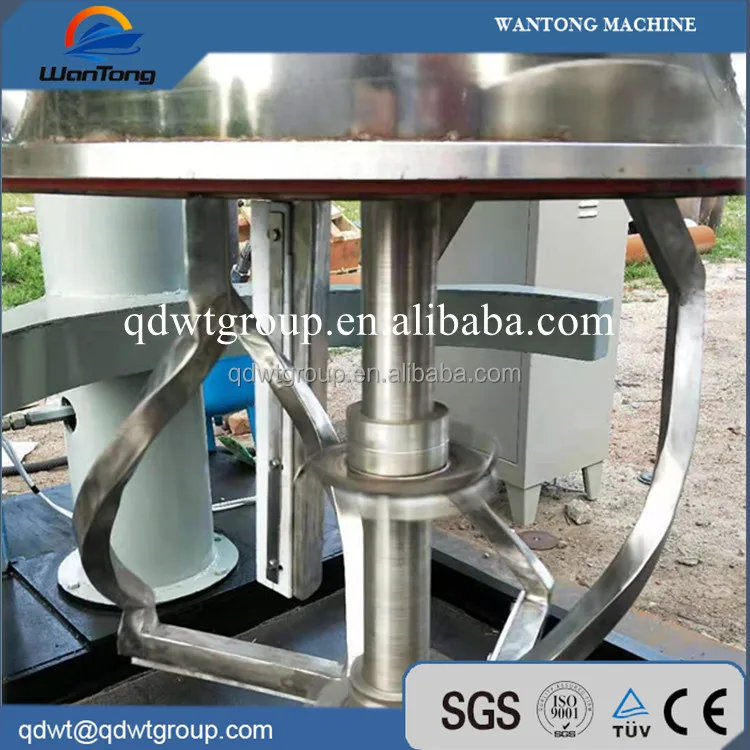

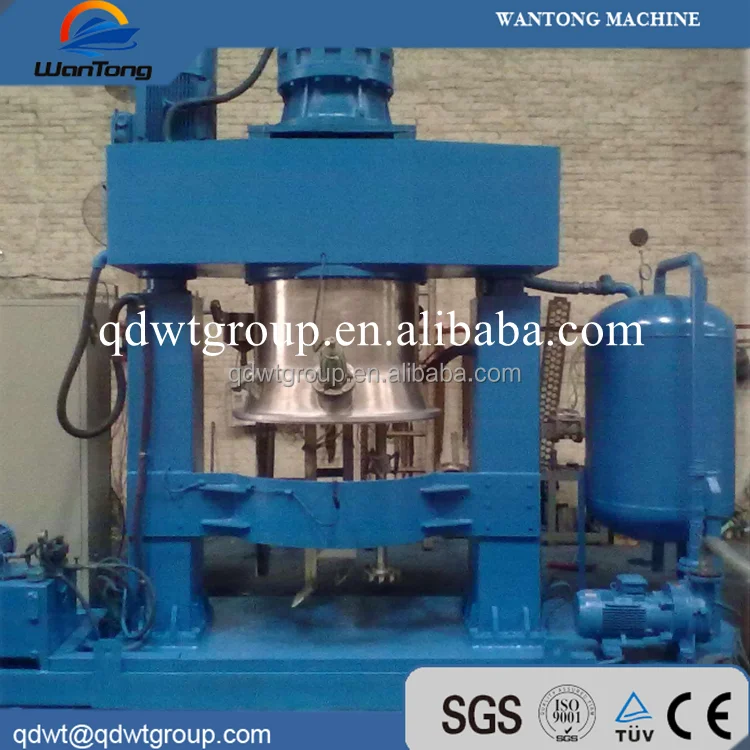

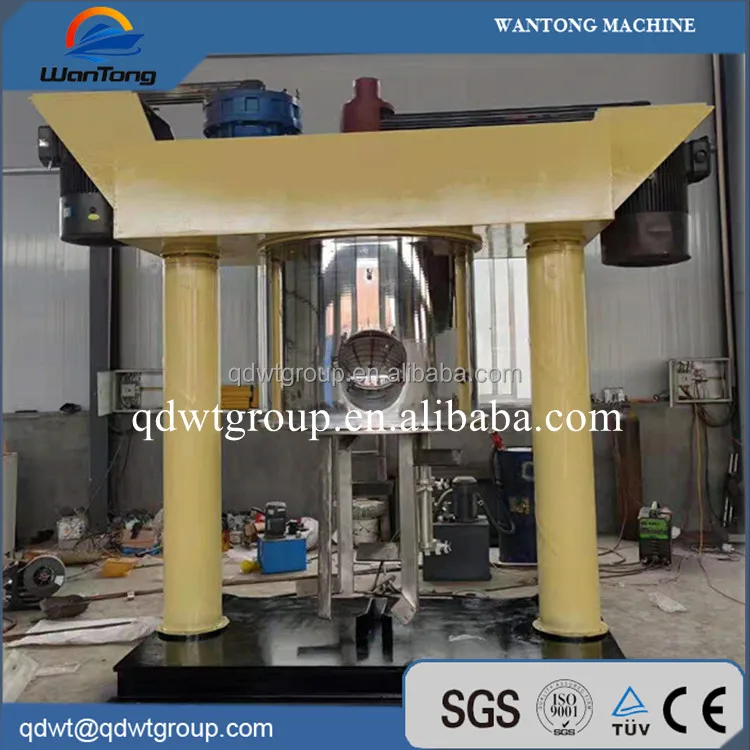

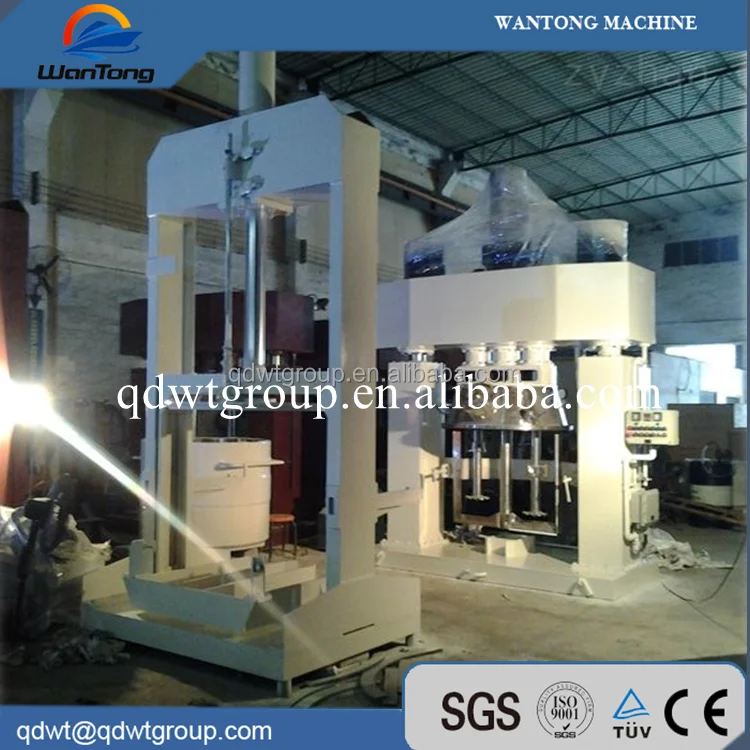

Picture Show
Packaging & Shipping
The mixer will be packed by standard wooden case.
The mixer can be shipped by sea or air,the detail shipping term can be discussed.
Our Services
We are professinal manufacturer for various chemical mixer more than 20years,we will provide you professinal pre-sales and after-sales service as our rich experience.
Company Information
Our company have rich experience for chemical machines,we can make the machines as customers' detail requirement,or we can make a best scheme for customer reference.
Our company is closed to Qingdao airport,we can pick up you very expediently to visit our company.
FAQ
Q:Why choose us?
A:1.We have rich experience for chemical and food machines more than 20years.
2.We have professional team to provide pre-sales and after-sales service for you.
3.Our quality praised by our customers and we provide very competitive price for you.
4.We will provide lifetime warranty for the machine.
Q:How about delivery time?
A:The delivery time is about 15-30days after we confirm our cooperation,details will depend on products.
Q:How about payment terms?
A:T/T,LC,and the trade will be guarantee by Alibaba.
