Product Overview

Description

1000 Square Meters Factory Circulating Water Aquatic Breeding System

The system is divided into manual and automatic operation modes.

Circulating pump water treatment can be adjusted on the touch screen.

Oxygen system can set upper limit and lower  limit,and run automatically according to the set limit value during automaitic operation.

Through frequency adjustment,the upper and lower limit values control the oxygen pump and other methods to achieve the purpose of system energy saving.

You can log in to the cloud server through mobile phone APP to inquire,record and track the breeding situation.

Products Show
Main Equipment List
PLC Frequency Conversion Cabinet
The control center of the whole aquaculture system, real-time control and real-time data collection of the operation status of the whole aquaculture circulating water equipment and the water quality data of the aquaculture, and can store the water quality data of the whole aquaculture system, ensure the long-term stability of data collection, andensure the accuracy of each water quality monitoring instrument data.
Dissolved Oxygen
The HACH LDO II Fluorescence no membrane Dissolved Oxygen Probe is only suitable for measuring the concentration of dissolved oxygen in the aquaculture industry. The unique Fluorine Dissolved Oxygen Technology is accurate and reliable. It is suitable for aquaculture on-line control oxygenation, with no need for calibration, less maintenance and interference characteristics.
          PH Electrode         (including temperature)
The pH value of the aquaculture water should be kept between 7 and 8.5, which is conducive to the normal growth and development of the cultured species, which is conducive to feed utilization, reduce the discharge of cultured species, reduce pollution to water quality, and save production costs.
Radial Flow Settler
Apparatus for precipitating solid suspended matter in aquaculture

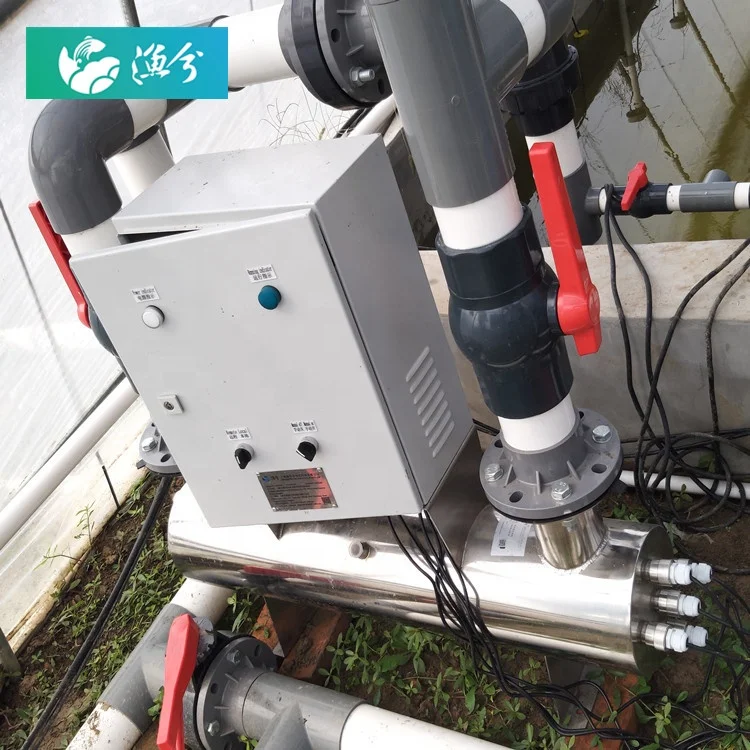

Sterilizer
The sterilization rate is greater or equal to 99%

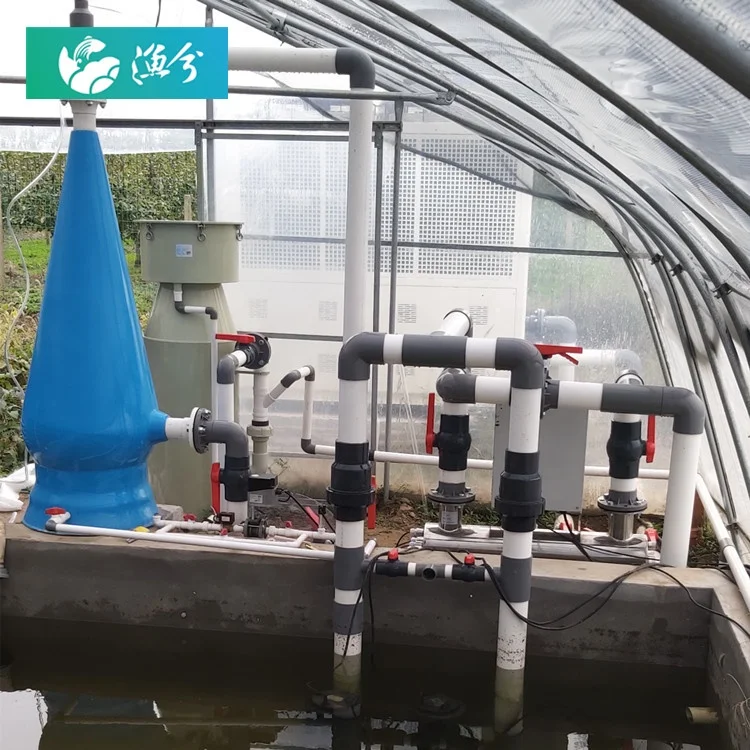

Automatic Aeration Oxygen Cone
Main function: under the conditions of full mixing of gas and liquid, force the gas to overcome the surface tension of the water and passively dissolve by increase the pressure, so that the oxygen is fully dissolved in the water.
Microfiltration Machine
Solid particles are filtered to achieve solid-liquid separation.
Main Circulation Pump
Float switch is functioned to
automatically control the
stop and start of pump
according to the variation of
water level required, with no
need of a special person to
care about it.
Biological Filtration System                 (including materials and Vortex aeration fan)
Through microporous aeration and oxygen protection, the biological filter material is in good contact with the water body, and the nitrifying bacteria are rapidly formed, and the ammonia nitrogen in the water is treated in time.
Thermostat
Long-term work in fresh water or seawater, ensure the water temperature 5 ~ 30 ℃, the customer free to choose the set temperature.
Pure Oxygen Machine
Oxygen purity above 90%， real-time display of purity value.Pure oxygen pressure up to 0.6MPa, you can freely set the start and stop pressure of pure oxygen
machine.
Design Service
Civil engineering pipeline design.
Water treatment process design.
Our Service

Experienced

The professional designer provides the overall design service according to the customer's needs, and more effectively cooperates with the civil construction of the customer's breeding system.

Careful

Multiple inspections prior to shipment to ensure that qualified equipment is delivered to the customer. Strict and careful packaging to reduce unnecessary losses during the delivery process.

Efficient cooperation

In the early stage, engineers can go to the customer site for civil engineering and equipment installation guidance. Later, engineers performed equipment commissioning services to ensure that the overall system could operate normally. Operational training for customers, customers can operate the operating system independently and improve efficiency.

Our Company

Factory

Our Factory

Workshop

Our Workshop

Our client

Our Client

Factory

Our Factory

Shanghai Yuxi Automation Technology Co., Ltd was founded in March 2011, is a set of the science and technology industrial enterprises which is integrated with aquaculture equipment research and development, production, sales and service. The company has a rich recirculating aquaculture system of design, commissioning, installation experience of the technical core team, which specializing in industrial aquaculture systems and equipment to R&D (Research and Development). In numerous projects to provide customers with recycled water and soil construction guidance, fish pond pipeline design, water treatment process design, circulating water equipment manufacturing, recycling water control system design and other integrated programs.
