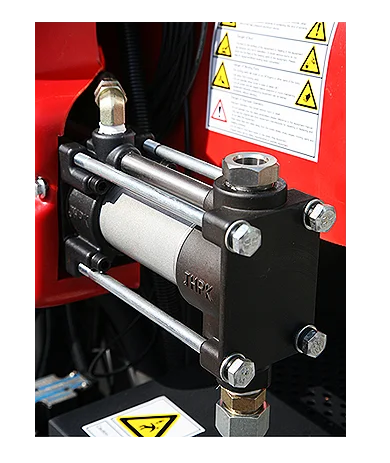

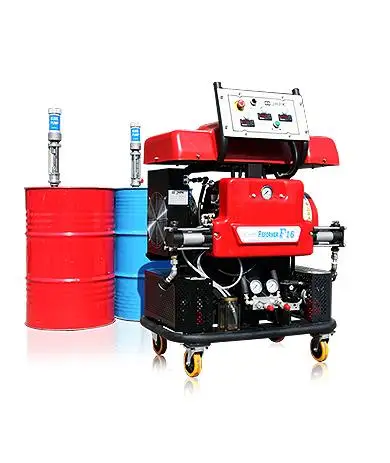

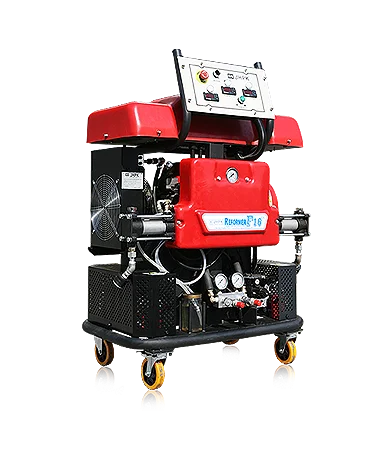

JHPK-F16 polyurethane foaming equipment is the newly series of foaming equipment that launched by Beijing Jinghua Park Polyurethane Equipment Co.Ltd. Compared with the traditional material pump pushing vertically of the traditional equipment, its unique hydraulic driven material pump pushing parallel has solved the problem of seals are damaged by the tilted pump caused by the uneven pressure of two material pumps. The complete, closed, immersed and lubricated material pumps of isocyanate have completely against the air. It has solved the problem that isocyanate crystallizes when comes to the water. The external heating way of pipe line with ultra thin flat copper wires increases the pipe power so the speed of pipe heating is faster, and the function of heat preservation is more perfect. Simple, compact machine layout makes the equipment decorous and fashionable. Simple and intuitive operating mechanism saves the steps of resetting the machine over and over again.
Standard Configuration:
Main equipment
1 set
injection gun
1 piece
Heating pipe
12 m
Spare parts
1 set
Tools
1 set
English manual
1 set
Package
plywood tray
Technical Data:
Ratio of raw materials
1:1
Viscosity range
200~1000CPS
Output of raw materials
4~12L/ min
Heating power
2000W*2
Heating temperature range
5~10 Mpa(725~1450PSI)
Gun cleaning way
0℃~60℃
Maximum hydraulic driven power
21Mpa(3045psi)
Hydraulic working pressure
6~8 Mpa(870~1160psi)
Power source
3-phase 4-wires, 380V, 50Hz, or it can be customized
Injection gun cleaning way
Mechanical cleaning
Driven way for booster pumps
Hydraulic Driven
Driven way for injection gun
Hydraulic Driven
Our company
Hot sales
Certifications
Packing
FAQ
Q: Are You the factory or trade company?
A:We are the factory,found in 2003, we have worked on alibaba export for 7 years.
Q: what’s the machine voltage?can it suitable for my local place?
A: the Standard machine is 3 phase ,380V,50HZ .We can change the electrical wire for your local place.
Q:Do you have any training videos on how to operate and maintain the machine?
If you come to China,We have two days free training in the factory.
Engineers on-site service (some countries and regions),but the fee is charged.
Q: What’s the warranty period?
A: our machine warranty period is 12 month, and support lifelong consultantservice.
Q: What’s the delivery time?
A: Generally speaking ,we can send the machines 2~3 days after we get the payment if you don’t need to change the wire.Pls ask the salesmans about the details. Q:What’s the shpping way?How to get the spare parts if the machines are broken?
A:We can send the machines by sea,by air or by railway.It depends on your choose.
We can send the spare parts through DHL ,FedEx,UPS,TNT internation Express,very fast.
