Custom Super flexible 100% pure copper conductor RUBBER or PVC sheath H01N2 D H01N2 E YH welding cable
- Category: Electrical Wires >>>
- Supplier: Shenzhen Jixing Electric Wire & Cable Co. Ltd.
Share on (62368476579):
Product Overview
Description
Product Description

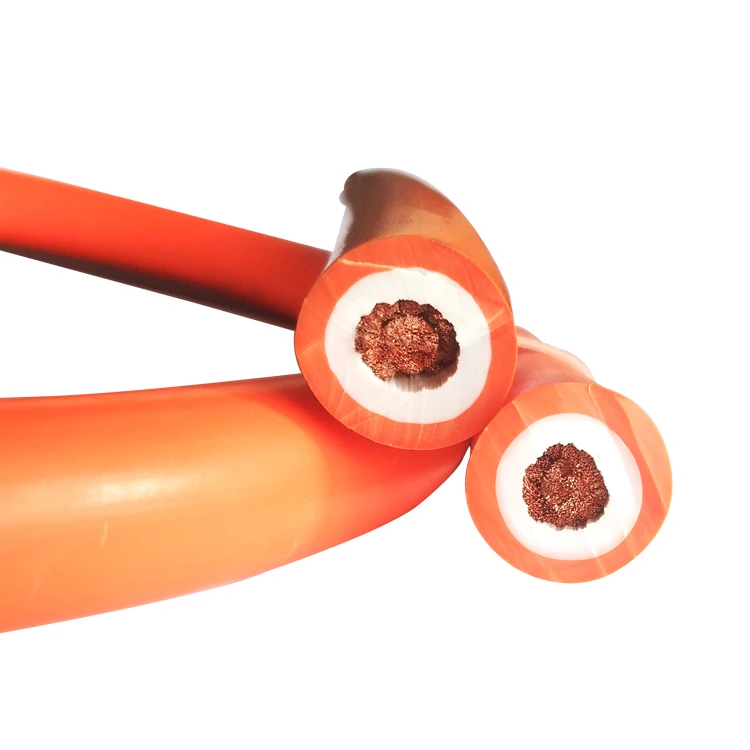

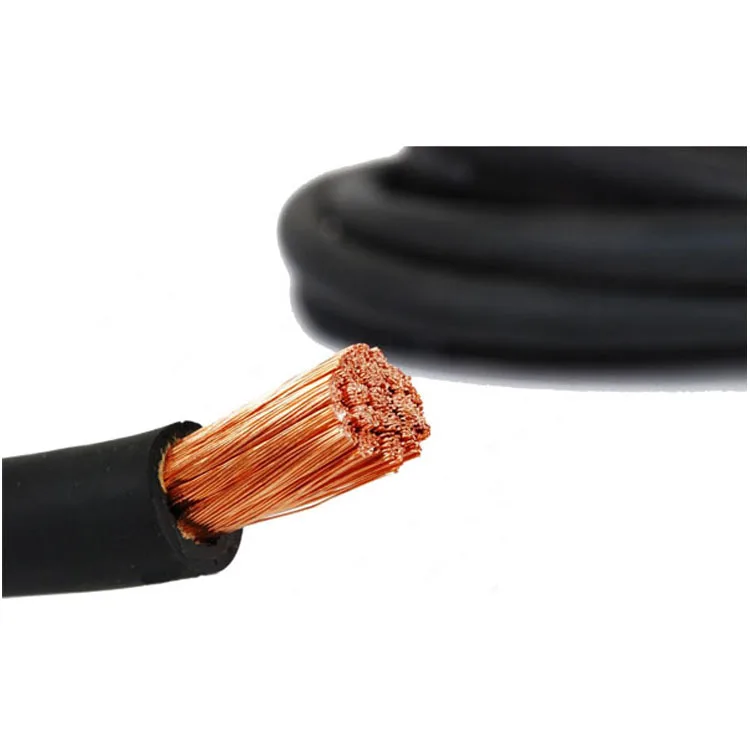

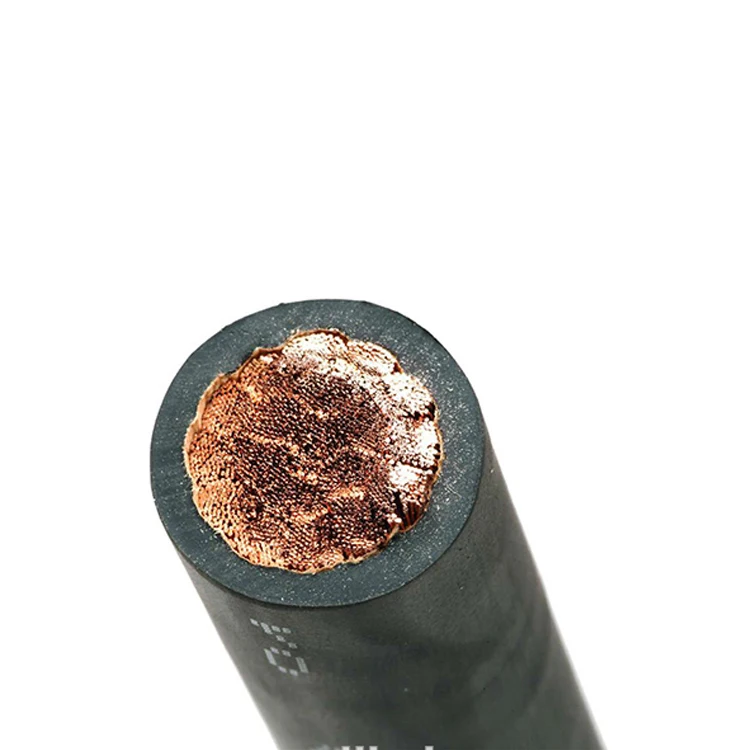

Custom Super flexible 100% pure copper conductor RUBBER or PVC sheath H01N2-D H01N2-E YH welding cable
Porduct name | super flexible 100% pure copper conductor RUBBER or PVC sheath H01N2-D H01N2-E YH welding cable |
size(mm²) | 10,16,25,35,50,70,95,120,150,185,240,... |
Insulation Material | PVC OR RUBBER |
Sheath/Jack/coating Material | RUBBER OR PVC:EU RoHS environmental protection and low smoke halogen free materia |
Conductor Material | Pure 99.99% Copper Conductor |
Rated Voltage(V) | 450/750 |
Pakage | 100 ,300,500 meter/roll or as you wish |
Delivery period | 20-40 days,depending on your order quantity and destination |
Sample service | support |
Model: YH/YHF.
YH: cabtyre covered electric welder cable 60245 IEC 81.
YHF: chloroprene rubber or other man-made elastomer covered electric welder cable 60245 IEC 82.
Specification:
Section-area of conductor:10 sq mm,16 sq mm,25 sq mm,35 sq mm,50 sq mm,70 sq mm,95 sq mm,120 sq mm,150 sq mm,185 sq mm.
Welding wire/welding cables construction:
* Conductor: Fully annealed stranded bare copper per ASTM B-172.
* Jacket: Black or Red Ethylene Propylene Diene Monomer Rubber (EPDM)
* Additional Jacket Colors: Also available in orange, yellow, blue or green
Implementation of the standards: GB/T 5013-2008
Quality Standard: CCC,CE,ROhs,SGS,ISO 9001 certifications.
Rated voltage:450/750V
YH: cabtyre covered electric welder cable 60245 IEC 81.
YHF: chloroprene rubber or other man-made elastomer covered electric welder cable 60245 IEC 82.
Specification:
Section-area of conductor:10 sq mm,16 sq mm,25 sq mm,35 sq mm,50 sq mm,70 sq mm,95 sq mm,120 sq mm,150 sq mm,185 sq mm.
Welding wire/welding cables construction:
* Conductor: Fully annealed stranded bare copper per ASTM B-172.
* Jacket: Black or Red Ethylene Propylene Diene Monomer Rubber (EPDM)
* Additional Jacket Colors: Also available in orange, yellow, blue or green
Implementation of the standards: GB/T 5013-2008
Quality Standard: CCC,CE,ROhs,SGS,ISO 9001 certifications.
Rated voltage:450/750V
Soaked one hour, Wire subjected to alternating current 50Hz 250V (450 / 750V), 2000V (300 / 500V) voltage test 5 minutes without breakdown.
Operating temperature: Long-term operating temperature does not exceed the maximum 70 ℃.

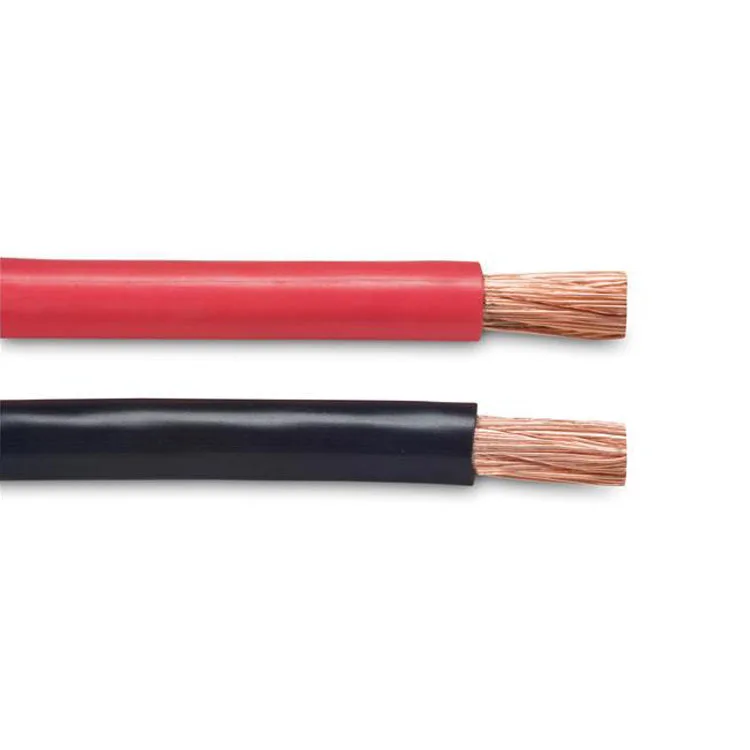

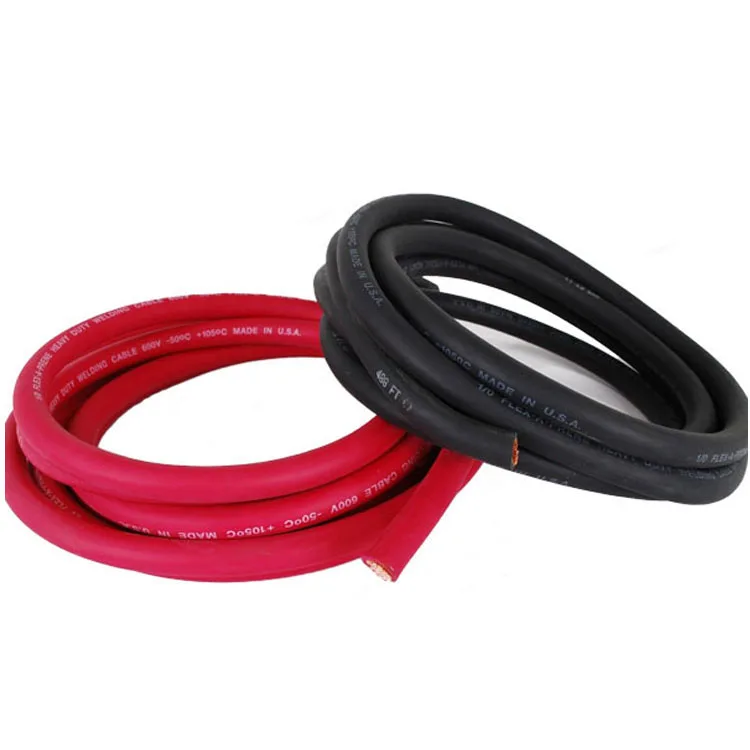

Color: color of sheath:black, red; Also available in orange, yellow, blue or green.
Operating temperature: Long-term operating temperature does not exceed the maximum 70 ℃.
Color: color of sheath:black, red; Also available in orange, yellow, blue or green.
Cross-section area (mm2) | Wire gauge (cores/mm) | Weight (kg/km) | Upper limit of OD (mm) | Maximum resistance at 20 ℃ (Ω/km) |
10 | 322/0.2 | 146 | 9.7 | 1.91 |
16 | 513/0.2 | 218.9 | 11.5 | 1.16 |
25 | 798/0.2 | 316.6 | 13 | 0.758 |
35 | 1121/0.2 | 426 | 14.5 | 0.536 |
50 | 1596/0.25 | 592.47 | 17 | 0.379 |
70 | 2214/0.2 | 790 | 19.5 | 0.268 |
95 | 2997/0.2 | 1066.17 | 22 | 0.198 |
120 | 1702/0.3 | 1348.25 | 24 | 0.161 |
150 | 2135/0.3 | 1648.5 | 27 | 0.128 |
HOW DO I CHOOSE THE BEST WELDING CABLE?
When choosing a welding cable, it is always best to purchase the heaviest cable available. The practice of welding uses large amounts of electricity to melt steel; therefore, the heavier the welding cable, the better the flow of electrical current. Typically, a heavy copper braided weldingcable is preferred over an aluminum cable. The copper cable allows current to pass through without overheating, unlike aluminum cable. It is always wise to purchase a heavily coated or shielded welding cable to aid in the protection of cuts and burns to the cable.
Typically, the best cable can be found in a welding supply store. The cable found in home building and supply box stores is not usually as high-quality as the cable sold through welding supply stores. Lesser-quality cable can melt and fuse together over time, creating a cable with stiff spots, or even worse, dead spots. The damaged wire can produce a great deal of resistance and actually reduce the amount of electrical current being allowed to flow through the cable. This leads to spotty welding with patches of poor penetration, which results in a weaker weld.
If purchasing welding cable for the first time, it is always a good idea to seek out the advice of a knowledgeable welder. Welding supply stores are typically owned and managed by experienced welding personnel who are more than eager to assist a novice shopper. Be sure to have the make, model and any other information available for the type of welder being used when making any supply purchases, as this will assist in making the right choice.
Making sure that the welding cable will reach every corner of a workshop is also a must when purchasing a new cable. Often, a welding cable is used that will not allow a user to reach certain areas of the welding shop. This creates a difficult scenario when a large and difficult-to-move project presents itself. The best cables are welding cables that easily reach all areas of a shop or workspace.
When choosing a cable for the electrode side of a welder, it is important to purchase a pliablecable. Attempting to weld with a stiff and unmanageable cable can make a difficult task in creating a smooth weld bead. Often the difference in a cable's flexibility comes from the type of protective coating used on the cable. Rubber coating is always more flexible than plastic. In a cold environment, a plastic coating can make the welding cable nearly impossible to bend.
When choosing a cable for the electrode side of a welder, it is important to purchase a pliablecable. Attempting to weld with a stiff and unmanageable cable can make a difficult task in creating a smooth weld bead. Often the difference in a cable's flexibility comes from the type of protective coating used on the cable. Rubber coating is always more flexible than plastic. In a cold environment, a plastic coating can make the welding cable nearly impossible to bend.
Typically, the best cable can be found in a welding supply store. The cable found in home building and supply box stores is not usually as high-quality as the cable sold through welding supply stores. Lesser-quality cable can melt and fuse together over time, creating a cable with stiff spots, or even worse, dead spots. The damaged wire can produce a great deal of resistance and actually reduce the amount of electrical current being allowed to flow through the cable. This leads to spotty welding with patches of poor penetration, which results in a weaker weld.
If purchasing welding cable for the first time, it is always a good idea to seek out the advice of a knowledgeable welder. Welding supply stores are typically owned and managed by experienced welding personnel who are more than eager to assist a novice shopper. Be sure to have the make, model and any other information available for the type of welder being used when making any supply purchases, as this will assist in making the right choice.
Similar Products
Application
This product is suitable for using in rated voltage from 6/6kV to 26/35kV system transmission and distribution lines. Based on different sheath structures, it can be used for laying in the air and underground.
CABLES PURPOSE
It applies to electrical appliances,instrument and telecom device with rated volage up to and including 450/750 volts. The main features of the flame retardant cable or wire is hard to catch on fire or that the continuous burning of cables is very limitedwhen it is on fire.It applies to places to places with special demands for flame retardant property.
Fire-resistance cable can operate normally for some time when it is burning except that it can transmit electrical power under normal condition.It is used in places with special demands for fire resistance property.Clients can select any tape of cable for practical needs.
The main characteristics of low smoke,low halogen,flame retardant cable is low smoke emission and low release of HCL gas besides the property of flame retardant.It can be used in spaces with speial demands for density of smoke emission and the release value of HCL gas when cable is burnt.
Fire-resistance cable can operate normally for some time when it is burning except that it can transmit electrical power under normal condition.It is used in places with special demands for fire resistance property.Clients can select any tape of cable for practical needs.
The main characteristics of low smoke,low halogen,flame retardant cable is low smoke emission and low release of HCL gas besides the property of flame retardant.It can be used in spaces with speial demands for density of smoke emission and the release value of HCL gas when cable is burnt.
STANDARDS OF THE PRODUCTS
GB 5023-97,JB08743-98 (and enterprise standard) Flame-retardant,fire resistance,low smoke low halogen cable(wire) of the national
standards for the production of standard GB/T19666-2005.Industry-standard product GA306-2007 standard.
standards for the production of standard GB/T19666-2005.Industry-standard product GA306-2007 standard.
OUR PRODUCTS
Our main products:Couple of series and thousands of specification,which including 06/1KV XLPE insulated,fire retardant,nominal PVC insulated and armored power cable.450/750V PVC insulated wire,welding wire,Branch cable,Low smoke halogen free cable,shield cable,telephone wire and Lan cable .
PACKING AND SHIPPING
Payment Term: 30%deposit before production 70%balance payment before delivery.
Delivery Time: 15-20 days after receive your payment.
Package: 100m/roll, film package, white bags or as required.
Delivery Time: 15-20 days after receive your payment.
Package: 100m/roll, film package, white bags or as required.
OUR COMPANY
Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.
Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friendly LSOH 28 varieties, more than 6400 specifications, products are sold to foreign markets, the majority of users praise.
Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.
Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.
Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friendly LSOH 28 varieties, more than 6400 specifications, products are sold to foreign markets, the majority of users praise.
Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.
Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.
Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
CUSTOMER DISTRIBUTION AREA
Our products are sold to all cities in China and export to America, Europe, Middle East, Southeast Asia and Africal, more than 30countries in the word.
FAQ
Q1: Are you a company or trading company?
A1:We are a alibaba shopping online China factory with ODM and OEM service.
Q2:How can I get the goods I bought?
A2:The goods you purchases will be delivered by DHL,UPS,FedEX,TNT,EMS. Etc.
Q3:Is the sample free?
A3:Yes,It is. But you pay the freight.than the freight fee will be return to you when you make the bulk order.
Q4:How long is your guarantee period?
A4:It;s 1 year for our product. for our china factory products.
Q5:What’s your payment term?
A5:It’s T/T 30% the deposit, the balance will be paid by T/T or L/C at sight before the shipment.
Q6:What’s about the lead time for sample and order?
A6:The sample usually in 2-3 days after receive your request. Lead time for order is 10-15 working days.
Q7:What’s your MOQ?
A7:It’s depend on the type of your purchases products,and please contact us ali baba shopping online about the specification if
you like.
Q8:Where you factory located? How can I visit there?
A8:Our factory is located in A3 building ,Dadi Industrial City,Yanchuan, Songgang Street, Bao’an District, Shenzhen, Guangdong,China. And you can fly to Shenzhen Bao;an International Airport and let me know you flight No. We will arrange to pick you up.
