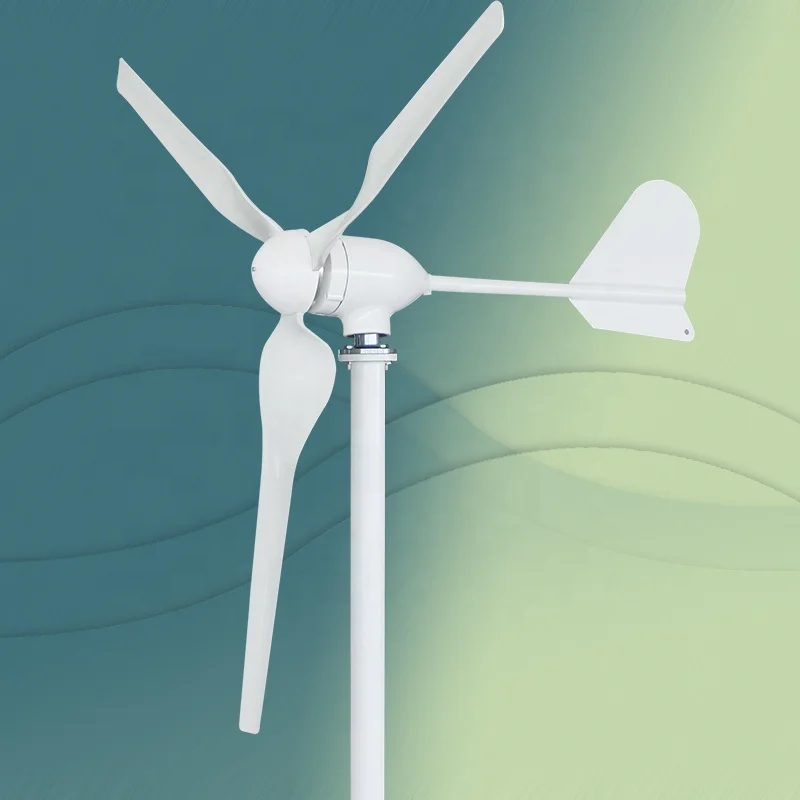

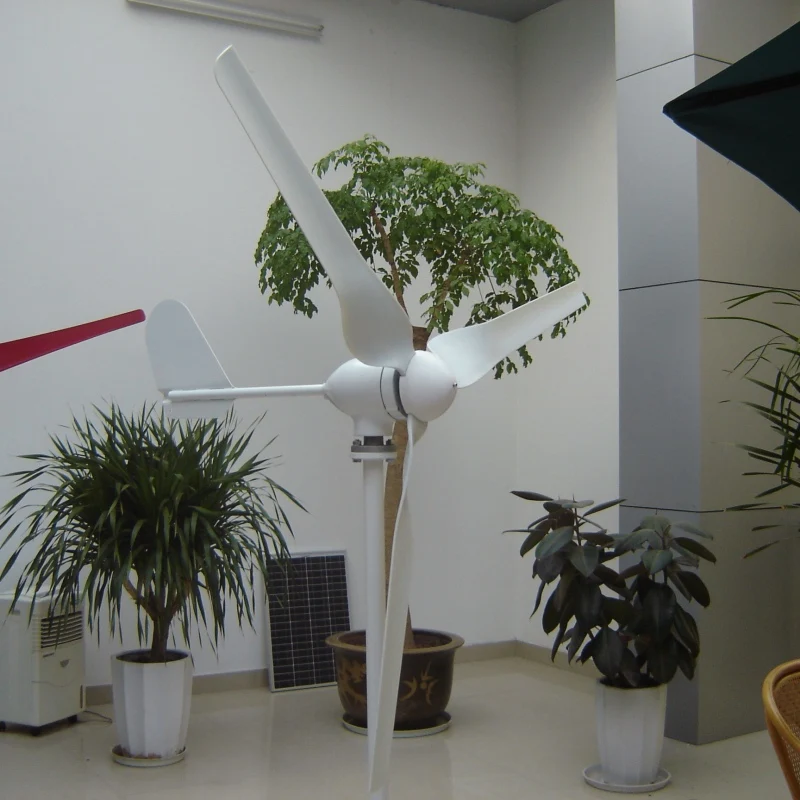

500W 12V 24V small wind power generator

Model

RC-500-A

Rated Output

500W

Peak Output

600W

Rated Voltage

24V AC

Start-up Wind Speed

2.5 m/s

Cut-in Wind Speed

3m/s

Rated Wind speed

10m/s

Survival Max. wind

45m/s

Number of Blades

3

Rotor Diameter

1.65m

Swept Area

2.14

Blade Material

Nylon reinforced composite

Generator Type

  3-phase PMA with high performance Neodymium Magnets

Generator case

Casting aluminum alloy

Controller Type

PWM

Over speed control

Automatically adjust windward direction

Net Weight

12kg

Tower Connector

Flange or Hoop

Flange Size *

DN25

Tower Type *

Guy Cable Tower

Tower Size *

3mX2, 60-3mm

Working Temp. range

from -40°C to 60°C

Product Life

15 years

Warranty

1 years

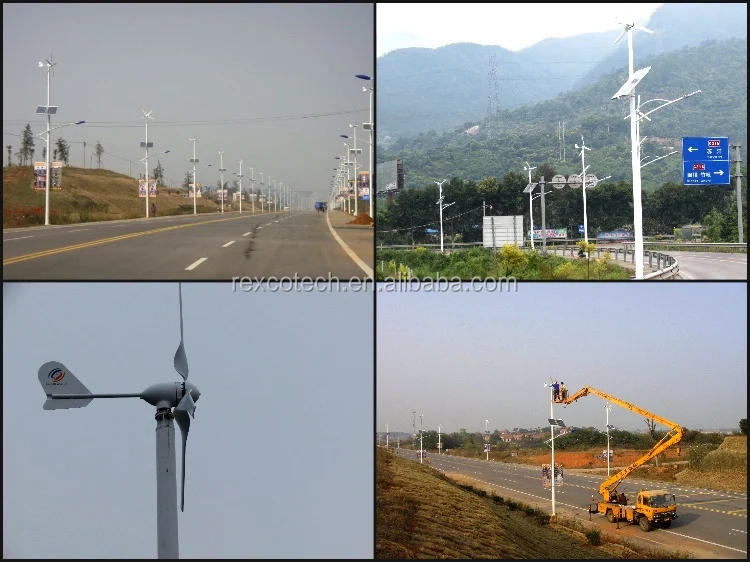

Applications

solar & wind hybrid lighting, off-grid power system etc.

Measurement

98*41*23cm

Gross Weight

14kg
