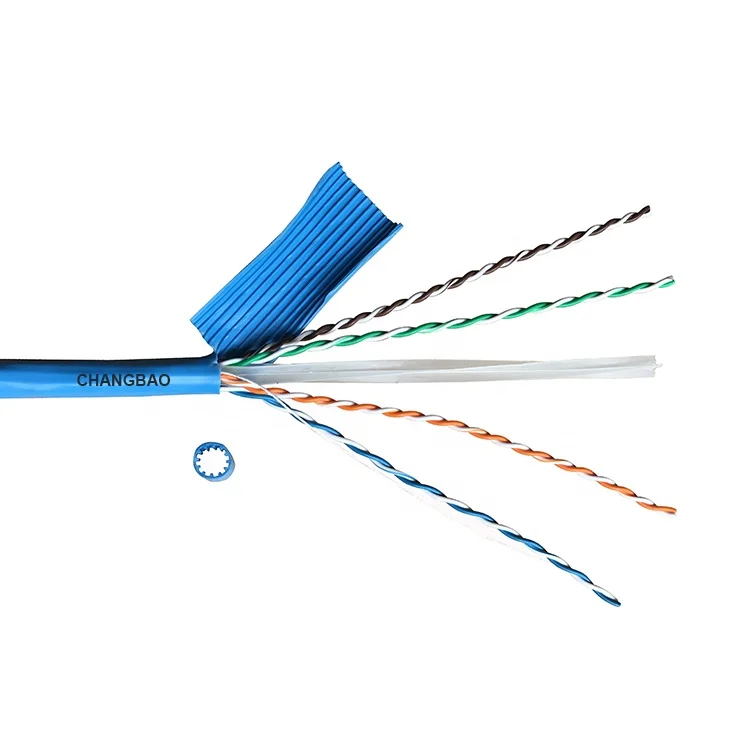

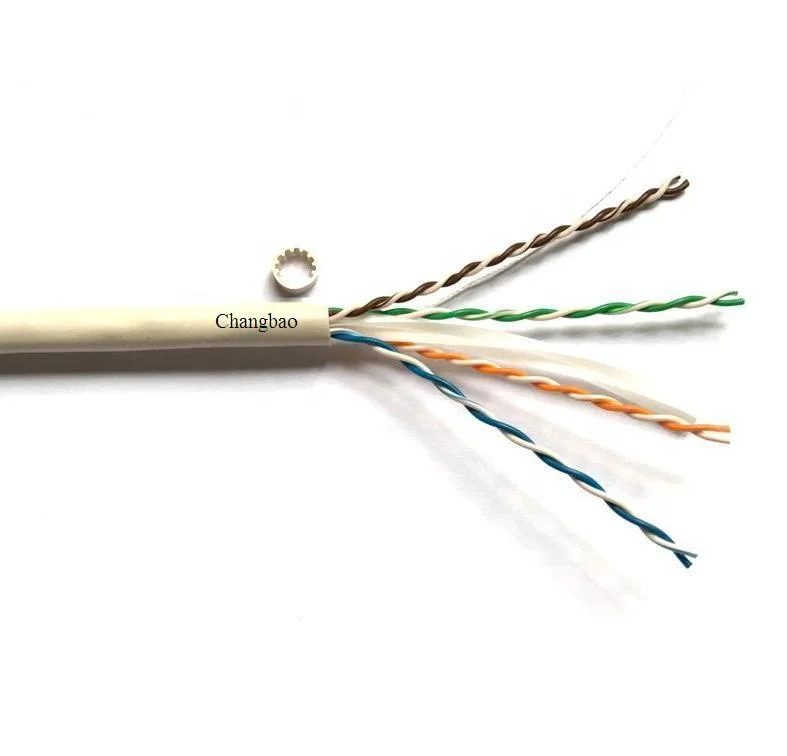

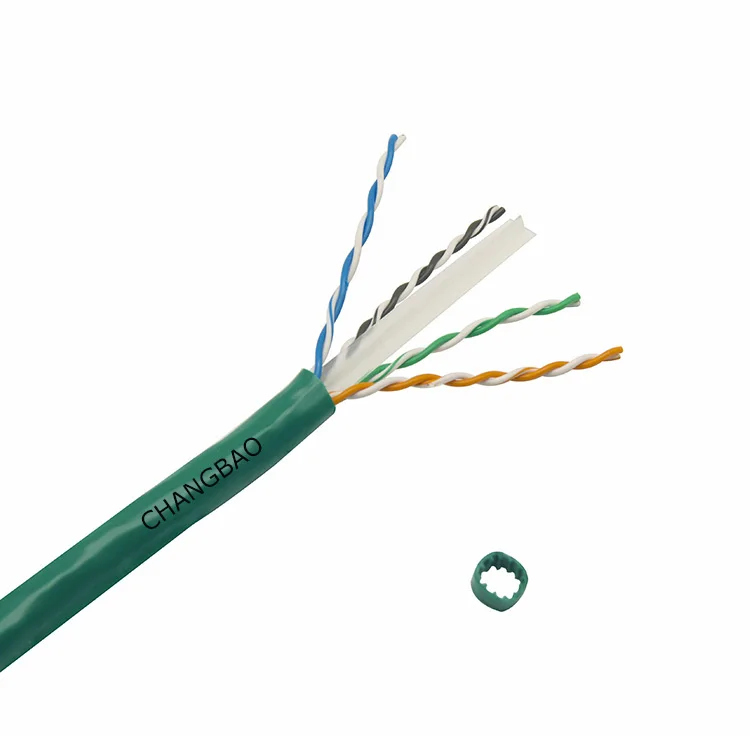

Changbao High speed 23AWG 4 pairs copper conductor PVC LSZH jacket indoor lan ethernet networking Cat6a UTP cable
· Cat6A UTP Unshielded Twisted Pair Cable
· Pass FLUKE Test High Performance Computer Networking Cable
· Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
· Digital Communication Applications of up to 750MHz Bandwidth
· Exceeds ANSI/TIA-568-C.2 , ISO/IEC 11801 Standards
· ETL Listed, CMX / CM / CMG / CMR / CMP Rated PVC or LSZH Jacket Use Indoors
Cross Section
Construction Characteristics

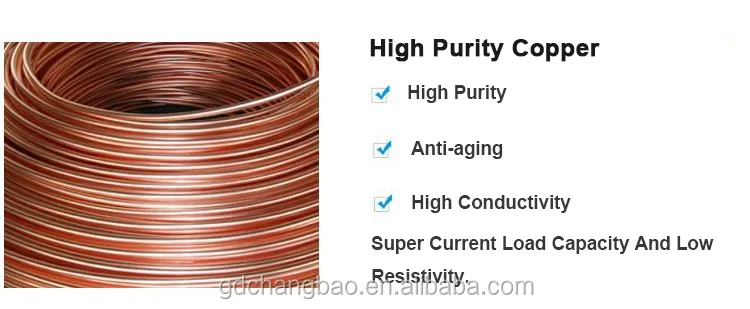

Conductor | Material | Solid Bare Copper |
Size | 23AWG X 4P | |
Construction | 1/0.585±0.005mm | |
Material | HDPE | |
Diameter | 1.02±0.01mm | |
Blue-White/Blue | ||
Orange-White/Orange | ||
Green-White/Green | ||
Brown-White/Brown | ||
Filler | Filler | PVC |

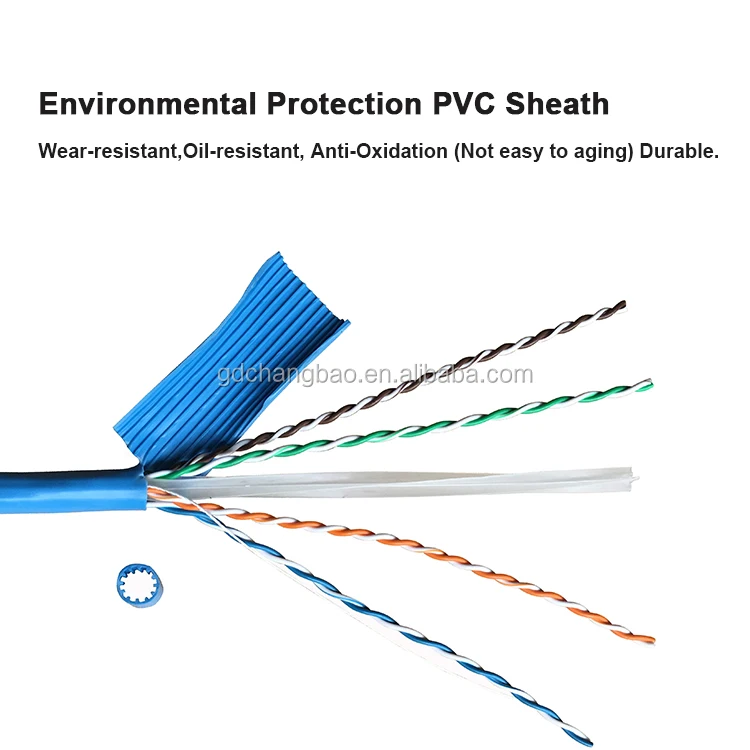

Material | PVC | |
Diameter | 7.60±0.10mm | |
Colors | Per request | |
Rip Cord | Nylon |
Electrical & Physical Characters
rating | 75℃ 30V | ||||
Conductor Resistance | Max 68.5ohm/km at 20℃ | ||||
Dielectric Strength | Min AC1.5KV | ||||
Spark Test | 5.0KV | ||||
AC Leakage Current Through overall Jacket | AC 1500V <=10mA | ||||
Insulation | Tensile Strength | 16.5 Mpa | |||
Elongation | 500% | ||||
Tensile Strength | 14.2 Mpa(100℃ 168h) | ||||
Elongation | 250%(100℃ 168h) | ||||
Tensile Strength | 13.8 Mpa | ||||
Elongation | 150% | ||||
Tensile Strength | 11.7 Mpa(100℃ 168h) | ||||
Elongation | 80%(100℃ 168h) | ||||
Cold Bend Test | -20℃ 4hours No Cracking | ||||
DC Resistance Unbalance | Max 5% | ||||
Pair-to-Ground Capacitance Unbalance | Max 3300pF/km | ||||
Characteristic Impedance | 1~500MHZ 100±15OHM | ||||
Propagation Delay | 500MHZ Max 536ns/100m | ||||
Delay Skew | 1~500MHZ Max 40ns/100m | ||||
* Values above 250MHz are information only
