300c hot air drying laboratory oven used for drying industrial products stability oven

Share on (62371083198):


Price:

Quantity:


Product Overview

Description

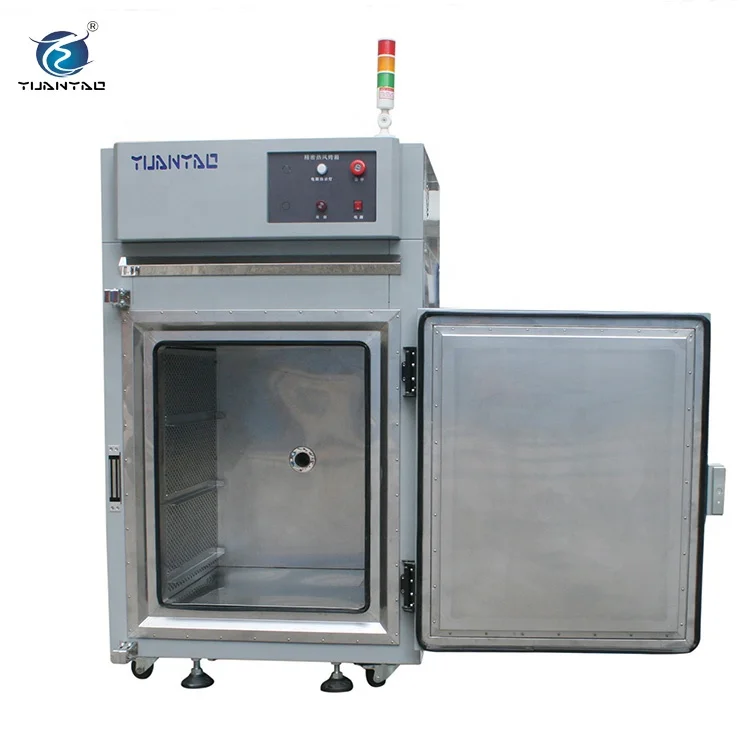

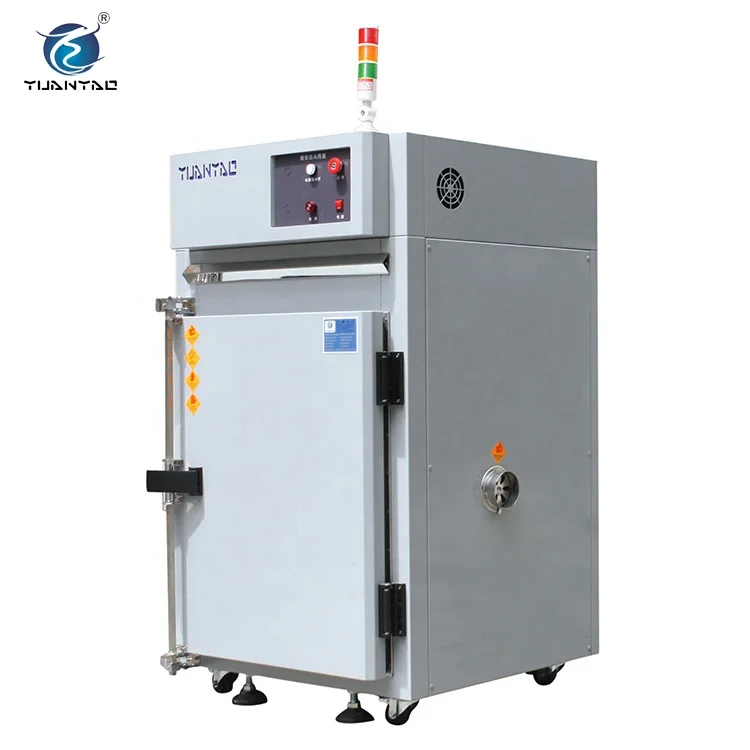

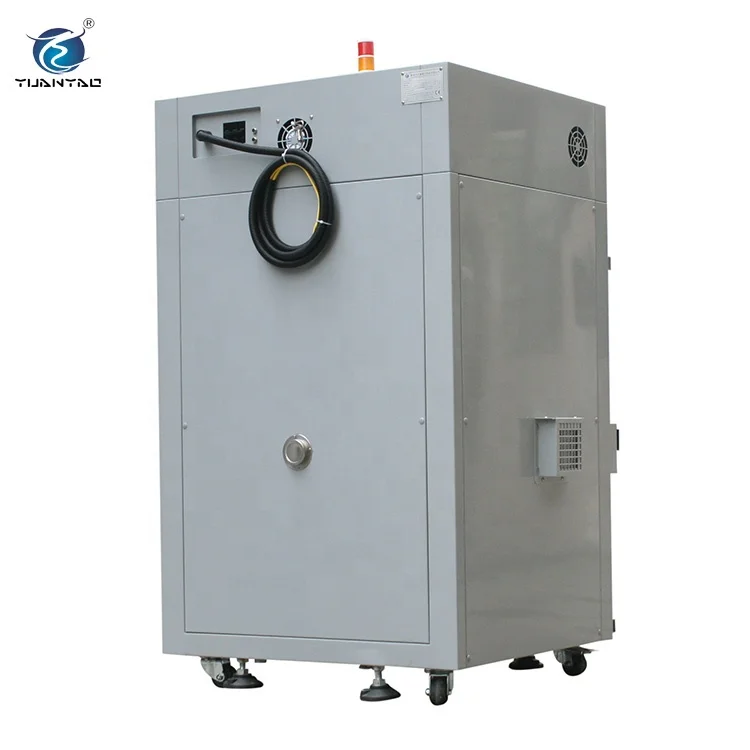

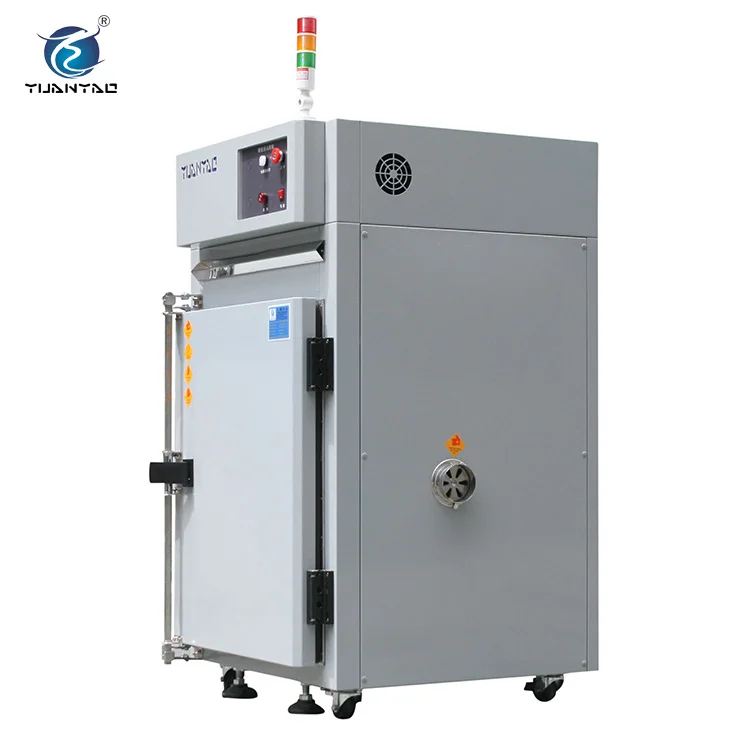

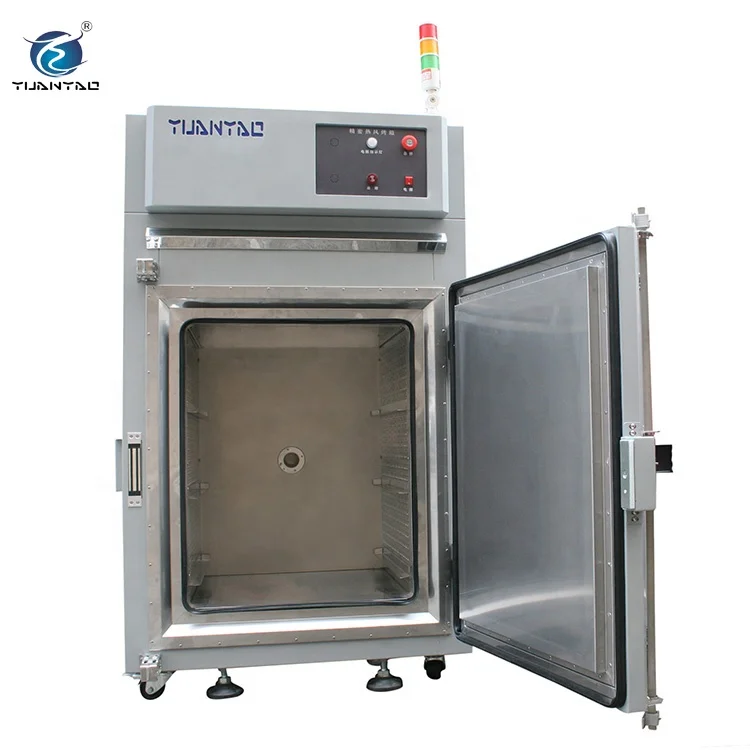

300c hot air drying laboratory oven used for drying industrial products stability oven

Product Description

Hot air drying oven can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing . It supply precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.

297L PLC control oven (8)



Electric Heating Air Blast Drying Oven Specification



ModelYPO-072YPO-270YPO-480YPO-600YPO-720
Inner chamber size W×H×D(cm)40×45×4060×90×5080×100×60100×100×60120×100×60
Exterior chamber size W×H×D(cm)90×105×55110×160×65130×170×75150×170×75170×170×75
Temperature rangeRoom temperature+10~200℃(300℃)
Perform-anceTemp.& humi fluctuation±0.3℃
Temp.& humi uniformity±1%℃
Temperature resolution0.1℃
Heat up time30min
MaterialExterior chamber materialCold-rolled steel+Powder coating
Interior chamber material

SUS#304 Stainless steel plate

(Use SUS#201 when max.temp.is below 200℃)

InsulationPU&fiberglass
SystemWind circulationCooling fan
Heating systemSUS#Stainless steel high-speed heater
Controller CAHO H961KV02 controller(Taiwan)
Other componentsCable port(dia.50mm),control status indicator,loading shelf(2pcs,position-adjustable)
Safety devicesOver-heat protection circuit breaker,overload protection,overload indicator
Power supplyAC 3phase380V 60/50Hz
CustomizationNon-standard or special requirements are all welcome



Product features



1)  Adopts microcomputer electronic data control, precise and reliable.
2) The insulation packing is mounded by silicone, highly temperature-enduring and anti-aging.
3) Heating by compulsory circulating ventilation, temperature rising fast and uniform distribution.

4) If need, we can add a glass view window for customer to observe the inner chamber.

Detailed Images

297L PLC control oven (14)
