Chinese manufacturing companies steel vertical cutting metal cutting band saw machine automatic

Product Overview

Description

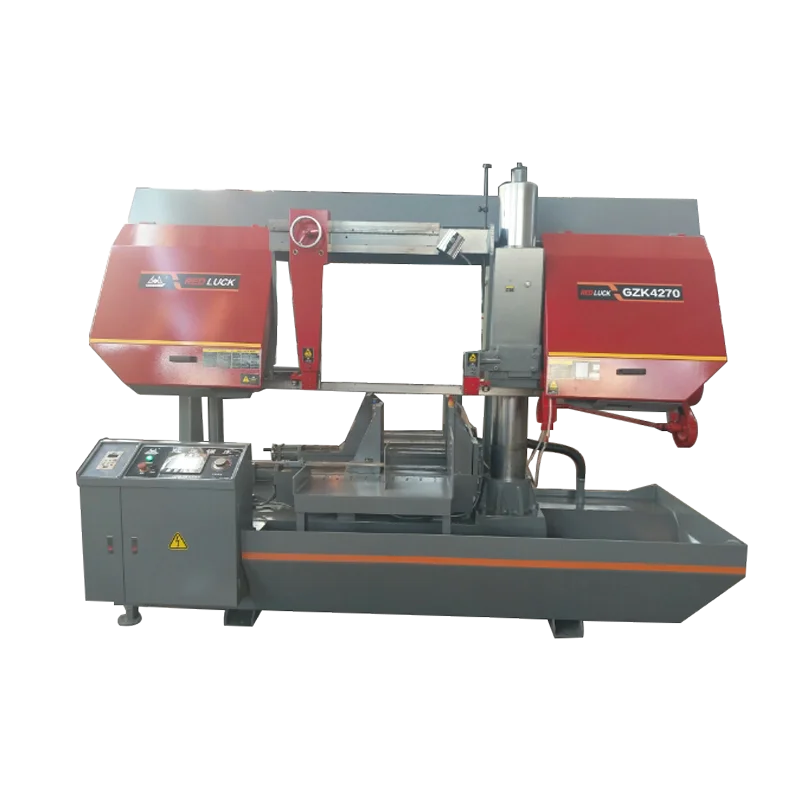

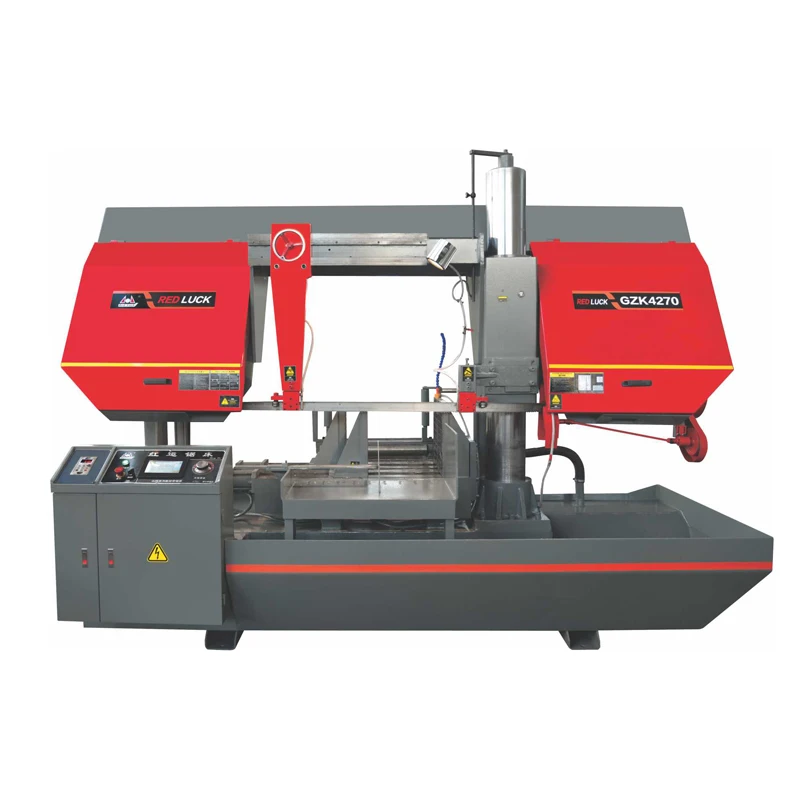

GZK4270 CNC Full Automatic Band Saw Machine



1. Human machine interface (HMI) instead of traditional control panel, and sawing parameters are set in figures.

2. PLC (programmable logic controller) for flexible setting and change of sawing modes.

3. CNC Full-automatic Metal Band saw machine Mainly used for cutting various kinds of ferrous metal and non-ferrous metal.With the advantages of narrow saw cut,saving material , energy-saving , the structure of the machine tools is reasonable and reliable  performance and high precision





Model	GZK4270
Max. Cutting Diameter	Round: 700	mm
	Plate: 700*700	mm
Blade Speed	12-50 by inverter	m/min
Blade Size	1.6*54*7400	mm
Motor Output	7.5	kw
Hydraulic Pressure	2.2	kw
Coolant Pump	0.09	kw
Machine Size(L*W*H)	3800*2800*2400	mm
Net Weight	5000	kg
Vice clamping	Hydraulic(two pairs)
Blade tensioning form	Hydraulic
Feeding cut adjust way	Hydraulic
Prcision of feeding	0.2mm-/+
Feeding way	Automatic(hydraulic oil cylinder)
Voltage	380V 50HZ 3Phase
