customized gold plated 2.54mm strip Pin Header 2-100 way ,Single Row Z Type ,PA6T ,H;2.0mm
ARTICLE PROPERTIES
Pins
2-100
KIND PROPERTIES
Pitch
2.54mm
Rows
Single
Gender
male header
Type
Through hole
MATERIAL PROPERTIES
Insulator Material
PA6T
Insulator Flammability Rating
UL94 V-0
Contact Material
Copper Alloy
Contact plating
Gold

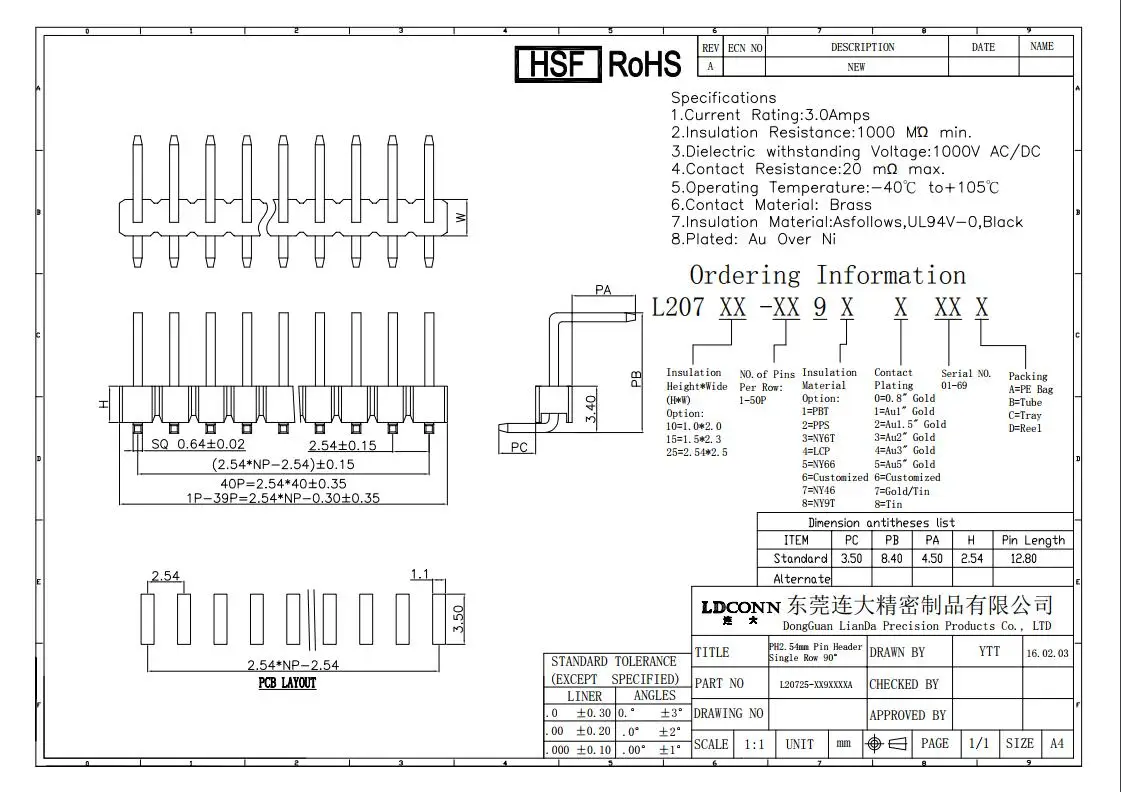

Products Drawing :
Male and female connector :
Our customer :
Here below is our company short profile :
1.Manufacturing since 2002 , 90% automatic production , defective rate is less than 0.001%
2. 5-7 days delivery time and reasonable price for work further
3. Customized pin header & sockets solution
4. Main product :pin header , female header ,box header ,RJ 45 connector , USB connector, board to board connector ,D-sub connector ,terminal block , SIM connector and so on
5. Top 3 customers of BizLink , TP-link and Foxconn
6.Our components are manufactured to the ISO 9001 / ISO 14001 / IATF16469 / UL certifications and are RoHs 2.0 compliant as well as Halogen free.
7.You will enjoy the security of knowing that each product LDCONN is offering to you has been designed with high quality materials and engineered to optimize the performance characteristics still providing low cost installations and an excellent reliability.
Contact detail :
Dongguan Lianda Precision Products Co.,Ltd
Diana Li Sales Manager
Tel:+86-769-81682909 Mobile :+8615918336608
Wechat: liweiying123 Skype :diana-weiying
Website:www.liandaconn.com
Address :Building A ,No.10,Ludipu Industrial Park,
Huaide community ,Humen town,Dongguan ,Guangdong ,523926,China
An ISO9001:2015 & IATF 16949 & ISO14001 Certified Connectors Manufacturer
