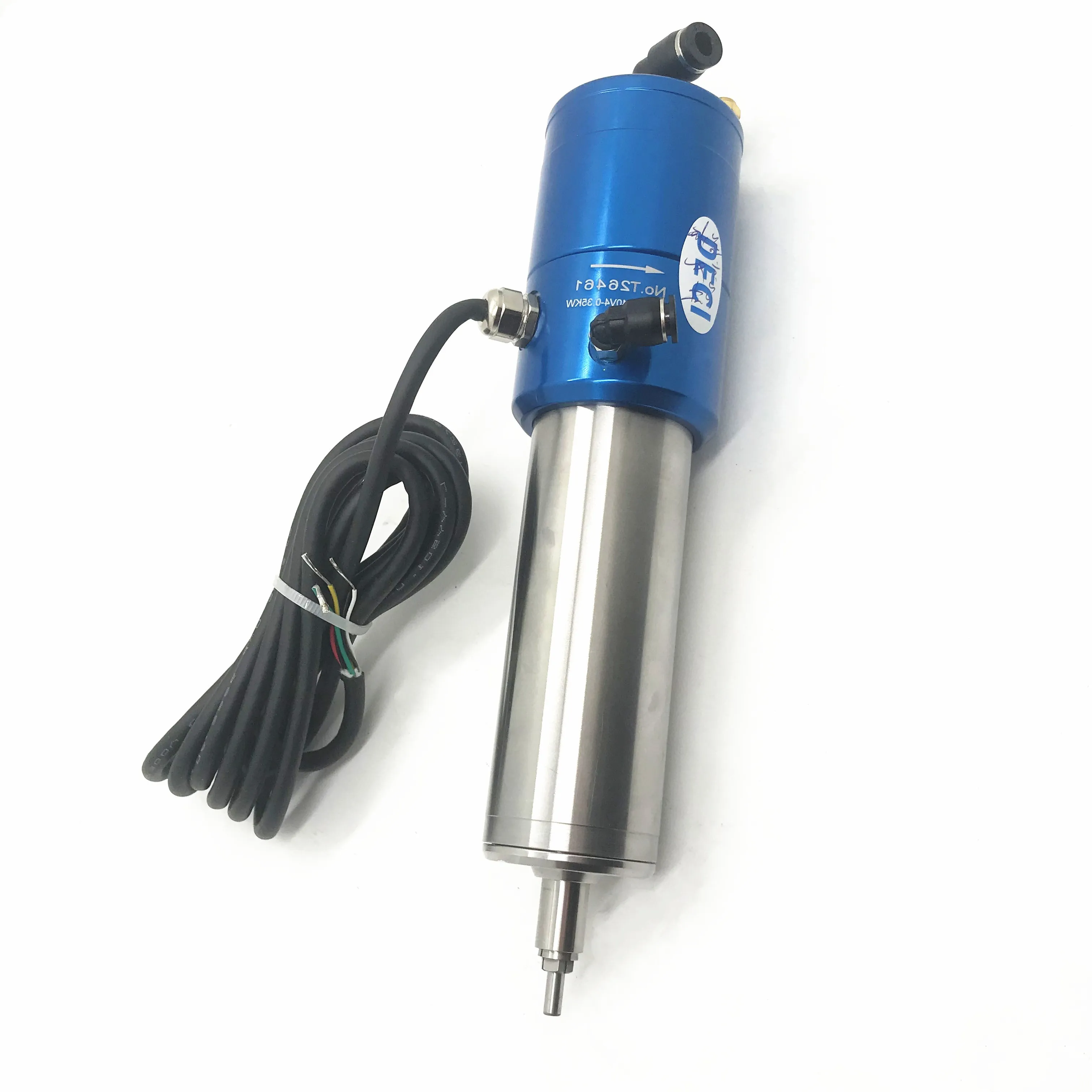

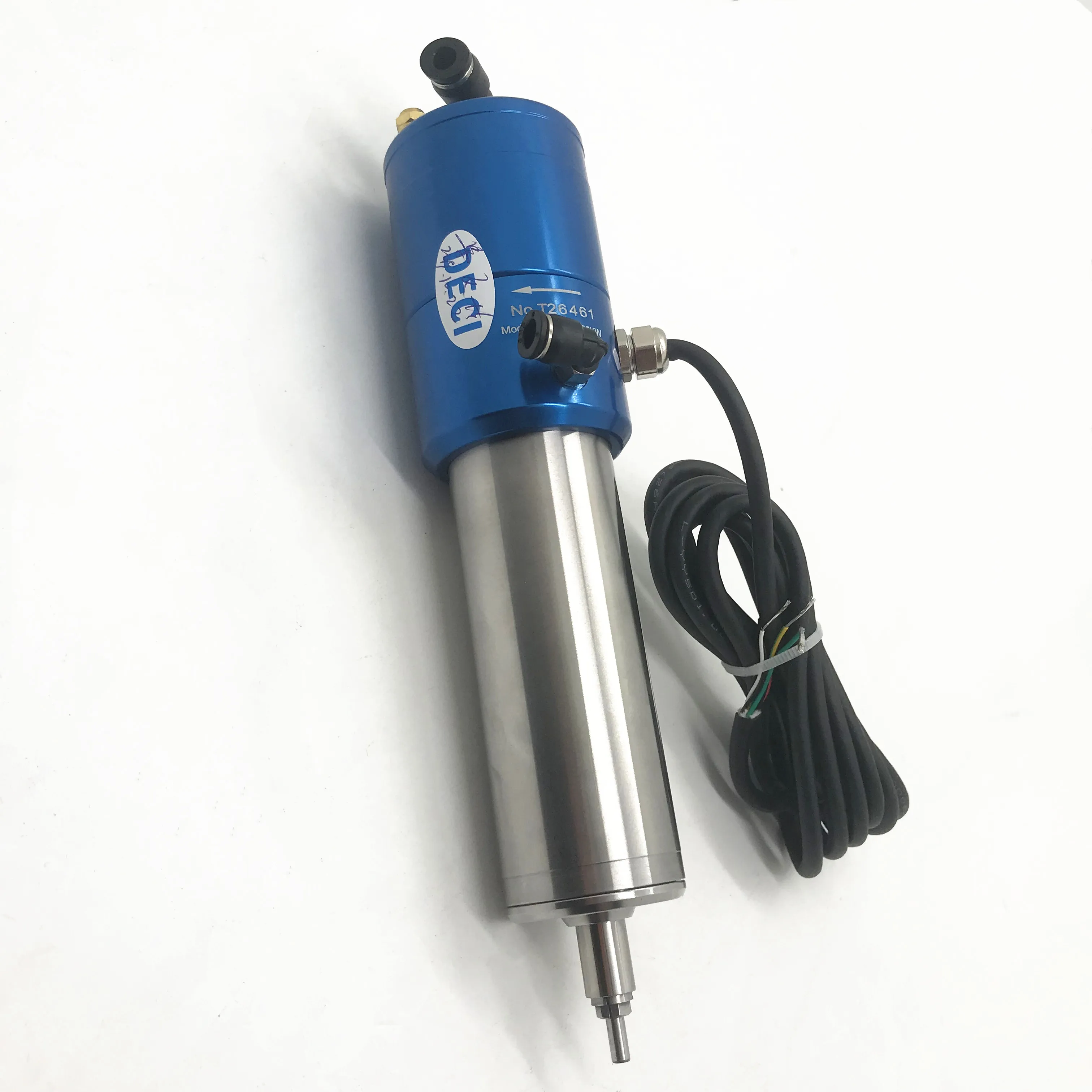

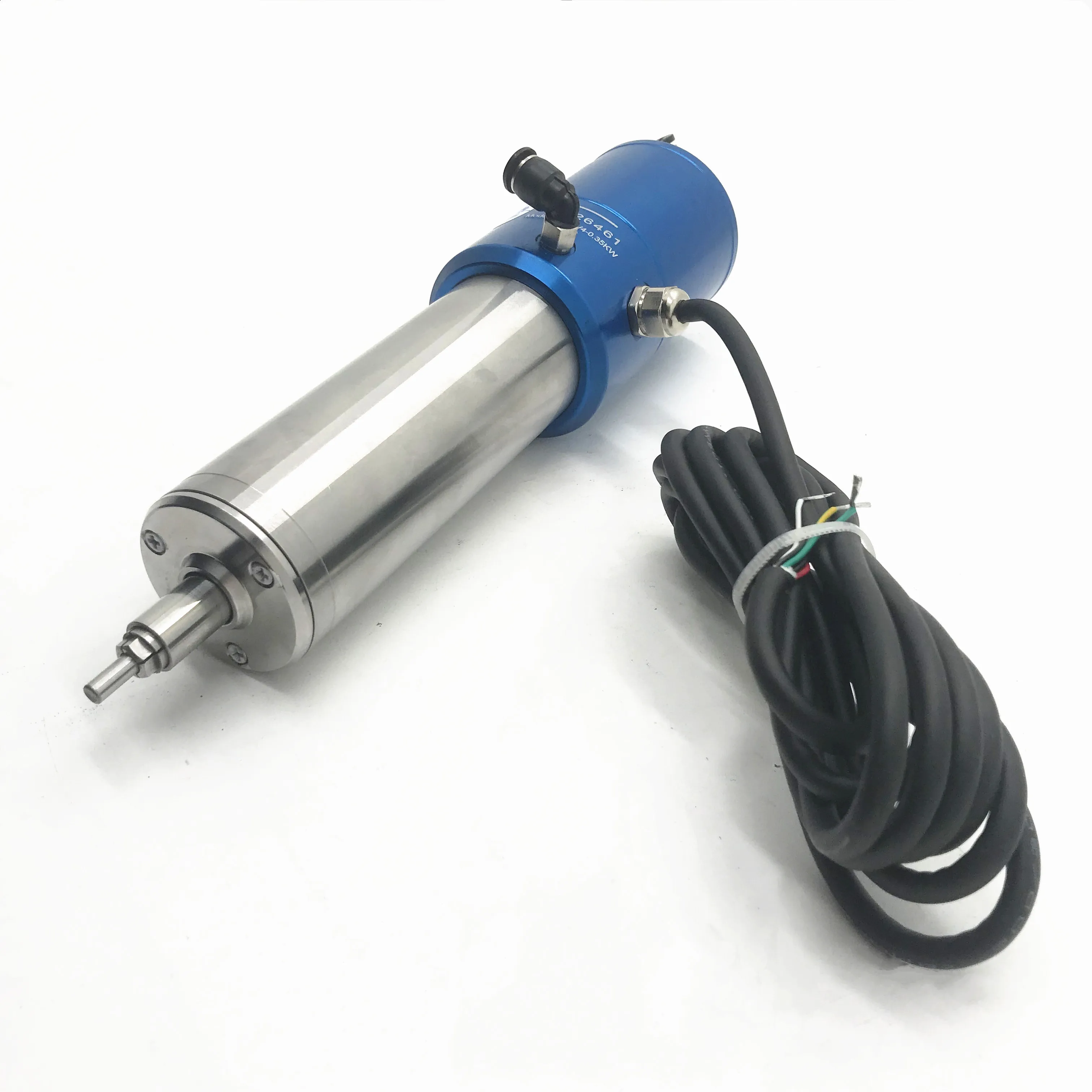

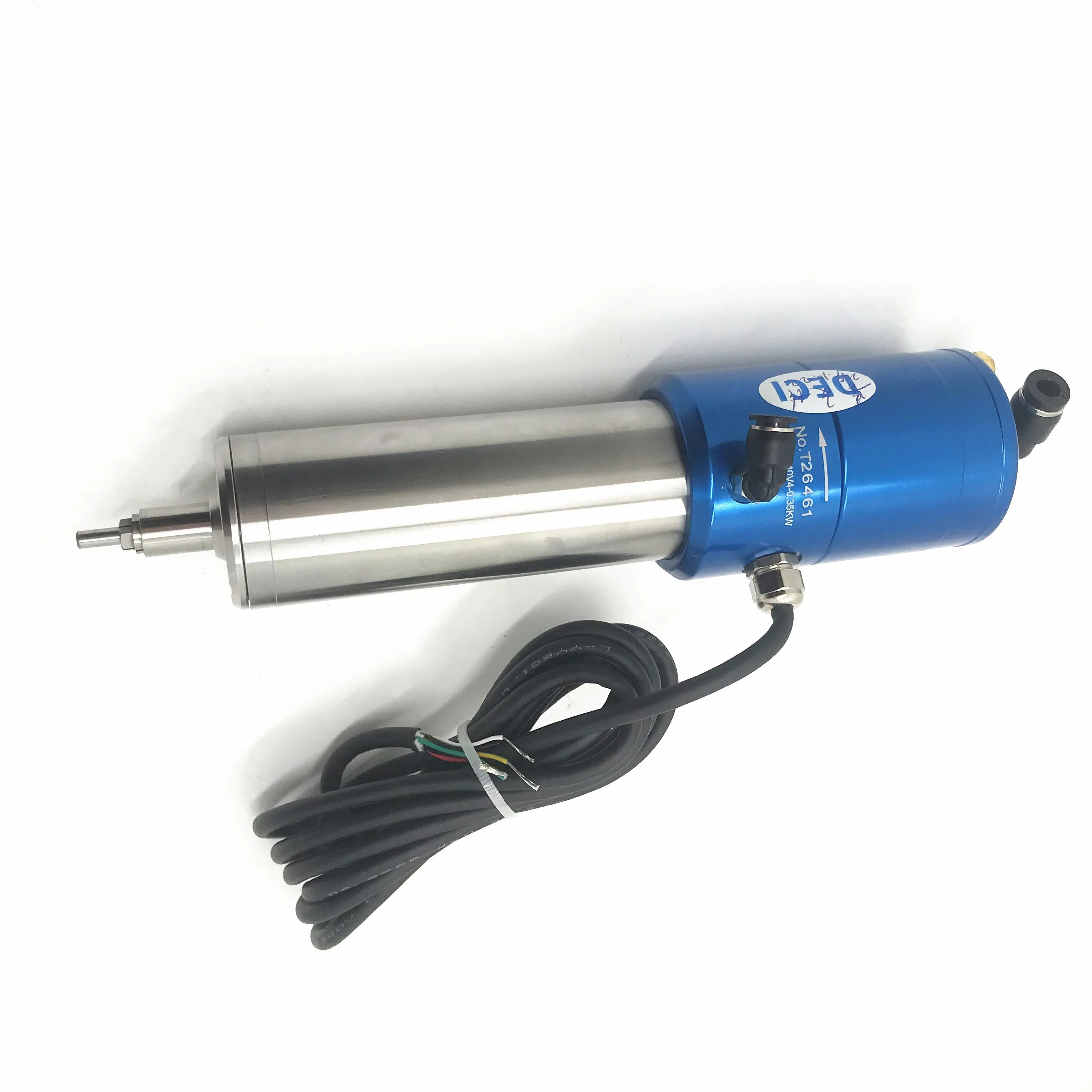

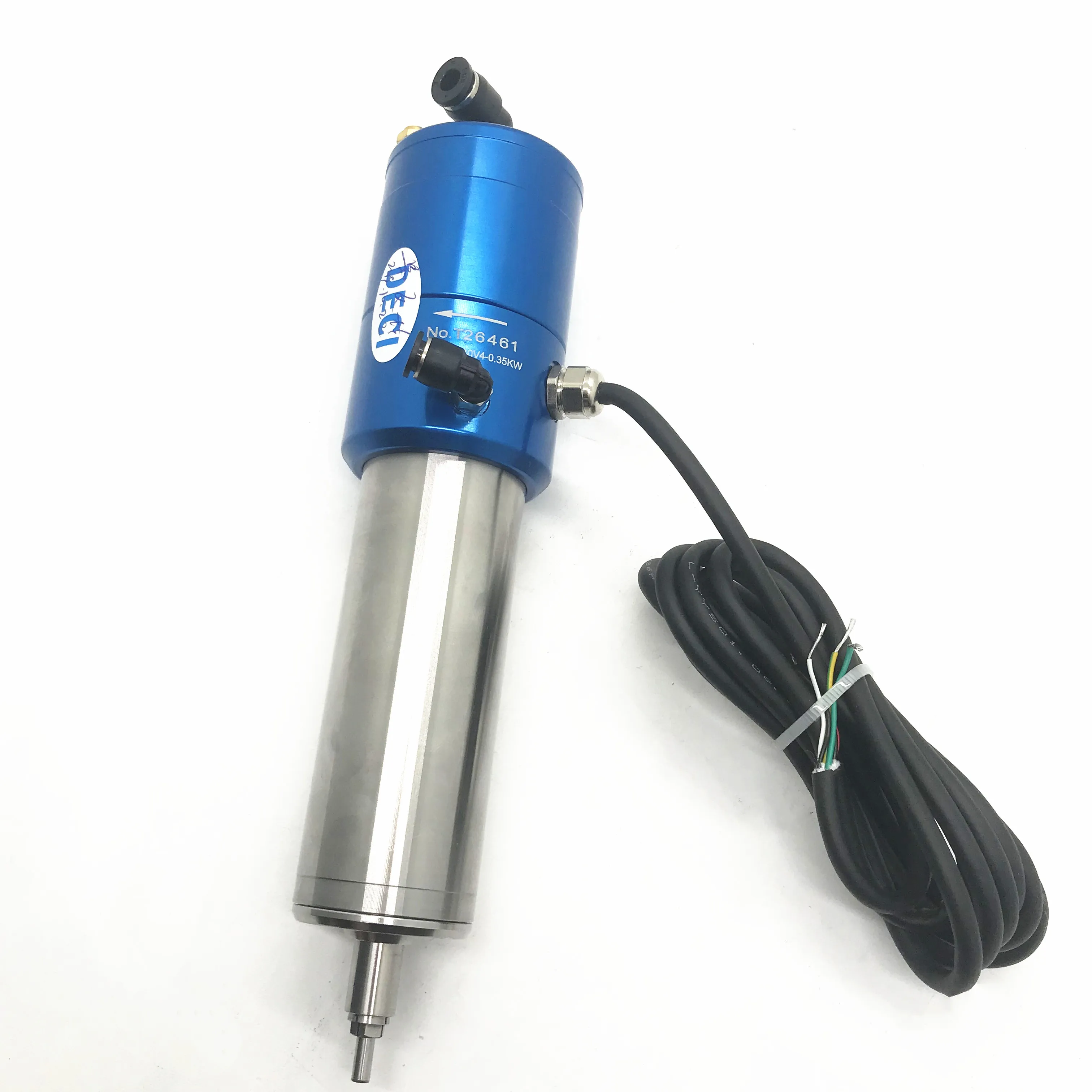

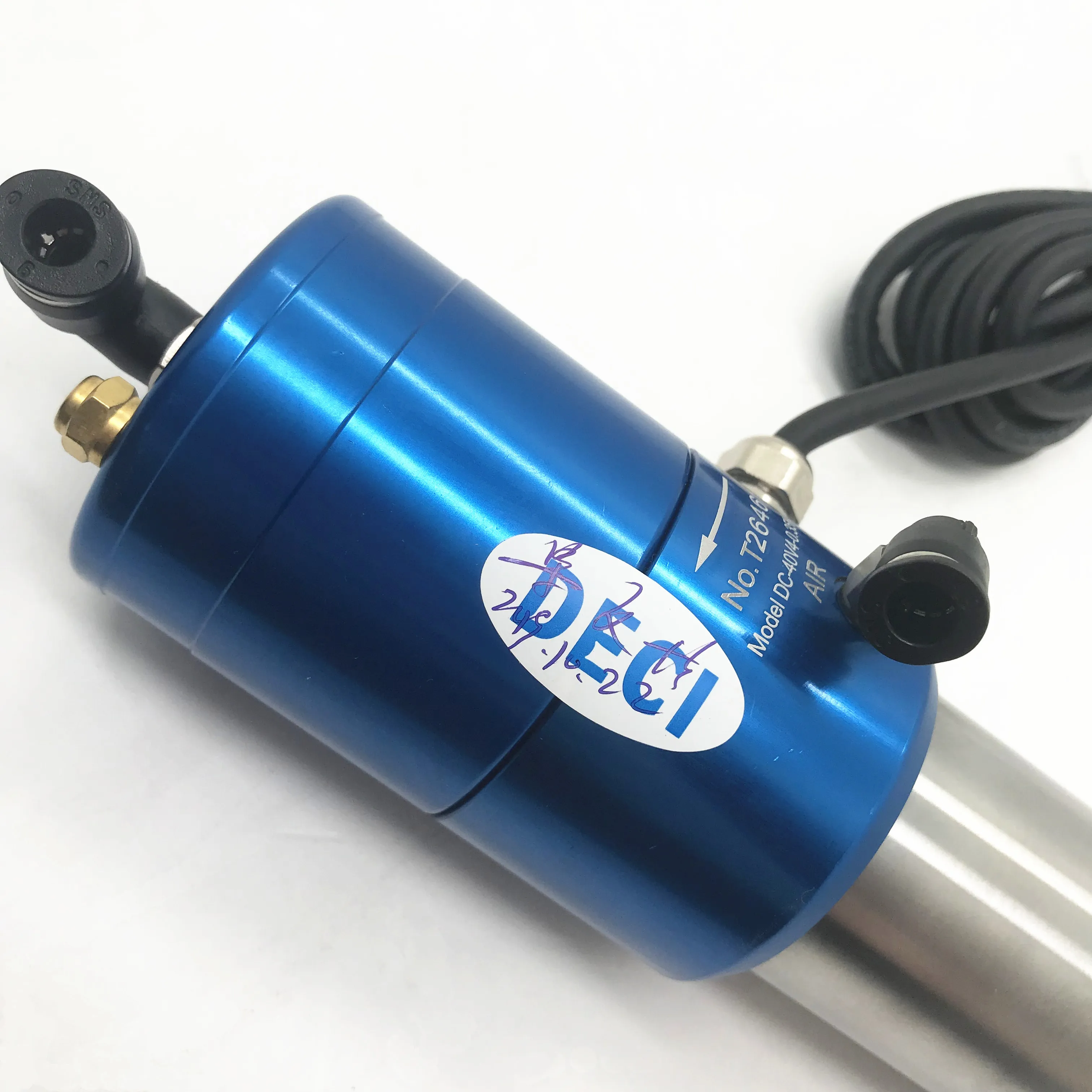

This product is a dental high-speed electric spindle with a maximum speed of 60,000 rpm and a rated power of 0.35 kW. It is suitable for the processing of composite materials such as zirconia and ceramic grinding.
DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
DECI More Spindle is also available with best price, if needed, welcome contact us.
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw
cooled by air: 8kw,9kw (same HSD)
5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw
Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speed and precision according to customer needs.
Specificiations
DC-40V3
Parameters

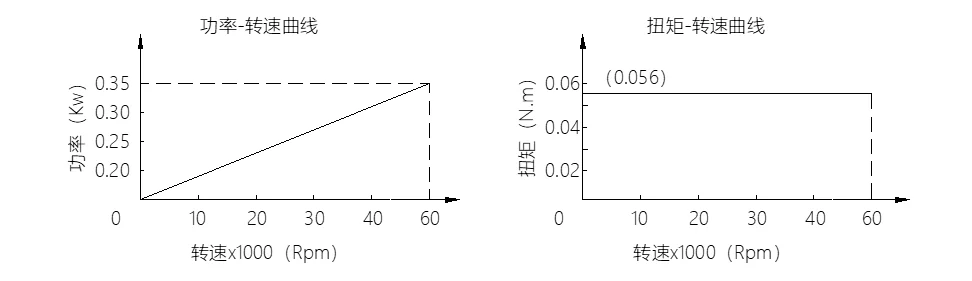

Motor Power
KW
0.35
Rate voltage
V/AC
100(3~)
Max rotate speed
Rpm
60000
Max current
A
2.5
Max Frequency
Hz
1000
Torque
N·M
0.056
Specification
Cone at the end of the shaft pulsates
mm
≤0.001
Tooling releasing air pressure
Kgf/cm²
5.0-6.0
Tooling Exchange Method
~
ATC
Air cutain pressure at front end
Kgf/cm²
~
Tooling pulling force
N
≥1000
tooling back air pressure
Kgf/cm²
~
Tooling connection
~
Φ4 collet
Cooling
~
Air cooling
Encoder
~
~
coolant pressure
Kgf/cm²
2.5~3.0
Approach switch
~
~
Bearing Inbrication method
~
Grease
Balance level
~
G1
Install method
~
Flange
Vibration Value
mm/s
≤0.8
Weight
Kg
1.35
Applicable industry
Packaging & Shipping
Company Information
Why choose us
Certifications
FAQ
Q: Are you trading company or manufacturer ? A: We are the only factory for DECI brand.
Q: Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A:we have all the packages. We can get the engineer to program you.
Q: What's your delivery time? A: It depends.If your order is standard and in stock,we can deliver immediately. If not,about 7 work days.
Q: Do you provide samples ? is it free or extra ? A: Sorry, we don't offer samples.
Q: Which payment method and Express can you accept?
1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.
Q: How do you make our business long-term and good relationship? A: 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
