automatic tin can food canning machine sealing canning machine
- Category: >>>
- Supplier: ZHEJIANG NEWWAY FOOD MACHINERY CO. LTD
Share on (62374166457):
Product Overview
Description
Product Description

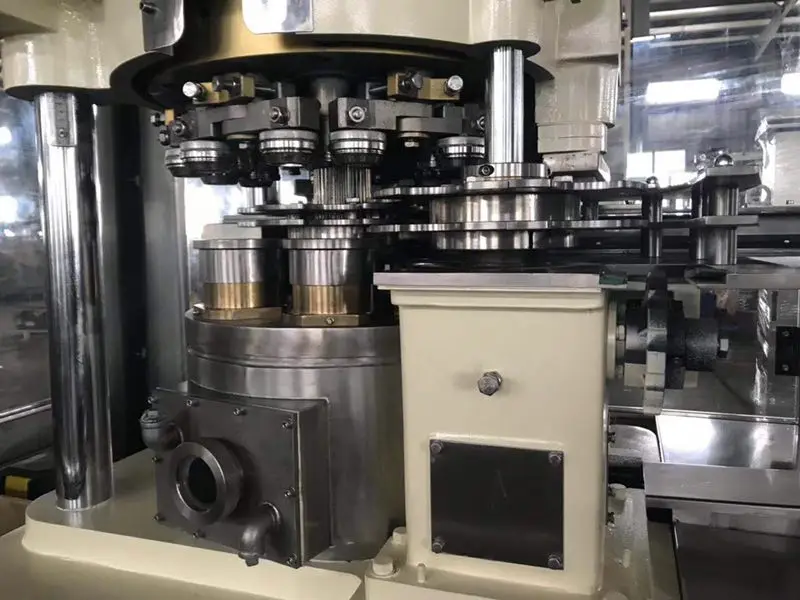

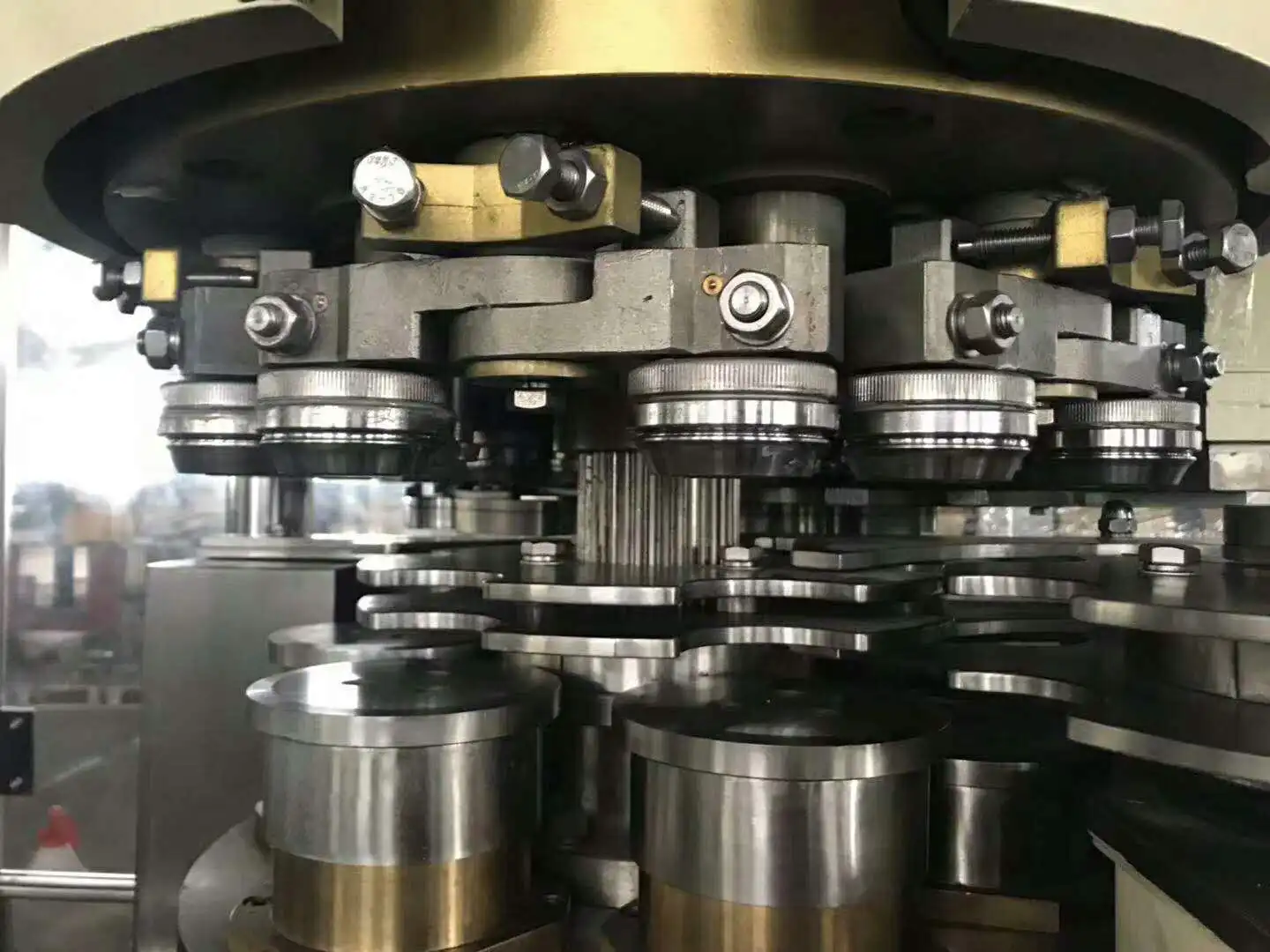

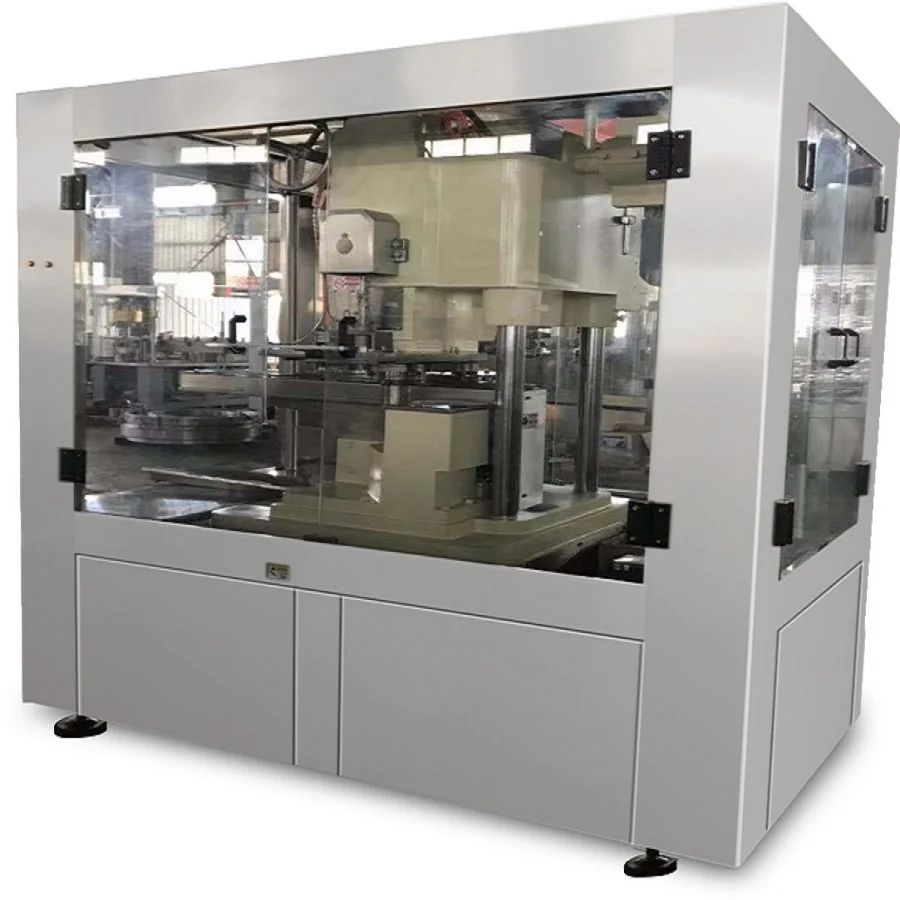

The machine is an advanced can sealing machine.

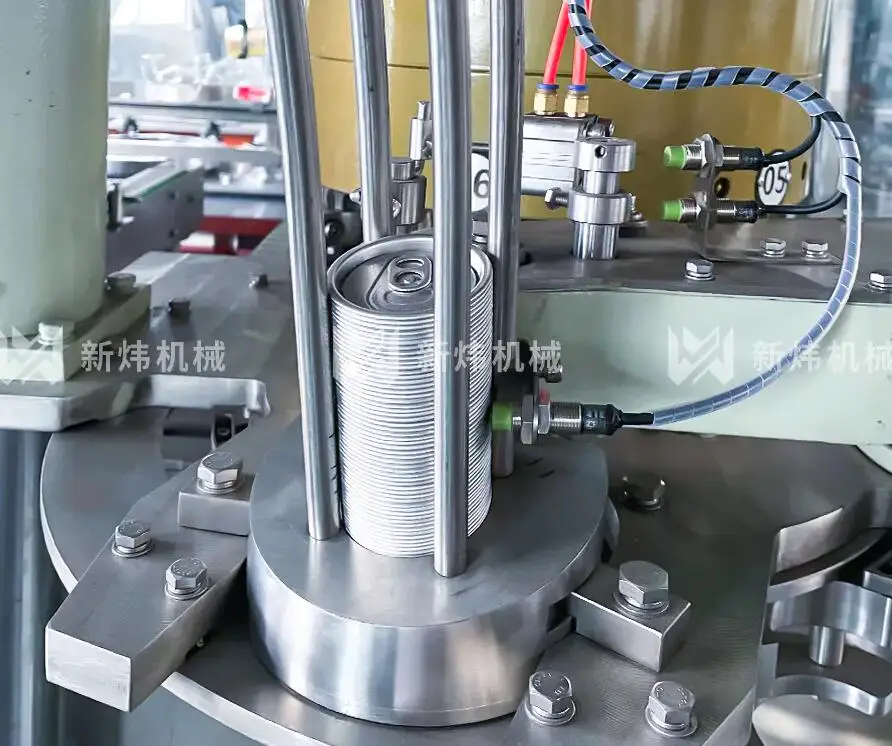

When empty cans enter the lifting tray by pulley, the empty cans are lifted and sealed. After sealed, the can is pushed out by the beating head of the cap beating mechanism and then enters into the can discharging procedure.
The main electric components include PLC, proximity switch of Japan Mitsubishi, vacuum sensor and solenoid valve of South Korea. The overall production speed can be set freely on the touch screen according to requirements.
When empty cans enter the lifting tray by pulley, the empty cans are lifted and sealed. After sealed, the can is pushed out by the beating head of the cap beating mechanism and then enters into the can discharging procedure.
The main electric components include PLC, proximity switch of Japan Mitsubishi, vacuum sensor and solenoid valve of South Korea. The overall production speed can be set freely on the touch screen according to requirements.
Compared with the original model, the main advantages are as follows:
1. The integral structure of the new machine is more reasonable and beautiful than that of the old machine.
2. The head diameter of the new machine is obviously larger than that of the old one. The new machine is installed with heavy-duty bearings, and the service life of the sealing cam is prolonged, which increased by over 5 times.

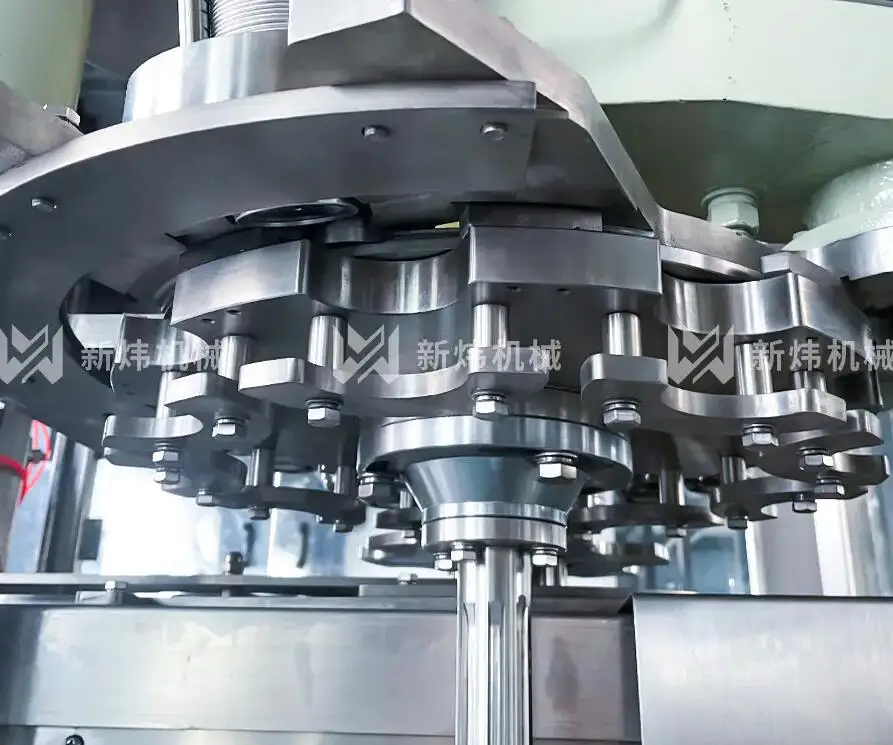

3. The sealing shaft of the new machine adopts the double-shaft structure with separate head-track roller and two-track roller, so that the feeding volume of the sealing wheels can be adjusted and controlled without influencing the sealing quality due to processing error or wear of the cam.
4. During the sealing, the rotation direction of the new machine is counterclockwise, so that when the sealing is finished, the cans will automatically leave the sealing machine according to its rotation direction, which can avoid can blocking and scratch of the can.
2. The head diameter of the new machine is obviously larger than that of the old one. The new machine is installed with heavy-duty bearings, and the service life of the sealing cam is prolonged, which increased by over 5 times.
3. The sealing shaft of the new machine adopts the double-shaft structure with separate head-track roller and two-track roller, so that the feeding volume of the sealing wheels can be adjusted and controlled without influencing the sealing quality due to processing error or wear of the cam.
4. During the sealing, the rotation direction of the new machine is counterclockwise, so that when the sealing is finished, the cans will automatically leave the sealing machine according to its rotation direction, which can avoid can blocking and scratch of the can.
Size Information
Main technical parameters
Model | XWFGJ-6 |
The number of sealing head | 6 |
Production capacity | 60-400cans/min |
Can diameter | Φ52.3-99mm |
Can height | 39-160mm |
Power | 7.5kw |
Weight | 2000kg |
Dimension | 1600*1200*1900mm |
Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Engineers available to service machinery overseas.
* Field installation, commissioning and training.
* Field maintenance and repair service.
* Field installation, commissioning and training.
* Field maintenance and repair service.
Company Introduction
Zhejiang NewWay Food Machinery Co., Ltd. is located in Zhoushan, the Oriental Pearl City Thousand Island City. It is 16 kilometers away from Mount Putuo airport. There are multiple flights to and fro Shanghai international airport everyday, 98 kilometers away from Ningbo Lishe airport, the traffic is very convenient.
The company is mainly engaged in the design and manufacture of beverages, canning machine and sealing machine packed with tinplate, aluminum, plastic and paper materials, as well as related products. Undertake the whole production line of easy-to-open beverage (including steam, non steam), sauce filling and sealing production line, Babao porridge canning, food, fruit and vegetable canning production line, etc.
The company fully uses CAD and CAM to design products. It is in a leading position in the field of filling and sealing equipment for canned food and beverage in China. The company specializes in the production of high-speed canning filling and sealing units and production lines, which make due contributions to the localization of similar imported equipment, reduce investment costs in the food and beverage industry, improve labor productivity of enterprises, and promote the rapid development and growth of the industry.
The company relies on strong technical force and effective technical guarantee, flexible business philosophy and quality service, advanced manufacturing technology, excellence in product quality and good reputation, to serve the vast number of new and old customers and welcome friends from all walks of life to visit and patronize.
The company is mainly engaged in the design and manufacture of beverages, canning machine and sealing machine packed with tinplate, aluminum, plastic and paper materials, as well as related products. Undertake the whole production line of easy-to-open beverage (including steam, non steam), sauce filling and sealing production line, Babao porridge canning, food, fruit and vegetable canning production line, etc.
The company fully uses CAD and CAM to design products. It is in a leading position in the field of filling and sealing equipment for canned food and beverage in China. The company specializes in the production of high-speed canning filling and sealing units and production lines, which make due contributions to the localization of similar imported equipment, reduce investment costs in the food and beverage industry, improve labor productivity of enterprises, and promote the rapid development and growth of the industry.
The company relies on strong technical force and effective technical guarantee, flexible business philosophy and quality service, advanced manufacturing technology, excellence in product quality and good reputation, to serve the vast number of new and old customers and welcome friends from all walks of life to visit and patronize.
