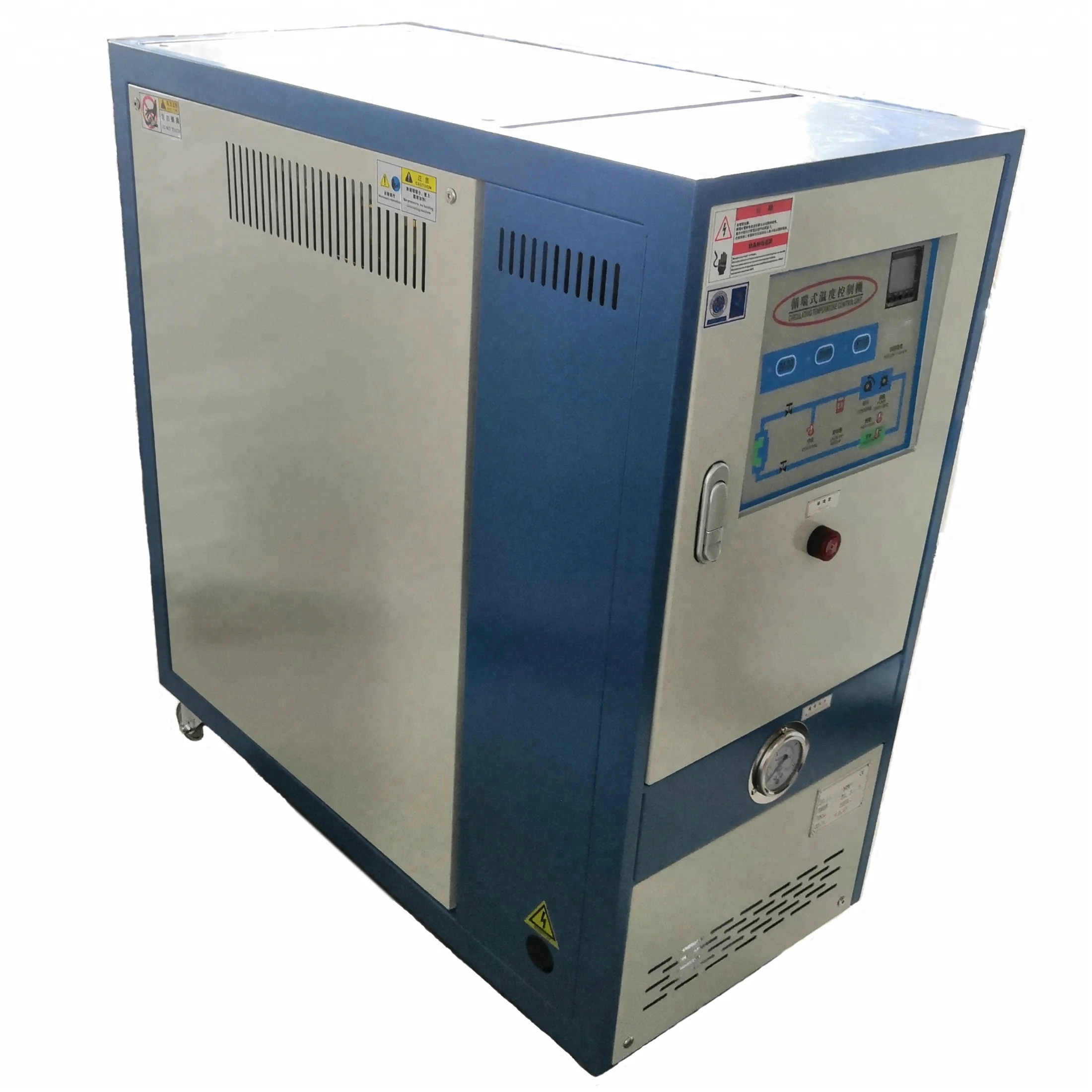

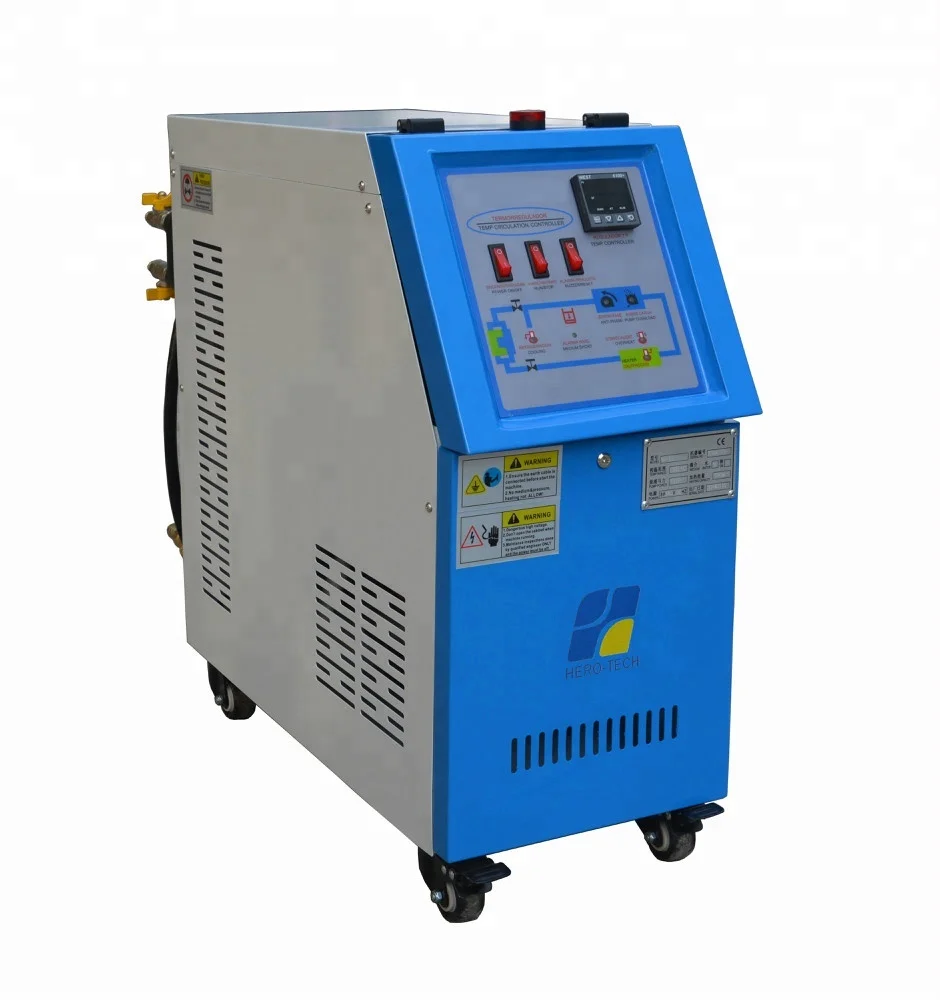

9KW 160 degree Celsius water mold temperature controller

Product Overview

Description

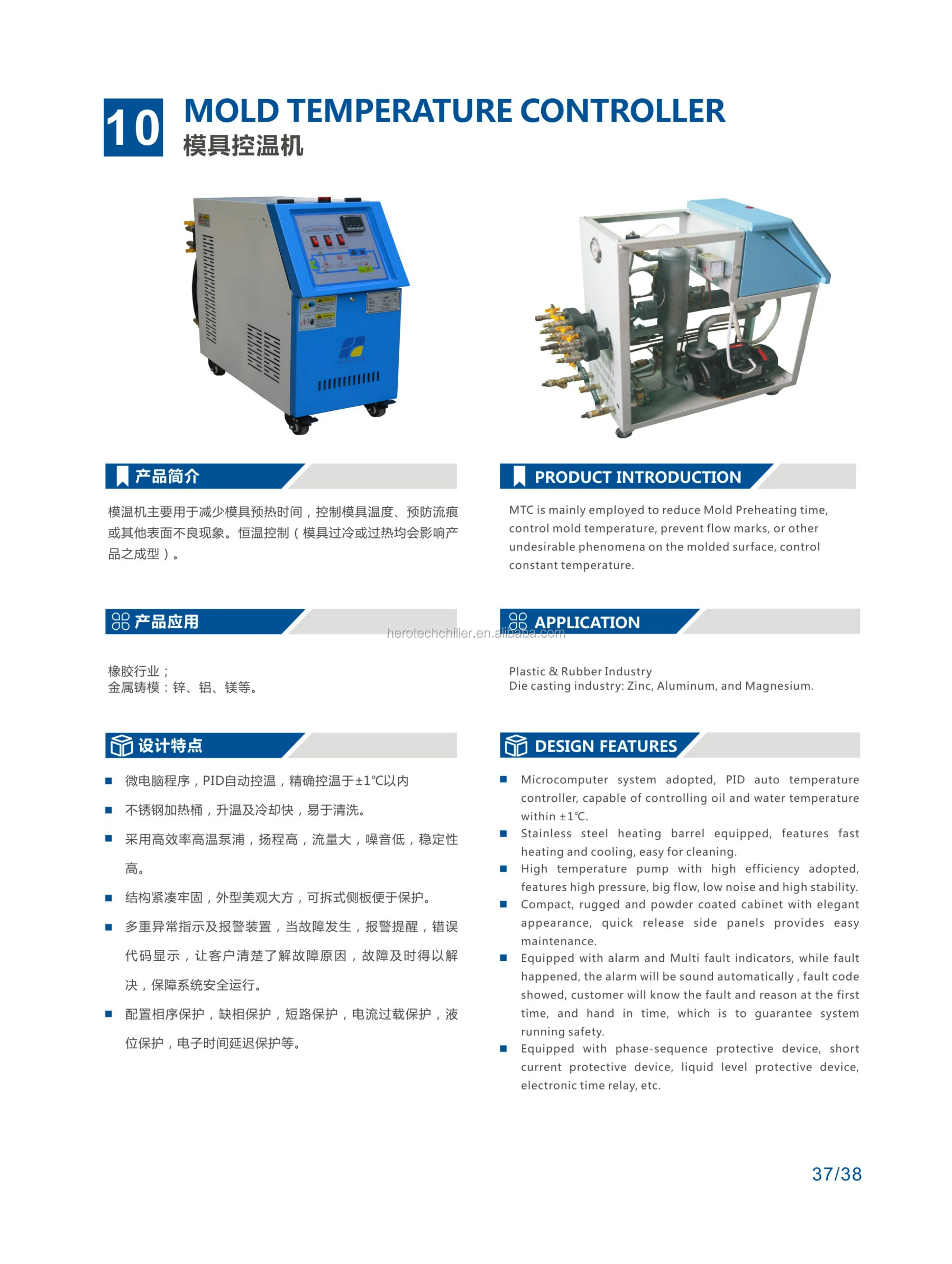

MTC Mold temperature controller

Application

1. Plastic & Rubber Industry

2. Die casting industry: Zinc, Aluminum, Magnesium



Purpose

1. Reduce Mold Pre-heating time

2. Control mold temperature, prevent flow marks, or other undesirable phenomena on the molded surface.

3. Control constant temperature (Warming or Cooling)



Features

1. HTM-W series water-type MTC temperature range:30C to 160C

   HTM-O series oil-type MTC temperature range 30C to 160C;

2. Microcomputer system adopted, PID auto-temperature controller, capable of controlling oil and water temperature within ±1℃

3. Stainless steel heating barrel equipped, features fast heating and cooling, easy for cleaning.

4. High temperature pump with high efficiency adopted, features high pressure, big flow, low noise and high stability.

5. Compact, rugged and powder coated cabinet with elegant appearance, quick release side panels provides easy maintenance;
