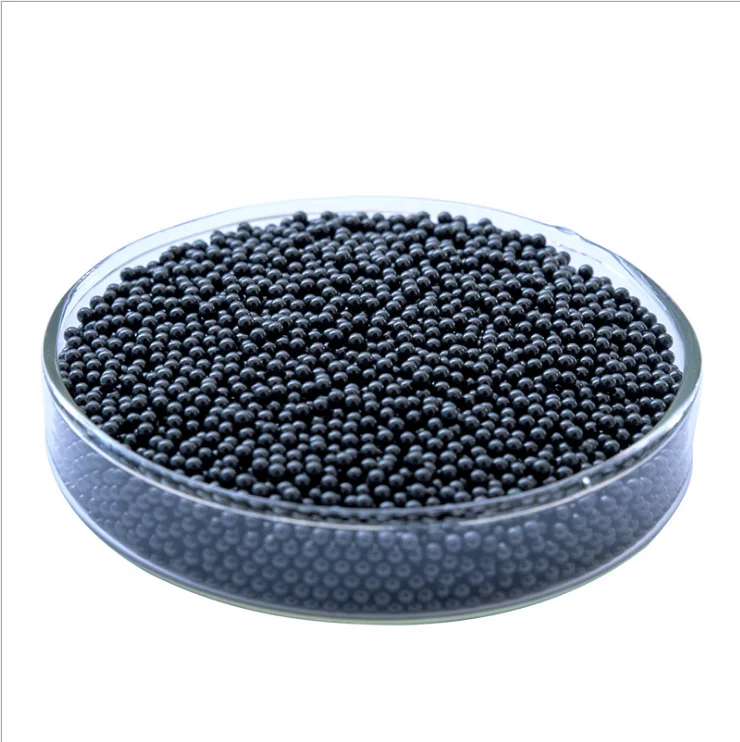

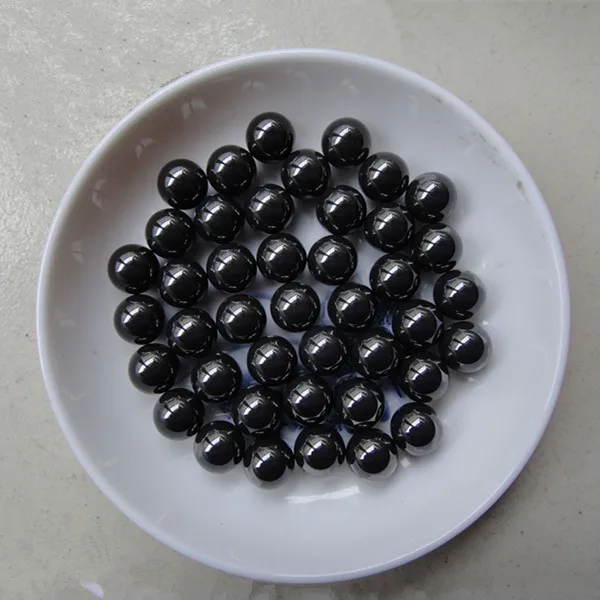

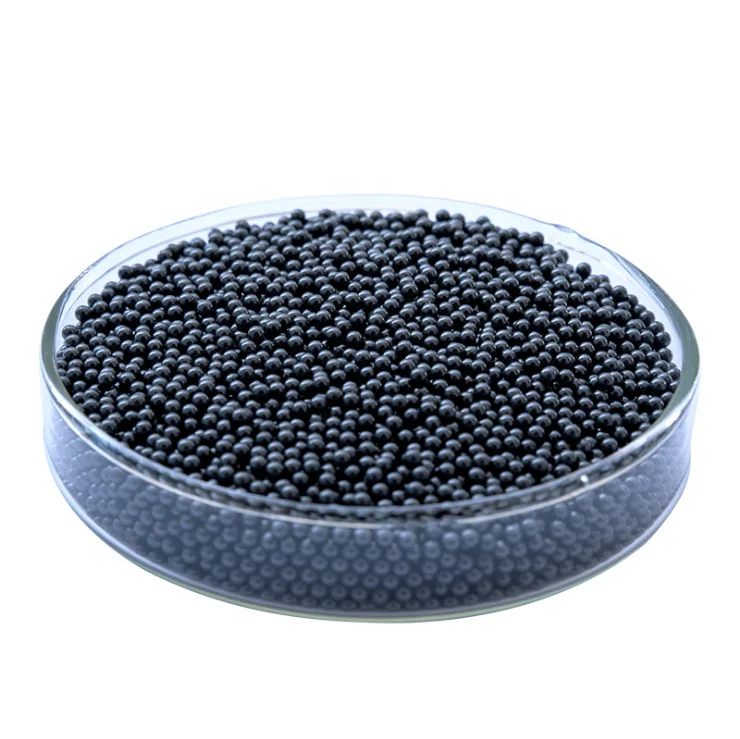

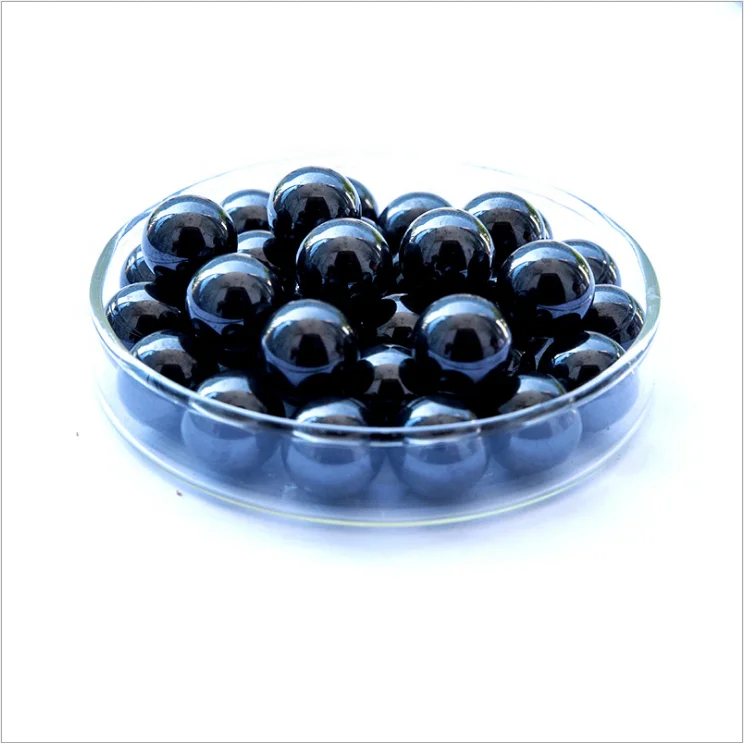

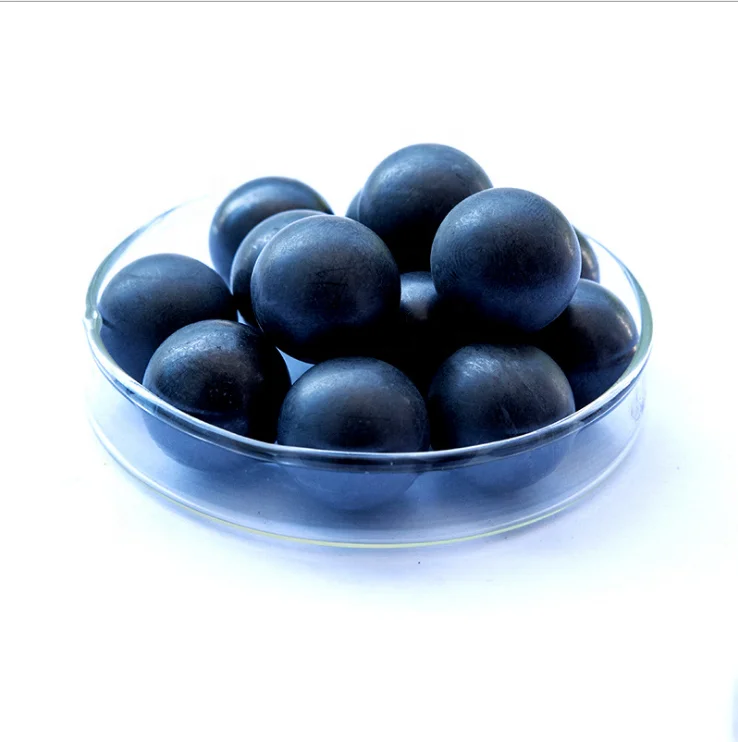

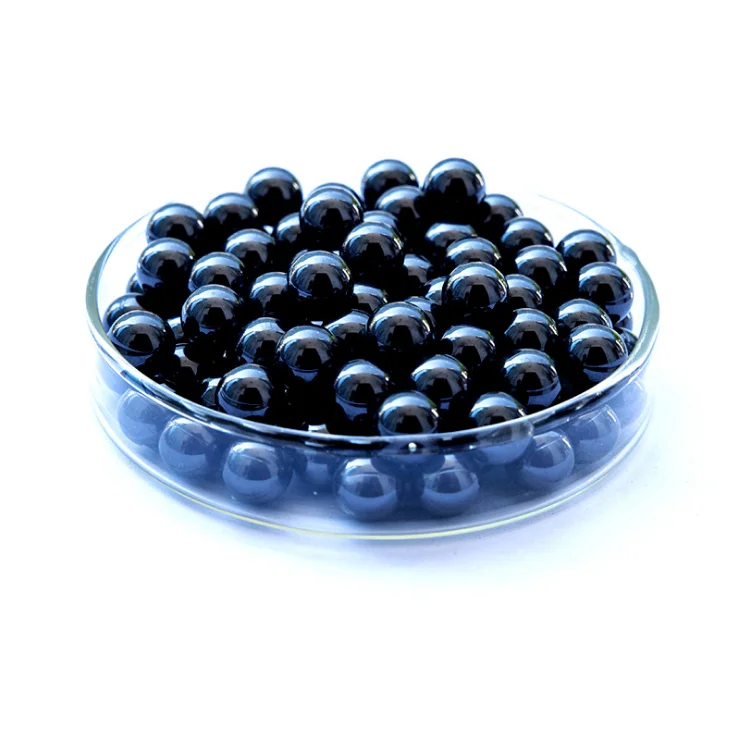

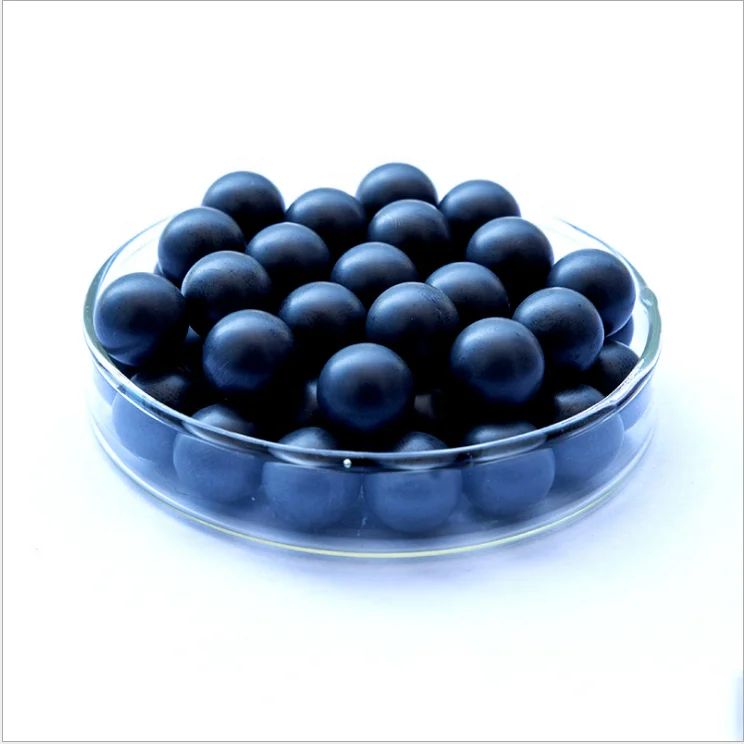

G10 G5 2mm 2.381mm 2.5mm 3mm silicon nitride ceramic ball
Si3n4 ceramic balls are precision ceramics sintered at high temperature in non-oxidizing atmosphere. They have high strength, high
abrasion resistance, high temperature resistance, corrosion resistance, acid and alkali resistance, and can be used in seawater
for a long time.At 800℃, the strength and hardness are almost unchanged, its density is 3.20g/cm3, almost 1/3 of the bearing
steel.It also has self - lubrication, it can be used in non - lubrication medium high pollution environment.Become ceramic
bearing, mixed ceramic ball bearing material of choice.


Item
Unit
Si3N4
Materials
-
Sintered Si3N4
Density
g/cm3
3.2
Color
-
Black, Grey
Young's Modulus
Gpa
300-320
Hardness
Hv
1400-1700
HRC
75-80
Bending Strength
MPa
800-1200
Fracture toughness
Mpam½
5.0-7.0
Max.Working Temperature
℃
1000


Product Description


With high strength, high wear resistance, high temperature resistance, corrosion resistance, acid, alkali resistance, can be used
in seawater for a long time, and has the electricity and magnetic good performance



With self-lubrication, can be used in the environment without high pollution of lubrication medium, become the choice of ceramic
bearing, mixed ceramic ball bearing ball ball

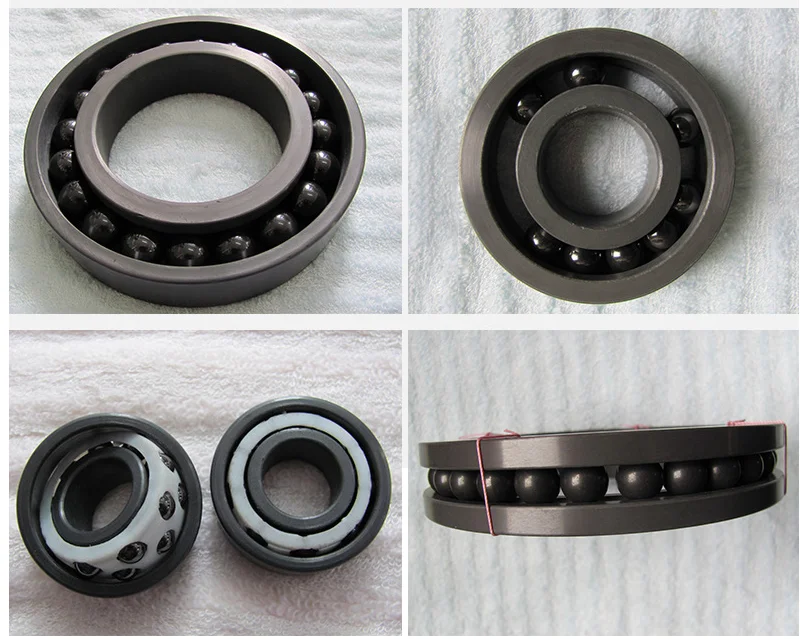

Can be used for various high-speed/ultra-high-speed bearings, high precision bearings, vacuum bearings, high/low temperature
bearings, magnetic bearings, high precision ball screw.Also can be used for chemical pump, high temperature pump, metering pump
used as a ball valve, measuring ball


ABOUT US




With 20 years experience in making  stainless steel balls, we are dedicated to fulfill the market needs of high precison,                                                                                      high quality metal and non-metal balls.
Our engineering team is  dedicated  to solve customer requests for custom alternations or special materials selection  to                                                                                fit any particular application.

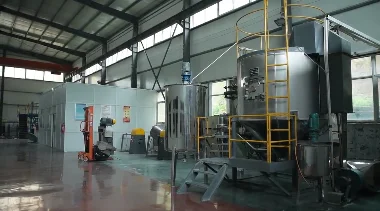

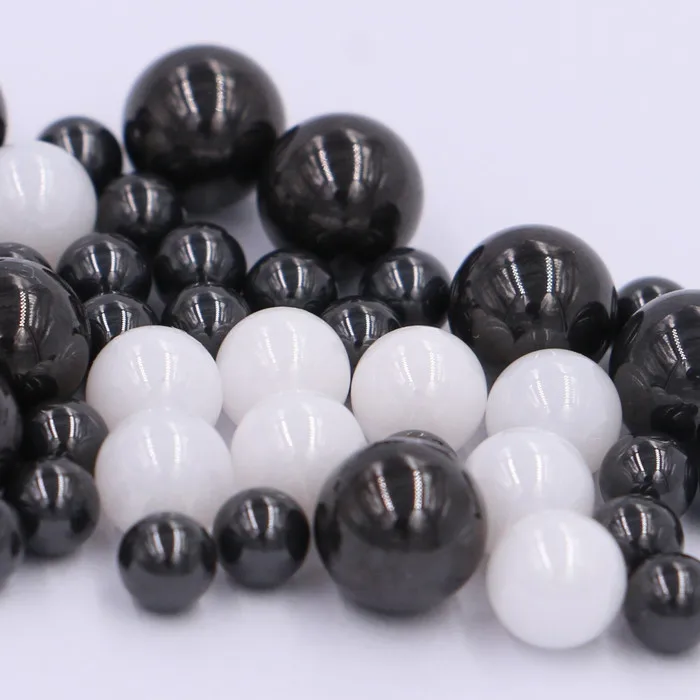

So far, we have two factories  and one trading company-- Scole Industry and Trade Co.  Our product series are including stainless steel balls ( made of 440C, 440, 420, 316L,316,304,301, 201...) , carbon steel ball, chrome steel balls, tungsten carbide balls , ceramic balls (Si3N4, ZrO2, Al2O3 balls) , plastic balls (PP, POM balls), brass balls, glass balls...


Packing & Delivery




Packing


1.Plastic bag+carton box+ wood pallet

2.Plastic bag +carton bod

3.According customer requests

.





1.By Sea


2.By Air

3.By Express




FAQ


Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the production time?

A:Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity more than



Q3. Do you have any MOQ limit for stainless steel balls?

A: Low MOQ generally is 1 pieces.



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: What is the package?

A: Usually, we pack balls with plastic bag in carton boxes, then in pallet.  But it can be customized.
