Product Overview

Description


Product Description
Application of GZV micro Electromagnetic electric-magnetic vibrating feeder
The electromagnetic feeder is applicable to products which is easy-broken, easy-separated and coated with flavouring, such as:baked food, snack food, potato chips, frozen food, peanut, confectionery that are with high requirement of convey system.No breakage of single machine. When comparing with common vibratory conveyor , the products’ breakage rate reduces about 50% and seasoning loss rate reduces 70%.Dynamic distributions of product at each convey point, multi-conveyor linkage for long distance transportation, multi-conveyor synchronization and in-phase transmission
Features of GZV micro Electromagnetic electric-magnetic vibrating feeder
                           * Stable and long span life.
                           * Easy to adjust.
                           * Reliable operation.
                           * Easy maintenance.
                           * No pollution.
Working principle of GZV micro Electromagnetic electric-magnetic vibrating feeder
With the power on,a magnetic field will be created.The magnetic force changes into vibrating force, which forces the transmission trough body to make simple harmonic vibration or similar to simple harmonic vibration in a certain direction.When the acceleration of its vibration achieves some certain value, the materials will make continuous and small throws or slides along the transmission direction in the transmission trough body, which causes the forward motion and transmission of the materials.
Technical Parameters
Model
GZV1
GZV2
GZV3
GZV4
GZV5
GZV6
Capacity(t/h)
0.1
0.5
1
2
4
6
Double amplitude(mm)
1.5mm





Vibrating frequency(r/min)
3000





Power(w)
5
8
20
25
30
50
Weight(kg)
4
7
12
18
27
45

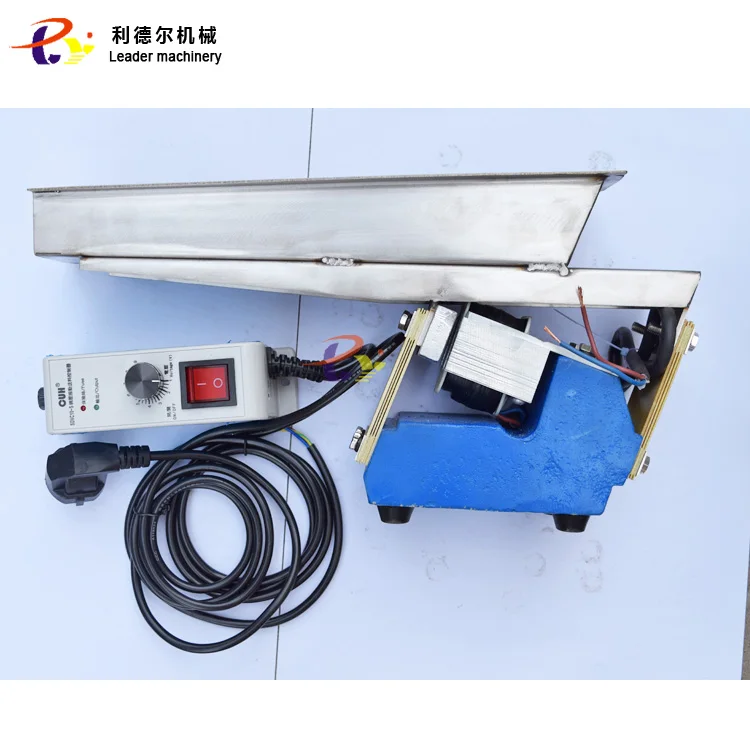

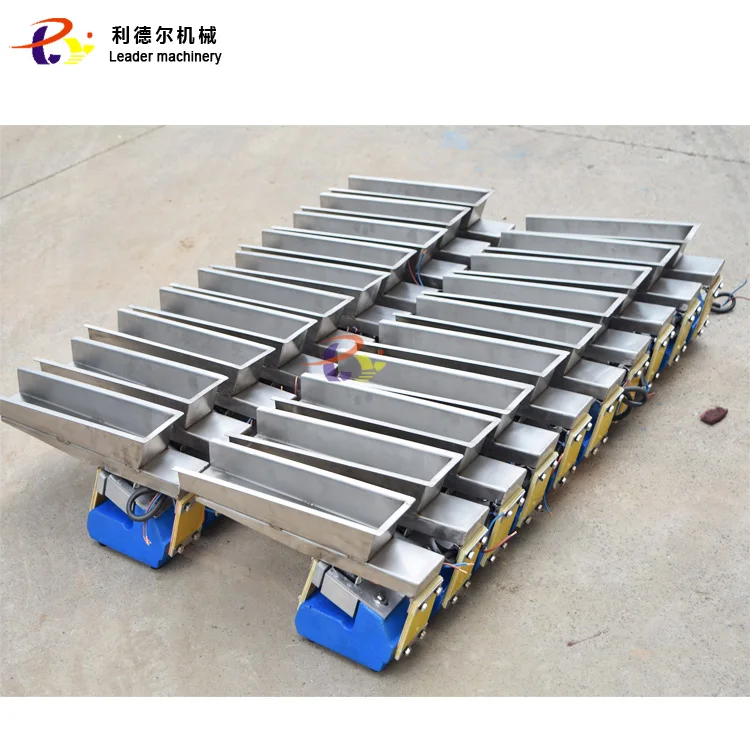

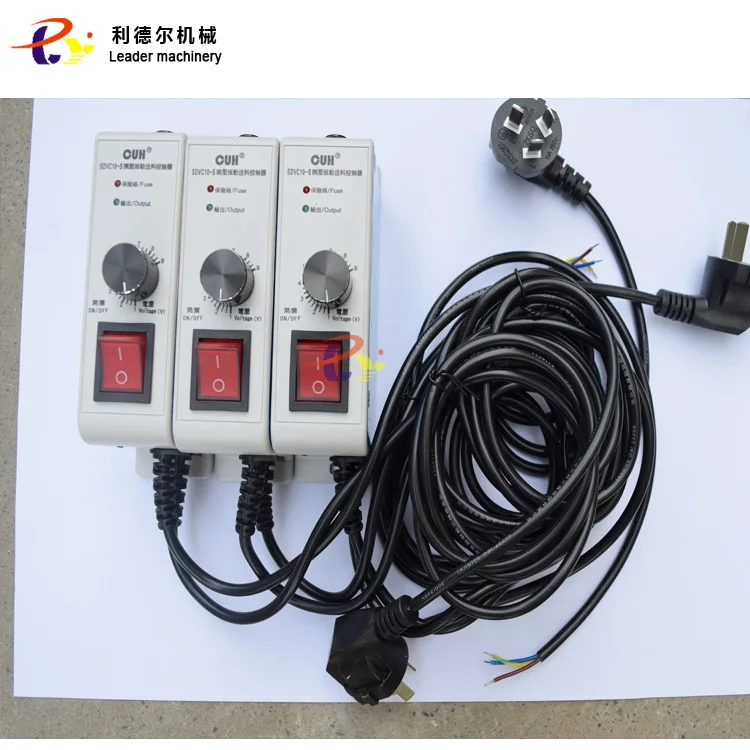

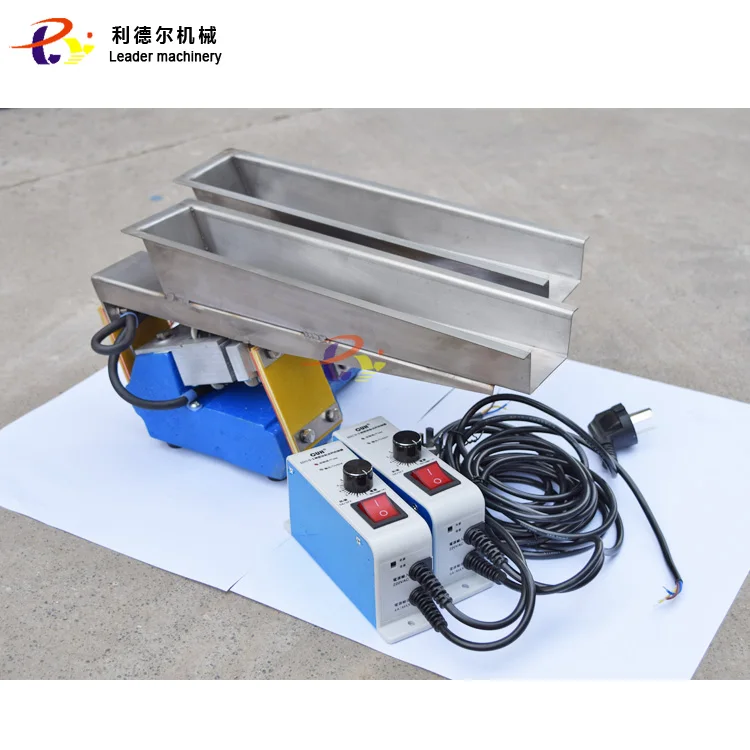

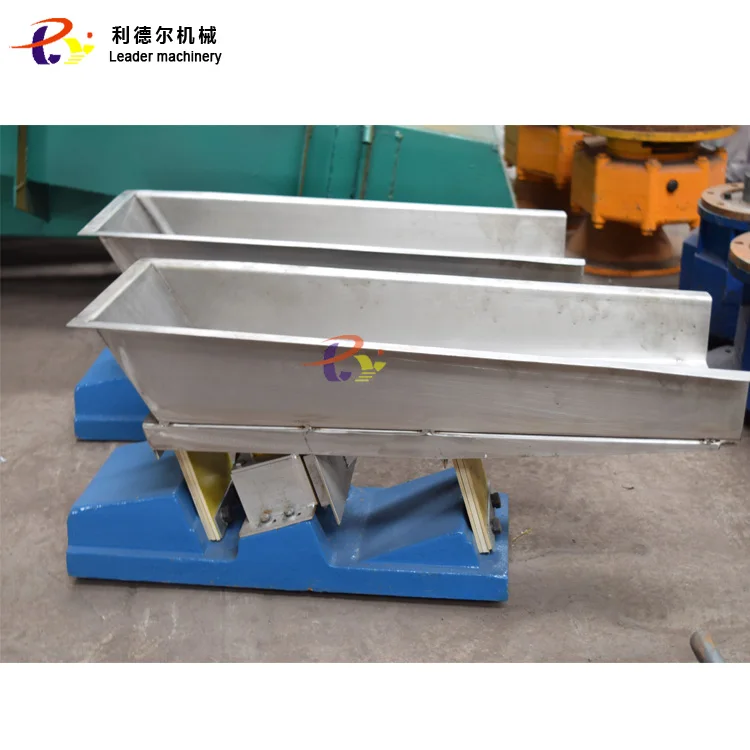

Detailed Images
OEM order is acceptable.
We can design the feeder according to your requirements like the below pictures.
Related Products
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
After Sales Service


Professional service
1.professional sales person will be service for you.
2.24hours online service
3.OEM order is acceptable
4.CE,CERTIFICATE OF ORIGIN,FORM E,FORM F etc are suuported
5.Free design solution
Company Introduction
-Since1999,20 years history in powder and particle handing equipment.
-7 years export experience.
-Mainly products: vibrating sieve, feeder, conveyor, mixer, packing machine, crusher, grinding mill, dust collector.
-Customized order are welcome.
-Exported to Southeast Asia, Europe, Americas etc all over the world.
-Company principle: Customer’s beliefs first.
FAQ
My friend,in order to suggest suitable model to you,could you tell me the following questions?
1.What's your feeding materials_____?
2.What's the density of it_____?(kg/m3)If you do not know this,pl Ignore it.
3.What's the capcaity per hour_____(KG/h)?
