Product Overview

Description

rodding cane 18mm cable rod 300 meter 12mm duct rodder

Duct rodder, also called fiberglass duct rodder, it is a powerful auxiliary tool used for rope traction in the pipe.
Smooth and flexible surface of the duct rodder can easily make the rope or cable pass through the narrow channel. And according to the construction,the duct rodder can be divided into fiberglass duct rodder and traceable duct rodder.According to the movement type, it can also can be divided into duct rodder withwheel and portable duct rodder.Fiberglass duct rodder, an excellent auxiliary tool, is commonly used in track construction where cable and electric wire is hard to be pulled into cable, pipes and conduits.



Technical data of Fiberglass Duct Rodder
Specification	Rod Diameter (mm)	Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16
	Rod Length (m)	50-500m
	Frame Spec.(mm)	50cm*40cm*15cm, 67cm*57cm*16cm,130cm*120cm*48cm
	Wheel Diameter(mm)	300mm
	Wall thickness of Metal Frame	2.2mm
	Color	blue, yellow, red, white etc
Material	Rod Inner	Extruded by fiber glass and high strength resin at high temperature
	Rod Outer	High Density polyethylene coating
	Iron Frame	Steel with high-temperature sprayed plastic or Spray coating
	Wheel	rubber
	Brake	Yes
	Drawing head	copper
Physical Characters	Density	55g/m
	Working temperature	-40°C to +80°C
	Breaking tension	100kg
	Bending Radius	295mm
	Technology	Pultrusion
Packing	Inside	plastic woven strip wind around the frame
	Outside	Wooden pallet and Wooden box

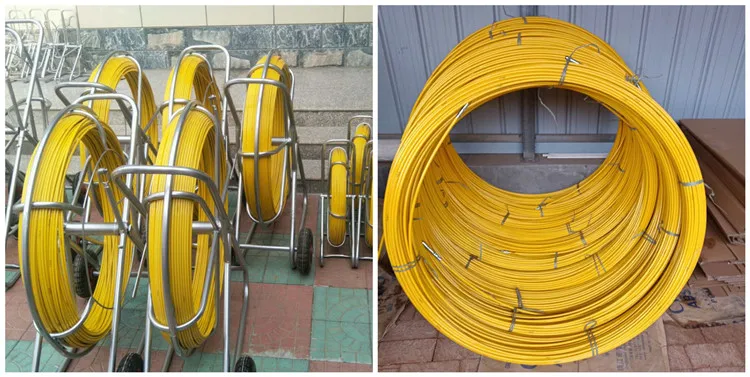

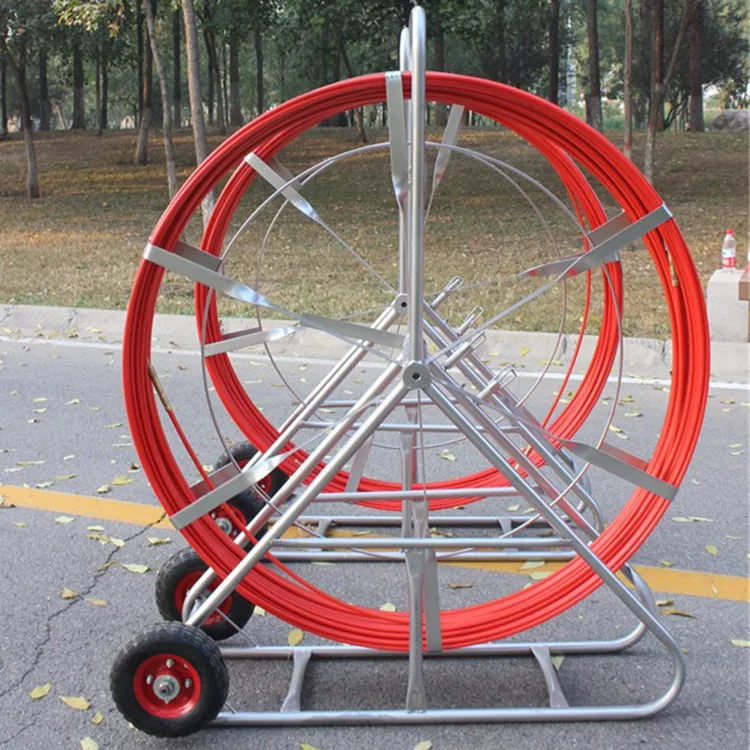

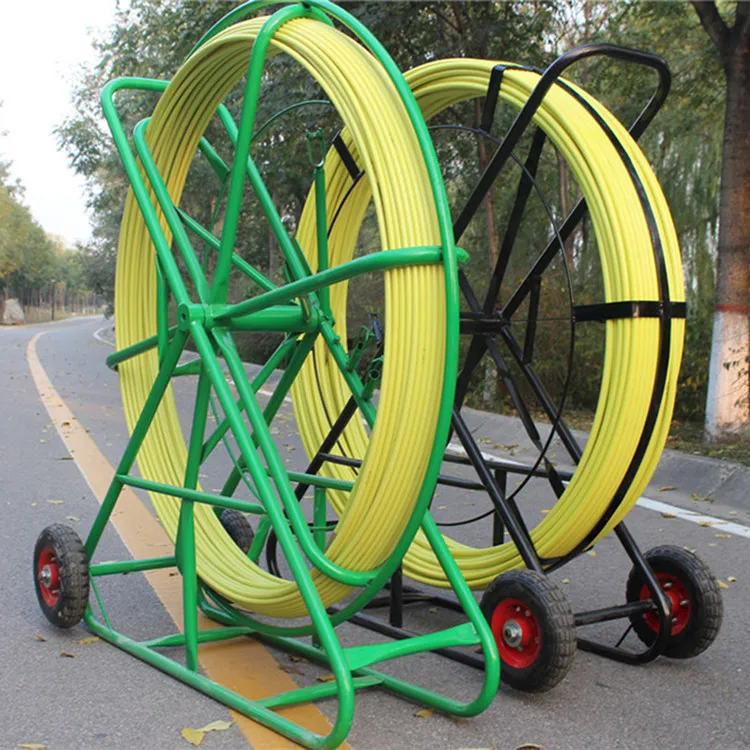

More display for fiberglass duct rodder:



Besides duct rodder with frame, We can also just supply fiberglass rod without frame, such as 6mm*100m, 14mm*300 fiberglass rod. We can do diameter 4.5mm-18mm, length 30m-500m.

Welcome your inquiry anytime.

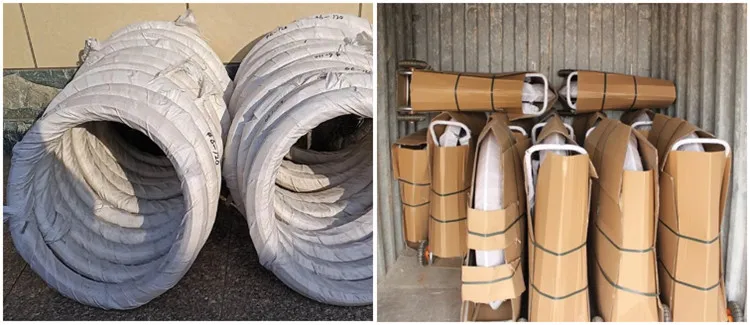

Fiberglass duct rodder package:

We always wrap the duct rodder with Woven bag, then we pack them in cartons.

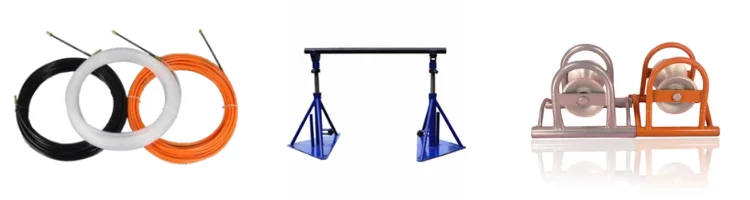

Related products:

Welcome your inquiry anytime!

Cathy is always here.
