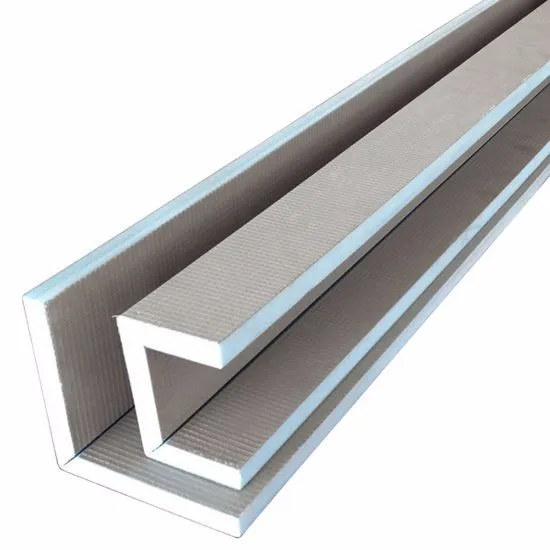

100% waterproof U shape board for wall

100% waterproof U shape board for wall

Category: >>>
Supplier: Hangzhou Tyco Industrial Co. Ltd.Hangzhou Ltd.

Price:

Quantity:

Product Overview

Description

Production Details

XPS Boards Floor Underlay Thermal Insulation Underfloor Heating

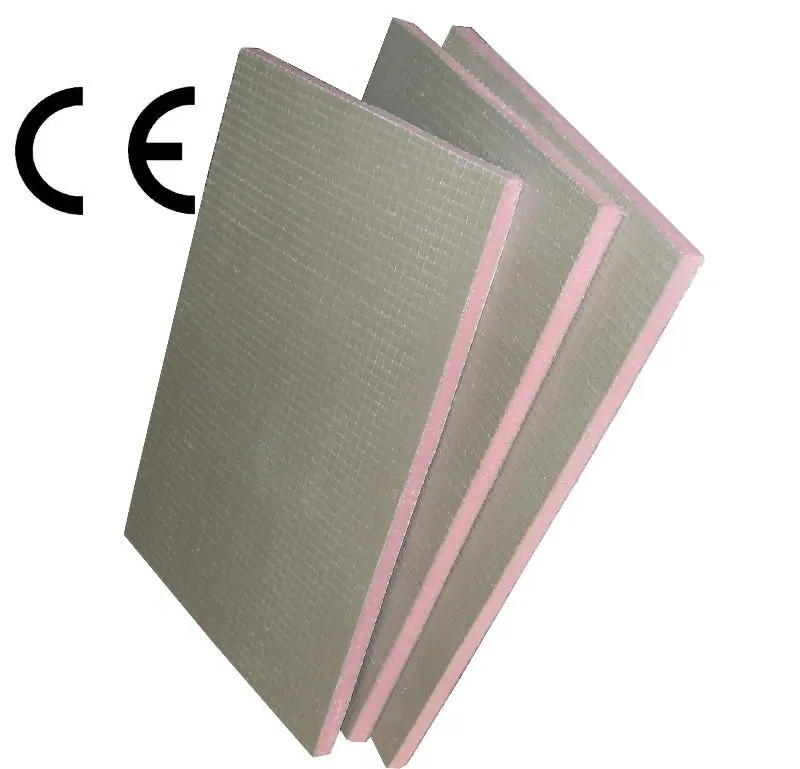

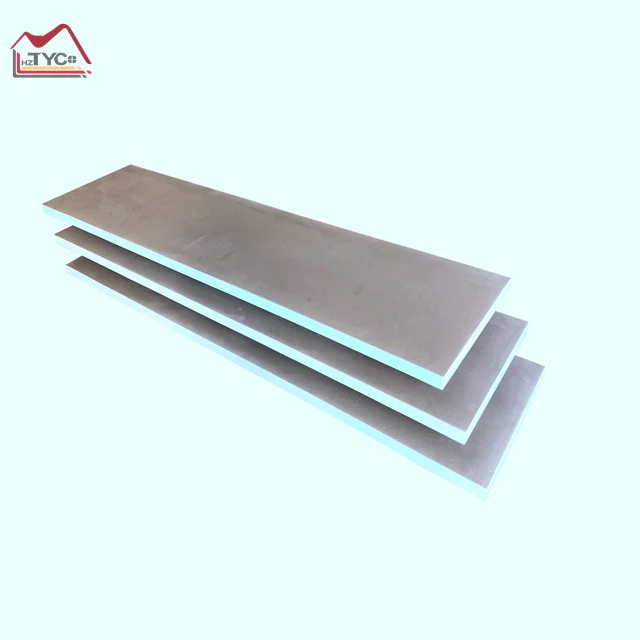

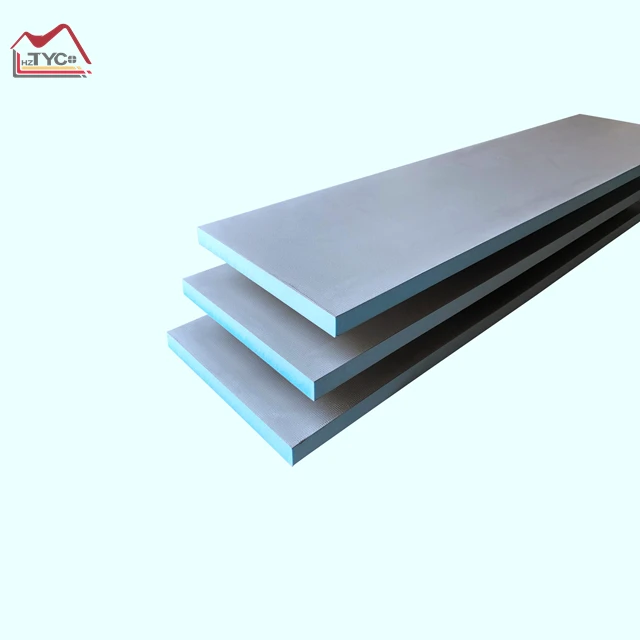

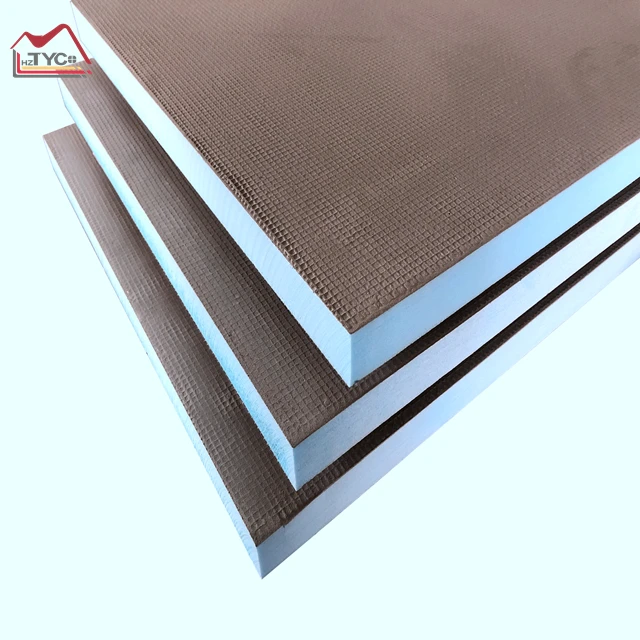

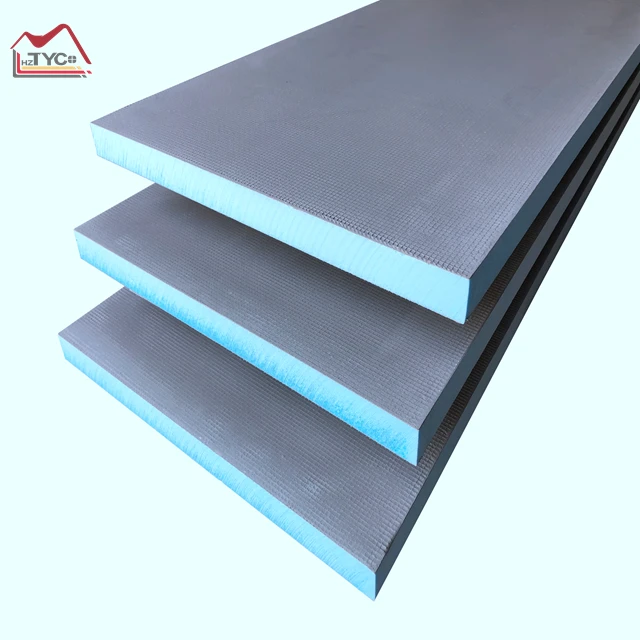

XPS tile backer board is made of extruded polystyrene, faced on both sides with a fiberglass mesh embedded into a thin cement polymer mortar, it has a 0.5mm coating on either side. It widely used in the under floor heating system as a structural tile backer boards. The boards also can be used in the floor, wall and ceiling by acting as a very efficient moisture and thermal barrier.

☆ Exceptional Stability

☆ High thermal insulation

☆ Light weight and workable
Features

☆ Replace wet finishes

☆ High Compressive Strength

☆ Easy to cut, convenient to install

☆ CFC and Bromine free

Size------Customized XPS Tile Backer Board is Acceptable

Thickness	Width	Length
4mm	600mm	1200/1250mm
6mm
8mm
10mm	600mm	2440/2500/2600mm
12mm	600mm
20mm	600/1200mm
30mm
40mm
50mm
60mm
80mm

We can do totally as your size request and below are our regular one for reference

Technical Data

		XPS
Density of core board	Kg/m³	38
Thermal conductivity, 90 days, 10°C	W/mK	0.03~0.036
Compressive strength at 10% deflection or yield, (vertical)	kPa	≥450Kpa
Water absorption	Vol-%	<=1.00%
Capillarity	nil	nil
Coefficient of linear thermal expansion	mm/mK	0.07
Temperature limits	°C	-50°C, +75°C

Application

1. As a waterlight layer on walls and floors in wet rooms and bathrooms

2. As a insulation layer in under floor heating to avoid heat loss.

3. As partition walls in wood or steel frames.

4. Substitute for gypsum board and fiber cement board, insulation and waterproof, lighter so that more easily to install.

5. As enclosures for bathtubs,water pipes etc.

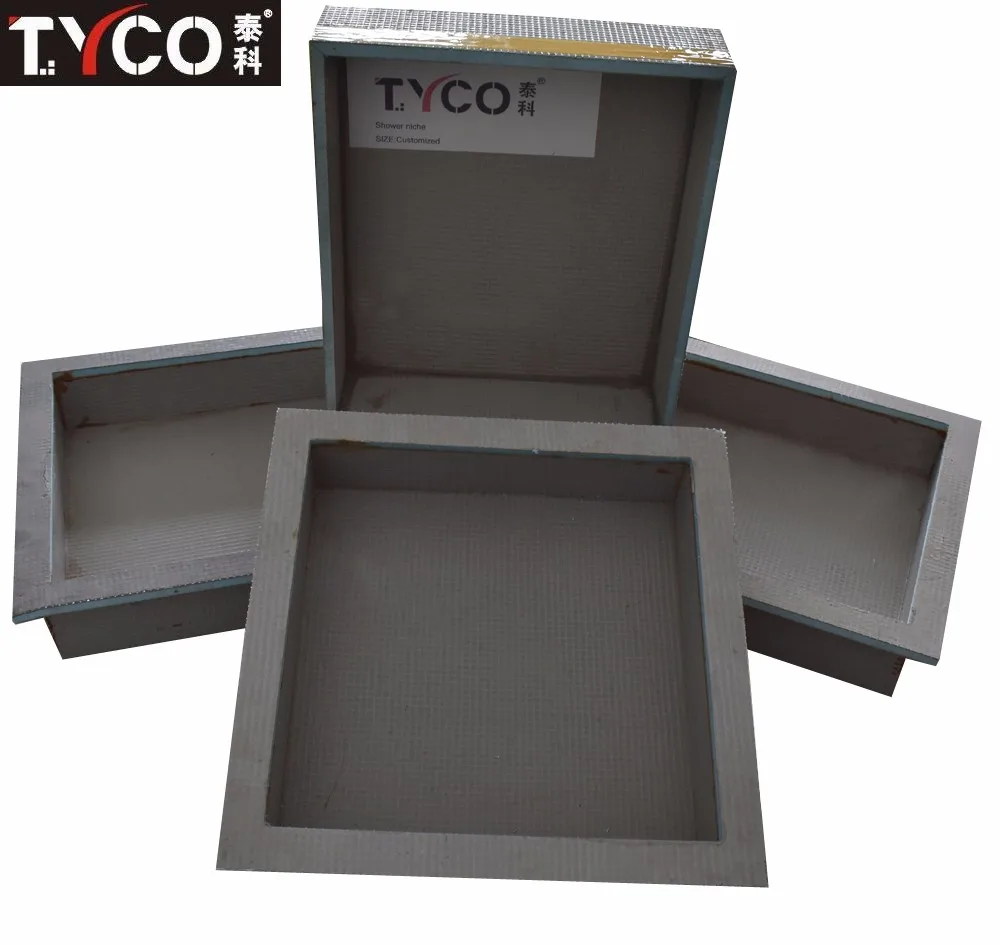

6. Can very easily and fast foamed to be small shelves, washbasins, shower benches and soap boxes.

Tile base for wet areas

Tile backer board in wet areas

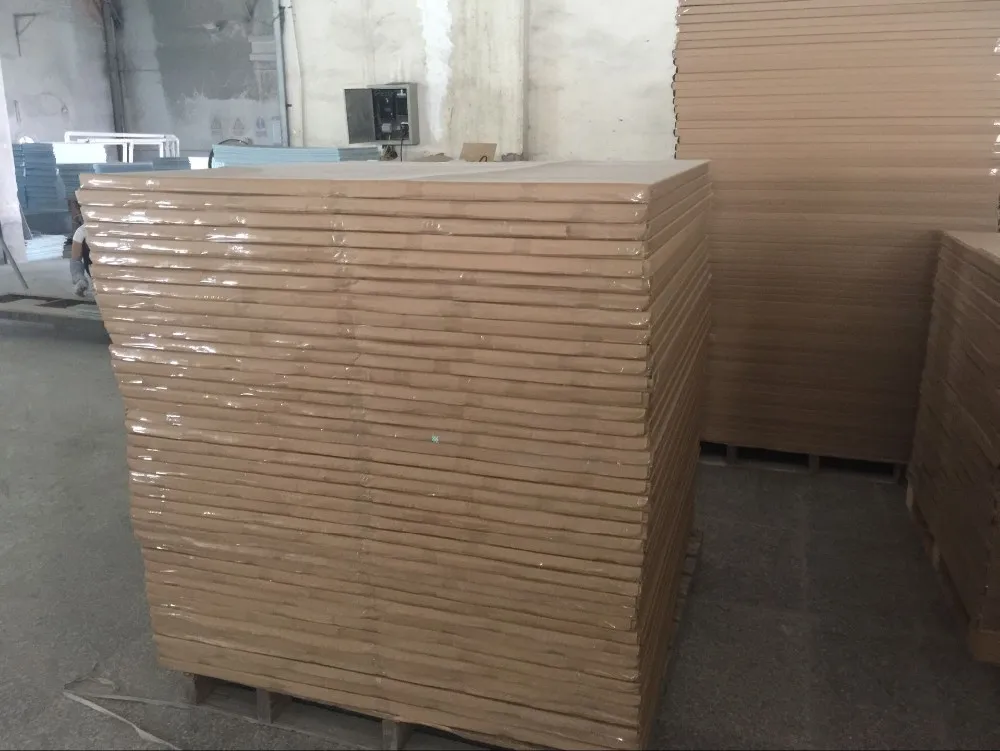

Packing & Delivery

Packing: Standard export packing or customized

10/20/40 pieces in one carton, then in plywood pallet.

Customized size with Logo on package is available.

Storage: Store away from sources of punctures and physical damage.

Keep dry and store away from ignition sources and open flames.

Shelf Life: Nonlimited.
