Product Overview
Description
TOB NEW ENERGY
8 Channel 5V1A 18650 battery charger and discharge capacity tester
TOB-CT-4008-5V1A-S1-F Battery Tester can also test super capacitor.
Model | TOB-CT-4008-5V1A-S1-F | |
Input Power | AC 220V ±10% / 50Hz | |
resolution | AD:16bit;DA:16bit | |
Input Resistance | ≥1MΩ | |
Input Power | 71W | |
Channel Features | Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure | |
Channel Control Mode | Independent Control | |
Voltage | Per Channel Voltage Range | 0-5V |
Min discharge Voltage | 0V | |
Accuracy | ± 0.05% of FS | |
Stability | ± 0.05% of FS | |
Current | Per Channel Current Range | 0.005A-1A |
Accuracy | ± 0.05% of FS | |
Stability | ± 0.05% of FS | |
Power | Per Channel Output Power | 5W |
Stability | ± 0.1% of FS | |
Time | Current Response Time | 20ms (0-Full Range) |
Step Time Range | ≤(365*24 )hour/step, Time Form Support 00:00:00(h,min:s,ms) | |
Data Recording | Record Condition | Minimum Time Interval: 100ms |
Minimum Voltage Interval: 10mV | ||
Minimum Current Interval : 2mA | ||
Record Frequency | 10Hz | |
Charge | Charge Mode | Constant Current Charge,Constant Voltage Charge, Constant Current and Constant Voltage Charge,CPC |
End Conditon | Voltage,Current,Relative Time,Capacity,-ΔV | |
Discharge | Discharge Mode | CCD,CPD,CRD |
End Condition | Voltage,Current,Relative Time,Capacity,-ΔV | |
Pulse | charge | CCC |
Discharge | CCD | |
Min Pulse Width | 500ms | |
Automated Switch | Automated switch from charge to discharge for each pulse | |
End Condition | Voltage, Test Time | |
DCIR | Support DCIR testing | |
Cycle | Loop Measure Range | 1~65535 times |
Max Steps Per Loop | 254 | |
Nested Loop | Nested loop Function,Max Support 3 Layers | |
Protection | Software Protection | l Power-down Data Protection |
l Off-line Testing Function | ||
l Setting Protection Condition,Setting Parameter: Low Voltage limit,Upper Voltage limit,Low Current limit, Upper Current limit,Delay Time | ||
Hardware Protection | Additional Anti-reverse Protection Model | |
Voltage and Current Testing Sample | 4-wire connecting | |
Noise | <85dB | |
Database | MySQL Database | |
A Means of Communication of Upper Machine | TCP/IP Protocol | |
Data Output | EXCEL,TXT | |
Communication Interface | Ethernet Port | |
Per Unit Main Channels No. | 8 | |
Dimensions (L*W*H) | 3U,about 500*550*400(mm) | |

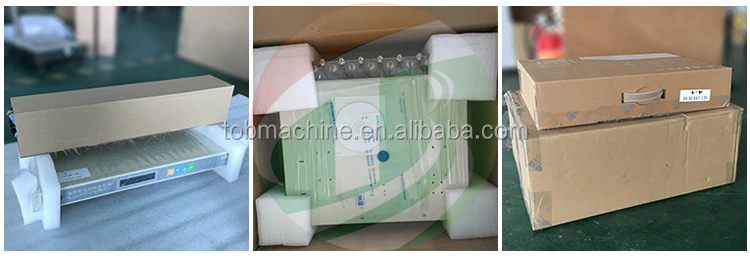

package
