JCJX-20B/S ss scourer scrubber wire drawing machine
1-Aplication:

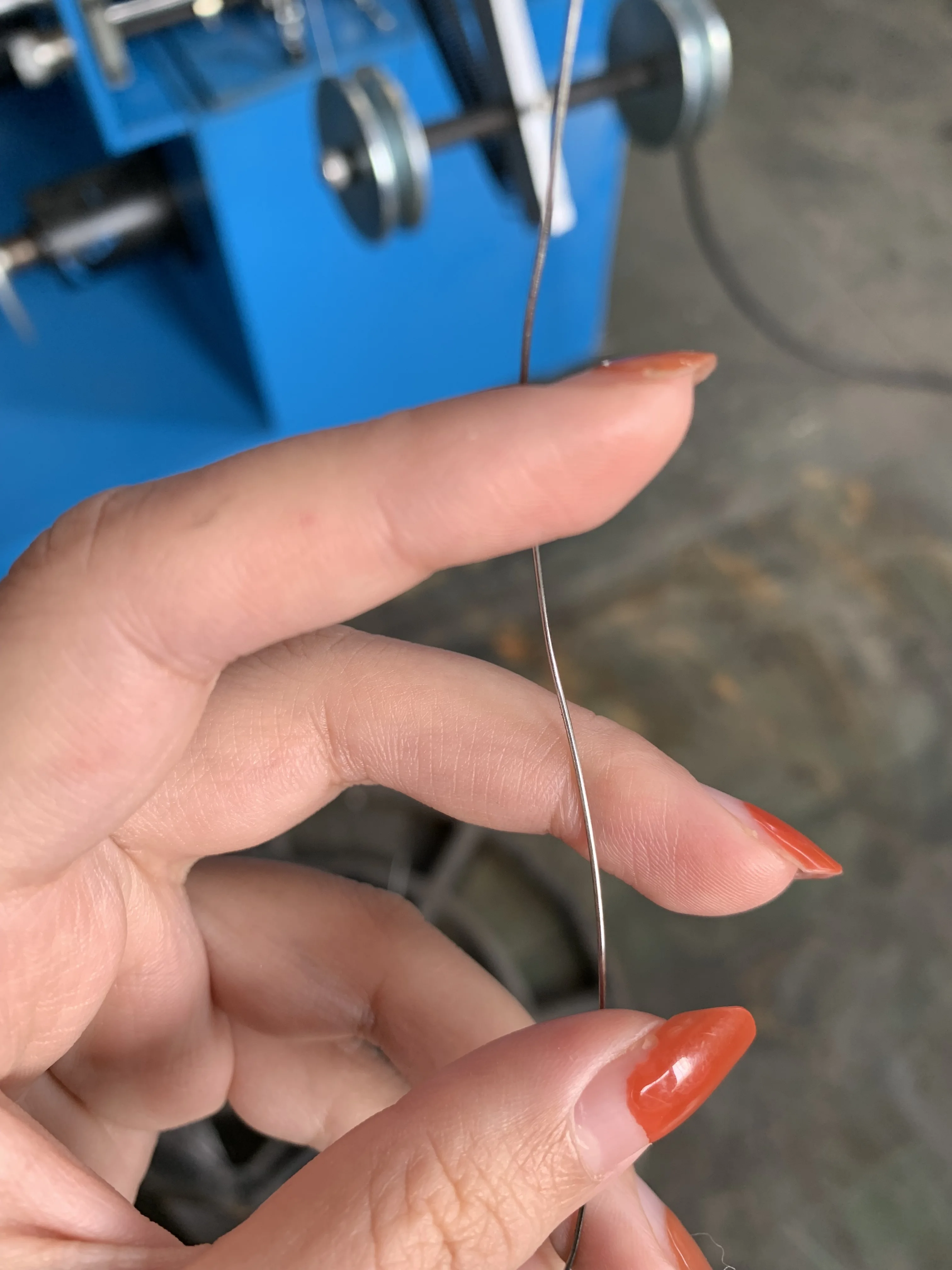

This type is used for drawing ss scourer scrubber wire.

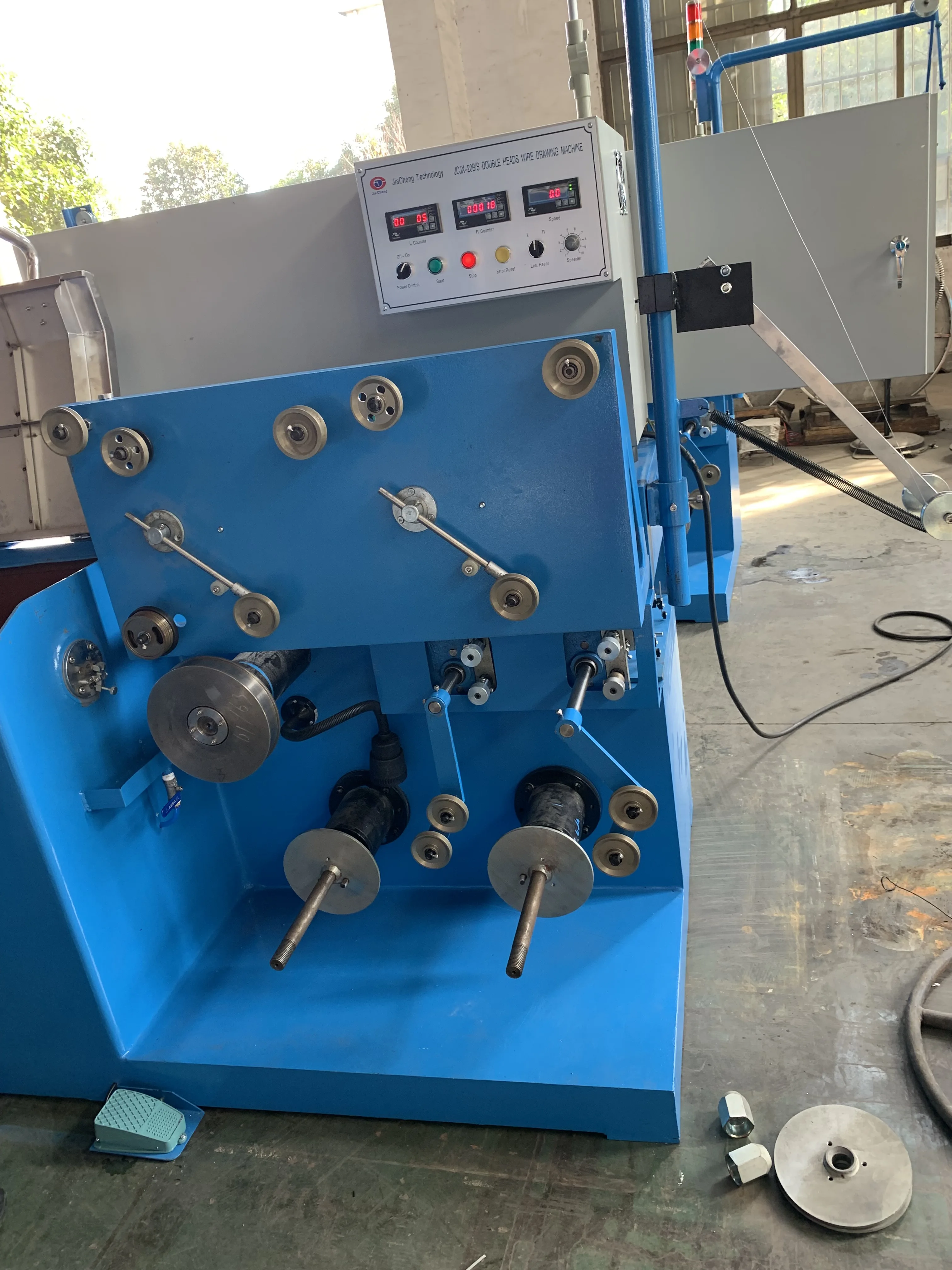

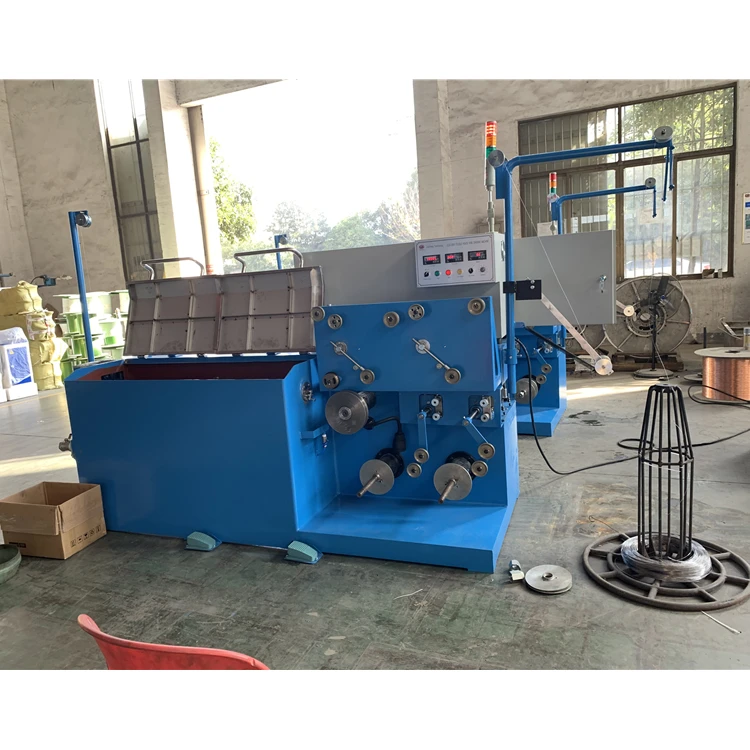

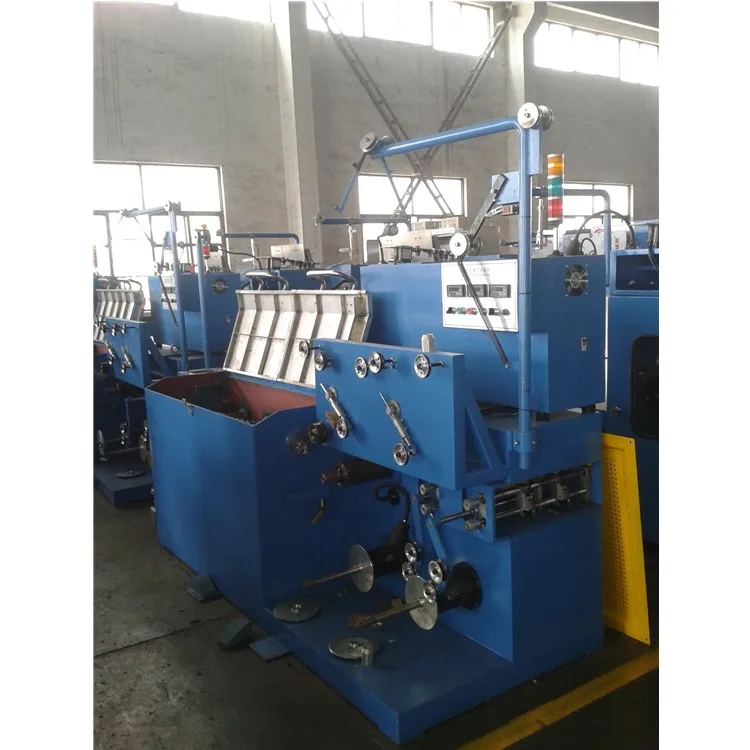

2. picture:
3-Parameters:
Technical paramter
Modal No. | JCJX-20B/S |
Inverter control | dual Inverter control |

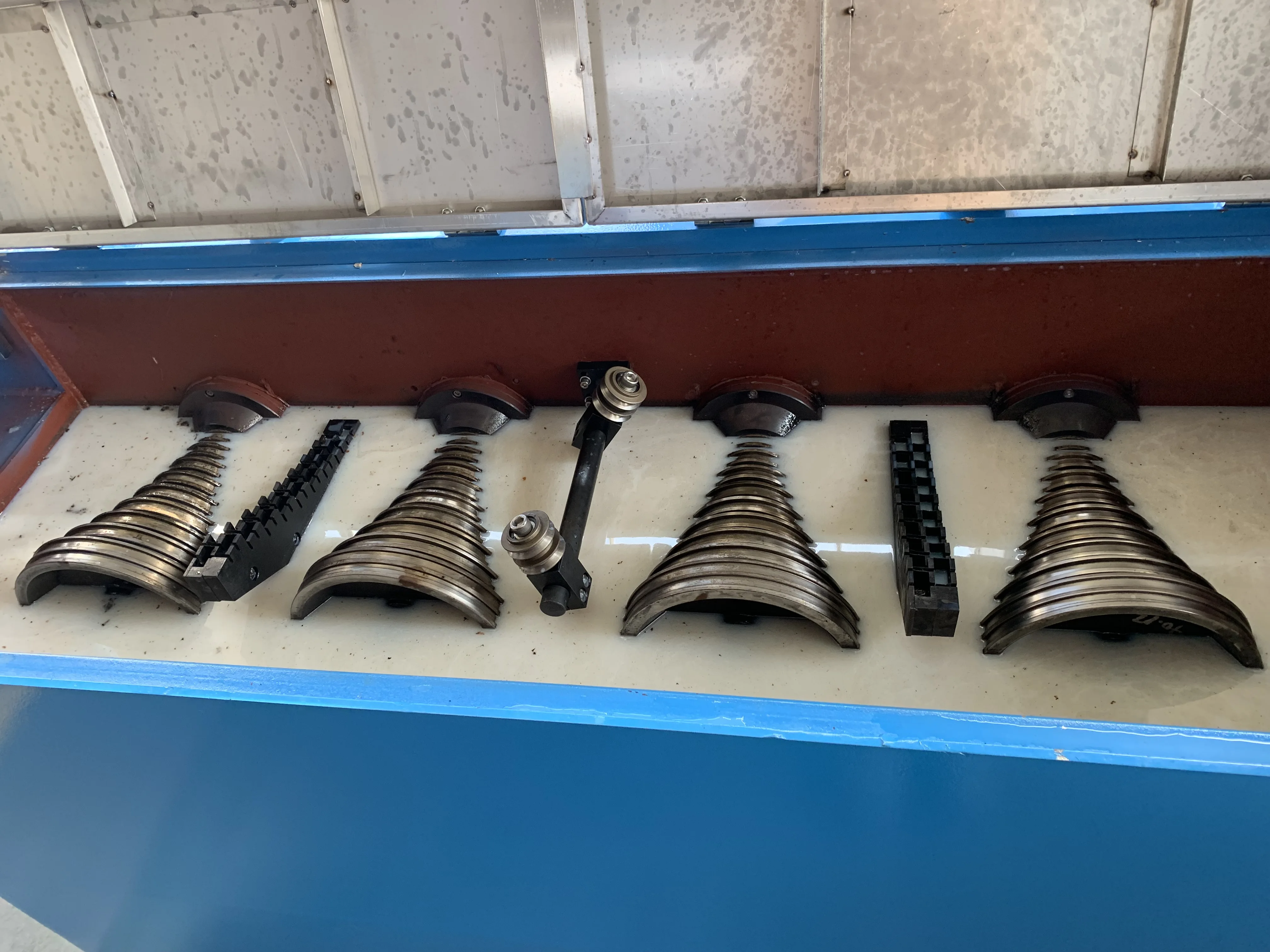

Main machine structure | four cones in horizontal |
Inlet diameter | Max. Φ0.75mm |
Outlet diameter | Φ0.1-Φ0.2mm |
Drawing dies No./Max. | 20×2 |
Drawing line speed//Max. | 700m/min |
Body frame | welded by steel plate |
Drawing capstan | die steel |
Slip ratio of M/C | 15%+8% |
Main motor power | 7.5KW |
Take-up motor power | 2.2KW ×2 |
Fix speed capstan dia./Max. | Φ200mm |
Transmission type | by flat belts |
Take-up bobbin’s outside Dia. | Φ200mm(inner hole Φ30mm) or according to customer’s requirements |
Traversing type | synchronous motor + belt |
Tension control | weight balance type |
Lubrication type | full immersion |
Brake | magnetic brake |
Whole machine dimension | 2500×1300×1750mm |
Total weight | 1480KG |

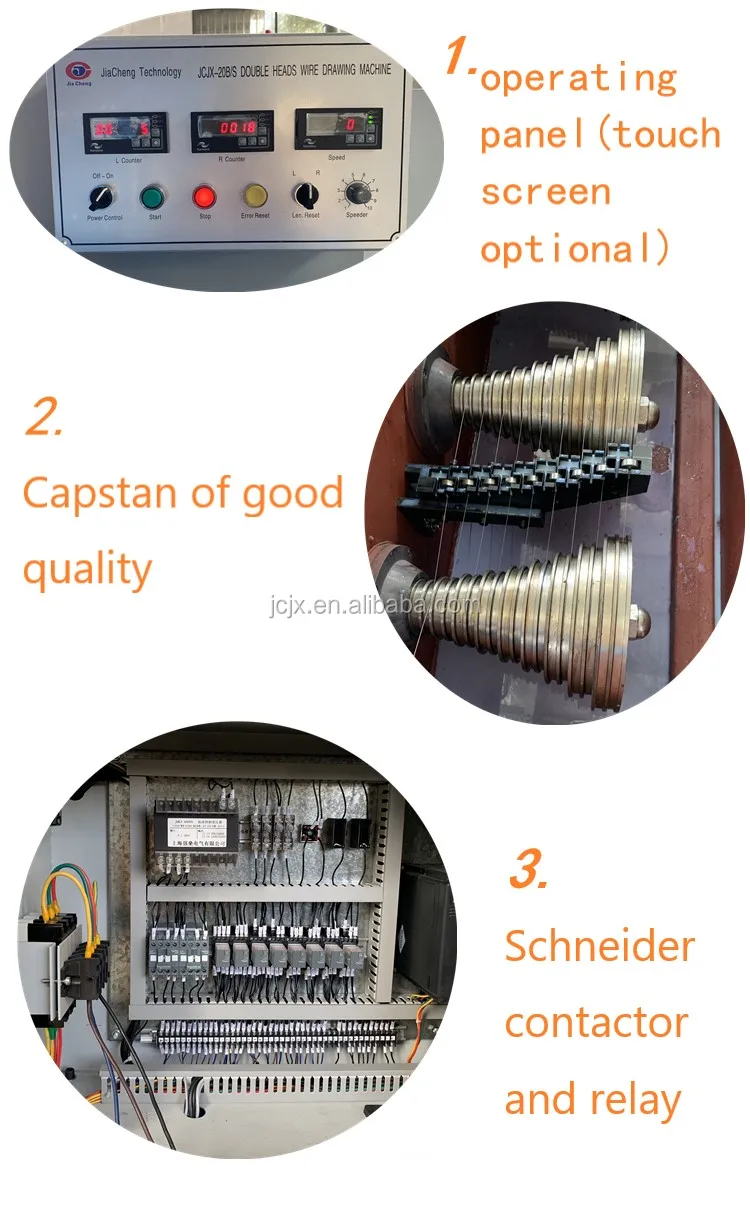

4 -Details:
Packaging & Shipping
![[]%LOKL~VP401KFN5$OK~V.png](http://sc02.alicdn.com/kf/HTB1A9P8a1L2gK0jSZPh761hvXXav/208863/HTB1A9P8a1L2gK0jSZPh761hvXXav.png)

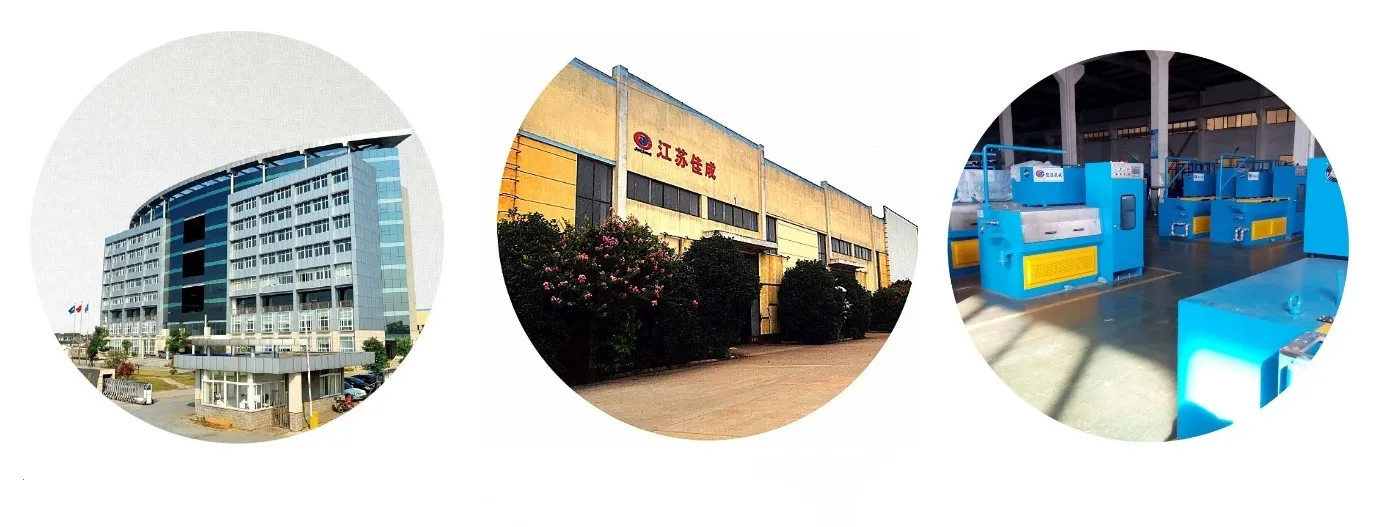

Company Information
Our company was founded in1990,we have 30 years experience in manufacturingall kinds of wire and cable machines, from drawing to exdruding.
We have our own factory, we can control the quality and the delivery time. We welcome your visit!

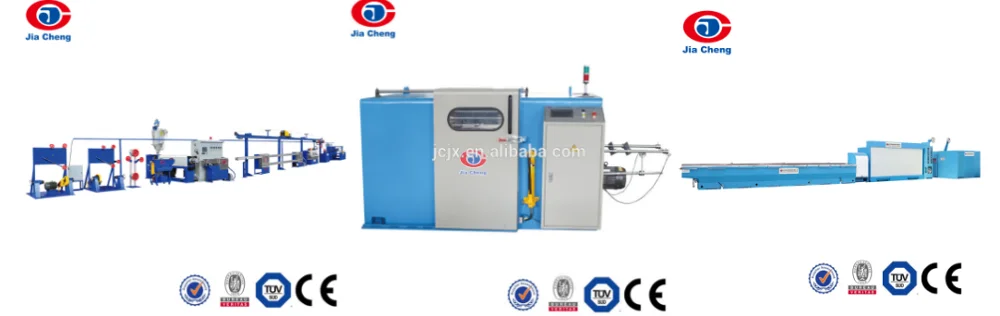

Our main products:
drawing machine, annealer,extruder, bunchingmachine,tapingmachine,wrapping machine,tinning machine.etc.
