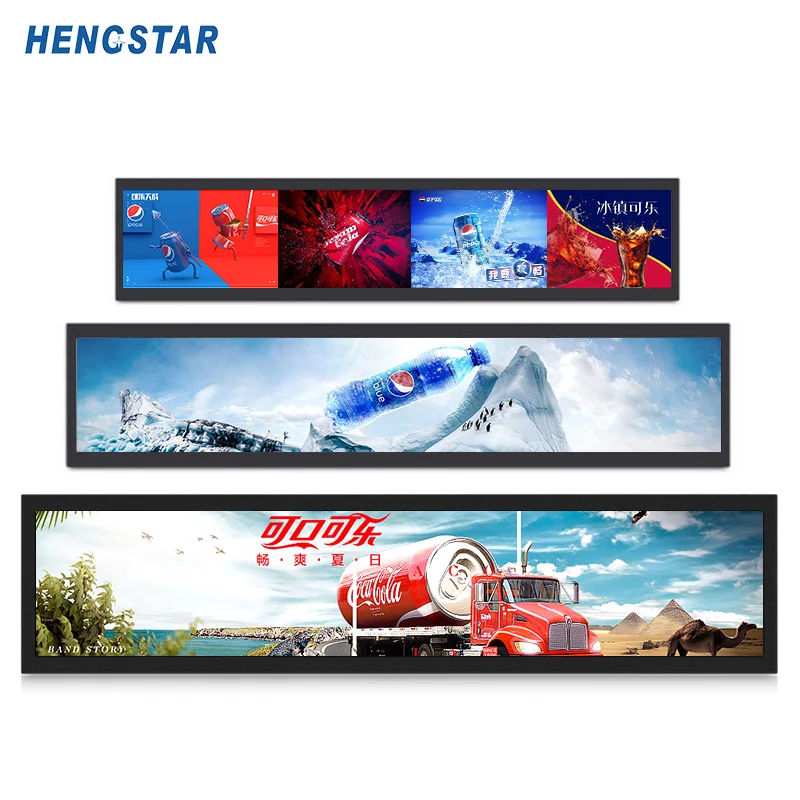

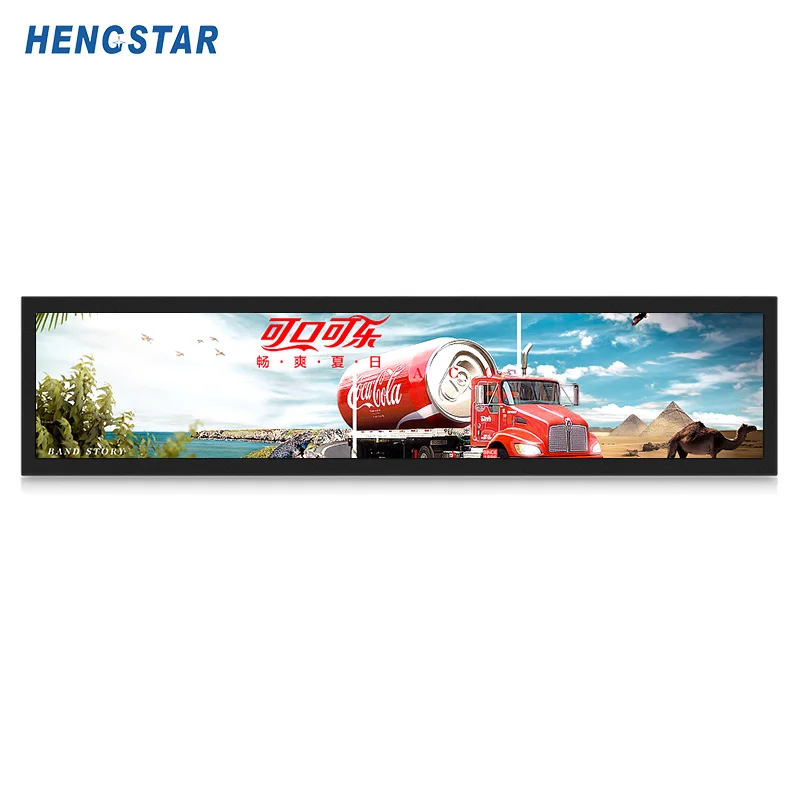

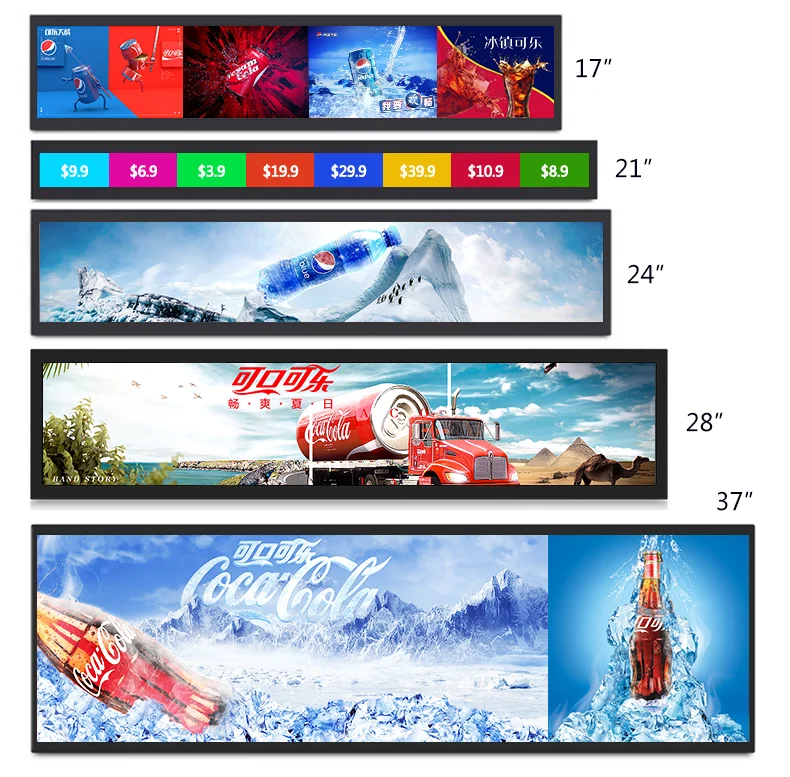

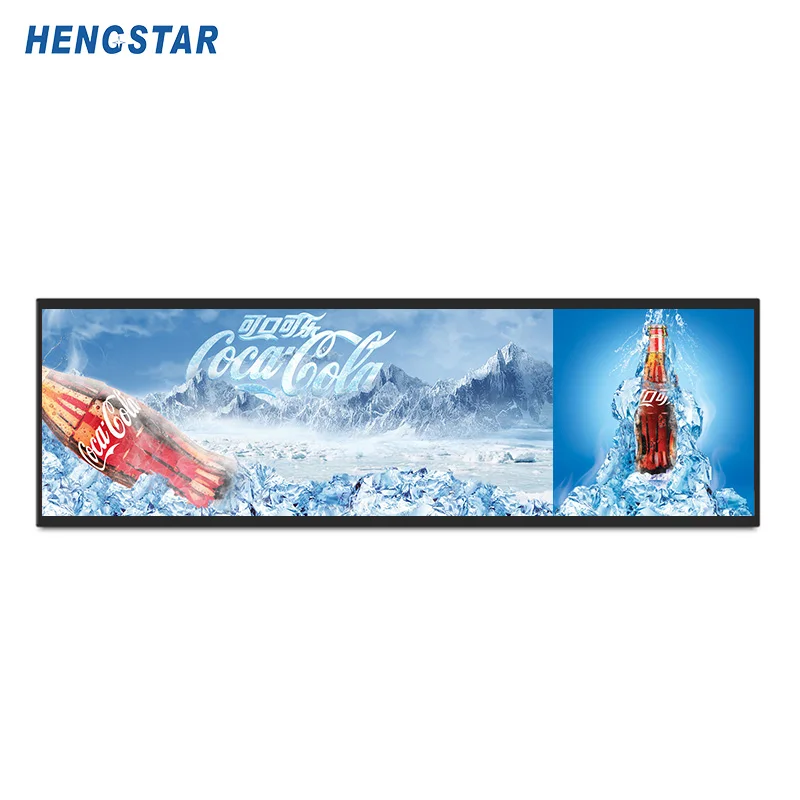

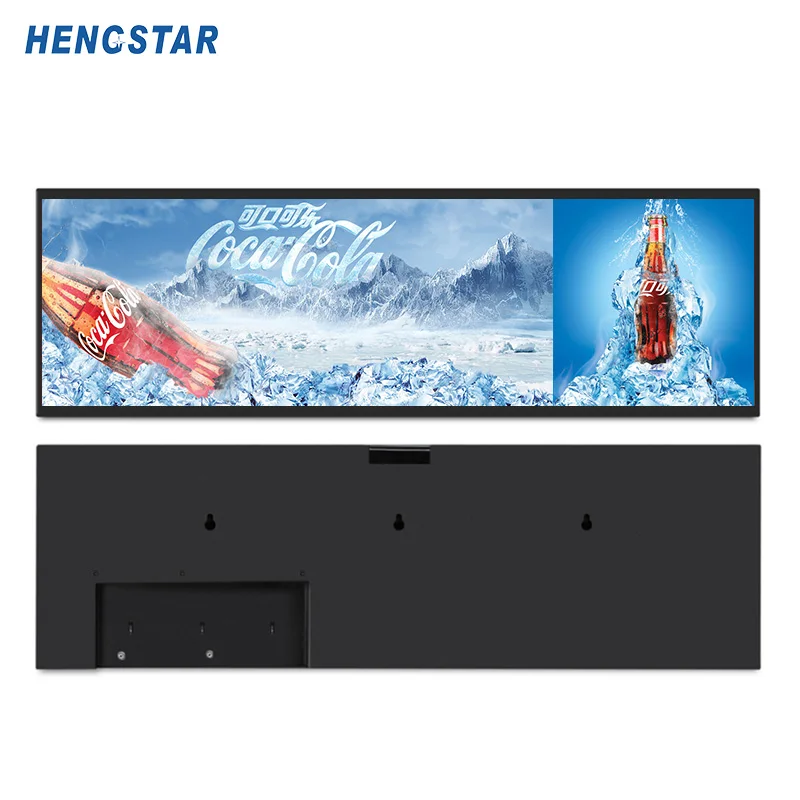

Рекламный плеер с ультраширокой лентой, сенсорный ЖК монитор 17, 21, 24, 28, 37 дюймов
- Category: LCD Monitors >>>
- Supplier: Shenzhen Hengstar Technology Co. Ltd.
Share on (62377899011):
Product Overview
Description
.

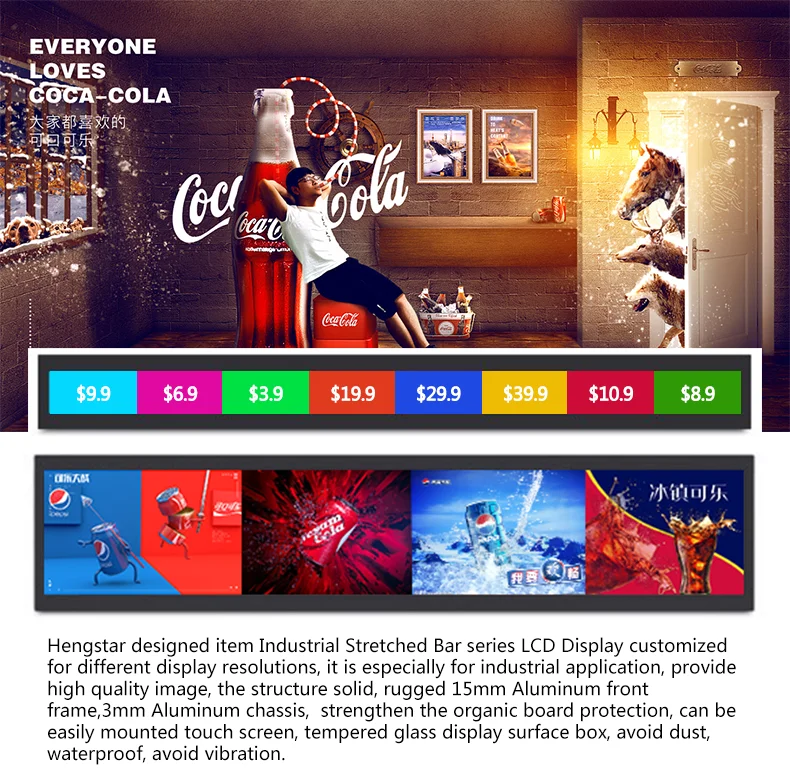

Hengstar designed item Industrial Stretched Bar series LCD Display customized for different display resolutions, it is especially for industrial application, provide high quality image, the structure solid, rugged 15mm Aluminum front frame,3mm Aluminum chassis, strengthen the organic board protection, can be easily mounted touch screen, tempered glass display surface box, avoid dust, waterproof, avoid vibration.
u IP65, with vandal-proof or anti-glare protective glass.(Optional)
u Support VGA, SVGA, XGA.
u VGA, DVI, Full HD,USB interface.
u Support 9~36V DC Powersupply
u Support multi-point projection capacitive touch.
u Powder coated 15mm Aluminum front bezel, 3mm Aluminum Chassis or powder coated back
cover. customized design available

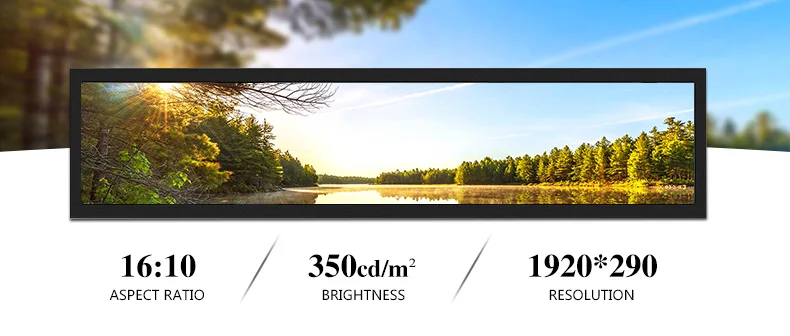

Panel spec | Size | 36.6’’ |
Aspect Ratio | 16:10 | |
Pixel Pitch | 0.1596(H)mm x 0.4788(V)mm | |
Resolution | 1920 x 290(FHD) | |
View angle | L / R: 89/89 , U / D:89/89 | |
Luminance | 350 nits | |
Contrast ratio | 1000:1(MIN.) | |
Response time | TR6ms TF6ms | |
Colors | 16.7M colors | |
Video format | Support PAL/NTSC/ASCEM etc. | |
Port | Full HD,VGA,DVI,USB | |
Horizontal Frequency | 67.5KHZ | |
Vertical Frequency | 60HZ | |

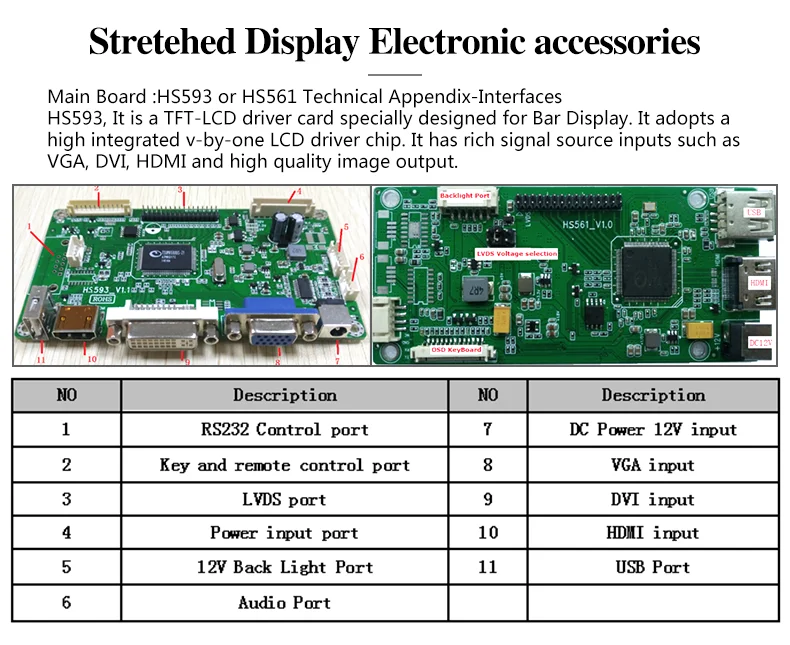

Display SYSTEM | Main Chip (M-star593 )
| 300MHz Frequency |
10ns | ||
48% to 52% | ||
2.5W low TDP | ||
Memory | 256MB | |
Signal I/O | 1 *Full HD,1*DVI-I , 1 *VGA,1*USB | |
Audio | 1* Audio Output(Optional) | |
Power requirement | +24V +12V,+5V,+5V VSB, PS-ON | |
Rear Panel I/O | 1*VGA Waterproof Connector 1*DVI-I Waterproof Connector 1*Full HD NFull HD-WConnector-19Pin
| |
Video SYSTEM | System Supported | PAL/SECAM/NTSC |
Signal system | B/G,D/K,I,L/L,M/N | |
Stereo | SRS TruSurround XT | |
Power: 10W*2 (Optional) | ||
QUALITY APPROVAL | Fire-resistance | UL-94HB |
Water-resistance | NeMa4 | |
Chemical-resistance | Active area of Touch is resistant for acetone(Optional), toluene, butanone, acetylacetone, methanol, acetic acid, gas, coal oil, and Vinegar. | |
Certificate | RoHS ,FCC(Part 15),CE(EN55022 and EN55024)Optional Support MIL-STD-810G ( check below for Detail)
|
Company Information
FAQ
Question 1: How long it will be taken arrived in the hand of clents for the goods ?
Answear : It is depended on the detail date of the clents of place order and payment date , usually , the products will be delivery 20 days after the total amount was paid .
Question 2: OEM will be avaible in a short time or not ?
Answear : Yes , it will , but the quantity should you be reached in a particular number ( MOQ) , Such as : 200-500 pieces in a once . ( every month of one year )
Question 3: What is your company's payment way ?
Answear : T/T( best chioce) , WESTON UNION , PAYPAL (optational ).
Question 4 : How long it will be taken from factory 's warehouse to clients ?
Answear : It is relyed on which shipping way you will choose ,for instance TNT, HKTNT, Fedex , DHL and so on.
Question 5: What is your company 's after sale? (such as , some question on technology , usage method , some problem on maintain , warraty for those good has been sold.)
Answear : About the consult of technology question , the egnieer will welcomed to waiting for you online , usually , the warraty will be 1-2 years for most of products , if there are some problems for maintain , pls it will be solved in a short time , ok , will be done , if not , pls solve it in your own in your country by yourselves .
