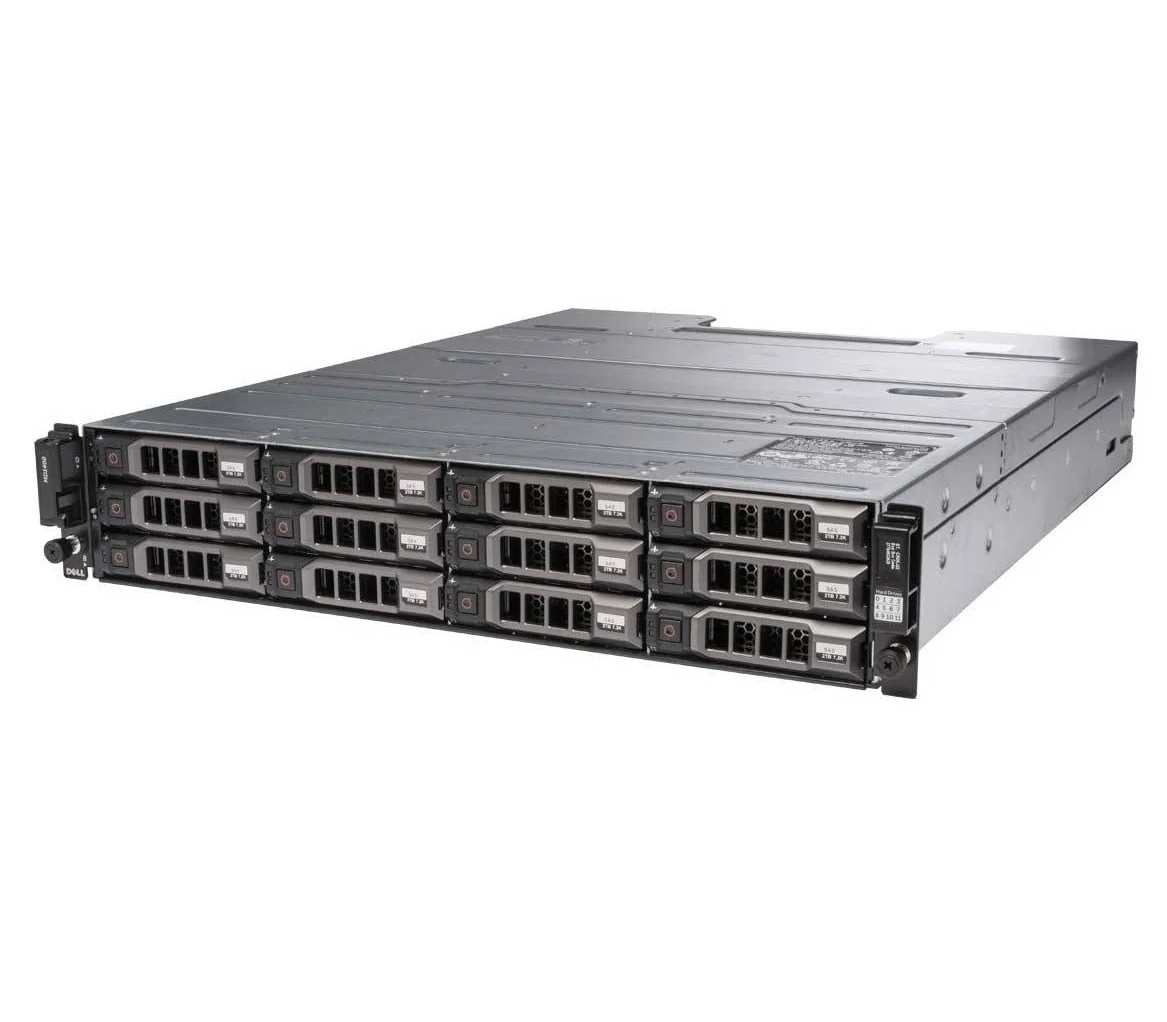

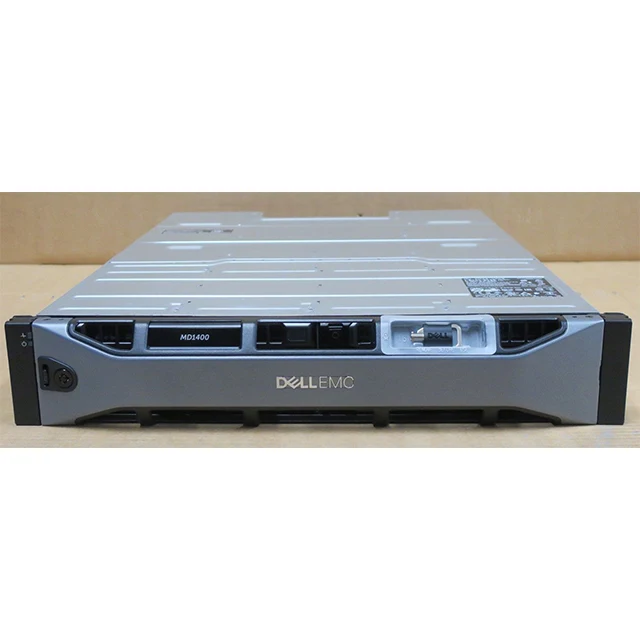

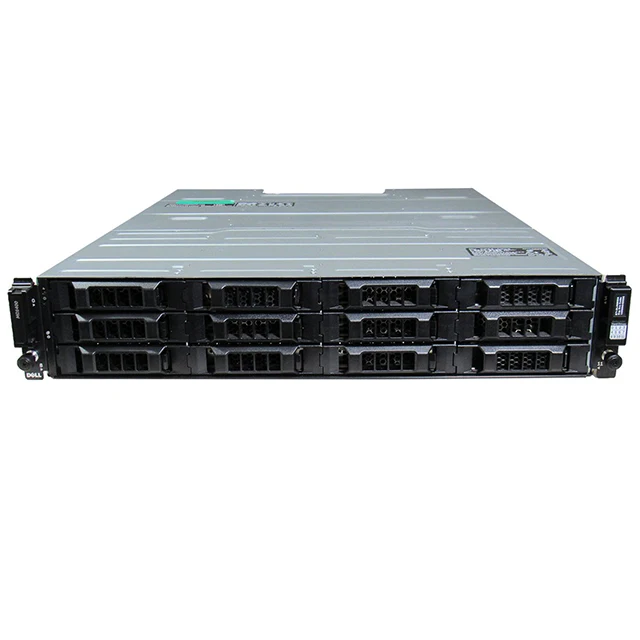

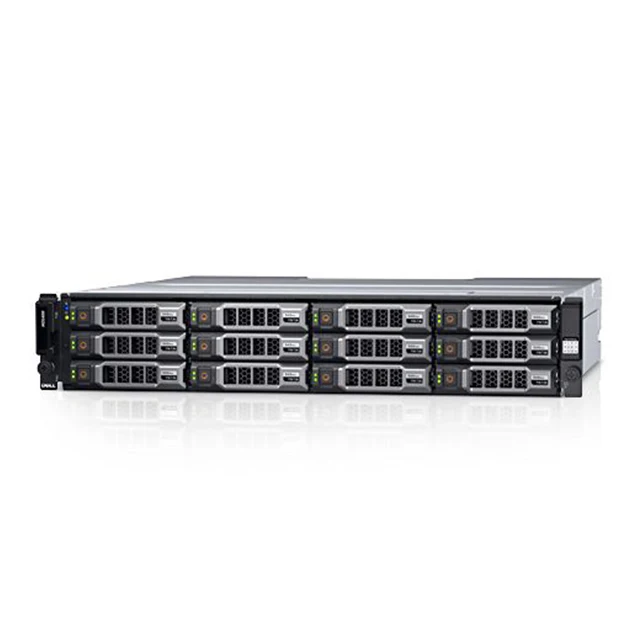

Dell Storage MD1400 Direct Attach networking Storage

Feature

Dell MD1400 storage

 MD1420

Drives

Up to 12 hot-pluggable 3.5” or 2.5” drives (2.5” available with adapter)

Up to 24 hot-pluggable 2.5” drives

Drive performance and
capacities

3.5” NL-SAS 6Gb/12Gb HDD (7.2K): 1TB, 2TB, 4TB
3.5” NL-SAS 12Gb HDD (7.2K): 6TB, 8TB, 10TB
2.5” SAS 12Gb HDD (7.2K): 500GB
2.5” SAS 12Gb HDD (10K): 300GB, 600GB, 1.2TB, 1.8TB
2.5” NL-SAS 12Gb HDD (7.2K): 2TB
2.5” SAS 12Gb SED (15K): 600GB
2.5” SAS 12Gb HDD (15K): 300GB, 600GB
2.5” SAS 12Gb SSD: 200GB, 400GB, 800GB (WI);
200GB, 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)

2.5” NL-SAS 6Gb HDD (7.2K): 500GB, 1TB
2.5” NL-SAS 12Gb HDD (7.2K): 2TB
2.5” SAS 6Gb HDD (10K): 300GB, 600GB, 1.2TB, 1.8TB
2.5” SAS 6Gb HDD (15K): 300GB, 600GB
2.5” SAS 6Gb SED (10K): 1.2TB
2.5” SAS 12Gb SED (15K): 600GB
2.5” SAS 12Gb SSD: 200GB, 400GB, 800GB (WI);
200GB, 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)

Maximum capacity per enclosure

Up to 120TB when using 12 x 10TB NL-SAS 3.5” HDDs

Up to 48TB when using 24 x 2TB NL-SAS 2.5” HDDs

Expansion capabilities

PERC H830 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual-port, 4 ports per enclosure

Host connectivity

Unified mode

Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830 (4 enclosures per port, single path)
Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H830 (4 enclosures
connected to both ports via redundant path cabling)

Enclosure management modules (EMM) and RAID levels

EMM

2 EMM provide redundant enclosure management capability

RAID levels

0, 1, 5, 6, 10, 50, 60

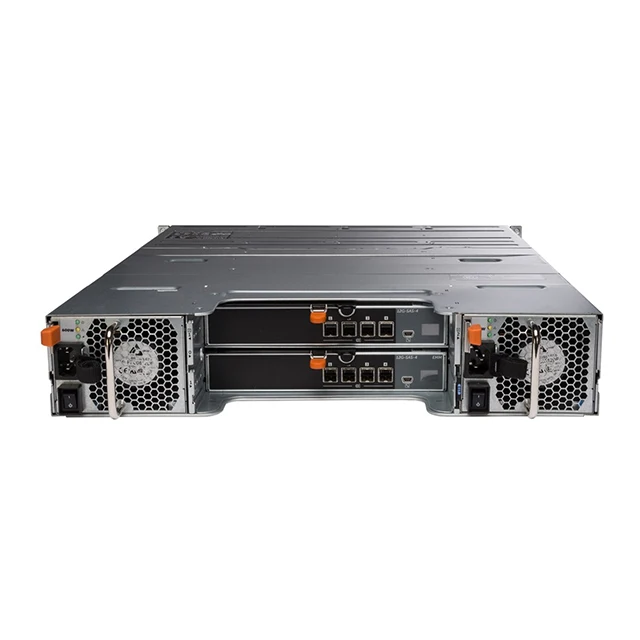

Back-panel connectors per EMM

Connectivity

4 mini-SAS HD connector for connection to the host or expansion

Service management

USB mini-B connector (for factory use only)

Power supplies per PSU

Wattage – AC and DC power

AC – 600W; DC – 700W

Host heat dissipation

Input voltage range

100-240V AC, auto-sensing; 48V DC

Frequency range

50/60Hz
