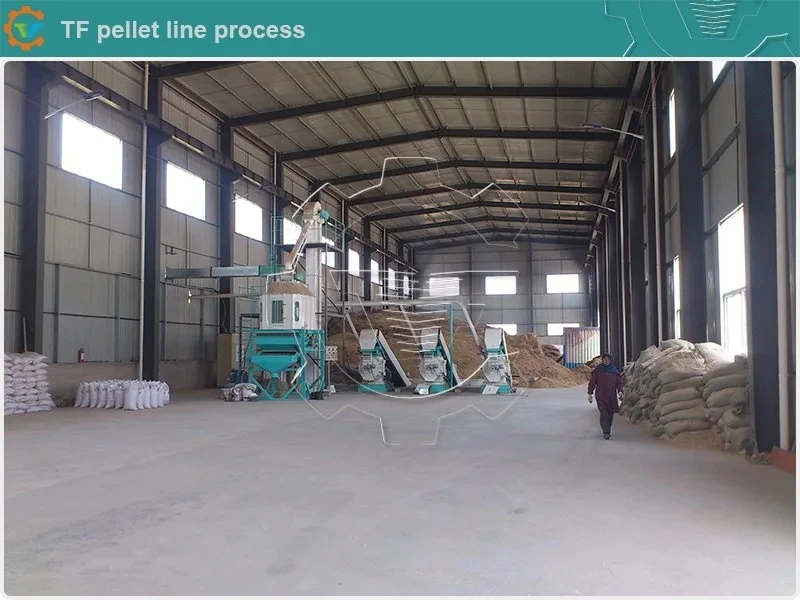

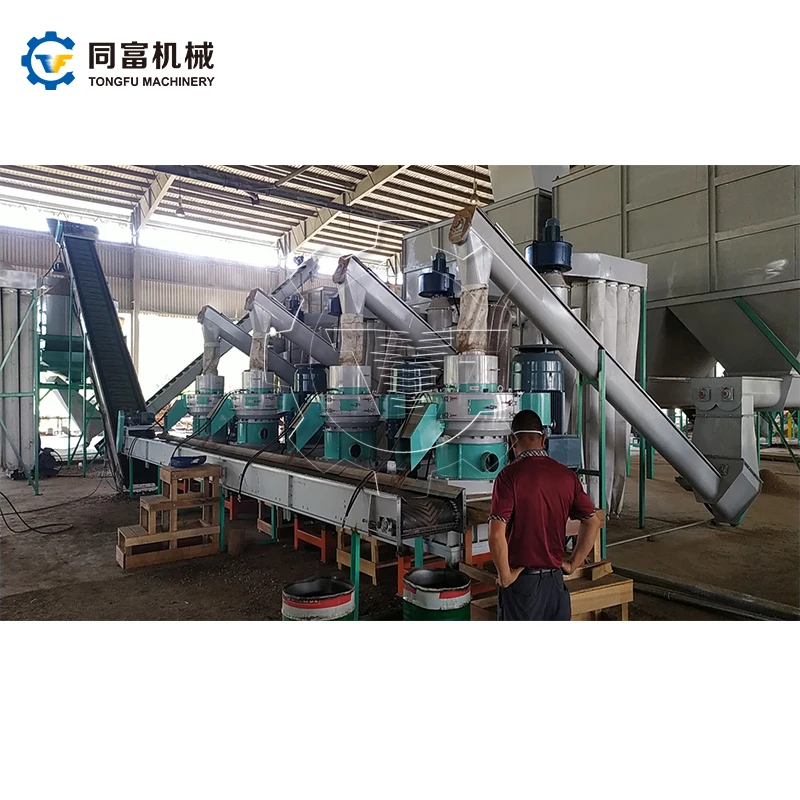

1 20 t/h Wood Sawdust Pellet Production Line

 Generally,a completed wood pellet production line is consists of chipping and crushing process & drying process & pelletizing process & cooling process & seperating process & packing process.Based on clients's raw material type and actual needs,those processes can be adjusted accordingly.

Main process in a wood pellet production plant:

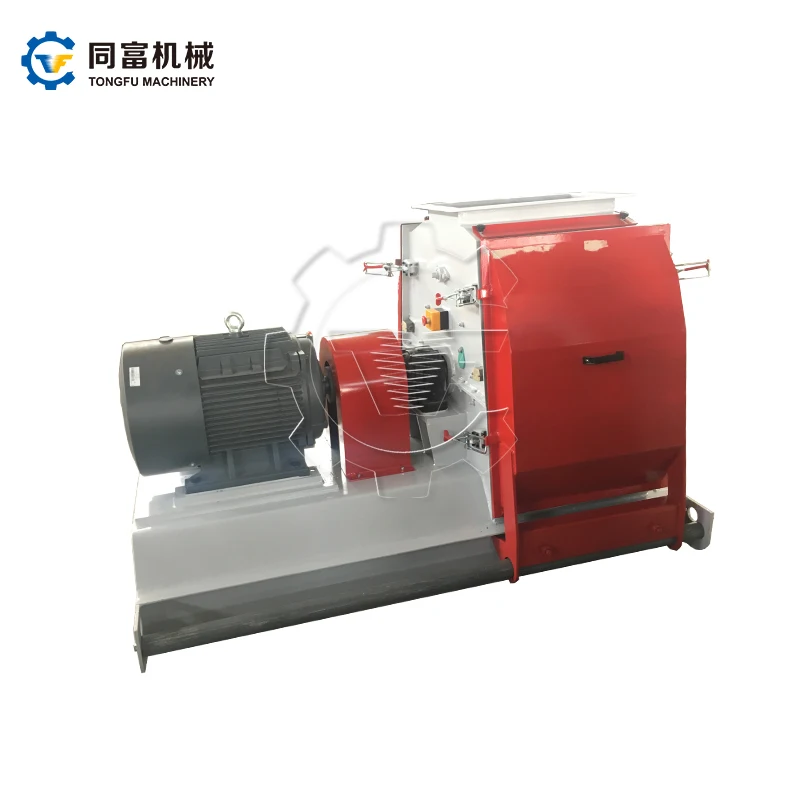

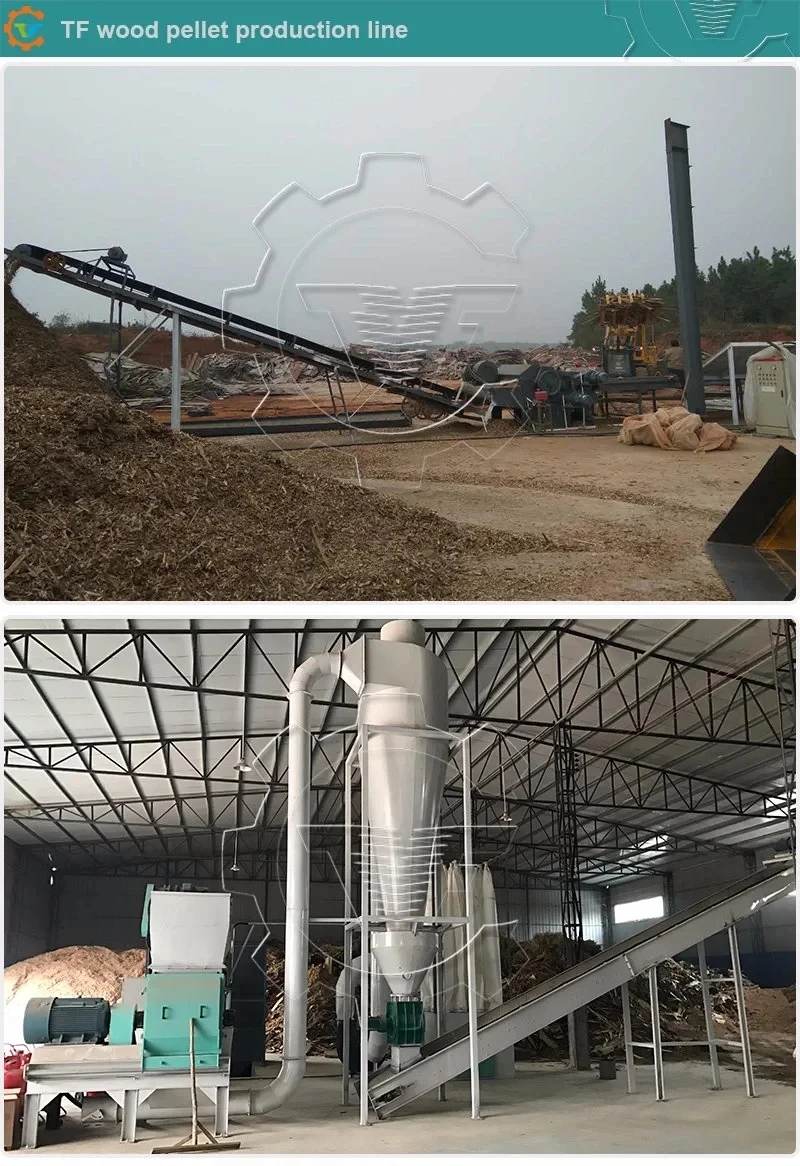

Chipping and Crushing process - wood chipper and wood Hammer mill
The best material size for supporting to produce pellet is 1-5mm. Thus if your material diameter exceed 5mm, then you need crushing machine to crush and
grind them into small powder 1-5mm. Our TF series wood chipper and SFSP series hammer mill are your best choice.
After milled, the output size can reach 3~5 mm, then it is pushed to next process to get dried and pelletized.

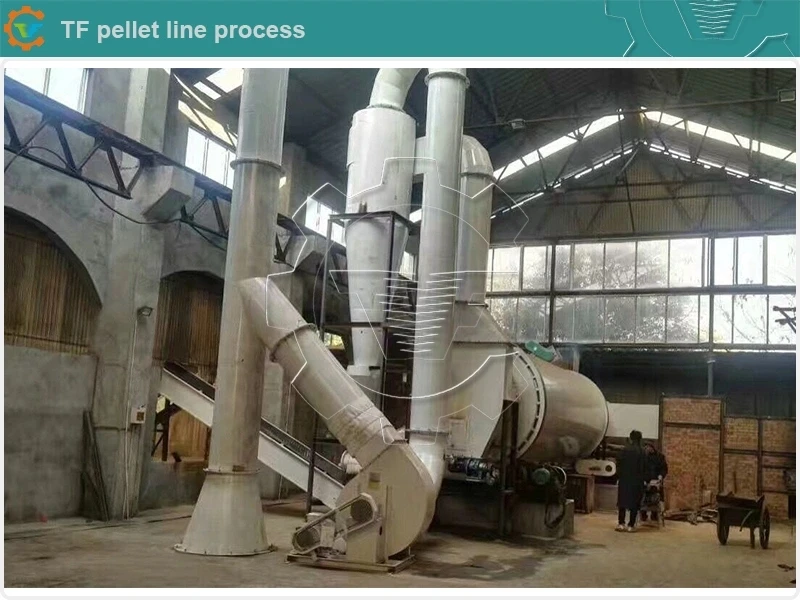

Drying process - Rotary Dryer
The best moisture content to pelletizing is about 12~18%. Our rotary dryer is made up of burning stove and main rotary dryer which is high efficient in drying the wood
 and biomass material. If clients raw material moisture is higher than 20%,then they definitely need a dryer,otherwise,the sawdust can not make perfect pellets,they will stuck inside pellet machine or getting on fire during pressing.

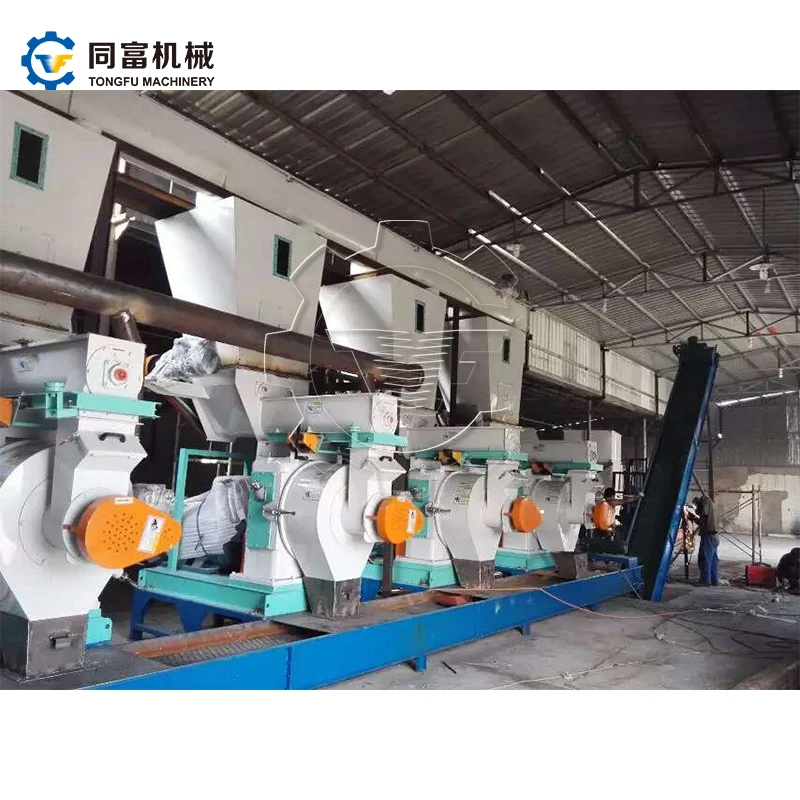

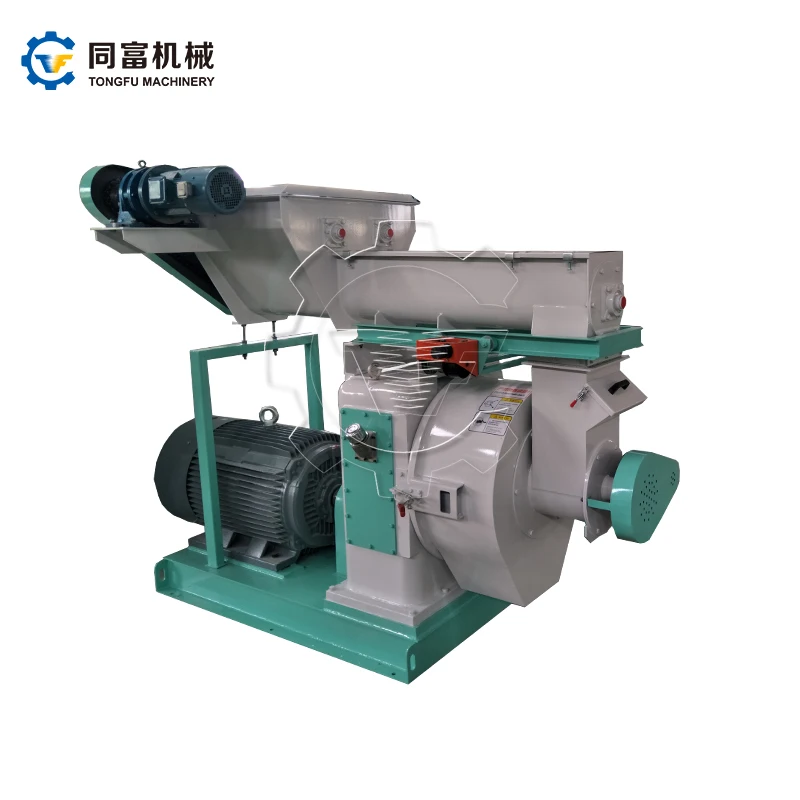

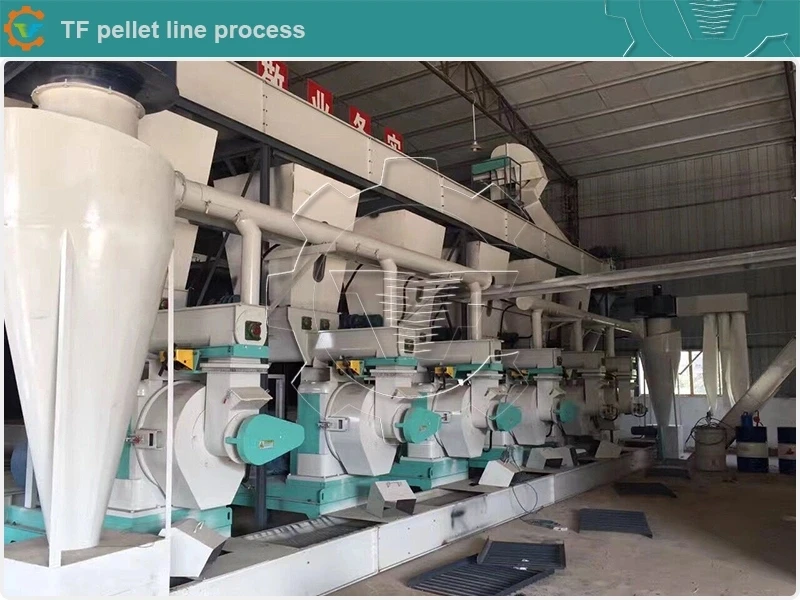

Pelletizing process - Wood pellet mill
Wood pellet mill is the heart of the wood pellet production line, and has reliable

runningperformance. It is special designed for compacting of wood, straw,
and other biomass sources into pellets. Capacity ranges from 0.5T to 20T per hour. Our MZLH and MZLV series Ring die pellet mill is best choice for large scale production.

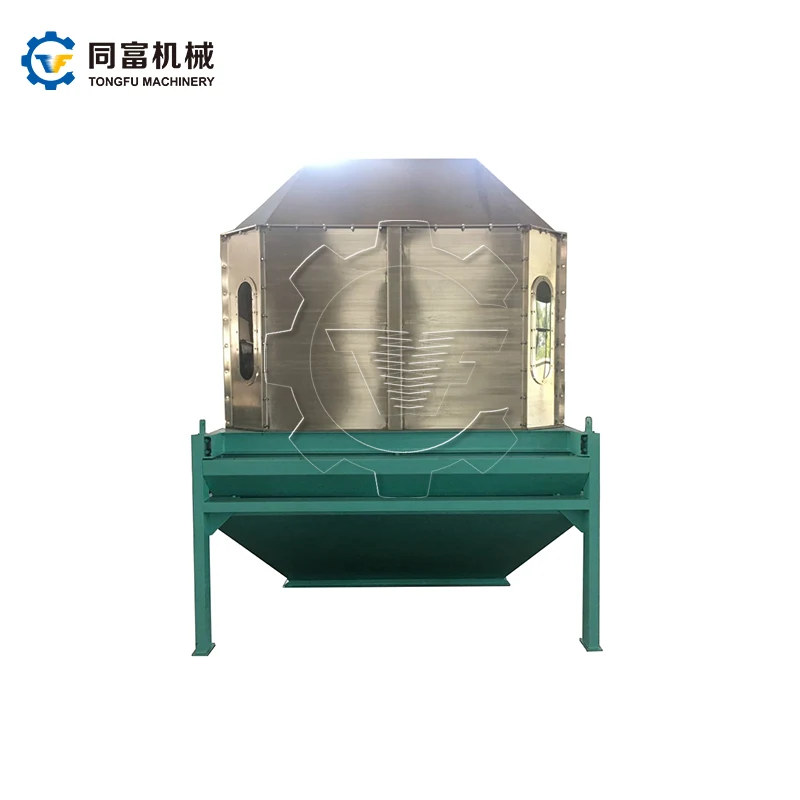

Cooling process - Counterflow cooler
Usually after pelletizing, the temperature of wood pellets is between 60~80 degrees and the moisture content is close to 15%. For storage purposes,a cooler must beused to reduce their

surface temperature and the moisture content, also help screen good and pure pellets.

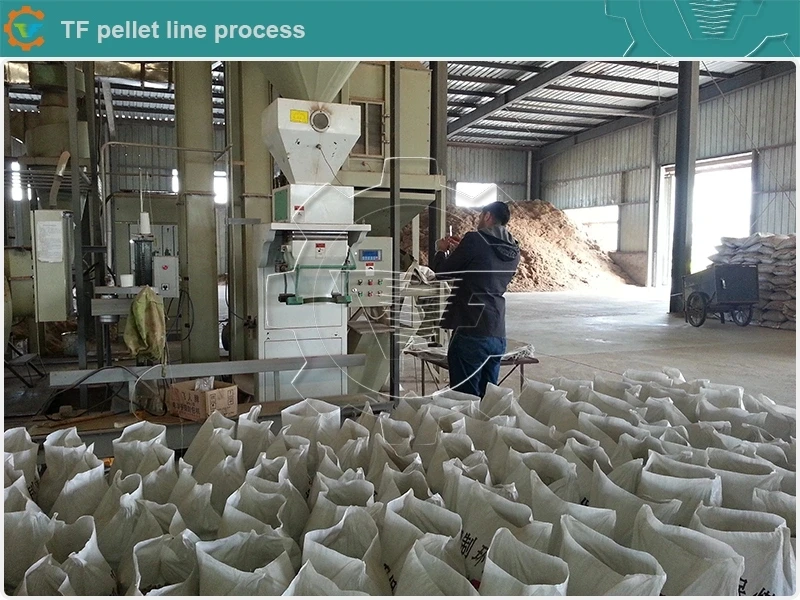

Packing process - Packing machine
After cooling process, the wood pellets will not directly enter into the fuel process, avoiding the

wood pellet affected with damp, the packing process is very necessary.

The packing process is effectively handled by our Semi-Auto Packing Machine.

 In export standard,if FCL in nude or with steel pallet.

 1.Reply your inquiry within 24 working hours.
 2.Experienced staffs answer all your question in professional and fluent English.
 3.Customized design is available.
 4.Exclusive and unique solution can be provided to our customer by our well-      trained and professional engineers.

Liyang Tongfu machinery Co., Ltd  is professional manufacturer with more than 10 years experience,we produce pellet mill ring die and roller by ourselves with cheap cost.Our main products are Pellet mill,Hammer Mill,Mixer, Cooler, Scraper Conveyer,related Spare Parts ,ect

1) Are you a trading company or manufacturer?What is your main products?

We are a manufacturer, which has over 15 years of experience in this industry.Our Main products are pellet mill,pellet machine, hammer mill, dryer, pellet cooler, pellet packing, feed pellet plant, biomass production line, mixer,conveyor, etc.

2) Can I visit your factory and clients' workshop? How to get to your factory?

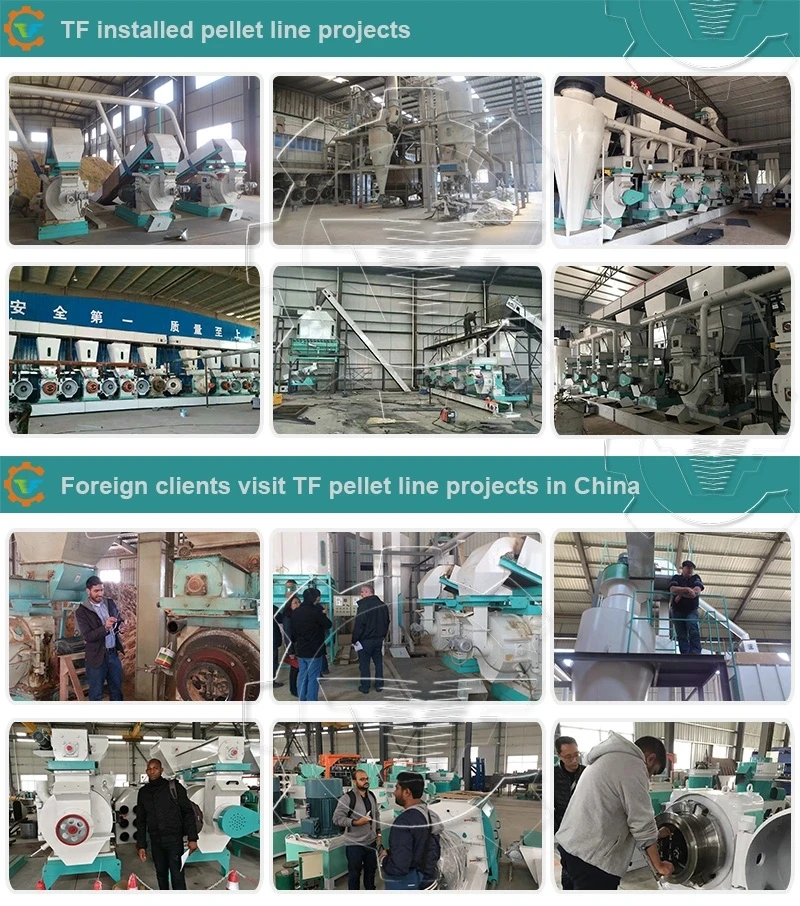

Yes, welcome to visit our factory anytime, we can also arrange your visit in our China clients' workshop.
For getting to our factory, you can get a flight to Nanjing Airport.It just takes about 1 hour from Nanjing Airport toour factory by car.

3) What is your guarantee time and aftersale service?

--Our guarantee time is 12 months
--Each order machine we provide installation drawing&pellett mill operation manual.If needed, engineers can be sent to your factory for installation and commissioning, training.
--Any problem in operation or others about machines, we will give solution in 24-48 hours.

4) What is your payment term?

We can accept various payment terms if it is convenient for you.

5) What is your delivery time?

Pellet production line leadtime is 45 working days .
