Products Features & Advantage

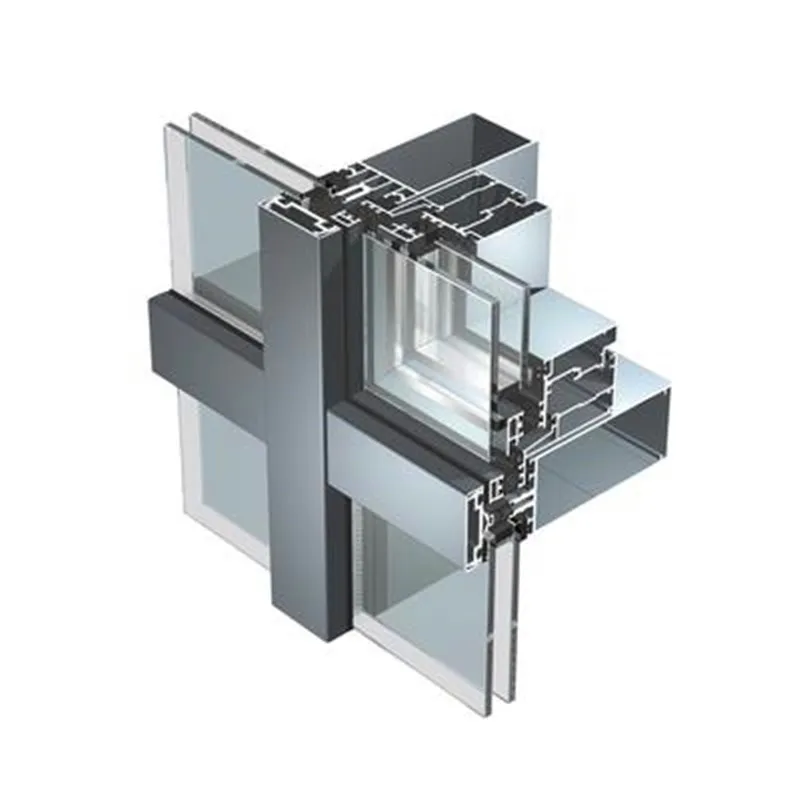

Aluminium unit system curtain wall is simple to set up and mount, but unprecedented in the number of possibilities,which include: type of water drainage, compartment or channel drainage, and which cover strips to use for the outside of the facade. Within it is also possible to construct a (semi-)structural facade. The inside construction will be the same in any case.
An ample assortment of profiles ensures that construction with this complete facade system can be designed and built. The most divergent facade solutions are possible in terms of design, anti-theft, fire resistance and (hidden) movable parts. All profiles are processed at the factory and only need to be installed at the site.
System performance
• Sound resistance Rw to 48 dB
• Wind and watertightness to 1000 Pa (depending on design)
• Anti-burglary
• High thermal insulation(depending on design)
System characteristics
• Unique glazing sizes from 6 through 50 mm
• High glass weights to 500 kg
• View width 60 mm
• Different cover caps on the outside
• Inside and outside color as desired
Product Name | TianJin Manufacturer insultated Glass |
Max Size | 2700mm×6000mm (Automatic line) / 2400mm×8000mm (By hand help) |
Min size | 300*300mm |
Finished product thickness | 18-48mm |
Glass thinkess | 4-19mm float glass, tempered galss, silk-sreen glass etc |
Air spacer Thickness | 6A, 9A, 12A, 16A, 18A, 20A~36A etc |
Color of the glass | clear, white, gray, blue, green, pink etc. |
Glass types | Common laminated glass, tempered laminated glass, |
Coated laminated glass, Low-E laminated glass, | |
Bulletproof and explosion-proof glass etc. | |
Quality control | Meet a criterion of the National GB / 9962-1999/ EN 12600:2002, |
EN 14449:2005+AC2005 and ISO 12543-2:2011 | |
Processing capacity | 150000square meter/Month |
Application | 1. External use of windows, doors, shop fronts in offices, houses, shops, etc |
2. Interior glass screens, partitions, balustrades, etc | |
3. Shop display windows, showcases, display shelves, etc | |
4. Furniture, table-tops, picture frames, etc |
