Solid-Liquid Separation Equipment / (Ceramic) Disc Vacuum Filter
Product Introduction:

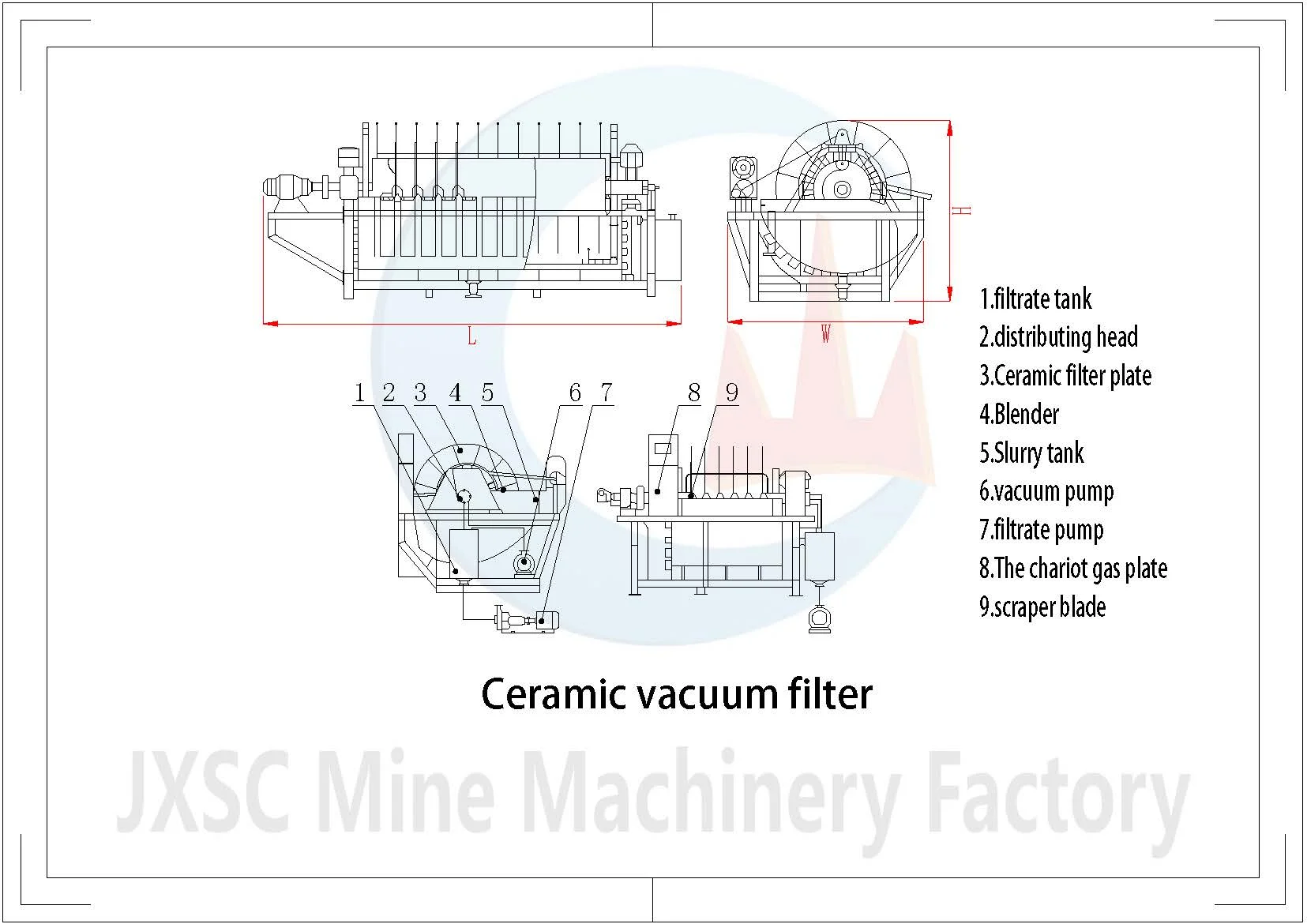

Ceramic filter is a kind of dewatering equipment, mainly consisting of ceramic filter plate, roller system, mixing system, feeding and discharging system, vacuum system, filtrate discharge system, scraping system, backwashing system, combined cleaning (ultrasonic cleaning, automatic matching). Acid cleaning system, automatic control system, tank body, and several parts of the frame.Application Field:
Filtration and dewatering of fine particulate materials in mining metal mines, non-metallic minerals, environmentally friendly sludge, cement, building materials and other industries.
Performance characteristics:
① The average filtration speed is 2 to 3 times of bag filter.
② The fan-shaped filter plate has a uniform distribution of dewatering holes, reasonable hole ratio, large rib size, and is made of high-strength engineering plastics, and the life is improved by 1-1.5 times.
③ It is only necessary to open and close the valve for cleaning the filter in each filtration cycle, and the labor intensity is low and the operating conditions are good.
④ Automatic control can be achieved.
⑤ The amount of washing water is small, the washing water can be directly returned to the pre-ash, and the sugar loss is less than the bag filter.
② The fan-shaped filter plate has a uniform distribution of dewatering holes, reasonable hole ratio, large rib size, and is made of high-strength engineering plastics, and the life is improved by 1-1.5 times.
③ It is only necessary to open and close the valve for cleaning the filter in each filtration cycle, and the labor intensity is low and the operating conditions are good.
④ Automatic control can be achieved.
⑤ The amount of washing water is small, the washing water can be directly returned to the pre-ash, and the sugar loss is less than the bag filter.
Product Details
model | filter disc rings | filter plates | tank vloum | installed power | operation length | machine length | machine wideth | machine hight |
TC1 | 1 | 12 | 0.21 | 3.5 | 2 | 1.6 | 1.4 | 1.5 |
TC4 | 2 | 24 | 1 | 7 | 3 | 2.4 | 2.5 | 2.5 |
TC6 | 2 | 24 | 1.2 | 7 | 6 | 2.4 | 2.9 | 2.5 |
TC9 | 3 | 36 | 1.7 | 9 | 7 | 2.7 | 2.9 | 2.5 |
TC12 | 4 | 48 | 2.2 | 11 | 7.5 | 3 | 2.9 | 2.5 |
TC15 | 5 | 60 | 2.7 | 11.5 | 8 | 3.3 | 3 | 2.5 |
TC21 | 7 | 84 | 4 | 13.5 | 9 | 4.6 | 3 | 2.5 |
TC21 | 7 | 84 | 4 | 13.5 | 9 | 4.6 | 3 | 2.5 |
TC24 | 8 | 96 | 4.5 | 16.5 | 10.5 | 4.9 | 3 | 2.6 |
TC27 | 9 | 108 | 5 | 17 | 11 | 5.2 | 3 | 2.6 |
TC30 | 10 | 120 | 5.5 | 17.5 | 11.5 | 5.5 | 3 | 2.6 |
We have other different kinds of disc filter,more model CLICK HERE TO CONTACT US
Related Products
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
Ways Of Packing | ||||||||
1 | Standard parts packed in the wooden cases | |||||||
2 | Big parts packed by plastic membrane | |||||||
3 | The whole machine is loaded in the container | |||||||
