Топ продаж, углеродный коллектор тока 60A 120A для бесшовной проводной балки

Product Overview

Description

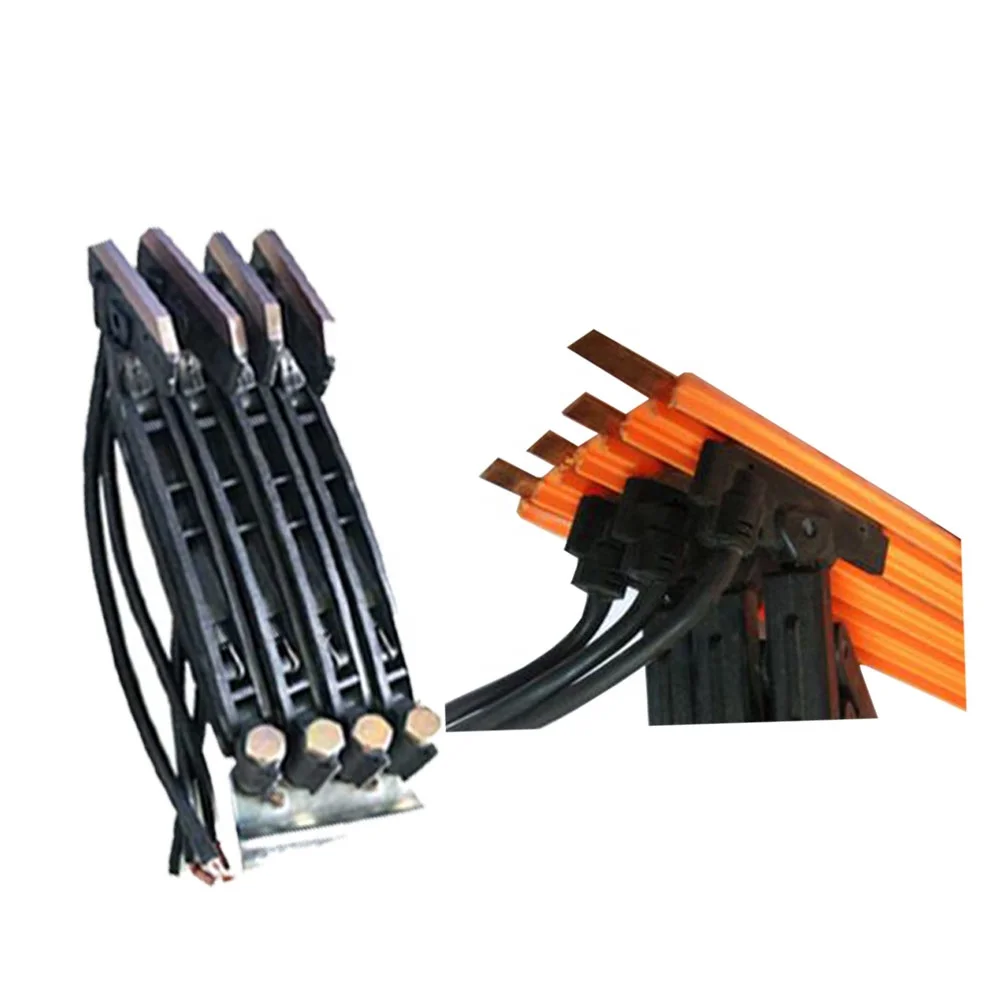

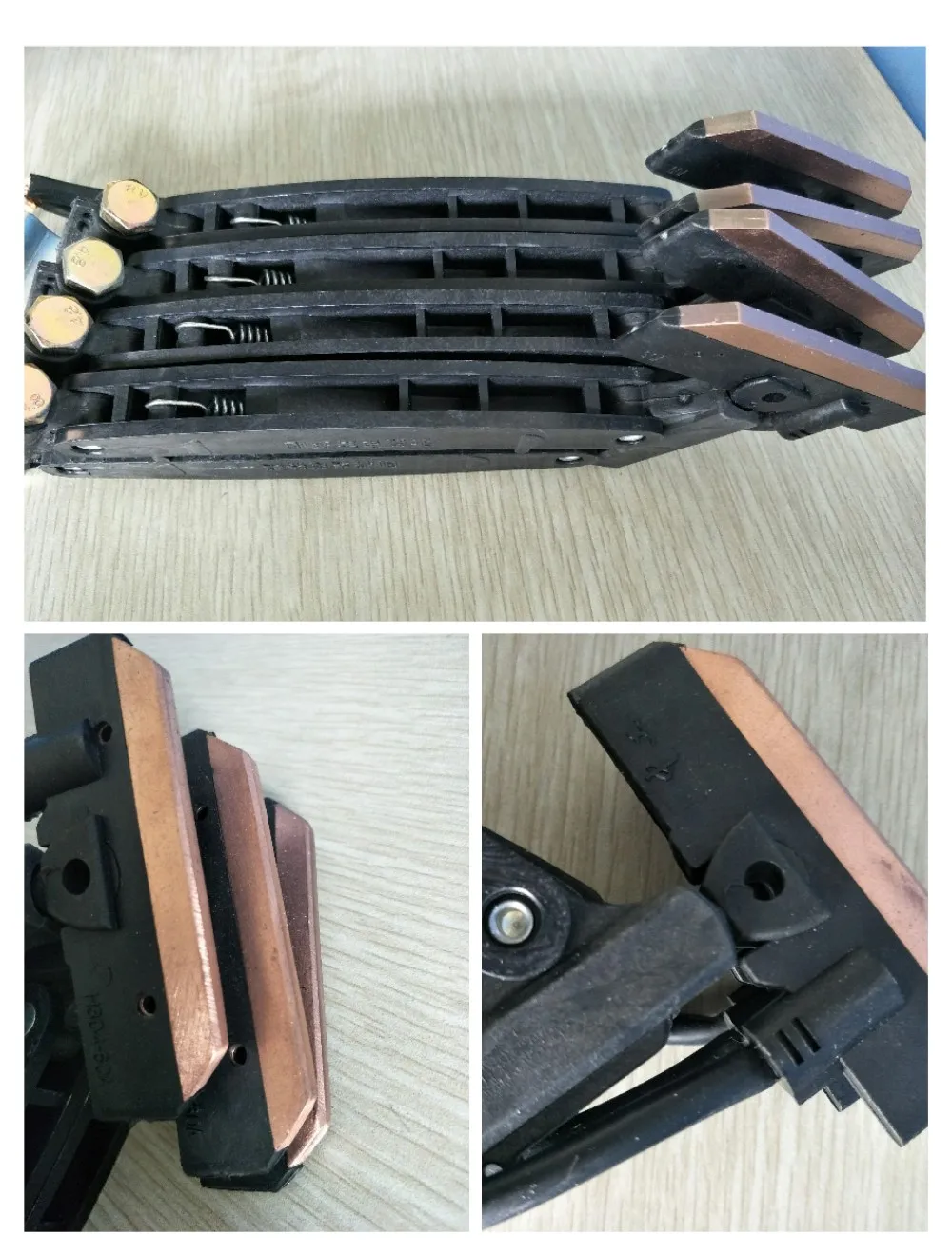

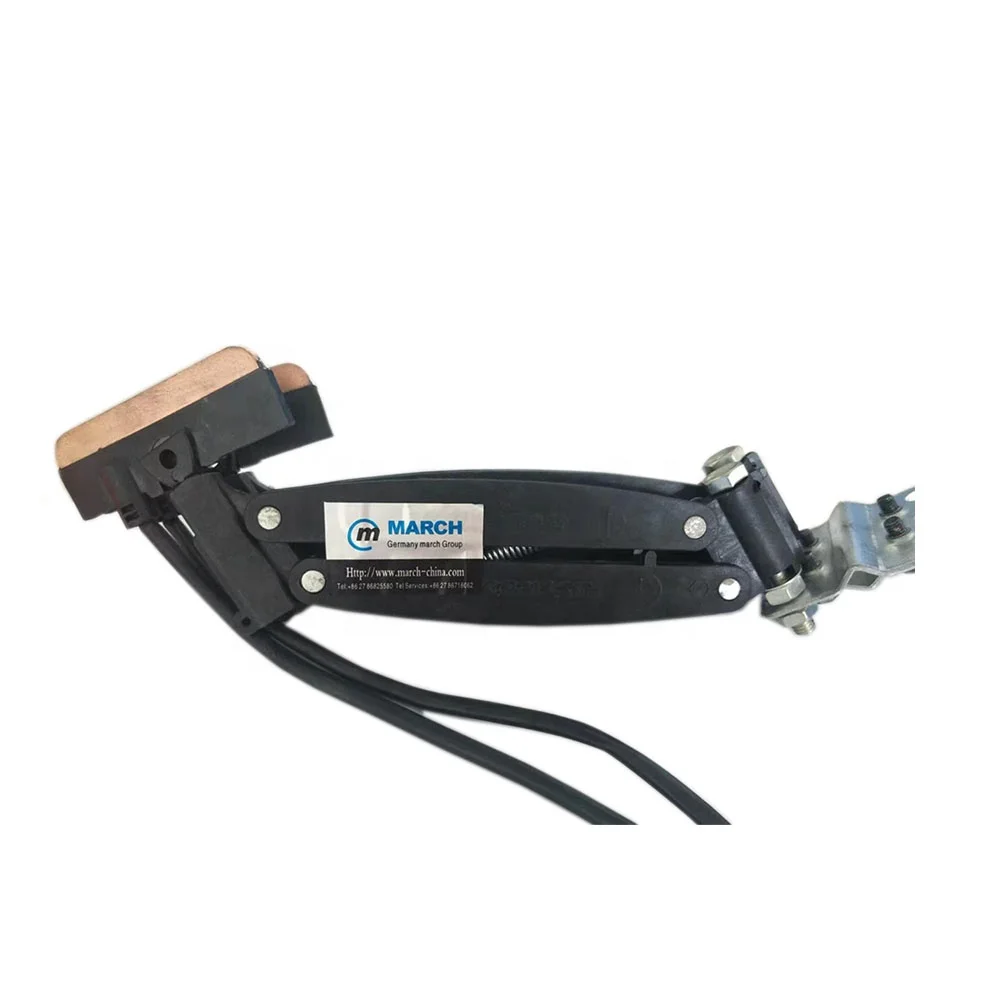

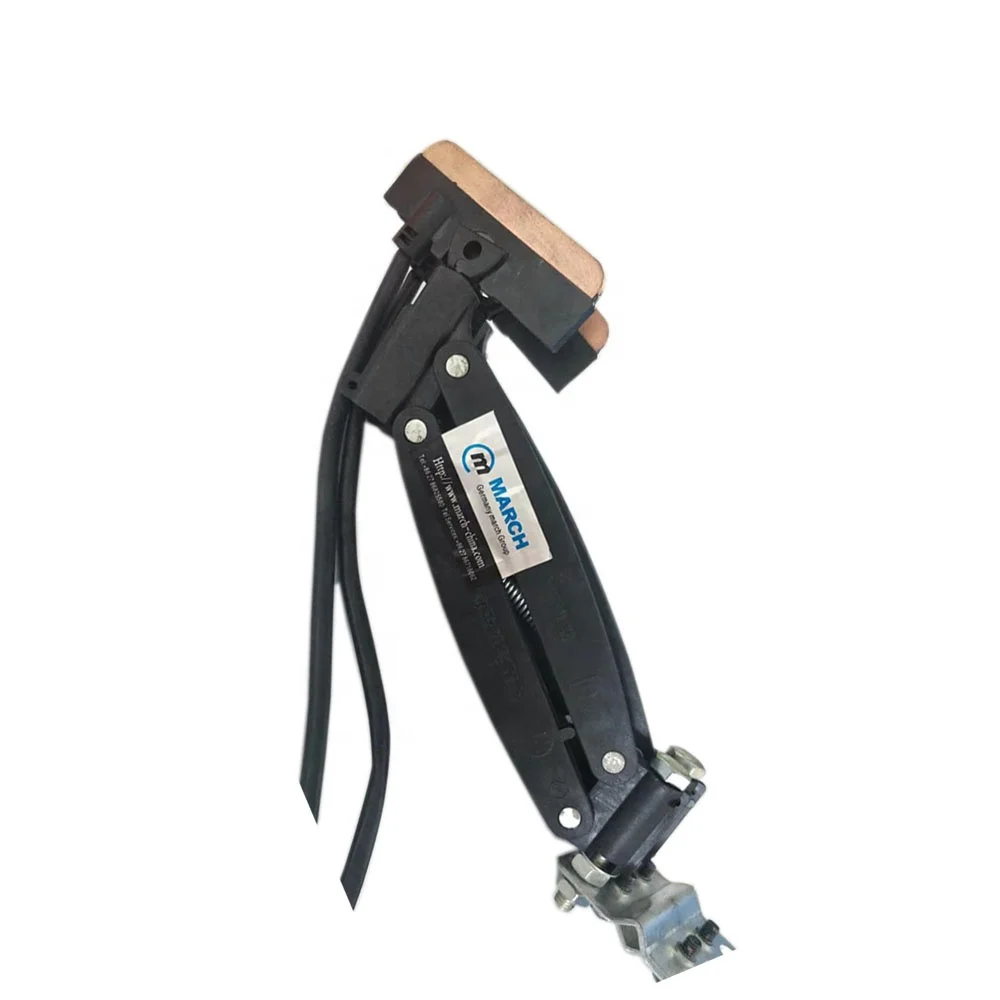

Top sale Carbon  60A 120A current collector for seamless conductor bar





Quick details

Place of Origin: wuhan, China (Mainland)                         Brand Name:March



Model number:JDQ                                                           Certificate:ISO,CCC,CE

Rated voltage:550V-770V                                                  Rated current:60A-120A

Material:Plastic carbon                                                      Color:black





Type	Rating	Weight(KG)	Material	Remark
JDQ230015	660V60A	0.17	Plastic&Carbon	Phase
JDQ230025	660V60A	0.17	Plastic&Carbon	ground
JDQ230016	660V120A	0.34	Plastic&Carbon	Phase
JDQ230026	660V120A	0.34	Plastic&Carbon	ground

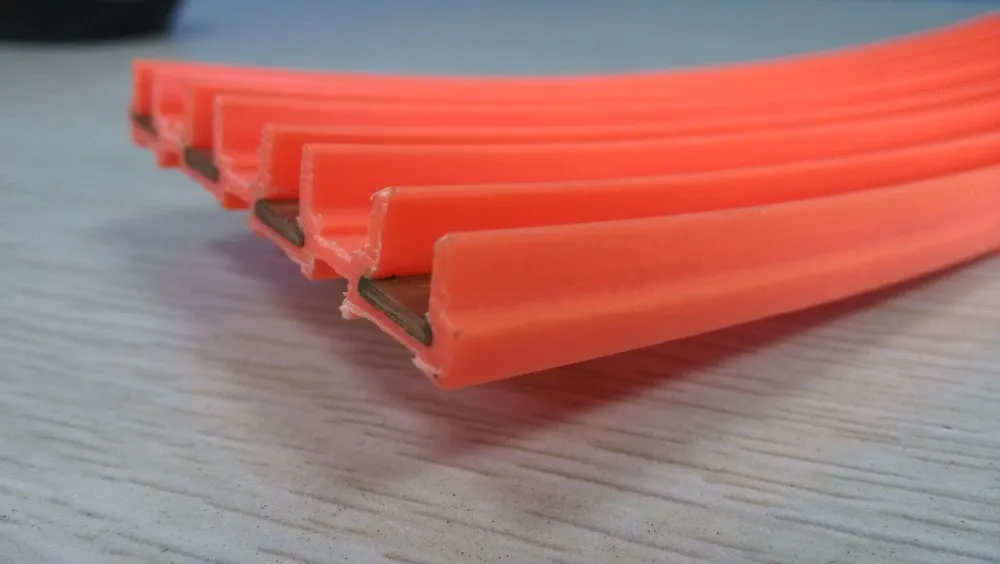

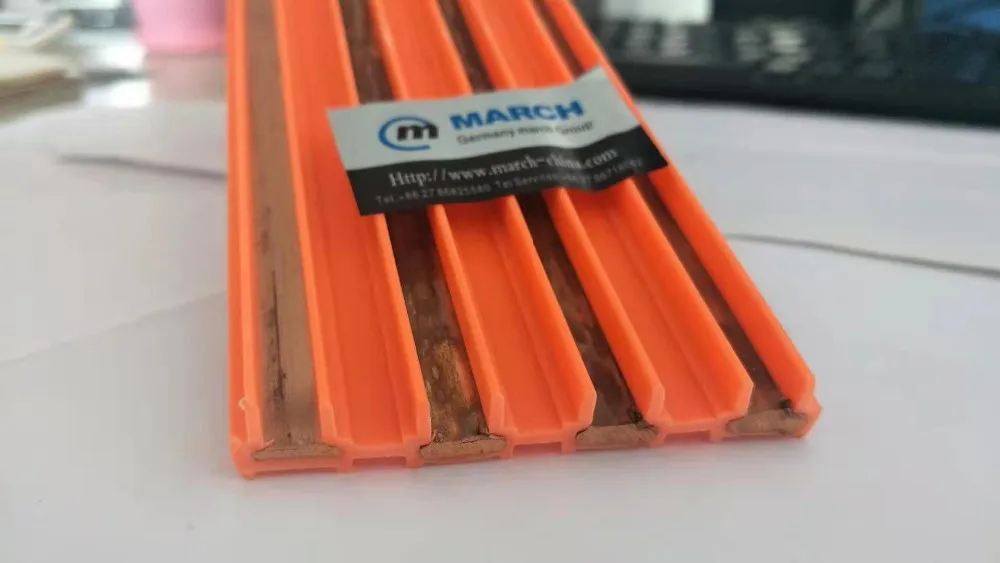

Seamless conductor bar



Type	Poles	Conductor cross     section(mm2)	MAX Current(A)	Order-No
WJF-4-10/50A	4	4*10	50	224001
WJF-4-15/80A	4	3*15+1*10	80	224004
WJF-4-20/100A	4	3*20+1*10	100	224005
WJF-4-25/120A	4	3*25+1*12.5	120	224006
WJF-4-35/140A	4	3 *35+1*15	140	224007







Product Details:

Rating:4P:660V  50A-120A

Conductor material:copper

Insulation jacket material:rigid PVC(heat resistance: 75℃)

                  Orange (dangerous color)





Product picture:









Wuhan March Industrial Electric Co.,Ltd ,

which founded in 2003, is a professional factory for mobile power , Insulated conductor bar power range from 60A to 2500A.Always keep provide Chinese factory price and Germany technical and quality gurantee is our advantage . !

Company currently has 120 professional and technical personnel, 20 advanced mechanical and electrical engineers , 30 senior technicians . A port machinery and after-sales personnel 50, crane installation and maintenance workers 30.
