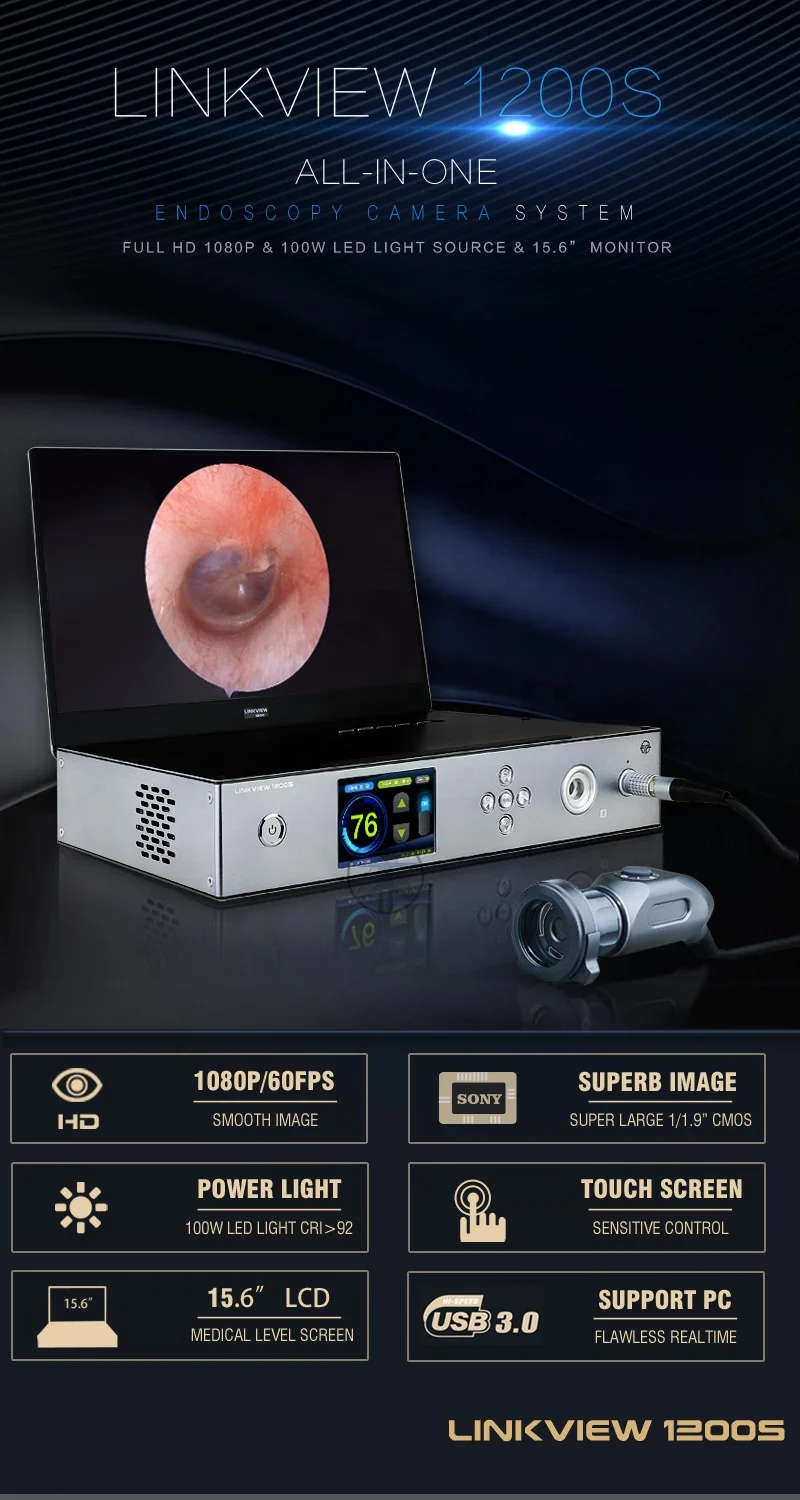

Technique Data

    Sensor    1/1.9” Sony IMX CMOS
    Pixels    2,130,000 Pixels

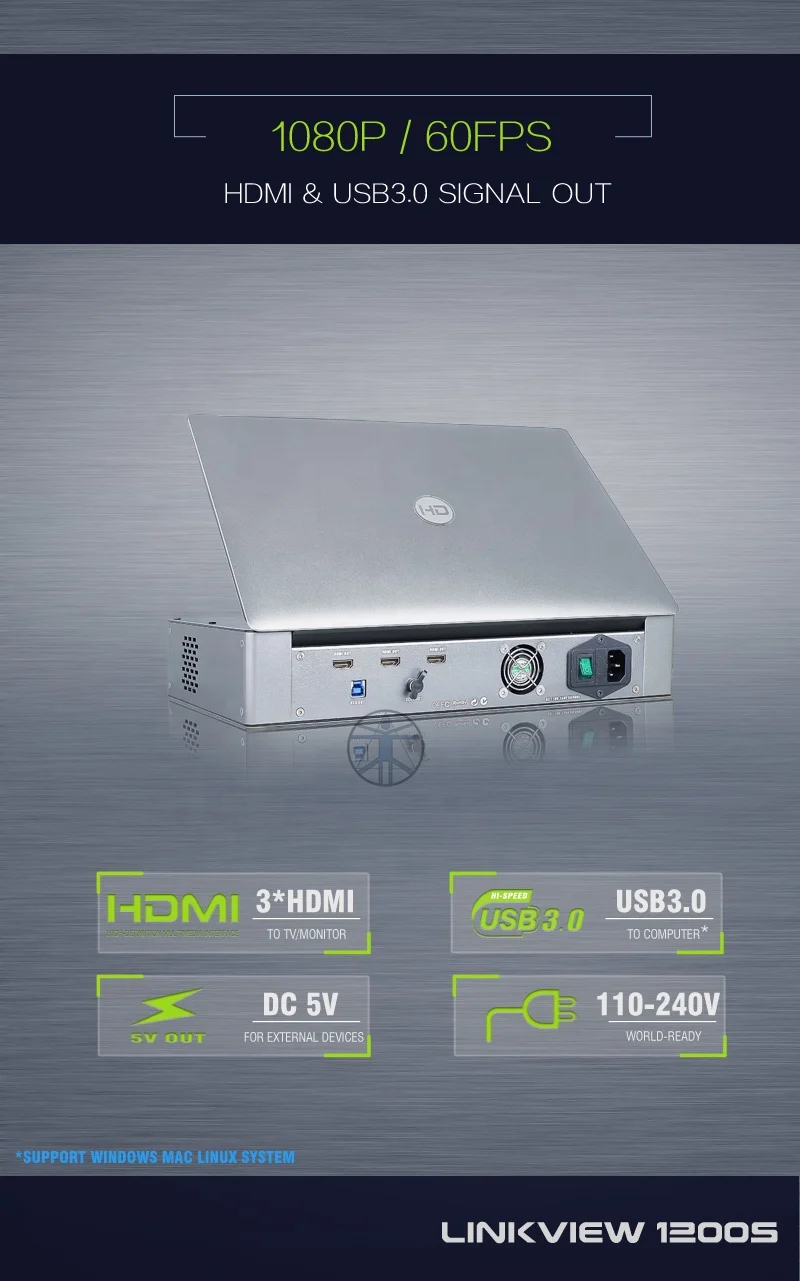

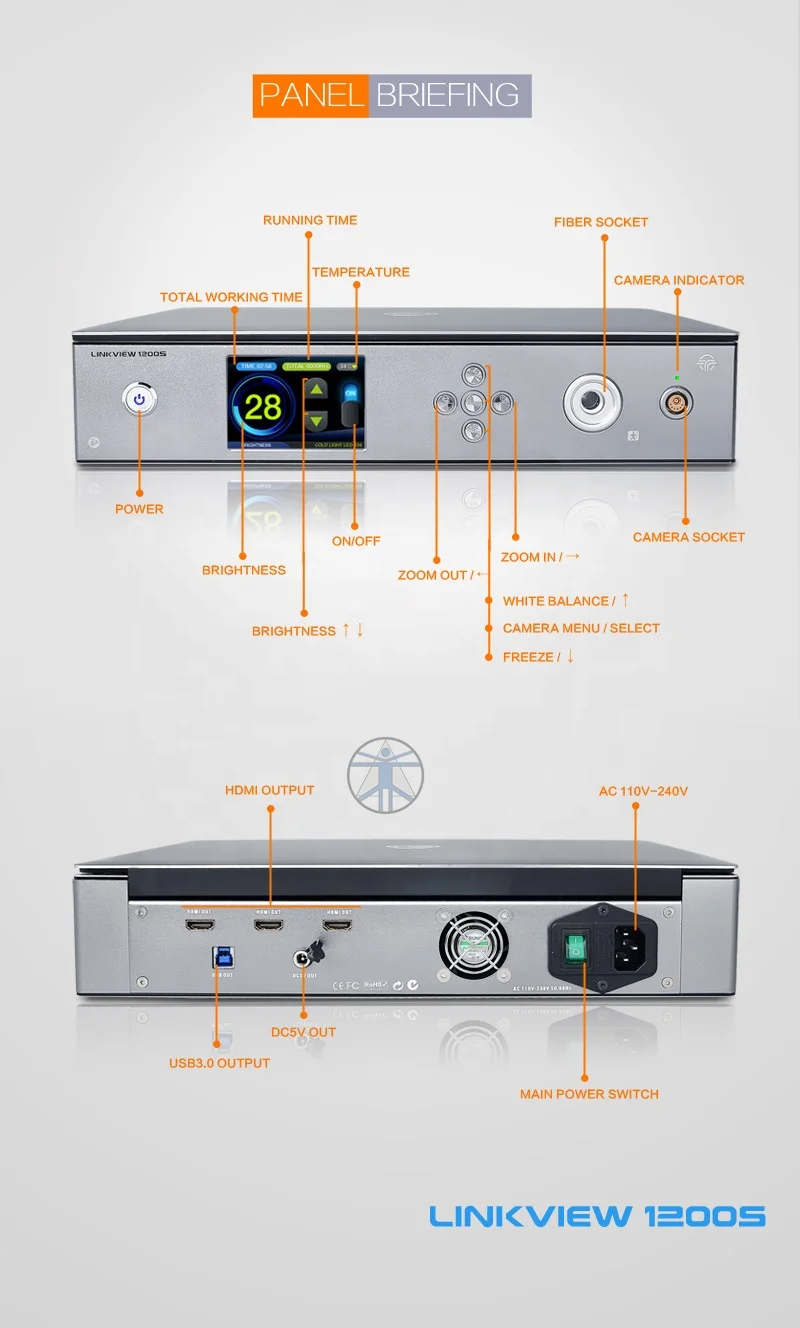

    Output Interface    HDMI, SDI, VGA,DVI,CVBS
    Output Resolution    1920*1080/(30/60fps),1280*720…
    White Balance    Auto/Auto ext/Preset/Manual
    Digital Zoom    1-16X
    Image Freeze    Yes

Image Data    Brightness Adjustment    Yes
    SNR    >42dB(AGC off)
    Scanning Mode    Progressive Scanning
    Min-illumination    0.00017LUX
    Digital Noise Reduction    Yes
    ACE&WDR    Off/Low/Middle/High; WDR SNR:120Db
    Image Mirror    Yes
    Image Position    Vertical
    Back Light Compensation    Yes

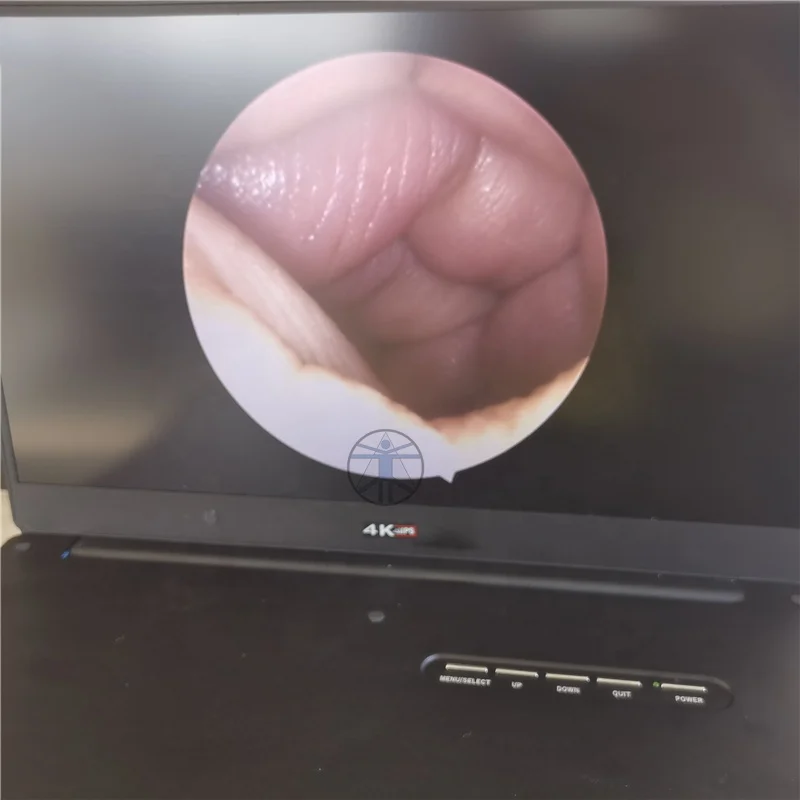

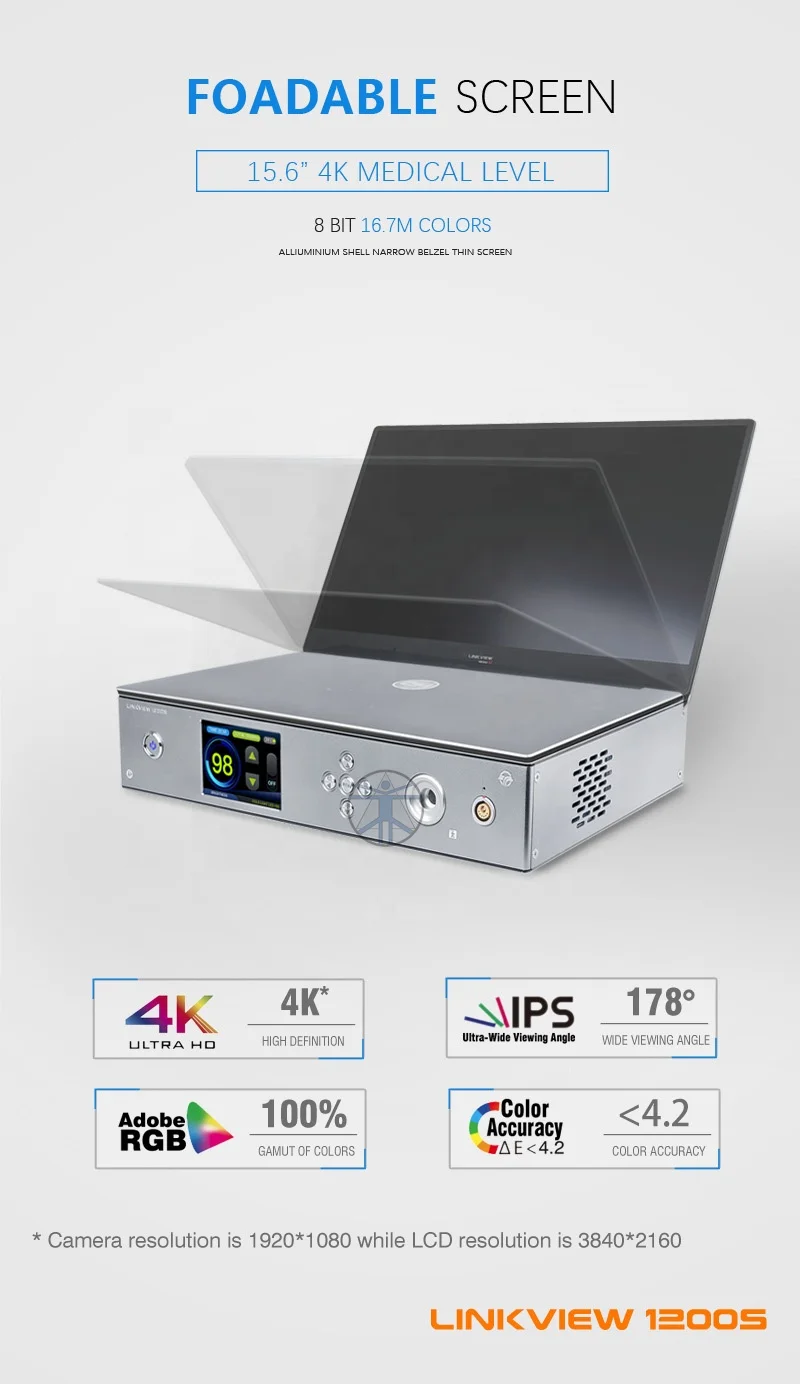

    Screen Size    15.6”
    LCD resolution    3840*2160
    Gamut    100% Adobe RGB

Screen Data    Support Color    16.7M(8-bit)
    Work Mode    IPS
    Viewing Angle    89/89/89/89
    Contrast Ratio    1000:1

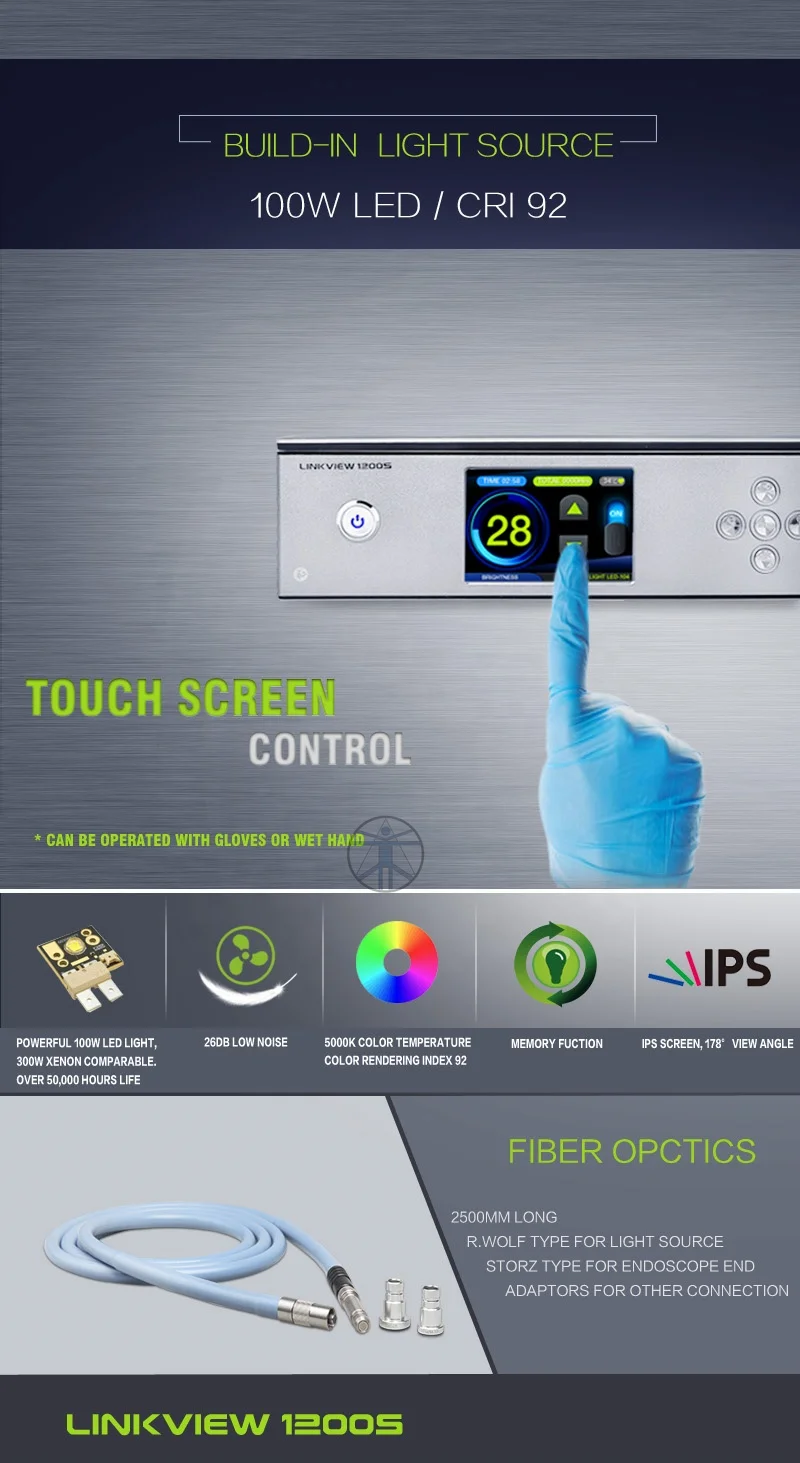

    Light Source    LED
Light Source    Power Assumption    100W
    Lux    >4,000,000Lux
Data
    Color Temperature    5500K
    Color Rendering Index    92
    Total Power Assumption    140W
    Input Voltage    AC110V-250V 50/60Hz
System Data    Noise    <30dB
    Environment    5-40℃
    Dimension    370mm*240mm*75mm
    Net Weight    4.5Kg
