Vibratory Deburring Bowls Finishing Machine
US $750.00-$800.00
Автоматическая полировальная машина для кухонной посуды из нержавеющей стали
- Category: Metal Polishing Machine >>>
- Supplier: Huzhou Zhenxi Hengda Grinding Material Factory
Share on (62379427995):
Product Overview
Description
Product Description
Applications:
suitable for deburring and metal polishing of aluminum, brass, copper, stainless steel, and iron workpieces such as machined parts, injection molding parts, stamping parts, and die casting parts.
ZDPA Vibratory Finishing Machine Feature:
• Timing settings
• Drain and unload product functions
• PU lining for longer machine life
• Large capacity, suitable for product deburring and polishing
ZDPA Vibratory Finishing Machine Optional setting:
• Sound Cover (ZDPA-A)
• Compound Dosing Pump
• Variable Frequency Drives
• PLC touch screen control panel
Feature:
1. Large loading capacity and wide application range
2. Manually separate polishing media and products
3. Easy to operate
4.Suitable for large batch processing

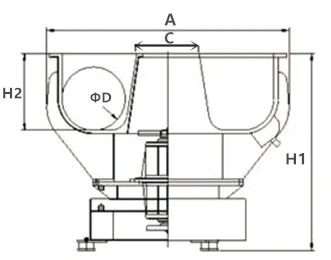

Engineering Drawings
Technical Parameters
| Mode | Total volume (L) | Max overall dimension A1 (mm) | Bowl diameter A (mm) | Motor installation tube C (mm) | Process bowl width D (mm) | Unload width B (mm) | Unload height H3 (mm) | Tunnel depth H2 (mm) | Machine height H1 (mm) | Motor (kw) | Weight (kg) |
| ZDPD150 | 150 | 1100 | 1030 | 450 | 230 | 190 | 650 | 300 | 830 | 1.5/2.2 | 290 |
| ZDPD200 | 200 | 1300 | 1180 | 520 | 280 | 250 | 680 | 340 | 860 | 2.2/3.0 | 350 |
| ZDPD400 | 400 | 1500 | 1450 | 610 | 340 | 320 | 820 | 400 | 980 | 3.7/5.0 | 650 |
| ZDPD600 | 600 | 1950 | 1850 | 910 | 400 | 350 | 1030 | 480 | 1250 | 5.5/7.5 | 1400 |
| ZDPD1200 | 1200 | 2200 | 2150 | 860 | 550 | 500 | 1300 | 560 | 1600 | 11.0 | 2500 |
